    Azoteq IQ Switch ® ProxSense Series ® IQS263BEV02 USER GUIDE IQ Switch - ProxSense Series ® ® Copyright © Azoteq (Pty) Ltd 2019. IQS263B EV02 User Guide Page 1 of 17 All Rights Reserved. Revision 2.1 May 2021...
  • Page 2: Table Of Contents

    Event Mask ...........................15 Multipliers & Compensation ......................15 Thresholds ............................15 Timings, Targets & Gestures ....................15 Data Logging ..........................15 REFERENCE DESIGNS ......................... 16 Copyright © Azoteq (Pty) Ltd 2019. IQS263B EV02 User Guide Page 2 of 17 All Rights Reserved. Revision 2.1 May 2021...
  • Page 3: Introduction

    Connect the driver board to the ribbon cable > Run the IQS263B GUI (latest version available from the Azoteq.com website) Copyright © Azoteq (Pty) Ltd 2019. IQS263B EV02 User Guide Page 3 of 17 All Rights Reserved. Revision 2.1 May 2021...
  • Page 4: Driver Board And Iqs263B Ic

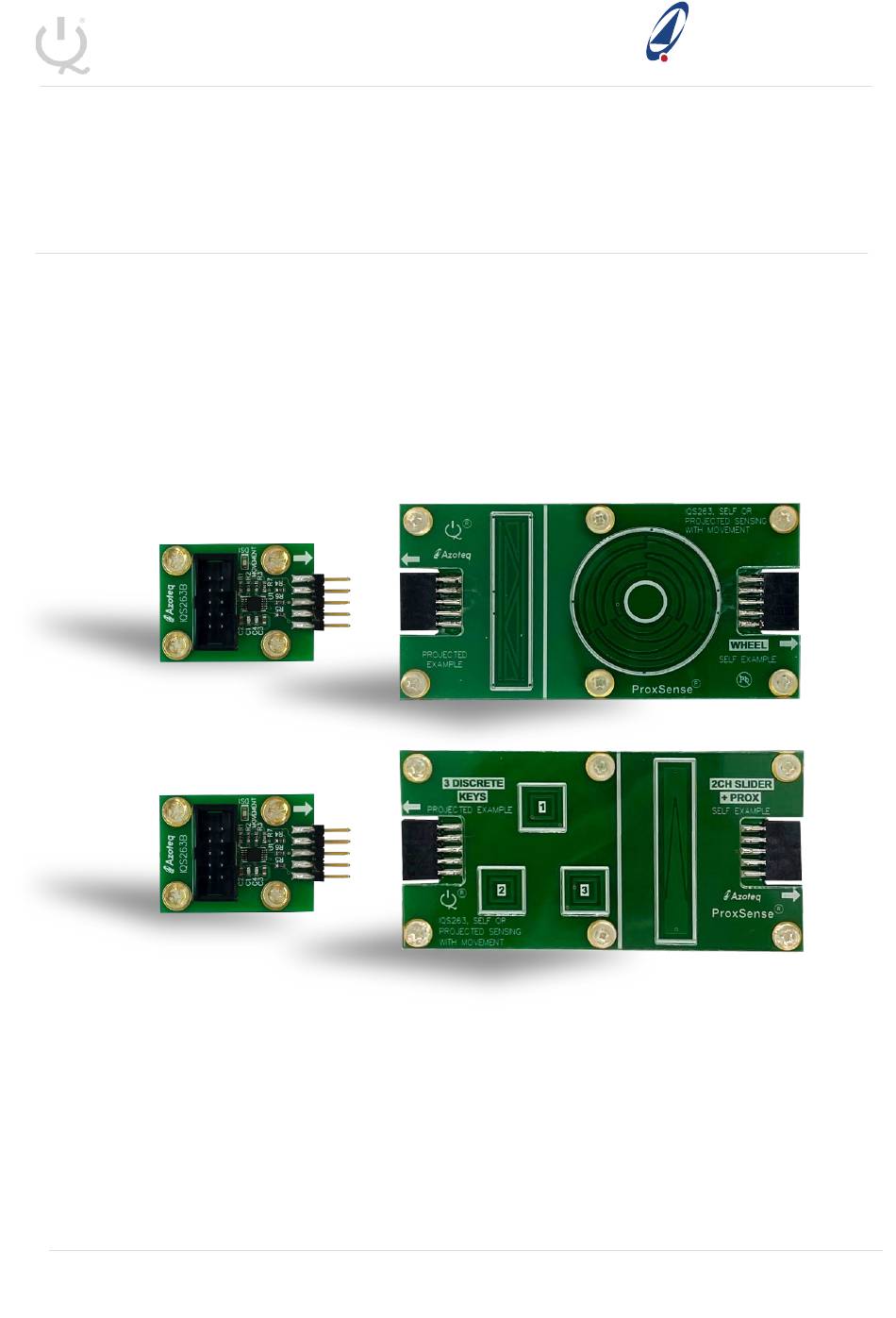

    We suggest evaluating the supplied demo boards with the driver board. After this evaluation, the user may want to develop other button/slider/wheel boards to connect with the driver board. Copyright © Azoteq (Pty) Ltd 2019. IQS263B EV02 User Guide Page 4 of 17 All Rights Reserved.
  • Page 5: Red Led On Driver Board

    The GUI will load the default settings for the wheel demo board onto the IQS263B on the driver board. The GUI will now resemble the figure shown below. Copyright © Azoteq (Pty) Ltd 2019. IQS263B EV02 User Guide Page 5 of 17 All Rights Reserved.
  • Page 6: Bar Area Explained

    (in low power mode); green (in normal power mode) or blue (in normal power mode). When channel 0 turns blue it indicates a proximity event. Channels 1 to 3 are green when not touched and red when touched on the wheel. Copyright © Azoteq (Pty) Ltd 2019. IQS263B EV02 User Guide Page 6 of 17 All Rights Reserved.
  • Page 7: Wheel/Slider Area Explained

    Return to the GUI and do the following: Click the Start button • Select the 3 Channel Slider in the “Select startup mode :” window. • Copyright © Azoteq (Pty) Ltd 2019. IQS263B EV02 User Guide Page 7 of 17 All Rights Reserved. Revision 2.1...
  • Page 8 GUI is shown below. Figure 5-2:IQS263B GUI loaded with wheel demo (Projected Example side) settings This setup and GUI is like the wheel demo board setup. Copyright © Azoteq (Pty) Ltd 2019. IQS263B EV02 User Guide Page 8 of 17 All Rights Reserved.
  • Page 9: Keys Demo Board

    Click the Start button > Select the 3 Discrete Keys option in the “Select startup mode : ” window. The GUI will look as shown below. Copyright © Azoteq (Pty) Ltd 2019. IQS263B EV02 User Guide Page 9 of 17 All Rights Reserved.
  • Page 10 Each charge cycle is default 22ms, and the default tap time multiplier is chosen at 16. This and many other settings can be set in the Settings window, which is accessed through the Setup button. Copyright © Azoteq (Pty) Ltd 2019. IQS263B EV02 User Guide Page 10 of 17 All Rights Reserved.
  • Page 11: Channel Slider + Prox

    > Select the 2 Channel Slider + Prox option in the “Select startup mode :” window. The GUI will look as shown below. Copyright © Azoteq (Pty) Ltd 2019. IQS263B EV02 User Guide Page 11 of 17 All Rights Reserved.
  • Page 12 Left and right flicks are indicated under the events menu with a left and right arrow. A “Flick Left” or “Flick Right” message also appears on the bar area. Copyright © Azoteq (Pty) Ltd 2019. IQS263B EV02 User Guide Page 12 of 17 All Rights Reserved.
  • Page 13: Choosing Settings (For Advanced Users)

    These settings can be changed, and the effect can be seen in the GUI. After settings have been sent to the IQS263B it is advised to perform a “Redo ATI” as this will ensure the changes are applied on the IQS263B. Copyright © Azoteq (Pty) Ltd 2019. IQS263B EV02 User Guide Page 13 of 17 All Rights Reserved.
  • Page 14: Settings Window

    The following byte includes: > Sleep Halt > Wake 2 Directions > Wheel / Slider Filter > Movement > Copyright © Azoteq (Pty) Ltd 2019. IQS263B EV02 User Guide Page 14 of 17 All Rights Reserved. Revision 2.1 May 2021...
  • Page 15: Prox Settings 3

    Data Logging The channels data and events can be logged in a text (.txt) file. For more information on these settings, consult the datasheet. Copyright © Azoteq (Pty) Ltd 2019. IQS263B EV02 User Guide Page 15 of 17 All Rights Reserved.
  • Page 16: Reference Designs

    Series ® Reference Designs For further technical detail the datasheet should be consulted and can be found at the Azoteq website. Some reference designs from the datasheet are shown below. Figure 9-1: IQS263B Projected Capacitive Reference Design Figure 9-2: IQS263B Self-Capacitive Reference Design Copyright ©...
  • Page 17 Azoteq assumes no liability for any damages or injury arising from any use of the information or the product or caused by, without limitation, failure of performance, error, omission, interruption, defect, delay in operation or transmission, even if Azoteq has been advised of the possibility of such damages.
