EL-IOT-CO2
Carbon Dioxide WiFi Cloud-Connected Data Logger
• Monitor the air quality in homes, schools and offices
• Measures:
Carbon dioxide (CO
Temperature
Humidity
• Automatically uploads data to the EasyLog Cloud
• Display shows current, maximum and minimum
readings
• Status indicators and sounder
• Set up instant alarms and notifications
• Readings are recorded even if the WiFi signal is lost
The EL-IOT-CO2 continuously monitors air quality and comfort levels,
including CO
, a key indicator of adequate ventilation. It automatically
2
uploads data to the EasyLog Cloud, allowing your complete set of
data measurements to be viewed, analysed and downloaded from
any internet-enabled device.
Carbon Dioxide
Temperature
Humidity
)
2
It takes only a few minutes to set up your
EL-IOT-CO2, and you can configure your own
high and low alarms for each measured
parameter. If one of your set levels is
breached an instant alarm is activated
on the device, and notification options
include email and SMS messages to
your chosen contacts.

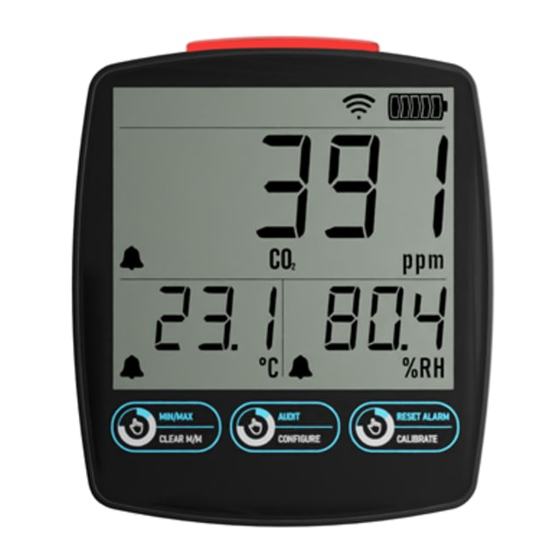

The display shows current, maximum
and minimum readings for carbon dioxide,
temperature and humidity, as well as alarm and
device status.
The EL-IOT-CO2 runs from a USB power supply
(supplied with the product) and can use AA batteries
to provide a short-term backup if the power supply
is interrupted. It is also provided with a wall
mountable bracket for easy installation.
www.lascarelectronics.com
Your data, anytime, anywhere
Continuously
monitors air
quality
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for EasyLog EL-IOT-CO2
Summary of Contents for EasyLog EL-IOT-CO2
- Page 1 The EL-IOT-CO2 continuously monitors air quality and comfort levels, including CO , a key indicator of adequate ventilation. It automatically uploads data to the EasyLog Cloud, allowing your complete set of data measurements to be viewed, analysed and downloaded from any internet-enabled device.
- Page 2 Starter and Professional accounts are available, always flexible and with no locked-in contracts. If you choose not to connect your EL-IOT-CO2 to the Cloud, it will still measure and display readings, but will not record data and you won’t be able to use any of the additional features of the EasyLog Cloud, including email and SMS notifications.
- Page 3 Update Failed and will automatically firmware version revert to the previous version The logger has not yet been connected to the EasyLog Cloud, Not configured readings will be You should activate displayed but not Calibration the CO Fresh Air...
-
Page 4: Button Functions
RESET ALARM (they will immediately Short Press re-trigger if an alarm threshold is breached) You can now view the EL-IOT-CO2’s data and change settings either in the EasyLog Enter CO Fresh Air Cloud App or by visiting your account at:... -
Page 5: Specifications
Carbon Dioxide WiFi Cloud-Connected Data Logger Your data, anytime, anywhere FRESH AIR CALIBRATION SPECIFICATIONS To maintain the accuracy of your EL-IOT-CO2, the CO sensor needs to recalibrate itself every 6 months. The warning icon Measurement will activate to remind you when it is time. Expose the device... -
Page 6: Operating Conditions
EL-IOT-CO2 Carbon Dioxide WiFi Cloud-Connected Data Logger Your data, anytime, anywhere OPERATING CONDITIONS SENSOR ACCURACY AND INFORMATION The performance of the humidity sensor can be affected by long-term exposure to operating conditions at the extents of the logger’s range. Typical and maximal tolerance... -
Page 7: Battery Information
Use only Wall mounting bracket AA 1.5V alkaline batteries. We recommend you replace the batteries annually. When the EL-IOT-CO2 is in battery mode, fresh air calibration is not possible. CALIBRATION CERTIFICATES EL-IOT BAT 1V5 AA PK4...
