Summary of Contents for Art's-Way Manufacturing 660800
Page 1

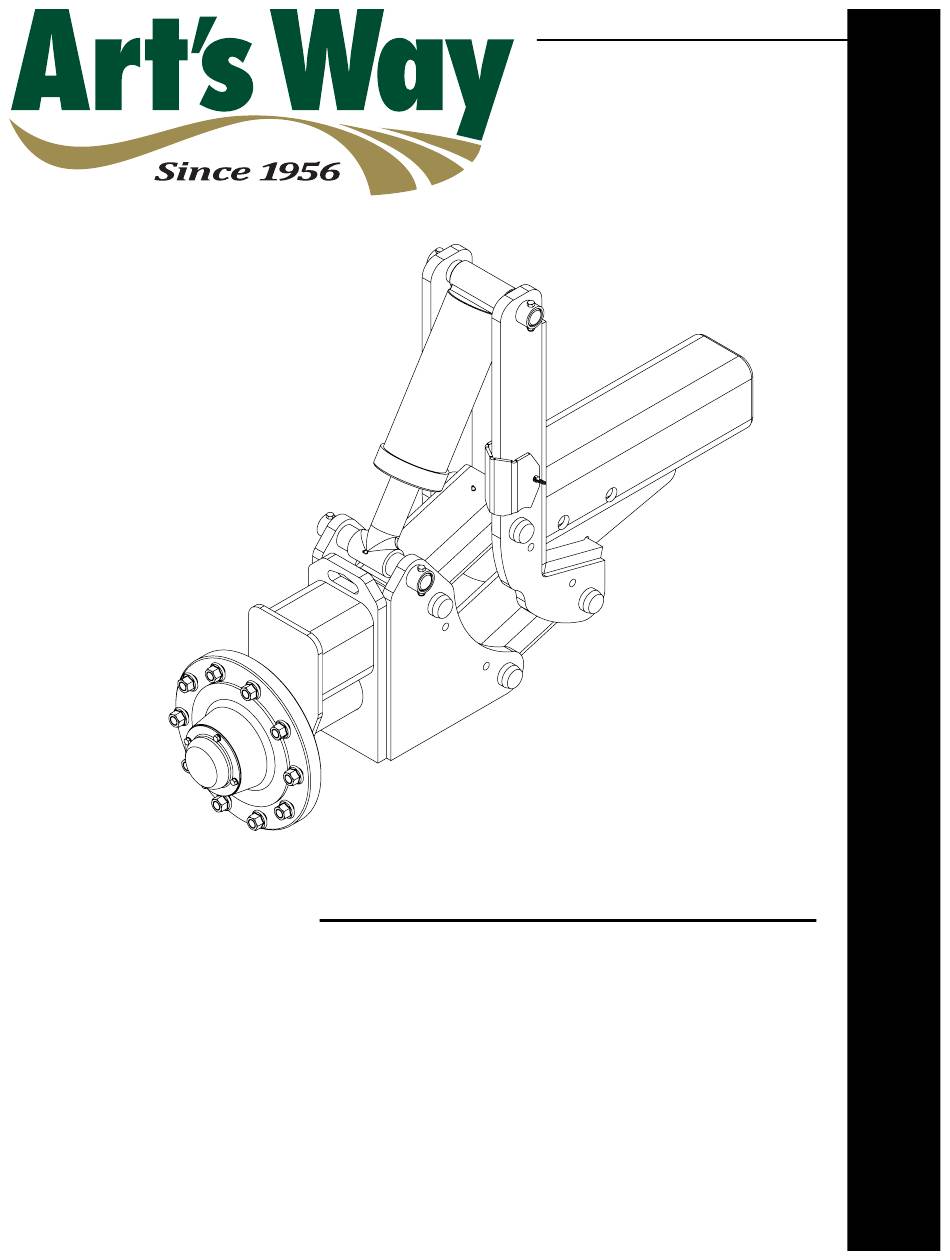

Art’s-Way Manufacturing Co., Inc. Model 660800 6812 Leveling & Depth Control Kit SIMILAR PART(S): NEW MODEL ON SOLIDWORKS DESCRIPTION REVISIONS NOTE: DO NOT SCALE Operator’s Manual & Illustrated Parts List EXCEPT AS MAY BE OTHERWISE PROVIDED BY CONTRACT. THESE DRAWINGS AND SPECIFI- CATIONS ARE THE PROPERTY OF ARTS-WAY MFG.
Page 2
This symbol means ATTENTION! BECOME ALERT! YOUR SAFETY IS IN- VOLVED. The message that follows the symbol contains important information about your safety. Carefully read the message. Make sure you fully understand the causes of possible injury or death. IF THIS MACHINE IS USED BY AN EMPLOYEE, IS LOANED, OR IS RENTED, MAKE SURE THAT THE OPERATOR UNDERSTANDS THE TWO INSTRUCTIONS BELOW.
This manual contains operating instructions for your 660800 6812 Leveling & Depth Control Kit only. Any mention of other machinery in this manual other than the 660800 6812 Leveling & Depth Control Kit is for reference only. This manual does not replace nor is it to be used for any machinery that may be attached to or used in conjunction with the 660800 6812 Leveling &...
PARTS & SERVICE PARTS & SERVICE As the purchaser of your new [MACHINE] (S), it is very important to consider the following factors: A. Original Quality B. Availability of Service Parts C. Availability of Adequate Service Facilities Art’s-Way Manufacturing Co., Inc. has an excellent dealership network ready to answer any questions you may have about your [MACHINE] (S).
TABLE OF CONTENTS TABLE OF CONTENTS TO THE OWNER SPECIFICATIONS AND DESIGN ARE SUBJECT TO CHANGE WITHOUT NOTICE Art’s-Way Manufacturing Co., Inc. STATEMENT OF PRODUCT LIABILITY IMPORTANT WARRANTY INFORMATION LIMITATIONS OF THIS MANUAL PARTS & SERVICE TABLE OF CONTENTS LIMITED WARRANTY SAFETY FIRST NOTICES OF DANGER, WARNING, AND CAUTION Safety Instructions...
Page 6
TABLE OF CONTENTS TABLE OF CONTENTS NAME PAGE HITCH ASSEMBLY Manual No. 660885 Art’s-Way Manufacturing Co., Inc.
LIMITED WARRANTY LIMITED WARRANTY FOR NEW ART’S WAY MANUFACTURING CO. FARM MACHINERY (U.S. ONLY) LIMITED WARRANTY FOR NEW ART’S WAY MANUFACTURING CO. FARM MACHINERY GENERAL PROVISIONS: Art’s Way Manufacturing Co., Inc. (Art’s Way Mfg.) warrants the products it sells to be free from defects in material and workmanship for the periods of time set forth in the Warranty Table below.
SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS GENERAL Safety Alert Symbols This is the safety alert symbol. It Most work related accidents are caused is used to alert you to potential by failure to observe basic safety rules personal injury hazards. Obey all or precautions.
Art’s-Way Manufacturing Co., Inc. strives to make our equipment as safe as possible. The Art’s- Way 660800 6812 Leveling & Depth Control Kit Note: Contains additional information important conforms to applicable safety standards at the time to a procedure and will be found within the of manufacturing.
SAFETY FIRST BEFORE OPERATING Keep all shields and guards in place and in good working condition. SAFETY INSTRUCTIONS Keep all bystanders, especially children, away from the [MACHINE] (S) while in Do not wear loose fitting clothing as it may operation. catch in moving parts.
SAFETY FIRST HYDRAULIC SAFETY Make sure the Slow Moving Vehicle (SMV) emblem and all lights and reflectors required by local highway and transportation SAFETY authorities are properly in place, clean, and INSTRUCTIONS clearly visible to traffic. Follow all operating, maintenance, and safety instructions found in this Manu- Do not allow riders on any machinery during transport.
SAFETY FIRST TIRE SAFETY ASSEMBLY SAFETY SAFETY SAFETY INSTRUCTIONS INSTRUCTIONS Follow all operating and safety instruc- Follow all assembly, operating, and tions found in this manual when work- safety instructions found in this manu- ing around tires. al when assembly this equipment. Have only a qualified tire dealer or tire Use adequate manpower to perform repair service perform tire repairs.
Page 14
SAFETY FIRST THIS PAGE LEFT INTENTIONALLY BLANK Manual No. 660885 Art’s-Way Manufacturing Co., Inc.
Page 15
SECTION 1: parts & installation SECTION 1: PARTS & INSTALLATION Art’s-Way Manufacturing Co., Inc.. Manual No. 660885 SIMILAR...
Page 16
SECTION 1: parts & installation WELD-ON PARTS WELD HERE 1.75 7.50 Manual No. 660885 Art’s-Way Manufacturing Co., Inc.
Page 17
MOUNT, HOSE CLAMP Harness and Hose Mounts SIMILAR PART(S): 619640 STRIP, HARNESS Art's-Way Manufacturing Co., Inc. Armstrong, Iowa 50514-0288 Phone: (712) 864-3131 If welding is being performed while the unit is connected to a tractor, it is highly recommended that the 07/03/18...
Page 18
SECTION 1: parts & installation WELD-ON PARTS WELD HERE 2.19 (CENTERED OVER FRAME TUBE) WELD HERE 2.00 Manual No. 660885 Art’s-Way Manufacturing Co., Inc.
Page 19
SECTION 1: parts & installation ITEM NO. PART NUMBER DESCRIPTION QTY. 660801 MOUNT, CONTROLLER 660814 MOUNT, MANIFOLD 114280 MOUNT, HOSE CLAMP 619640 STRIP, HARNESS INSTALLING “WELD-ON” COMPONENTS For machines produced prior to 2020 the following parts will need to be welded onto the unit: Controller (Computer) mount Hydraulic Manifold Mount Harness and Hose Mounts...
Page 20
SECTION 1: parts & installation WELD-ON PARTS Manual No. 660885 Art’s-Way Manufacturing Co., Inc.
Page 21
SECTION 1: parts & installation ITEM NO. PART NUMBER DESCRIPTION QTY. 660801 MOUNT, CONTROLLER 660814 MOUNT, MANIFOLD 114280 MOUNT, HOSE CLAMP 619640 STRIP, HARNESS INSTALLING “WELD-ON” COMPONENTS For machines produced prior to 2020 the following parts will need to be welded onto the unit: Controller (Computer) mount Hydraulic Manifold Mount Harness and Hose Mounts...
Page 22
ITEM NO. PART NUMBER DESCRIPTION 660400 6812 LEVELING AXLE KIT 522110 SEAL, GREASE SIMILAR PART(S): 605840 FITTING, HYD STRAIGHT Art's-Way Manufacturing Armstrong, Iowa 50514-02 Phone: (712) 864-3131 07/03/18 NEW MODEL ON SOLIDWORKS Fax: (712) 864-3154 DESCRIPTION APPR DATE E.C.N. SCALE...
Page 23
SECTION 1: parts & installation SIMILAR PART(S): NEW MODEL ON SOLIDWORKS DESCRIPTION REVISIONS NOTE: DO NOT SCALE EXCEPT AS MAY BE OTHERWISE PROVIDE ITEM NO. PART NUMBER DESCRIPTION QTY. CONTRACT. THESE DRAWINGS AND SPEC CATIONS ARE THE PROPERTY OF ARTS-W MFG.
Page 24
SECTION 1: parts & installation THIS PAGE LEFT INTENTIONALLY BLANK Manual No. 660885 Art’s-Way Manufacturing Co., Inc.
Page 25
SECTION 1: parts & installation CONTROLLER & MANIFOLD INSTALL PORT "B2" CONNECT TO REAR AXLE CYLINDER (BASE) PORT "A2" CONNECT TO REAR PORT "T" AXLE CYLINDER (ROD END) CONNECT TO ROWFINDER "OUT" PORT PORT "B1" TEE INTO BASE END OF HITCH RAISE/LOWER CYLINDERS PORT "P"...
Page 26
SECTION 1: parts & installation CONNECT TO "P" PORT ON FRONT SIDE OF DEPTH CONTROL MANIFOLD CONNECT TO "T" PORT ON CONNECT TO "B1" PORT FRONT SIDE OF DEPTH ON DEPTH CONTROL CONTROL MANIFOLD MANIFOLD CONNECT TO TRACTOR SCV VALVE, USED TO EXTEND HITCH CYLINDERS CONNECT TO "A1"...
Page 27
SECTION 1: parts & installation HYDRAULIC INSTALLATION CONNECT TO PORT "B1" ON DEPTH CONTROL MANIFOLD CONNECT TO PORT "B1" CONNECT TO TEE FITTING AT ON DEPTH CONTROL MANIFOLD BASE END OF LH HITCH CYLINDER CONNECT TO TEE FITTING AT BASE END OF LH HITCH CYLINDER CONNECT TO PORT "A1"...
Page 28
SECTION 1: parts & installation CONNECT TO "P" PORT ON BACKSIDE OF DEPTH CONTROL MANIFOLD CONNECT TO "T" PORT ON BACKSIDE OF DEPTH CONTROL MANIFOLD ALLOWS RESTRICTED FLOW INTO THE ROWFINDER VALVE "OUT" PORT CLOSED CENTER ROWFINDER VALVE P/N: 583650 "IN"...
Page 29
SECTION 1: parts & installation GENERAL HYDRAULIC OPERATION The Leveling and Depth Control System operates on a “Closed Center” circuit. Typically, it is installed in the same circuit that the Rowfinder operates on. The SCV valve used to operate the Rowfinder and Depth Control System should be set to the highest flow available.
Page 30
SECTION 1: parts & installation LABELED "RHT-TILT-SOL" ON DEPTH CONTROL HARNESS LABELED "LFT-TILT-SOL" (CONTROLS THE LEVELING CYLINDER) ON DEPTH CONTROL HARNESS (CONTROLS THE LEVELING CYLINDER) LABELED "HDR-DN-SOL" ON DEPTH CONTROL HARNESS (CONTROLS THE HITCH CYLINDERS) LABELED "HDR-UP-SOL" ON DEPTH CONTROL HARNESS (CONTROLS THE HITCH CYLINDERS) SIMILAR PART(S): 07/03/18...
Page 31
SECTION 1: parts & installation HYDRAULIC INSTALLATION CONNECT TO PORT "B1" ON DEPTH CONTROL MANIFOLD CONNECT TO TEE FITTING AT BASE END OF LH HITCH CYLINDER CONNECT TO PORT "A1" ON DEPTH CONTROL MANIFOLD CONNECT TO TEE FITTING AT ROD END OF LH HITCH CYLINDER PRE-6812-D PRODUCTION ITEM SIMILAR PART(S):...
Page 32
SECTION 1: parts & installation SONAR & ROWFINDER INSTALL MOUNTING TO A "FLEX" STRUT MOUNTING TO A "FLEX" STRUT MOUNTING TO A "FIXED" STRUT SIMILAR PA MOUNTING TO NEW MODEL O A "FIXED" STRUT NOTE: DO EXCEPT AS MAY BE OTH CONTRACT.
Page 33
SECTION 1: parts & installation THIS PAGE LEFT INTENTIONALLY BLANK Art’s-Way Manufacturing Co., Inc.. Manual No. 660885...
Page 34
SECTION 1: parts & installation THIS PAGE LEFT INTENTIONALLY BLANK Manual No. 660885 Art’s-Way Manufacturing Co., Inc.
Page 35
SECTION 2: SOFTWARE AND OPERATION SECTION 2: SOFTWARE AND OPERATION Art’s-Way Manufacturing Co., Inc.. Manual No. 660885...
Page 36
SECTION 2: SOFTWARE AND OPERATION SYSTEM OPERATION Once all physical components are installed and general hydraulic function is confirmed, the harness can be connected to the ISO-BUS port on the back of the tractor. Follow all safety precautions, ensuring personnel are clear of the machine. Start the tractor like normal. The first time the tractor is started after hooking up the new controller, new software will be loaded onto the VT (Virtual Terminal), this usually takes less than a minute.
Page 37
SECTION 2: SOFTWARE AND OPERATION Selecting the Art’s Way tab will open the Depth and Leveling Control system. A brief screen showing the Art’s Way logo will appear, followed by the system home screen shown above. At this time, uncheck the boxes for Auto Depth Control and Auto Level Control. Use the tractor SCV Valve to raise the front of the unit to full height.
Page 38
SECTION 2: SOFTWARE AND OPERATION Move the unit to a fairly level surface, a cement shop floor is ideal. Using the tractor SCV valve along with softkeys “D” and “I” level the machine and lower it to the ground. Attempt to get the lifter wheels on each end of the head to touch the floor simultaneously.
Page 39
SECTION 2: SOFTWARE AND OPERATION On the home screen, the left, right, and center depths should all read at or close to “0.0 inches”. At this time, check the box labeled Auto Level Control (as shown above). Press the softkey “A” to engage the system, it will turn from green to red.
Page 40
SECTION 2: SOFTWARE AND OPERATION GROUND SONAR "HEIGHT OFFSET" CONE "TARGET DEPTH" (SHOWN AS A NEGATIVE VALUE) "ZERO" POINT The Depth Control System operates on parameters based off a user input value referred to as the “Target Depth”. The Target Depth is always a negative number and represents how deep you want the machine to dig.
Page 48
Art’s-Way Manufacturing Co., Inc. TECHNICAL MANUALS Manuals are available from your local dealer or Art’s-Way Manufacturing Co., Inc. for the operation, service, and repair of your machine. For prompt convenient service, contact your local dealer for assistance in obtaining the manuals for your machine. Your local dealer can expedite your order for operator manuals, illustrated parts catalogs, service manuals, and maintenance records.
