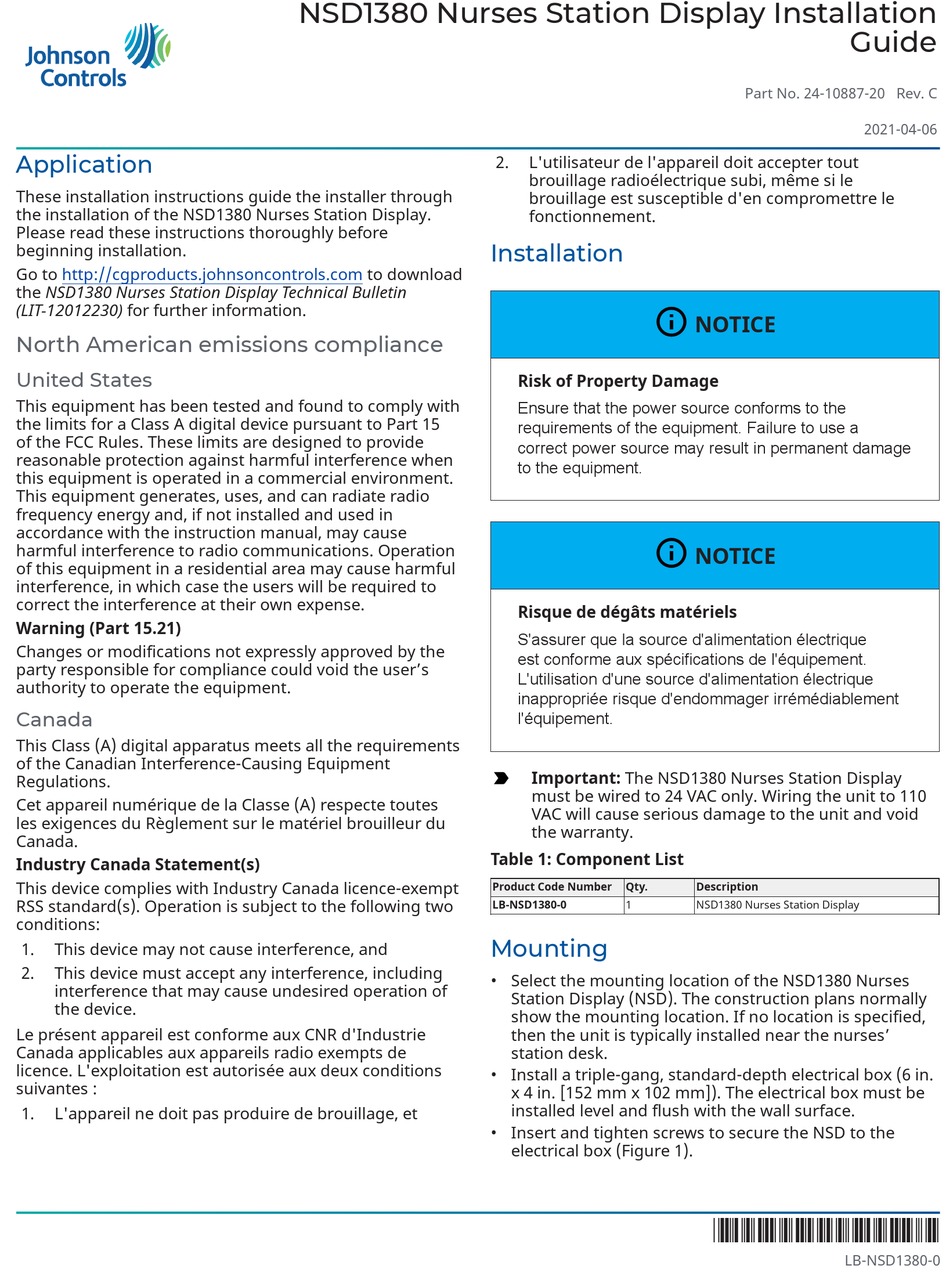

Johnson Controls NSD1380 Installation Manual

Application

These installation instructions guide the installer through
the installation of the NSD1380 Nurses Station Display.
Please read these instructions thoroughly before
beginning installation.
Go to http://cgproducts.johnsoncontrols.com
the NSD1380 Nurses Station Display Technical Bulletin
(LIT-12012230) for further information.
North American emissions compliance
United States
This equipment has been tested and found to comply with
the limits for a Class A digital device pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when
this equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instruction manual, may cause
harmful interference to radio communications. Operation
of this equipment in a residential area may cause harmful
interference, in which case the users will be required to
correct the interference at their own expense.
Warning (Part 15.21)
Changes or modifications not expressly approved by the
party responsible for compliance could void the user's
authority to operate the equipment.
Canada
This Class (A) digital apparatus meets all the requirements
of the Canadian Interference-Causing Equipment
Regulations.
Cet appareil numérique de la Classe (A) respecte toutes
les exigences du Règlement sur le matériel brouilleur du
Canada.
Industry Canada Statement(s)
This device complies with Industry Canada licence-exempt
RSS standard(s). Operation is subject to the following two
conditions:
1. This device may not cause interference, and
2. This device must accept any interference, including
interference that may cause undesired operation of
the device.
Le présent appareil est conforme aux CNR d'Industrie
Canada applicables aux appareils radio exempts de
licence. L'exploitation est autorisée aux deux conditions
suivantes :
1. L'appareil ne doit pas produire de brouillage, et
NSD1380 Nurses Station Display Installation
to download
2. L'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le
fonctionnement.

Installation

Risk of Property Damage
Ensure that the power source conforms to the
requirements of the equipment. Failure to use a
correct power source may result in permanent damage
to the equipment.
Risque de dégâts matériels
S'assurer que la source d'alimentation électrique
est conforme aux spécifications de l'équipement.
L'utilisation d'une source d'alimentation électrique
inappropriée risque d'endommager irrémédiablement
l'équipement.
Important: The NSD1380 Nurses Station Display
must be wired to 24 VAC only. Wiring the unit to 110
VAC will cause serious damage to the unit and void
the warranty.
Table 1: Component List
Product Code Number Qty.
LB-NSD1380-0 1

Mounting

• Select the mounting location of the NSD1380 Nurses
Station Display (NSD). The construction plans normally
show the mounting location. If no location is specified,
then the unit is typically installed near the nurses'
station desk.
• Install a triple-gang, standard-depth electrical box (6 in.
x 4 in. [152 mm x 102 mm]). The electrical box must be
installed level and flush with the wall surface.
• Insert and tighten screws to secure the NSD to the
electrical box (Figure 1).
Guide
Part No. 24-10887-20 Rev. C
2021-04-06
NOTICE
NOTICE
Description

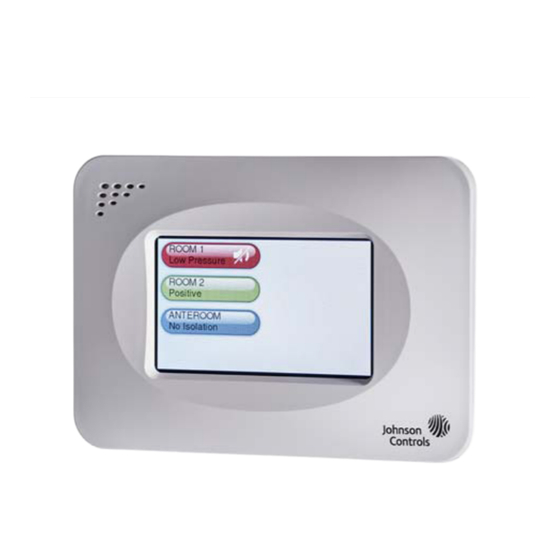

NSD1380 Nurses Station Display
*241088720C*
LB-NSD1380-0
