Johnson Controls METASYS M4-DLK0350 Product Bulletin

M4-DLK0350 Local Controller Display

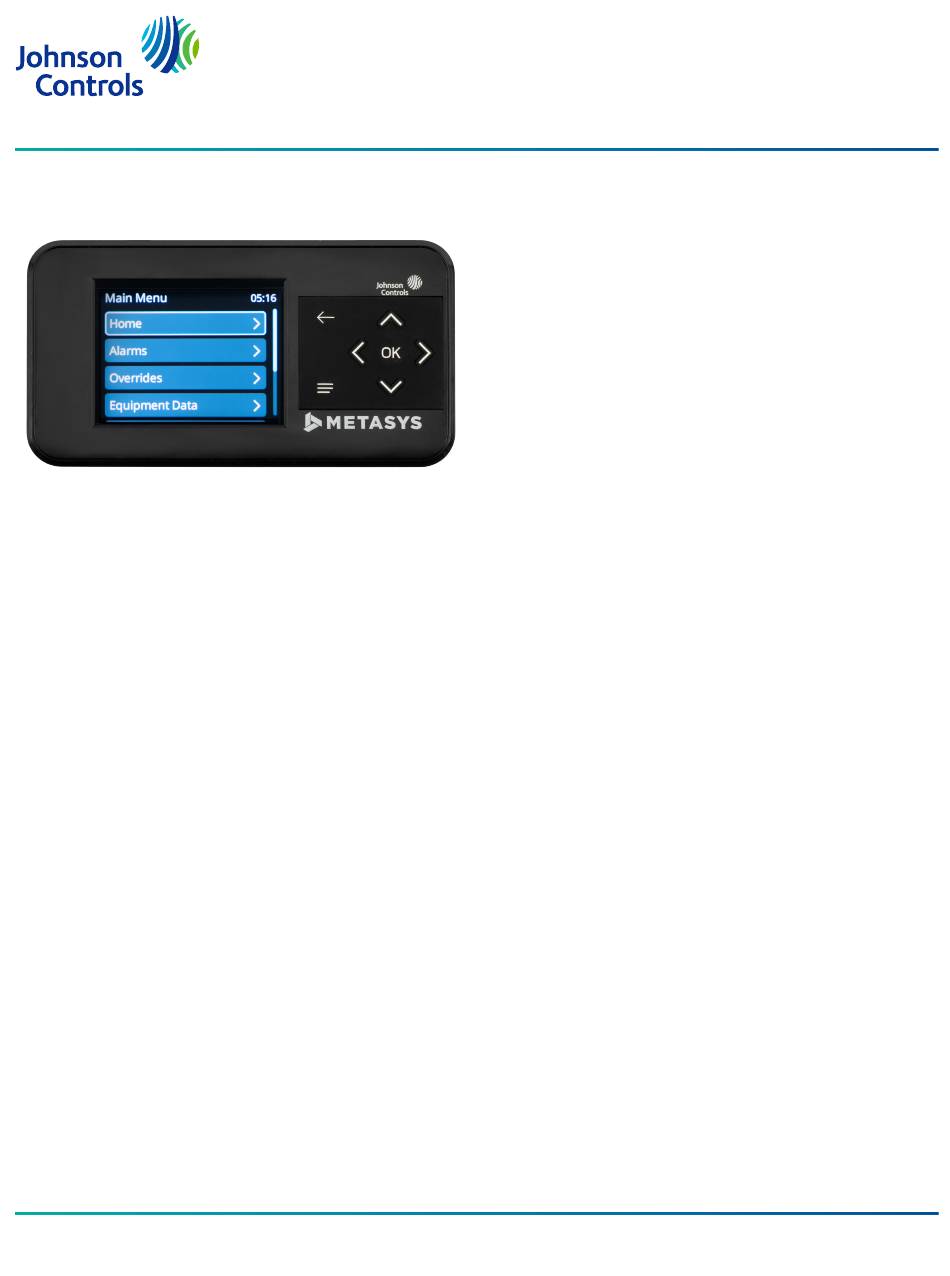

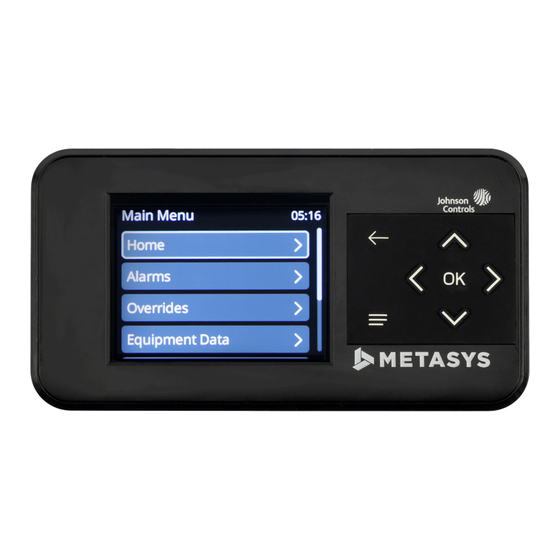

Figure 1: DLK0350 Local Controller Display
The M4-DLK0350 Local Controller Display is a stand-alone
local display that provides enhanced local monitoring of
controlled field equipment. The M4-DLK0350 features a 3.5
in. (8.9 cm), 320 x 240 pixel resolution color display, and
navigation keypad. The display provides an intuitive local
interface for users to monitor point values and status,
view alarms, view trends, override outputs, and adjust
setpoints and parameters.
The M4-DLK0350 can be panel or surface mounted. You
can also use it as a portable device by plugging it into a
compatible controller while on-site. You can connect the
M4-DLK0350 to the SA Bus of a controller that does not
have an on-board display.
The M4-DLK0350 local display can be connected to the
following compatible controller devices:
• CG series General Purpose Application Equipment
Controllers
• CV series VAV Box Controllers
• FAC series Advanced Application Field Equipment
Controllers
• FEC series Field Equipment Controllers
• ATC1510 equipment controller
• VMA16, VMA17, VMA18, and VMA19 series VAV box
controllers
• SNC series Network Control Engines
• NCE series Network Control Engines
Features and benefits
At-a-glance system status
Provides quick access to view the current status of
monitored points.
M4-DLK0350 Product Bulletin
Sleek and modern packaging and styling
Provides a modern, aesthetically pleasing industrial
design.
Local access to operating parameters, setpoints,
alarms, and trends
Provides end users and field technicians the ability to
quickly troubleshoot issues and restore control while
being in close proximity to the associated mechanical
equipment.
Live trending
Enables a field technician the ability to plot the present
value of up to two application points without the need to
configure trends, in real-time, on a graphical trend chart
while troubleshooting an issue.
Plug and play configuration
Saves field technician's time by enabling the display to
be functional out of the box without user configuration
required. The display can also be customized by
configuring the display object in the controller's
application.
Menu-based screen design
Provides an intuitive user interface through the use of a
simple keypad.
Tactile keypad
Provides haptic feedback to the user upon interaction.
Back-lit LCD
Provides constant backlight that activates during user
interaction to ensure excellent readability in low-light
environments.
Customized user preferences
Use to specify settings such as password timeout,
backlight intensity, time and date format, and many more.
Password protection (Optional)
Secures the display from unauthorized users.
LIT-12014001
Release 13.0
2023-09-06
M4-DLK0350-0
