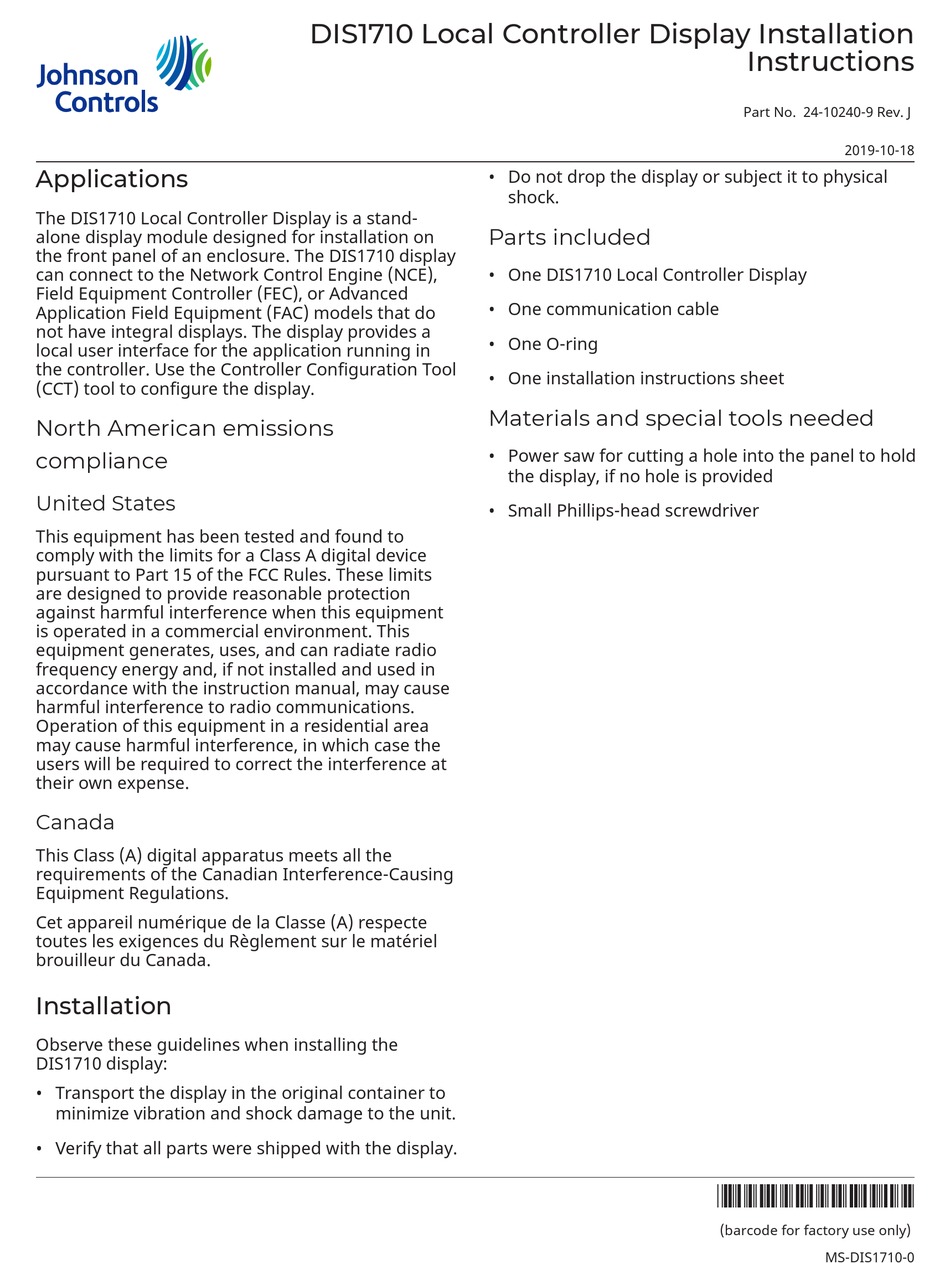

Applications

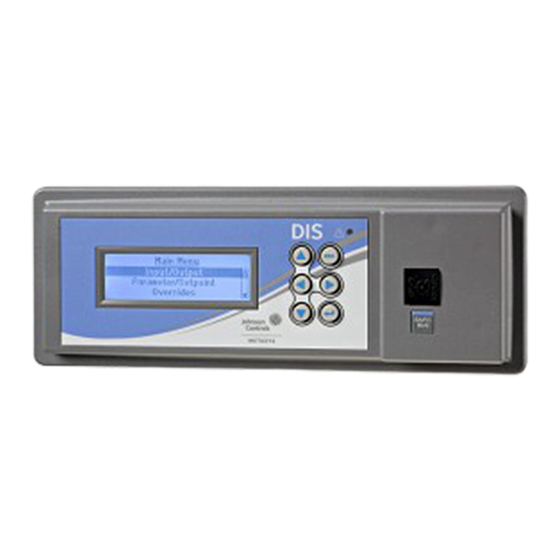

The DIS1710 Local Controller Display is a stand-
alone display module designed for installation on
the front panel of an enclosure. The DIS1710 display
can connect to the Network Control Engine (NCE),
Field Equipment Controller (FEC), or Advanced
Application Field Equipment (FAC) models that do
not have integral displays. The display provides a
local user interface for the application running in
the controller. Use the Controller Configuration Tool
(CCT) tool to configure the display.
North American emissions
compliance
United States
This equipment has been tested and found to
comply with the limits for a Class A digital device
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference when this equipment
is operated in a commercial environment. This
equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instruction manual, may cause
harmful interference to radio communications.
Operation of this equipment in a residential area
may cause harmful interference, in which case the
users will be required to correct the interference at
their own expense.
Canada
This Class (A) digital apparatus meets all the
requirements of the Canadian Interference-Causing
Equipment Regulations.
Cet appareil numérique de la Classe (A) respecte
toutes les exigences du Règlement sur le matériel
brouilleur du Canada.
Installation
Observe these guidelines when installing the
DIS1710 display:
• Transport the display in the original container to
minimize vibration and shock damage to the unit.
• Verify that all parts were shipped with the display.
DIS1710 Local Controller Display Installation
• Do not drop the display or subject it to physical
Parts included
• One DIS1710 Local Controller Display
• One communication cable
• One O-ring
• One installation instructions sheet
Materials and special tools needed
• Power saw for cutting a hole into the panel to hold
• Small Phillips-head screwdriver
shock.
the display, if no hole is provided
Instructions
Part No. 24-10240-9 Rev. J
2019-10-18
*24102409J*
(barcode for factory use only)
MS-DIS1710-0
Advertisement
Table of Contents
Related Manuals for Johnson Controls DIS1710
Summary of Contents for Johnson Controls DIS1710
- Page 1 The DIS1710 Local Controller Display is a stand- Parts included alone display module designed for installation on the front panel of an enclosure. The DIS1710 display can connect to the Network Control Engine (NCE), • One DIS1710 Local Controller Display Field Equipment Controller (FEC), or Advanced •...
-
Page 2: Location Considerations
Enclosures Use the following table to find the order enclosures for use with the display. Table 1: Enclosures with DIS1710 cutout Product code number Size (in.) Description PAN-ENC1620WDF4 16 x 20 x 6.62 PAN-ENC1620WDP4 PAN-ENC2024WDF4 20 x 24 x 9.25... -
Page 3: Mounting Display To Enclosure Door
Figure 3: DIS1710 Panel Cutout Dimensions, mm/ Figure 4: Attaching the display into panel cutout Mounting display to enclosure door Follow these steps to mount the display onto the front of the enclosure door (Figure 5): 1. Loosen the two thumbscrews on the back plate, but do not remove them. -
Page 4: Connecting Cable To Controller
SA Bus terminal block. Splice one end of the communication cable and connect it to the SA Bus terminal block using the wiring designations in Figure 7. DIS1710 Local Controller Display Installation Instructions... -
Page 5: Troubleshooting
For more information on commissioning, refer to the Controller Tool Help (LIT-12011147). Troubleshooting Refer to the DIS1710 Local Controller Display Technical Bulletin (LIT-12011270) for information on how to use and troubleshoot the DIS1710 display. Setup and Adjustments... -
Page 6: Technical Specifications
DISTRICT WUXI JIANGSU PROVINCE 214028 CHINA For more contact information, refer to www.johnsoncontrols.com/locations. © 2019 Johnson Controls. All rights reserved. All specifications and other information shown were current as of document revision and are subject to change without notice. www.johnsoncontrols.com...
