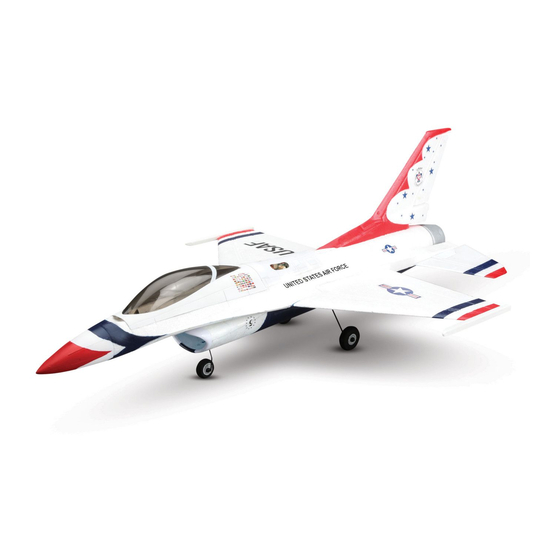

Ultrafly FIGHTING FALCON Instruction Manual

F-16
FIGHTING FALCON
For Advance Flyers
-------INDEX
Parts index．零件表______________________________________ 1
●
Tools and radio required to assembly．組裝前注意事項______2
●
1.Canopy assembly．座倉罩的組合_________________________3
●
2.fuselage assembly．機身的組裝__________________________6
●
3.Tail assembly．水平尾與垂直尾組裝______________________7
●
4.Power system ．動力組組裝 _____________________________8
●
5.Belly cover assembly．機腹蓋的組合_____________________9
●
6.CG&Control surface setting．重心與控制面設定__________12
●
Length (全長) 835 mm
Wing Span (翼展) 633 mm
Wing Area (翼面積)
Radio Requirement 3 Channel
Flying weight(全備重)
590 g
INSTRUCTION MANUAL
．適合進階玩家
32.9 In
24.9 In
2
9 Dm 139.5 Sq In
3動作
20.8 oz
PRECAUTION
．Please read through the entire instruction manual before you start .
．First time beginner if not familiar with the process in the manual,please
find an experienced player to help assemble.
．Always keep children away from the assembly area for the small parts
and glue are dangerous to children.
．Please reserve this instruction manual for future repair or parts ordering
purpose.
請注意
．組裝前請先閱讀使用說明書
．初學無任何組裝經驗者請與經驗較豐富的高階玩家一同組裝
．請在孩童拿不到零件的環境下組裝以確保安全
．請保留本說明書方便您日後的快速查閱
