Ironwood Glacier LFPD Instructions Manual

Ironwood Glacier LFPD Instructions Manual

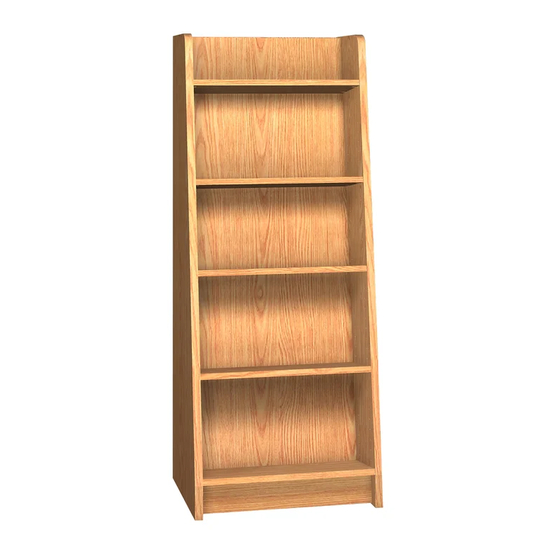

Library furniture paperback display

Advertisement

Quick Links

BY
LIBRARY FURNITURE
LFPD
PAPERBACK
DISPLAY
I M P O R TA N T !
Assembly may require the assistance of
another person.
Before you begin assembly:
READ THE DIRECTIONS all the way through one
time. This will speed up the process and help you
understand the sequence of steps.
COUNT THE PARTS AND HARDWARE before
assembly. This ensures you have received all
necessary parts before you begin.
TOOLS: You may need a Phillips head screwdriver,
a medium slotted screwdriver or a plastic mallet. To
protect your new furniture from damage during
assembly, it is recommended to work on a
carpeted surface.
08/06
In the event any parts are missing from
this package, send your name, address,
telephone number, and a description of
the missing part(s) to: PARTS, Box 1420,
Missoula, MT 59806 or call:
1-800-769-5693 or FAX 1-800-445-5281.
CAUTION: On assemblies requiring glue, make
sure the unit is assembled correctly before gluing.
Once this unit is assembled with glue, the
manufacturer will not be responsible for damaged
parts. Keep a damp cloth or sponge handy to wipe
off excess glue.
To care for this furniture, simply wipe with a cloth
dampened with glass cleaner containing ammonia-D.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Glacier LFPD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ironwood Glacier LFPD

  • Page 1 LIBRARY FURNITURE LFPD PAPERBACK DISPLAY I M P O R TA N T ! In the event any parts are missing from Assembly may require the assistance of this package, send your name, address, another person. telephone number, and a description of Before you begin assembly: the missing part(s) to: PARTS, Box 1420, Missoula, MT 59806 or call:...
  • Page 2 PARTS DIAGRAM Left Panel 07010742 1 ea. Right Panel 07010742 1 ea. Toeboard 07010772 1 ea. 07010755 1 ea. Sloped Back Back Fixed/Adj. 07010760 1 ea. 07010724 5 ea. Spanner Shelf PARTS DIAGRAM Minifix Cam 909810 16 ea. Minifix Bolt 909834 16 ea.
  • Page 3 Using the Minifix System: Insert the Minifix Cams into the appropriate holes with the arrow facing outwards as shown. When screwing post into hole, Do Not over tighten. Screw post down until bottom face of post flange just touches board surface. ASSEMBLED DISASSEMBLED Using the #2 Phillips screwdriver,...
  • Page 4 Insert Minifix Cams (H2). Insert Minifix Cams (H2). Insert Minifix Cams (H2).
  • Page 5 Insert Tab V Housing (H6). Attach Toeboard (C) to Right Panel (B) and secure by turning Minifix Cam (H2). Attach Sloped Back Panel (D) to Right Side Panel (B) Secure by turning Minifix Cam (H2).
  • Page 6 Attach Back Spanner (E) to Right Side Panel (B). Secure by turning Minifix Cam (H2). Attach Left Panel (A) to Sloped Back Panel (D), Toeboard (C) and Back Spanner (E). Secure by turning Minifix Cams (2). Attach fixed shelf (F) to # 10 Left/RIght Panel (A/B).
  • Page 7 Push in Tab V (H5 and attach # 11 Adjustable Shelf (F). Assembly is complete. # 12...
