Ironwood Glacier LFPD Manual

Ironwood Glacier LFPD Manual

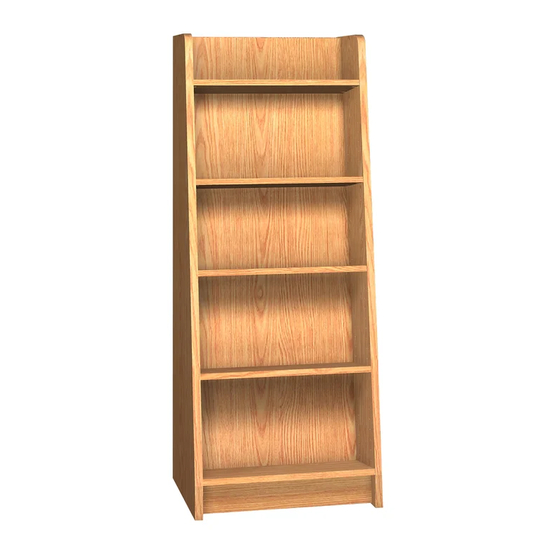

Library furniture; paperback display

Advertisement

BY
LIBRARY FURNITURE
LFPD
PAPERBACK
DISPLAY
IM P O RTA N T !
Assembly may require the assistance of
another person.
Before you begin assembly:
READ THE DIRECTIONS all the way through one
time. This will speed up the process and help you
understand the sequence of steps.
COUNT THE PARTS AND HARDWARE before
assembly. This ensures you have received all
necessary parts before you begin.
TOOLS: You may need a Phillips head screwdriver,
a medium slotted screwdriver or a plastic mallet. To
protect your new furniture from damage during
assembly, it is recommended to work on a carpeted
surface.
0620
In the event any parts are missing from
this package, send your name, address,
telephone number, and a description of
the missing part(s) to: PARTS, Box 1420,
Missoula, MT 59806 or call:
1-800-769-5693 or FAX 1-800-445-5281.
CAUTION: On assemblies requiring glue, make
sure the unit is assembled correctly before gluing.
Once this unit is assembled with glue, the
manufacturer will not be responsible for damaged
parts. Keep a damp cloth or sponge handy to wipe
off excess glue.
To care for this furniture, simply wipe with a cloth
dampened with glass cleaner containing ammonia-D.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Glacier LFPD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ironwood Glacier LFPD

  • Page 1 LIBRARY FURNITURE LFPD PAPERBACK DISPLAY IM P O RTA N T ! In the event any parts are missing from Assembly may require the assistance of this package, send your name, address, another person. telephone number, and a description of Before you begin assembly: the missing part(s) to: PARTS, Box 1420, Missoula, MT 59806 or call:...
  • Page 2 PARTS DIAGRAM Left Panel 07010742 1 ea. Right Panel 07010742 1 ea. Toeboard 07010772 1 ea. Sloped Back 07010755 1 ea. Back Fixed/Adj. 07010760 1 ea. 07010724 5 ea. Spanner Shelf PARTS DIAGRAM Rafix Flush 909911 18 ea. Rafix Bolt 909925 22 ea.
  • Page 3 Using the Rafix System: Insert the Rafix Cams into the appropriate holes. The flat edge of the cam should be facing the edge Flat of the panel. edges must be Slide Rafix Cams of the panel to be aligned attached onto the corresponding posts. When screwing post into hole, Do Not over tighten.
  • Page 4 Insert Rafix Flush Cams(H2). Insert Rafix Flush Cams (H2). Insert Rafix Flush Cams (H2).
  • Page 5 Insert Rafix Cams(H4). Attach Toeboard (C) to Right Panel (B) and secure by turning Rafix Flush Cam (H2). Attach Sloped Back Panel (D) to Right Side Panel (B) Secure by turning Rafix Flush Cam (H2).
  • Page 6 Attach Back Spanner (E) to Right Side Panel (B). Secure by turning Rafix Flush Cam(H2). Attach Left Panel (A) to Sloped Back Panel (D), Toeboard (C) and Back Spanner (E). Secure by turning Rafix Flush Cam (H2). Attach fixed shelf (F) to Left/ # 10 RIght Panel (A/B).
  • Page 7 Screw in Rafix bolt(H3) and # 11 attached fixed shelf. Push in rafix bolt(H5) for # 12 remaining adjustable shelves Assembly is Complete...
