Valley-Dynamo Tornado Sport Assembly Instructions

Hide thumbs

Accessory Pack Contents

 SOCCER LEG

 LEG BOLT

 LEG NUT

 WASHER

 LEG BOOT

 LEG SHIMS

 BLACK PLASTIC PLAYER

 YELLOW PLASTIC PLAYER

 TWO MAN ROD

 THREE MAN ROD (43⅜" long)

 GOALIE ROD (41½"- shorter than 3 man)

 FIVE MAN ROD

 BLACK RUBBER HANDLE (on rods)

 ROD SUPPORT BLOCK (2 ¾" x 2 ¾")

 SOCCER BALLS

 SCORE POST

 #12 x 2½" SCORE POST SCREWS

 BLONDE SCORE DISK

 BLACK SCORE DISK

 SCORE POST ROD - 6⅛"

 ROLL PIN PUNCH

 ROLL PIN

 BUMPER

 RULE BOOKLET

 SILICONE IN 2 oz. BOTTLE

Tools Required:

 SMALL HAMMER

 PHILLIPS SCREWDRIVER

 9/16" BOX-END OR SOCKET WRENCH

 ALL-PURPOSE CLEANER

 CLEAN CLOTH

ASSEMBLY INSTRUCTIONS

without WEIGHT

(Fantastik, Formula 409, Windex or equivalent)

part # 11902101

part # 870010421

part # 20300900

part # 20401080

part # 20701070

part # 20515001

part # 20515011

part # 20606861

part # 20606871

part # 20606881

part # 20606891

part # 900100205

part # 20515170

part # 20515181

part # 20102490

part # 21706640

part # 21706650

part # 20607500

part # 21706670

part # 21706690

part # 20701060

part # 21706621

part # 988000125

Table of Contents

Need help?

Do you have a question about the Tornado Sport and is the answer not in the manual?

Questions and answers

Summary of Contents for Valley-Dynamo Tornado Sport

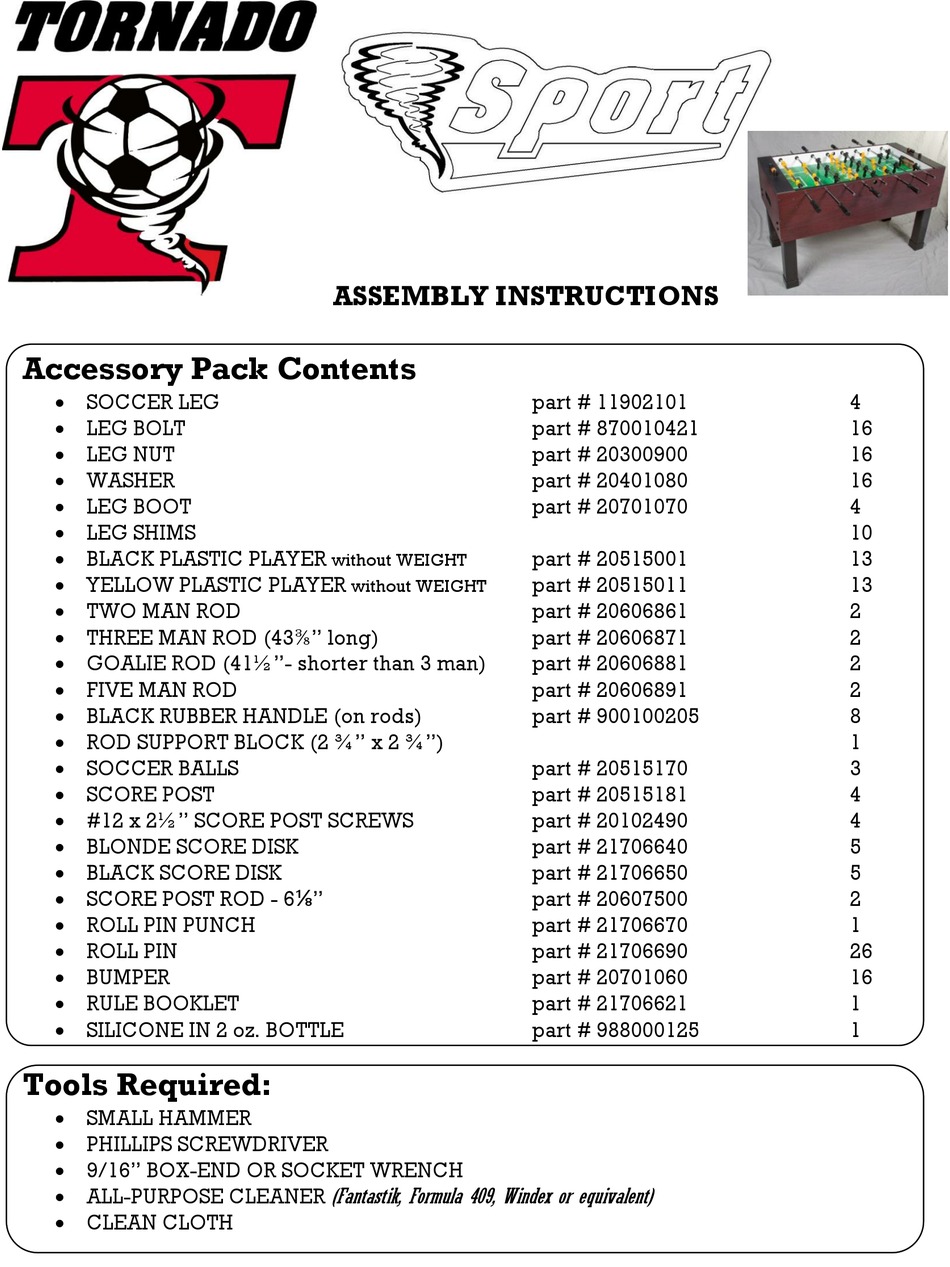

Page 1 ASSEMBLY INSTRUCTIONS Accessory Pack Contents  SOCCER LEG part # 11902101  LEG BOLT part # 870010421  LEG NUT part # 20300900  WASHER part # 20401080  LEG BOOT part # 20701070  LEG SHIMS  BLACK PLASTIC PLAYER part # 20515001 without WEIGHT ...
Page 2 1. Remove all parts and accessories from parts box and check against the enclosed list. 2. Turn the table upside down, taking care not to scratch the top (assemble on carpet or cardboard). 3. The legs may be assembled in two positions depending on the holes used. Installing them to the higher position places the table at regulation height.
Page 4 7. To secure the men, align the holes in each man with the holes in the rod. Using the rod support block under the rod near the man, place the roll pin in the man hole (slot in the roll pin down toward the foot) and tap it through the man with a hammer, until it is flush on both sides 8.
Page 5 Continuously spin the rod while pushing it in and pulling it out of the game.  Remove any excess silicone with a clean soft cloth. VISIT WWW.VALLEYDYNAMOPARTS.COM FOR WARRANTY REGISTRATION AND REPLACEMENT PARTS ORDERS. ENJOY YOUR NEW TORNADO SPORT TABLE.
