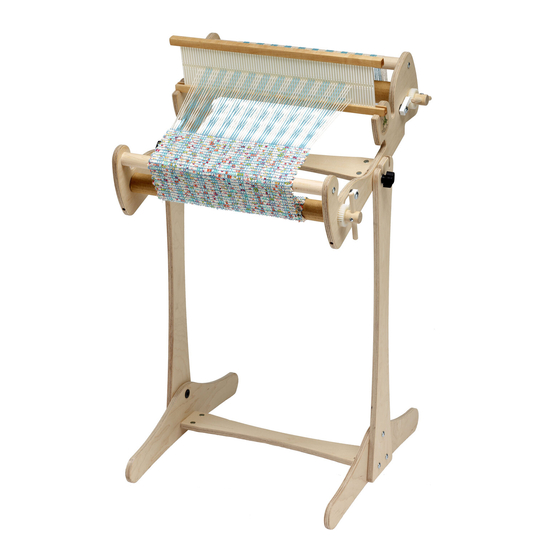

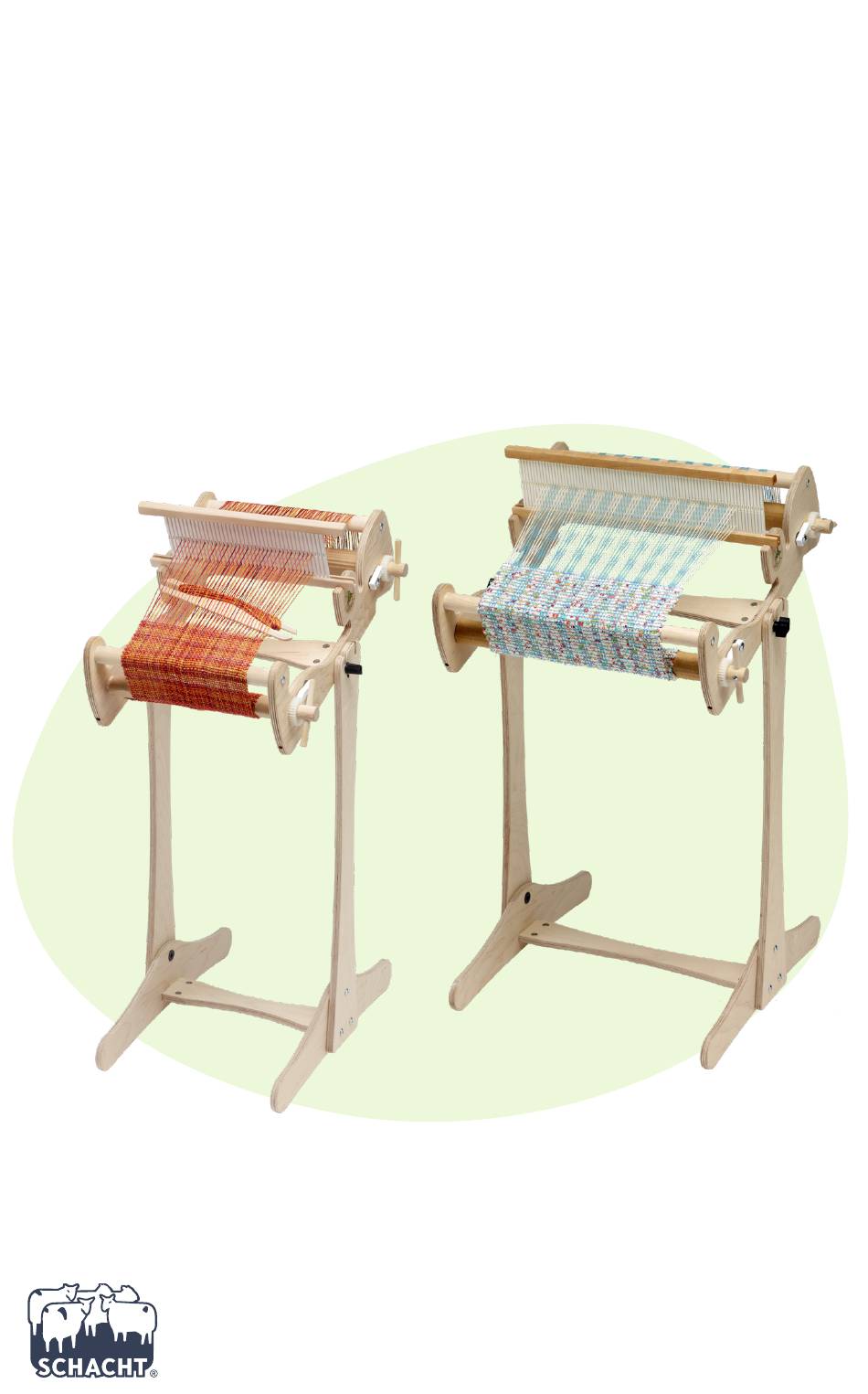

- Page 1 CRICKET FLOOR STAND ssembly nstructIons 10" 15" stAnds Find out more at schachtspindle.com Schacht Spindle Company 6101 Ben Place Boulder, CO 80301 p. 303.442.3212 f. 303.447.9273 © 2012 Schacht Spindle Company, Inc. 11.12...
- Page 2 CRICKET FLOOR STAND ssembly nstructIons TOOLS PARTS Phillips screwdriver 1 – cross brace (15") Drill and 3/16" drill bit or 2 – cross braces (10") Allen wrench 5/32" (included) 2 – legs Scissors 2 – bases Wood screw (pointed end, any size) 4 –...
- Page 3 ■ Insert barrel nuts into the holes in the 3/4" from the loom sides. cross brace, with the slots in the barrel ■ Skip to the section “All Cricket Looms.” nuts parallel to the long side of the brace. Hold the barrel nuts in place with masking 10"...
- Page 4 All CRICKET LOOMS when drilling. ■ Place the loom between the stand legs. ■ Use a 3/16" drill bit and drill straight Slide the head of the Allen-head screw in down with firm pressure. Drill all the...
