Summary of Contents for Transmitter Solutions RADIOBAND V3

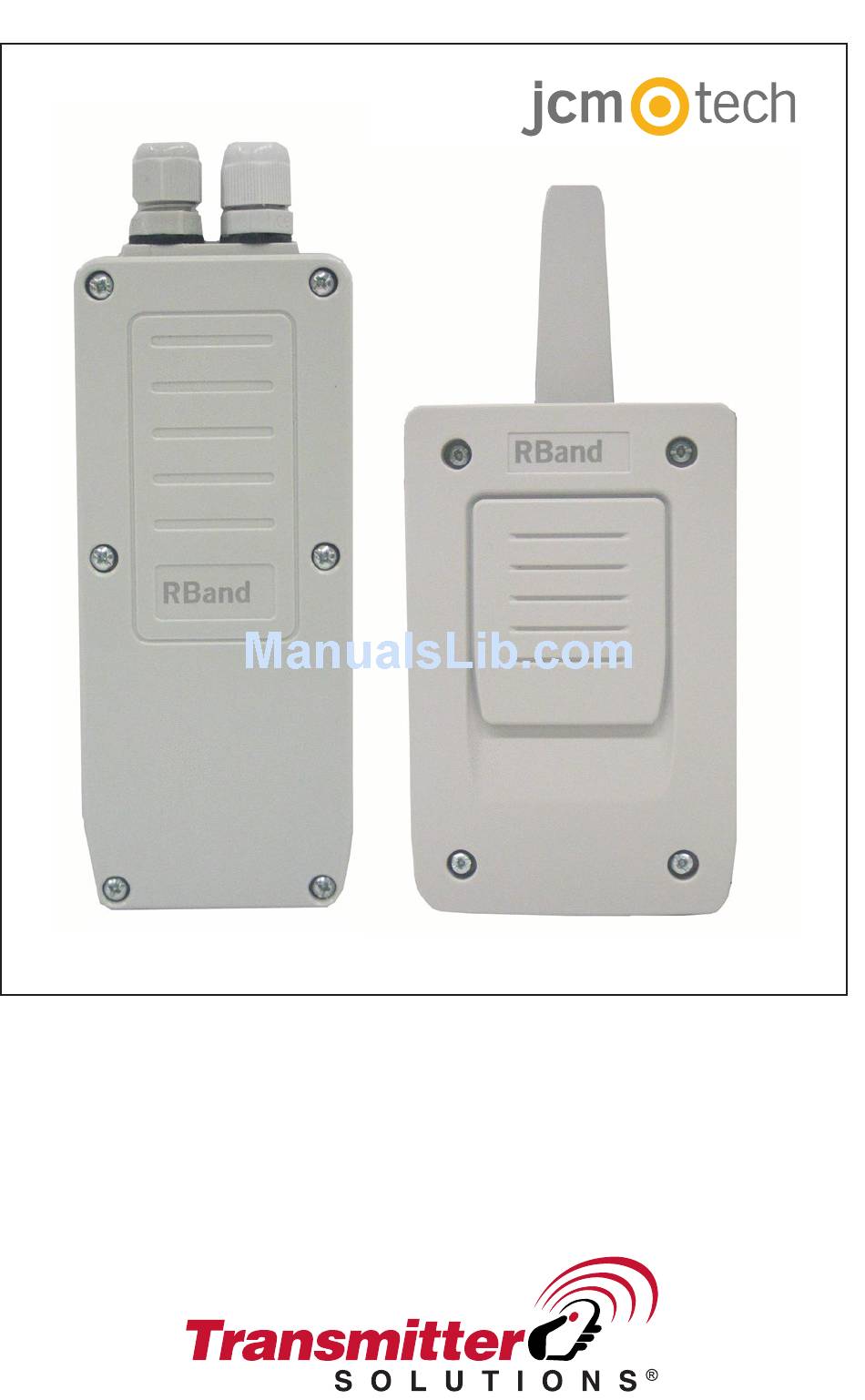

- Page 1 RADIOBAND V3 Programming & Installation Manual...
-
Page 3: Technical Data - Receiver
Radioband V3 User’s Manual Introduction The RadioBand system is designed for Automated Gates, Commercial and Domestic door applications where a safety edge is used. The system provides a wireless system replacing spiral cables or energy chain systems to provide the safety signal to the door or gate control panel. -
Page 4: Technical Data - Transmitter
Technical data - Transmitter f i t Operating Consumption 12mA Radiated Power <25mW Range (in open field) 328 feet Battery Life (approx.) 2 years Reaction Time 35ms Maximum Reaction Time 220ms (with interference) Wiring diagram - Transmitter OPTO SAFETY EDGE INPUT INPUT SELECTOR 8.2k or NC CONTACT... - Page 5 Transmitter Dipswitch Settings 8.2Ω = RESISTIVE SAFETY EDGE NKC CONTACT = MECHANICAL SAFETY EDGE OPTO = OPTICAL SAFETY EDGE *Select the dip switch settings to match the safety edge used. Examples of connection of 8k2 safety edges or NC contact IN1 8.2k SAFETY EDGE IN1 AND IN2 IN1 8.2k SAFETY EDGE...
-
Page 6: Wiring Diagram - Receiver
Wiring diagram - Receiver 1 2 3 4 ATEST CS1 C1 CS2 C2 BS2 N03 COM A TEST 12/24Vac/dc Low battery output (connect to buzzer) RELAY 3 N.C Output 10k or 8.2k output depending on model RELAY 2 N.C Output 10k or 8.2k output depending on model RELAY 1... - Page 7 LED / Dipswitch Settings - Receiver CHECK ANTENNA BUTTON CONNECTOR LEDS Safety edge on relay 1 of the receiver Normal activated or not connected CHECK Safety edge on relay 2 of the receiver Normal activated or not connected CHECK See signal coverage and quality table PROG.
-
Page 8: Programming - Receiver
Programming transmitter to receiver The receiver allows programming 6 transmitters (3 for Relay 1, and 3 for Relay 2). Each safety edge transmitter must be learned into the appropriate channel of the safety edge receiver. A transmitter should only be connected to one receiver. Press PROG button and keep pressed until desired mode selected. -
Page 9: Troubleshooting
Autotest signal (not used on most U.S. Manufactured Operators) While the RadioBand receiver monitors the RadioBand transmitter every autocheck period, the system must be tested once each door cycle. This test is done with the autotest signal. The autotest signal ensures that all of the parts of the safety edge system are ok before the door/gate can operate. - Page 10 DETECTION OF TRANSMISSION FAILURE If the communication with a transmitter fails during checking, or the communication is deficient (for instance, too many communication retries or poor coverage), the receiver emits three consecutive beeps, indicating that an error has occurred. Stop the door maneuver and press the safety edges installed to detect what has failed.
-
Page 11: Maintenance
The manufacturer reserves the right to change the specification of the equipment without prior warning. TRANSMITTER SOLUTIONS, declares herewith that the product RADIOBAND V3 complies with the requirements of the 1999/5/ CEE R&TTE Directive, and complies with the fundamental requirements of the 2006/42/CE Machine Directive, 2004/108/EC Directive on electromagnetic compatibility and 2006/95/EC on low voltage, insofar as the product is used correctly. - Page 12 THE GOODS AND ACCEPTS THEM “AS-IS/WHERE-IS”. TRANSMITTER SOLUTIONS SELLS THE GOODS TO BUYER ON CONDITION THAT TRANSMITTER SOLUTIONS WILL HAVE NO LIABILITY OF ANY KIND AS A RESULT OF THE SALE. BUYER AGREES THAT TRANSMITTER SOLUTIONS SHALL HAVE NO LIABILITY FOR DAMAGES OF ANY KIND, WHETHER DIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING INJURIES TO PERSONS OR PROPERTY, TO BUYER, ITS EMPLOYEES OR AGENTS, AS A RESULT OF THE SALE. ...
