WARNING: If the information in these instructions is not followed exactly, weakening or failure of the erected
structure may result causing property damage, personal injury, or loss of life.
All brackets designed and sold by RioOutdoors.com are to be used for building pergolas only and are not to be used for
other structure construction purposes.

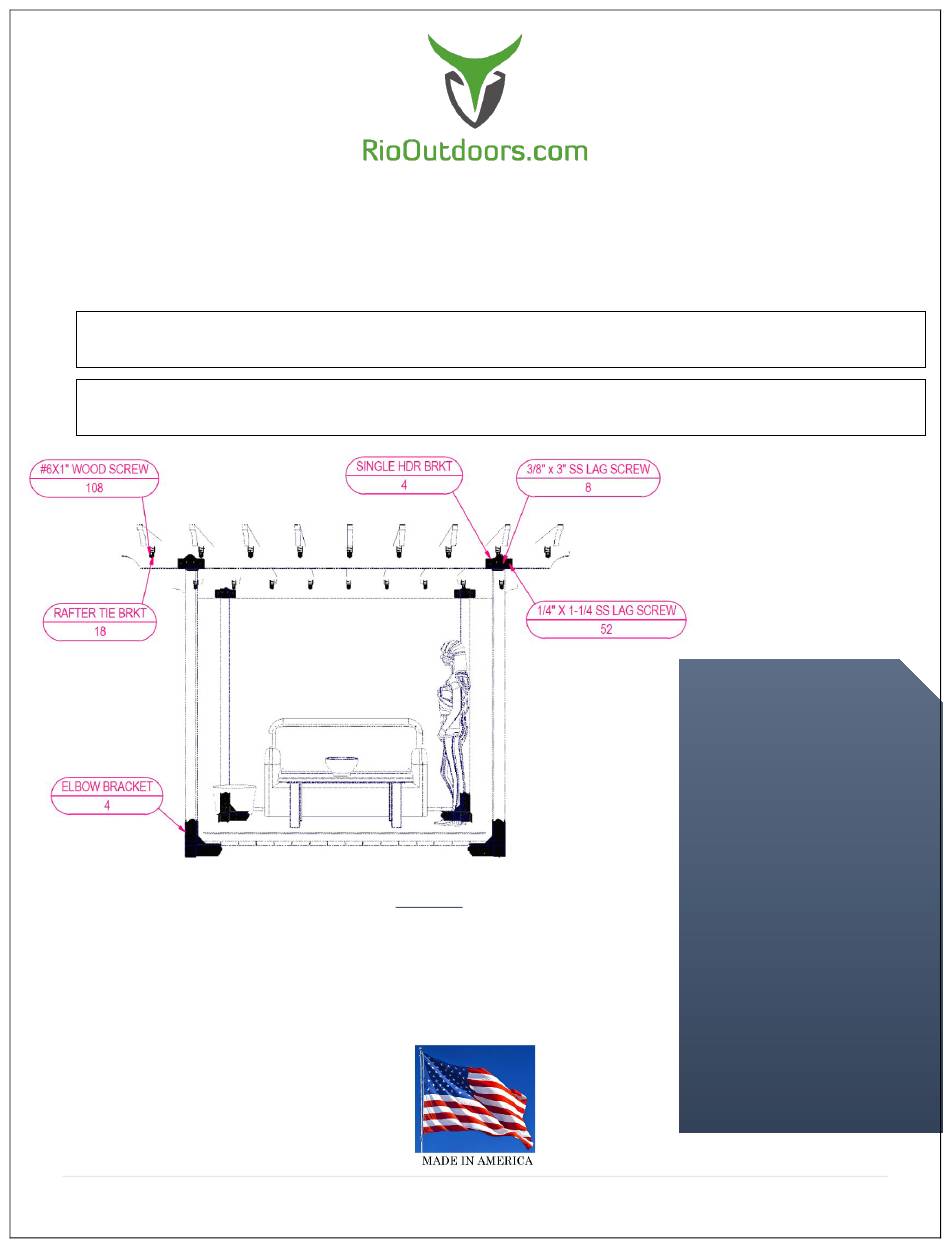

Figure 1: Items included in the kit, (
Items not included in this kit: wood, tools, some hardware.
1 |
P a g e
Installation Instructions
6x6 Floating Single Header Raftered Pergola Kit
Pergola Kits
������������������������ ���� �������� ���� ����
������������������������ ���� ����
6F-SH
).
•
Thoughtfully engineered
Brackets eliminate all wood-
joinery skills requirements.
•
Skills required: leveling
ground, drilling pilot
holes and driving lag
screws into lumber.
•
Easy lift and place U-
channels eliminate need
for lifting equipment.
Super-easy assembly
work.
•
Self-aligning design
squares up structure
automatically.
Estimated Assembly
•
Time is less than 1-1/2
hours (not including
deck).
Advertisement
Table of Contents
Related Manuals for RioOutdoors 6F-SH
Summary of Contents for RioOutdoors 6F-SH
- Page 1 WARNING: If the information in these instructions is not followed exactly, weakening or failure of the erected structure may result causing property damage, personal injury, or loss of life. All brackets designed and sold by RioOutdoors.com are to be used for building pergolas only and are not to be used for other structure construction purposes.
-
Page 2: Table Of Contents
A properly sized pilot hole must be drilled before you attempt to drive lag screws into any pergola lumber member. See Table, below. Driving lag screws into lumber, without first drilling a pilot hole, can prevent the lag screw from driving fully into the wood or can lead to crack formation while driving the lag screw in, or later, as the wood dries naturally. -
Page 3: Safety And Warning Information
GENERAL INFORMATION 1.1 SAFETY AND WARNING INFORMATION 1.1.1 Building Permit & Inspection Requirements We recommend that you consult with your local building permit office and obtain advice and any required building permits and inspection approvals from the local building inspection department or the local jurisdiction having authority over building codes. 1.1.2 Other Cautions CAUTION: Adhere to all safety requirements. -
Page 4: Tools Required
1.2 TOOLS REQUIRED Listed below, are common tools required for pergola projects. These tools are not included in this kit. Your pergola project may not require all tools. Select and acquire the tools for your project from the “Required for” column in this table. Description Tool Purpose Required for... -
Page 5: Contents Of Kit # 6F-Sh
The contents of this kit are shown in the table, below. Before you begin your project, take an inventory of all items that you received from us. If any items are missing, contact us directly via email at info@RioOutdoors.com. Include your name and shipping address and your order number, if available. -
Page 6: Optional Deck Support Beam
If you wish to build a wooden deck as the floor for your floating pergola, you may wish to use our deck beam support brackets, SKU #24BS. This bracket can support 2x4 or 2x6 beams. You can order the required number of brackets at RioOutdoors.com. -
Page 7: Floating System
To do so, you must add 2x6 beams every 24” to support the deck boards. You may toenail the 2x6 beams in place or choose an easier and more precise mounting method using our 2x6 Beam Support Brackets (SKU# 24BS, available at RioOutdoors.com). P a g e... - Page 8 1.6.2 Floor Leveling and Preparation. Plan to assemble a floating pergola where you can excavate and create a level platform, at least, the overall outer dimensions of the pergola. If soil type is sandy, soft, or wet, you must consider adding concrete blocks or pier blocks under corners of pergola to prevent sinking into soil.
-
Page 9: Side Elevation Diagram
1.7 SIDE ELEVATION DIAGRAM Based on the height of the post used, the diagram below provides the side elevation profile for this pergola system. Dim A, above, is the height of the post used. Dim B is the inner ceiling height of the pergola. Dim B is measured to the bottom surface of the header member. -
Page 10: Brackets
1.8 ASSEMBLING FLOOR CORNER 2-WAY ELBOW BRACKETS We have designed the corner elbow brackets to provide automatic squaring and alignment of the floating 6x6s. By following the instructions properly and securing the 6x6s to the elbow brackets as instructed, you will achieve a perfectly squared floating deck base for your pergola. - Page 11 1. Starting in one corner, slide one 2-way elbow over two adjacent 6x6s so the U-channels in the 2-way elbow bracket over the 6x6s. 2. Place two shims under each 6x6 near the 2-way elbow. 3. Push 2-way elbow bracket downward until the horizontal part of the U-channels touch the 6x6 top surfaces. 4.
- Page 12 5. Wrap a piece of electrical tape around the drill bit, spaced 1-1/4” from the drill bit tip. This will act as a hole depth indicator when you drill each pilot hole. Pilot holes should be drilled at least 1-1/4” deep. A little bit deeper is acceptable but do not drill less than the required 1-1/4”...
- Page 13 7. Drive one ¼” X 1-1/4” SS lag screw through the pilot holes you drilled. 8. Repeate steps 8 and 9 for the other side of both U-channels. 9. Repeat Steps 6 to 8 for the other three corners. 10. Remove all shims from under the 6x6s. 11.
-
Page 14: Osts Installation
1.9 POSTS INSTALLATION 1. Slide a 6x6 post inside the open vertical tube in all four corners’ 2-way elbow bracket. 2. Identify the 5/16” holes in the inner faces of the 2-way elbow’s vertical tube. Drill 3/32” X 1-1/4” pilot holes in the center of all four 5/16”... -
Page 15: Post-Top Single Header Bracket Installation
1.10 POST-TOP SINGLE HEADER BRACKET INSTALLATION 1. Slide one Post-Top Single Header Bracket over the 6x6 post top after aligning the header receiver u-channel in the proper direction. Let gravity work and pull the bracket all the way down on top of the post. 2. - Page 16 3. Wrap a piece of electrical tape around the drill bit, spaced 1-1/4” from the drill bit tip. This will act as a hole depth indicator when you drill each pilot hole. Pilot holes should be drilled at least 1-1/4” deep. A little bit deeper is acceptable but do not drill less than the required 1-1/4”...
- Page 17 5. Drive one ¼ x 1-1/4” SS Hex Lag Screw through each 5/16” hole into the pilot holes you drilled in step 4, using a 7/16” Socket and Rachet driver. Tighten down each screw. 6. Repeat steps 1 through 5 for each post-top single header bracket. 17 | P a g e...
-
Page 18: Headers Preparation
1.11.1 Header and Rafter Tail Designs Cutting Visit www.https://riooutdoors.com/rafter-tail-designs to see our collection of Rafter Tail designs. Based on your cosmetic preference and skill, select a rafter tail design shape that you plan to cut yourself or you plan to outsource the design cutting. - Page 19 7. Push rafter ties bracket fully against the face of the header which will face the inside of the pergola. 8. Drive two #6x1” SS wood screw through the two holes to secure the rafter tie to the header using a drill and Philips’s head driver.
-
Page 20: Headers Installation
1.12 HEADERS INSTALLATION 1. Lift and place one header with rafter ties into the U-channels on two adjacent post-top brackets. Rafter ties should be on the header face that touches the vertical posts. 2. Center the header between the two posts by measuring the overhangs and moving the header until the overhang lengths on both sides are equal. - Page 21 4. Drive one ¼ x 1-1/4” SS Hex Lag Screw through each 5/16” hole into the pilot holes you drilled in step 3, using a 7/16” Socket and Rachet driver. Tighten down each screw. 5. Repeat steps 1- 2 for the second header and steps 3-4 for the remaining 3 post-top single header brackets. 6.
- Page 22 the end of the drill bit. While drilling the pilot hole, the tape will indicate when you have reached the required depth. 7. Locate two 7/16” holes on the decorated face of the post top single header bracket. Drill an 11/64 X 3”...
-
Page 23: Nstalling The Rafters
1.13 INSTALLING THE RAFTERS 1. Lift and place one rafter on a matching pair of rafter tie brackets. Measure the rafter overhang on each side of the pergola and center the rafter. 2. Drive two #6X1” SS wood screws through two holes on each face of the matching pair of rafter tie brackets. 23 | P a g e... - Page 24 3. Repeat steps 1 and 2 for all remaining rafters. 24 | P a g e...
-
Page 25: Nstalling Deck Board Support Beams
1.14 INSTALLING DECK BOARD SUPPORT BEAMS 1. Decide on which direction you would like the deck boards to run. Deck support beams run in a perpendicular direction to the deck boards. Support beams should be spaced, approximately, every 24” to support the deck boards. Using a pencil or marker, mark the center locations of each beam on the inside face of the floating 6x6s to which you will attach the beams. -
Page 26: Nstalling Deck Boards
5. Secure the 2x6s to brackets using #6 x 1” SS wood screws. Two screw on each side of the 2x6 Beam Support Brackets are required. 1.15 INSTALLING DECK BOARDS 1. Plan and lay down your deck boards starting in the center of the pergola. Work outward from the center in both directions. Use the thick end of a wood shim as a spacer to leave an 1/8”-1/4”... - Page 27 2. When you approach the vertical post corners, create notches in the deck board ends to fit around the corner post bracket and the gussets. The gussets are 1/8” thick. Make a cut the width of a carbide tipped circular saw blade to create a clearance slot for the corner gussets.
- Page 28 Was it easy to do? Did parts fit easily and properly? Do you like the quality of our products and design styles? Is your pergola structure sturdy and strong? Please go to RioOutdoors.com and provide us with your review. Thank you for being a RioOutdoors.com customer.
-
Page 29: Conditions
Warranty protects against defect in manufacture only, unless herein specified otherwise. Any part(s) found to be defective during the warranty period as outlined above will be repaired or replaced at RioOutdoors.com’s option provided that the defective part is returned, if requested by RioOutdoors.com. Alternatively, RioOutdoors.com may at its own discretion fully discharge all its obligations under the warranty by refunding the verified purchase price of the product to the original purchaser. -
Page 30: Imitations Of Liability
Parts where the RioOutdoors.com logo has been altered, deleted, removed, or made illegible will void this warranty. Minor movement, expansion and contraction of the steel parts is normal and is not covered under the terms of this warranty.
