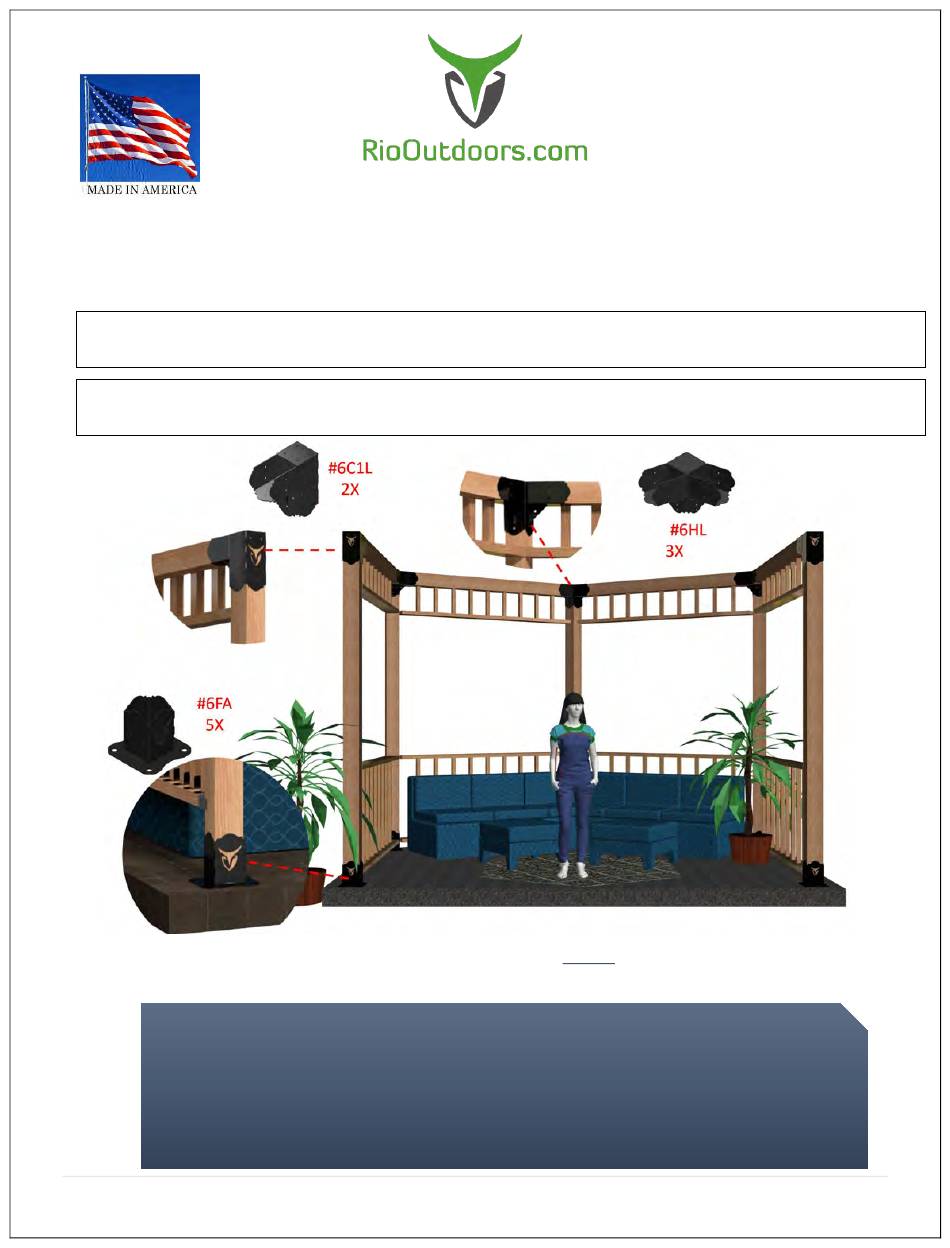

6x6 floating wall mount partial octagon pergola kit (46 pages)
Summary of Contents for RioOutdoors 6S-PH
Page 1
WARNING: If the information in these instructions is not followed exactly, weakening or failure of the erected structure may result causing property damage, personal injury, or loss of life. All brackets designed and sold by RioOutdoors.com are to be used for building pergolas only and are not to be used for other structure construction purposes.
A properly sized pilot hole must be drilled before you attempt to drive lag screws into any pergola lumber member. See Table, below. Driving lag screws into lumber, without first drilling a pilot hole, can prevent the lag screw from driving fully into the wood or can lead to crack formation while driving the lag screw in, or later, as the wood dries naturally.
GENERAL INFORMATION 1.1 SAFETY AND WARNING INFORMATION 1.1.1 Building Permit & Inspection Requirements We recommend that you consult with your local building permit office and obtain advice and any required building permits and inspection approvals from the local building inspection department or the local authority over building codes. 1.1.2 Other Cautions CAUTION: Adhere to all safety requirements.
1.2 TOOLS REQUIRED Listed below, are common tools required for pergola projects. These tools are not included in this kit. Your pergola project may not require all tools. Select and acquire the tools for your project from the “Required for” column in this table. Description Tool Purpose Required for...
The contents of this kit are shown in the table, below. Before you begin your project, take an inventory of all items that you received from us. If any items are missing, contact us directly via email at info@RioOutdoors.com. Include your name and shipping address and your order number, if available.
1.4 LIST OF MATERIALS THAT YOU WILL SUPPLY, OR ARE RECOMMENDED This is the list of required materials which are not included in this kit. You will acquire these items locally for your project. Use this table to help you calculate your total project budget. Total Item Item...
1.5 SURFACE MOUNT SYSTEM 1.5.1 What is a Surface Mount system? Surface Mount means that the vertical posts for a pergola are secured to the top of a concrete footings, concrete pad, or deck cross-brace beams using Floor Anchor Brackets. You may bolt the floor anchor brackets directly on top of a concrete pad or on top of a footing.
Page 8
1.5.2 Call 811 811 is the national call-before-you-dig phone number. Anyone who plans to dig should call 811 or go to their state 811 center's website before digging to request that the approximate location of buried utilities be marked with paint or flags so that you don't unintentionally dig into an underground utility line.
1.6 GENERAL LUMBER REQUIREMENTS INFORMATION We have designed the corner elbow brackets to provide automatic alignment of the header 6x6s. By making certain all header 6x6s are of the same length and not warped, following the instructions properly, and securing the 6x6s to the elbow brackets as instructed, you will achieve a perfect hexagonal shape for your pergola.
1.7 OVERALL PERGOLA SIZE We have designed the hex corner elbow brackets to provide automatic alignment of the header 6x6s. By making certain all outer perimeter “Header Lengths” are of the same length, following the instructions properly, and securing the 6x6s to the elbow brackets as instructed, you will achieve a perfect hexagonal pergola.
1.8 SIDE ELEVATION DIAGRAM Based on the height of the post used, the diagram below provides the side elevation profile for this pergola system. POST HEIGHT DIM A (in.) (in.) 90 1/2 102 1/2 114 1/2 1261/2 142 1/2 The Post Height, above, equals the outer height of the pergola. Dim A is the inner ceiling height of the pergola. Dim A is measured to the bottom surface of the header member.
1.10 HEADERS AND FOOTERS PREPARATION The diagram, below, provides detailed information about all lumber headers required to build this structure. Prepare the specified lumber members by following the table and diagrams in this section. See section 1.6 Overall Pergola Size to determine the overall size and applicable lengths for items A, and B.
Page 13
1.10.2 Preparing lumber member “A.” Follow the steps, below. Cut and prepare two (2) identical lumber members to be used as item 1.10.3 Preparing lumber member “B” Follow the steps, below. Cut and prepare two(2) identical lumber members to be used as item 13 | P a g e...
1.11 HEX PERGOLA ASSEMBLY WORK OUTLINE 1.11.1 Brackets application depiction This image shows where all brackets are used. 14 | P a g e...
Page 15
1. Create three post assemblies by adding post-bottom floor anchor brackets and post top hex elbows to three posts of equal lengths. See section 1.9.1 and 1.9.2 Create two post assemblies by adding post-bottom anchor brackets and post top 1-way elbow bracket.
Page 16
Study the posts layout, below. You will be erecting the posts in the numerical order given below. 16 | P a g e...
Page 17
2. Stand two posts, Post #1, and Post #2 (both with Hex Elbow Brackets) in designated locations and hold them securely in place by placing two sandbags on two sides of the floor anchor brackets. 3. The distance between posts should be measured at the two inner corners. This distance must be close to the length of the headers you will be installing.
Page 18
6. Adjust position of posts until the header fits snugly between the two post top hex brackets. 7. Stand a third post, Post #3 with a Hex Elbow Bracket, in its designated location and place two sandbags on two sides of floor anchor bracket.
Page 19
10. Adjust position of post #3 until the header fits snugly between the #2 and #3 post top hex brackets. 19 | P a g e...
Page 20
11. Next stand Post #4 (with a #4C1L Elbow). Rotate the header receiver U-channel in its #4C1L elbow towards the open U- channel on the top of Post #2. 12. Measure for header distance between the #4C1L elbow’s face and the corner in the #4HL elbow bracket. Adjust as necessary.
Page 21
15. Verify that the structure is as you desire it, all posts are plumb, and that all headers are in their proper positions. 16. Make certain that all pergola posts are plumb and located in the proper positions and check for level on top of all headers. If level is not proper, you may be required to place some shims under the floor anchor brackets.
Page 22
21. Your pergola structure is now complete. Consider adding some decorative elements which are shown below. A lattice fence, upper lattice border, or other elements of your choice can substantially increase the aesthetic value of your living space. 22 | P a g e...
1.12 CREATING THE POST ASSEMBLIES 1.12.1 Adding Floor Anchor Bracket 1. Lay a post on the ground. 2. Lift one end of the post up and slide a floor anchor bracket, all the way over the post end. 3. Wrap a piece of electrical tape around the drill bit, spaced 1-1/4” from the drill bit tip. This will act as a hole depth indicator when you drill each pilot hole.
Page 24
4. Locate four 5/16” diameter holes, two holes in each opposing face of the floor anchor’s square tube. 5. While holding the floor anchor tightly against the post end, drill 3/32 X 1-1/4” pilot holes through the center of four 5/16” holes.
Page 25
6. Using a ratchet driver and a 7/16” socket, drive one ¼” x 1-1/4” Lag Screw through all four pilot holes you drilled. 7. Tighten all lag screws. 8. Repeat steps 1-6 and add a floor anchor bracket to all remaining posts. 25 | P a g e...
1.13 ADDING POST TOP #4HL HEX ELBOW BRACKET It is now time to add the post top #4HL hex elbow brackets. Before you begin, note which faces of the floor anchor bracket’s tube face inside the pergola. When adding the Hex elbow bracket to the post top, make certain that the same faces of the floor anchor bracket’s tube point inside the pergola.
Page 27
Perform these steps with the post laying down on the ground in the orientation shown, below. 1. Slide a 2-way hex elbow bracket’s tube over the 4x4 post top after aligning the header receiver u-channels in the proper directions. Push the bracket all the way down on top of the post. If you feel resistance tap lightly on top of the elbow bracket until it slides all the way.
Page 28
3. Identify the four 5/16” holes which are on the sides of the gussets in the elbow bracket. 4. Drill 3/32” X 1-1/4” deep pilot holes at the center of four 5/16” Holes. Locate pilot holes at the center of each 5/16” hole.
1.14 POST TOP #4C1L BRACKET INSTALLATION 1. Slide a #4C1L bracket’s tube on the 4x4 post tops #5 & 6 after aligning the header receiver u-channels in the proper direction. Let gravity work and pull the bracket all the way down on top of the post. If you feel resistance tap lightly on top of the elbow bracket until it slides all the way down.
Page 30
3. Drill 3/32” X 1-1/4” deep pilot holes at the center of four 5/16” Holes. Locate pilot holes at the center of each 5/16” hole. 4. Drive one ¼ x 1-1/4” Lag Screw through each 5/16” hole into the pilot holes you drilled in step 4, using a 7/16” Socket and Rachet driver.
1.15 SECURING THE HEADERS 1.15.1 Header “A” Installation 1. Lift and place one “A” 4x4 header into the U-channels between post #1 and post #2. 2. Locate the two 5/16” holes on each vertical face of the U-channels holding the 4x4 header. Drill 3/32” X 1-1/4” deep pilot holes at the center of four 5/16”...
Page 32
3. Before driving lag screws, review the position of the header ends on both ends of the header. Make certain that it is conforming to the image, below. The mitered ends of the headers should touch the bracket’s corner square tube face or be close to touching the tube face.
Page 33
1.15.2 Header “B” Installation 1. Lift and place one header “B” between post top #3 & #4 and one header “B” between post top #2 & #5. The miter cut ends of header “B” are to be positioned against post #3 and post #2. 2.
Page 34
3. Drill 3/32” X 1-1/4” deep pilot holes at the center of 5/16” holes at both ends of the header and on both sides. Locate pilot holes at the center of each 5/16” hole. Perform this step for both “B” headers. 4.
1.16 SECURING THE #4FA FLOOR ANCHOR BRACKETS 1.16.1 Concrete Footing, Concrete Pad, or Concrete Block Anchoring 1. Apply tape to the drill bit to mark the 2” depth required for the 2-3/4” Vibration Resistant Hammer-On Stud Anchor you will be using to anchor the bracket to the concrete footing or pad. 2.
Page 36
4. Hammer in one concrete anchor (1/2” X 2-3/4”) into each hole you drilled through the hole in the Floor Anchor floor bracket. 5. Tighten down the nut using a crescent wrench. 6. Repeat steps 2-3 for all Floor Anchor Brackets. 1.16.2 Anchoring on existing deck Consult your local building permits office.
Page 37
Did parts fit easily and properly? Do you like the quality of our products and design styles? Is your pergola structure sturdy and strong? Please go to www.RioOutdoors.com and provide us with your review. Thank you for being a RioOutdoors.com customer.
Warranty protects against defect in manufacture only, unless herein specified otherwise. Any part(s) found to be defective during the warranty period as outlined above will be repaired or replaced at RioOutdoors.com’s option provided that the defective part is returned, if requested by RioOutdoors.com. Alternatively, RioOutdoors.com may at its own discretion fully discharge all its obligations under the warranty by refunding the verified purchase price of the product to the original purchaser.
Parts where the RioOutdoors.com logo has been altered, deleted, removed, or made illegible will void this warranty. Minor movement, expansion and contraction of the steel parts is normal and is not covered under the terms of this warranty.
