Installation Instructions
6P-SC

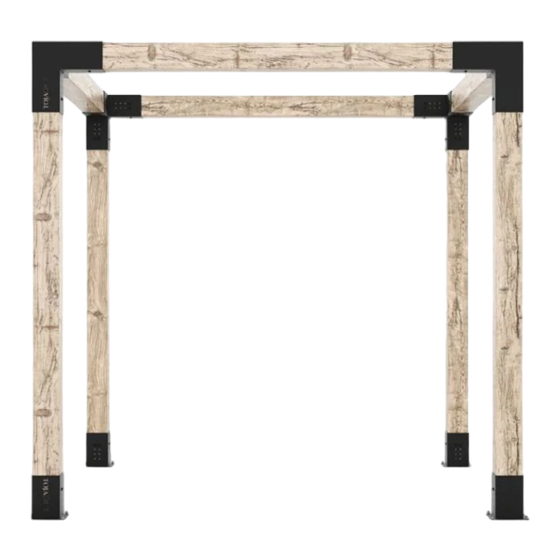

6x6 Post-in-Ground Single Cubic Pergola Kit
Pergola Kits
WARNING: If the information in these instructions is not followed exactly, weakening or failure of the erected
structure may result causing property damage, personal injury, or loss of life.
All brackets designed and sold by RioOutdoors.com are to be used for building pergolas only and are not to be used for
other structure construction purposes.

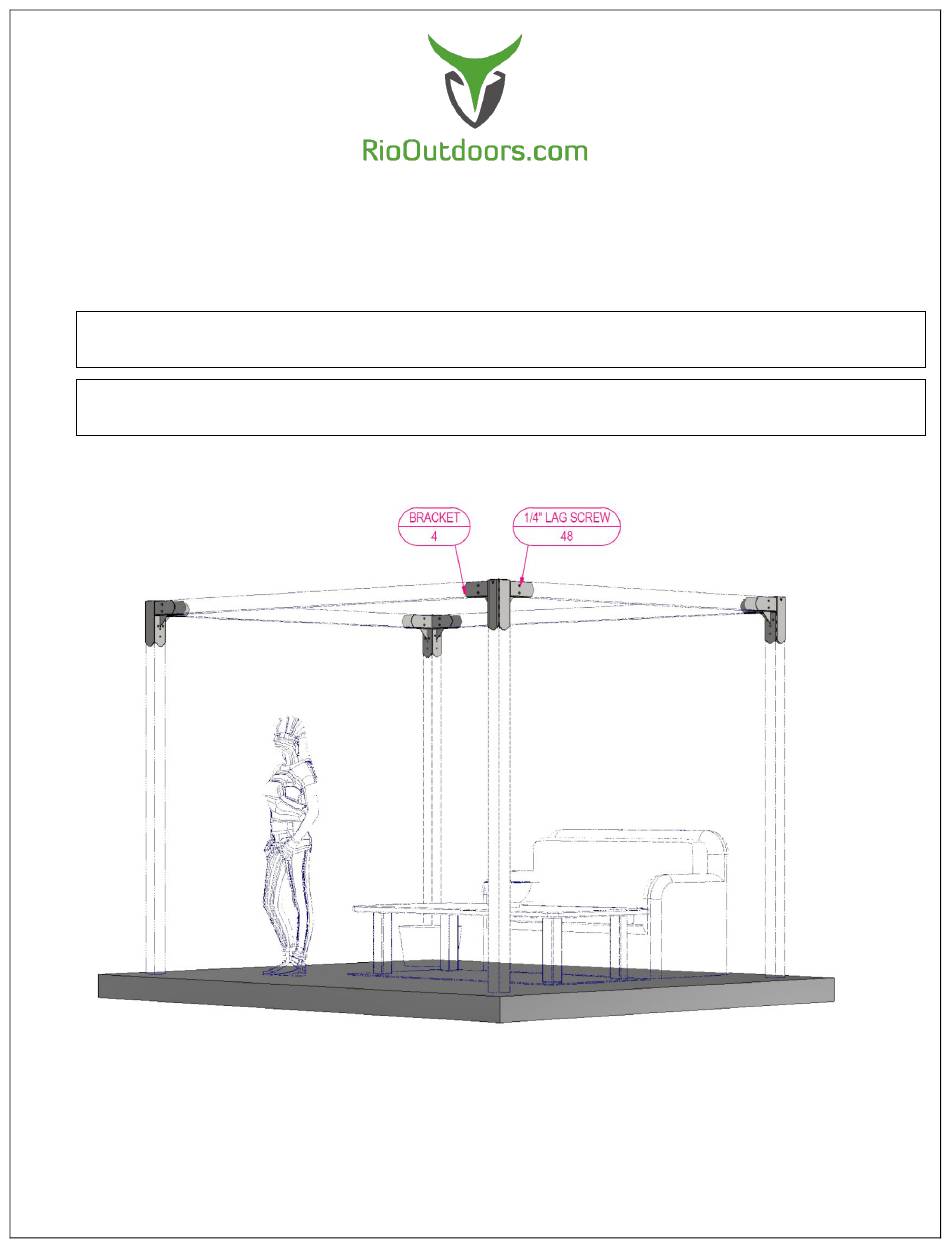

Figure 1: Items included in the kit, (Description/Quantity).
Page I
RioOutdoors.com
Advertisement
Table of Contents
Related Manuals for RioOutdoors 6P-SC
Summary of Contents for RioOutdoors 6P-SC
- Page 1 WARNING: If the information in these instructions is not followed exactly, weakening or failure of the erected structure may result causing property damage, personal injury, or loss of life. All brackets designed and sold by RioOutdoors.com are to be used for building pergolas only and are not to be used for other structure construction purposes.
-
Page 2: Table Of Contents
1.4 L ....5 2.2 E ............14 IST OF MATERIALS THAT YOU WILL SUPPLY XCLUSIONS ........6 2.3 L ........15 POST GROUND YSTEM IMITATIONS OF IABILITY 2.4 H ..... 15 OW TO BTAIN ARRANTY ERVICE Page I RioOutdoors.com... -
Page 3: Safety And Warning Information
GENERAL INFORMATION 1.1 SAFETY AND WARNING INFORMATION 1.1.1 Building Permit & Inspection Requirements We recommend that you consult with your local building permit office and obtain advice and any required building permits and inspection approvals from the local building inspection department or the local jurisdiction having authority over building codes. 1.1.2 Other Cautions CAUTION: Adhere to all safety requirements. -
Page 4: Tools Required
1.2 TOOLS REQUIRED Listed below, are common tools required for pergola projects. Your pergola project may not require all tools. Select and acquire the tools for your project from the “Required for Pergola Type” column in this table. Tool Tool Purpose Required for Pergola Reference Image Description... -
Page 5: Contents Of Kit # 6P-Sc
The contents of this kit are shown in the table, below. Before you begin your project, take an inventory of all items that you received from us. If any items are missing, contact us directly via email at info@RioOutdoors.com. Include your name and shipping address and your order number, if available. -
Page 6: Post-In-Ground System
1.5 POST-IN-GROUND SYSTEM 1.5.1 What is a Post-in-Ground anchoring system? As the term indicates, Post-in Ground, means that the vertical posts for a pergola are inserted deep into concrete footings and anchored in that way. The depth of the footing and the length of the post required to be embedded into the footing is determined by the maximum depth of the frost line for a particular area. - Page 7 1.5.2 Study the posts layout requrements. First, study the posts layout requirements. Spend some time planning, yourself, so you are fully familiar with the final size you desire for your poergola.Determine the exact location for each pergola post based on your pergola size. We have designed our pergola systems to eliminate the need to cut any 6x6 post or header members.
- Page 8 1.5.3 Call 811. 811 is the national call-before-you-dig phone number. Anyone who plans to dig should call 811 or go to their state 811 center's website before digging to request that the approximate location of buried utilities be marked with paint or flags so that you don't unintentionally dig into an underground utility line.
-
Page 9: Ost -Top Brackets Installation
1.6 POST-TOP BRACKETS INSTALLATION 1. Slide the 2-way elbow bracket’s tube over the 6x6 post top after aligning the header receiver u-channels in the proper direction. Let gravity work and pull the bracket all the way down on top of the post. 2. - Page 10 3. Identify the four 5/16” holes which are on the sides of the gussets in the bracket. Drill 3/32” X 1-1/4” deep pilot holes at the center of four 5/16” Holes. Locate pilot holes at the center of each 5/16” hole. Figure 2: Drill pilot holes.
-
Page 11: 6X6 Headers Installation
1.7 6X6 HEADERS INSTALLATION 1. Lift and place one 6x6 header into the U-channels of adjacent post-top bracket. 2. Locate the two 5/16” holes on each vertical face of the U-channels holding the 6x6 header. Drill 3/32” X 1-1/4” deep pilot holes at the center of four 5/16” Holes. Locate pilot holes at the center of each 5/16” hole. - Page 12 3. Drive one ¼ x 1-1/4” SS Hex Lag Screw through each 5/16” hole into the pilot holes you drilled in step 8, using a 7/16” Socket and Rachet driver. Tighten down each screw. 4. Repeat steps 7-9 for the remaining 3 headers.
- Page 13 Was it easy to do? Did parts fit easily and properly? Do you like the quality of our products and design styles? Is your pergola structure sturdy and strong? Please go to RioOutdoors.com and provide us with your review. You may add accessories such as a swing or hammock, 2x4 beams or 2x6 rafters on top for shielding direct sunlight, or a sunshield fabric on top.
-
Page 14: Conditions
Warranty protects against defect in manufacture only, unless herein specified otherwise. Any part(s) found to be defective during the warranty period as outlined above will be repaired or replaced at RioOutdoors.com’s option provided that the defective part is returned, if requested by RioOutdoors.com. Alternatively, RioOutdoors.com may at its own discretion fully discharge all its obligations under the warranty by refunding the verified purchase price of the product to the original purchaser. -
Page 15: Imitations Of Liability
Parts where the RioOutdoors.com logo has been altered, deleted, removed, or made illegible will void this warranty. Minor movement, expansion and contraction of the steel parts is normal and is not covered under the terms of this warranty.
