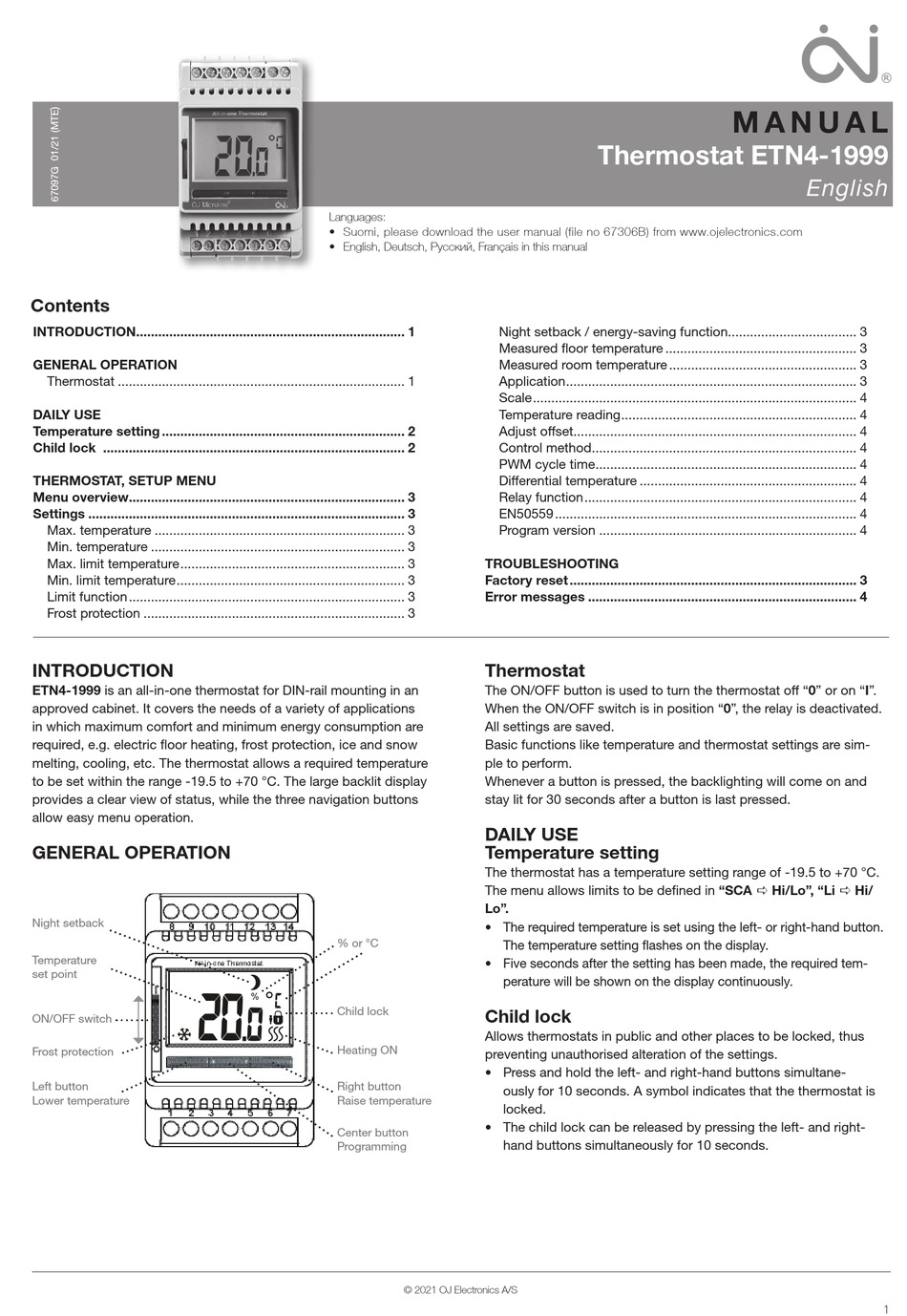

OJ Electronics ETN4-1999 Manual

MCS4-10 / MSD4-1999 / MSA4-10
Contents
INTRODUCTION ......................................................................... 1
GENERAL OPERATION
Thermostat .............................................................................. 1
DAILY USE
Temperature setting .................................................................. 2
Child lock .................................................................................. 2
THERMOSTAT, SETUP MENU
Menu overview ........................................................................... 3
Settings ...................................................................................... 3
Max. temperature .................................................................... 3
Min. temperature ..................................................................... 3
Max. limit temperature ............................................................. 3
Min. limit temperature .............................................................. 3
Limit function ........................................................................... 3
Frost protection ....................................................................... 3
INTRODUCTION

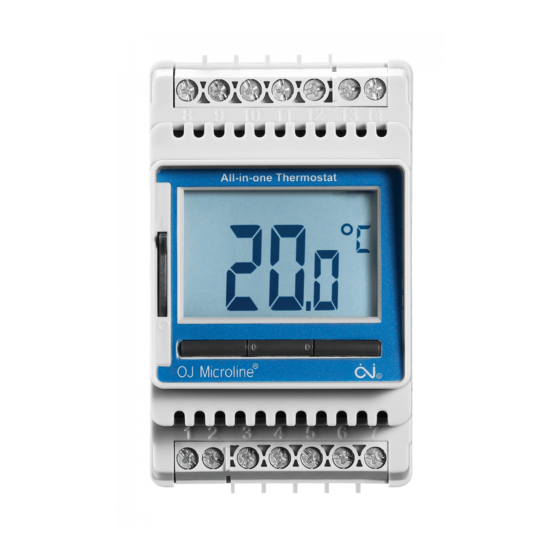

ETN4-1999 is an all-in-one thermostat for DIN-rail mounting in an
approved cabinet. It covers the needs of a variety of applications
in which maximum comfort and minimum energy consumption are
required, e.g. electric floor heating, frost protection, ice and snow
melting, cooling, etc. The thermostat allows a required temperature
to be set within the range -19.5 to +70 °C. The large backlit display
provides a clear view of status, while the three navigation buttons
allow easy menu operation.
GENERAL OPERATION
Night setback
Temperature
set point
ON/OFF switch
Frost protection
Left button
Lower temperature
Languages:
• Suomi, please download the user manual (file no 67306B) from www.ojelectronics.com
• English, Deutsch, Русский, Français in this manual
Night setback / energy-saving function ................................... 3
Measured floor temperature .................................................... 3
Measured room temperature ................................................... 3
Application ............................................................................... 3
Scale ........................................................................................ 4
Temperature reading ................................................................ 4
Adjust offset............................................................................. 4
Control method ........................................................................ 4
PWM cycle time ....................................................................... 4
Differential temperature ........................................................... 4
Relay function .......................................................................... 4
EN50559 .................................................................................. 4
Program version ...................................................................... 4
TROUBLESHOOTING
Factory reset .............................................................................. 3
Error messages ......................................................................... 4
Thermostat
The ON/OFF button is used to turn the thermostat off "0" or on "I".
When the ON/OFF switch is in position "0", the relay is deactivated.
All settings are saved.
Basic functions like temperature and thermostat settings are sim-
ple to perform.
Whenever a button is pressed, the backlighting will come on and
stay lit for 30 seconds after a button is last pressed.
DAILY USE
Temperature setting
The thermostat has a temperature setting range of -19.5 to +70 °C.
The menu allows limits to be defined in "SCA a Hi/Lo", "Li a Hi/
Lo".
• The required temperature is set using the left- or right-hand button.
% or °C
• Five seconds after the setting has been made, the required tem-
Child lock
Child lock
Allows thermostats in public and other places to be locked, thus
Heating ON
preventing unauthorised alteration of the settings.
• Press and hold the left- and right-hand buttons simultane-
Right button
Raise temperature
• The child lock can be released by pressing the left- and right-
Center button
Programming
© 2021 OJ Electronics A/S
Thermostat ETN4-1999
The temperature setting flashes on the display.
perature will be shown on the display continuously.
ously for 10 seconds. A symbol indicates that the thermostat is
locked.
hand buttons simultaneously for 10 seconds.
M A N U A L
English
1
