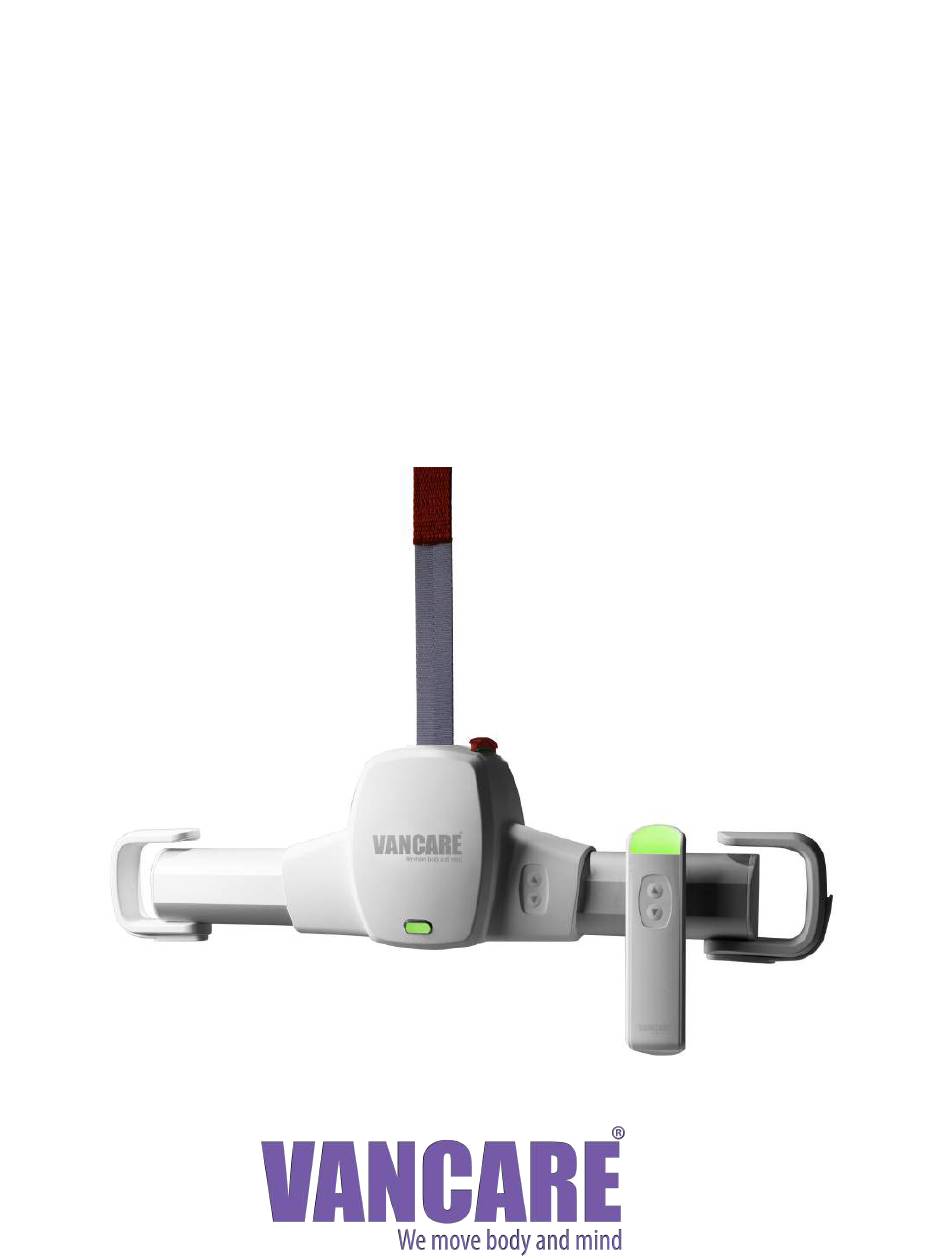

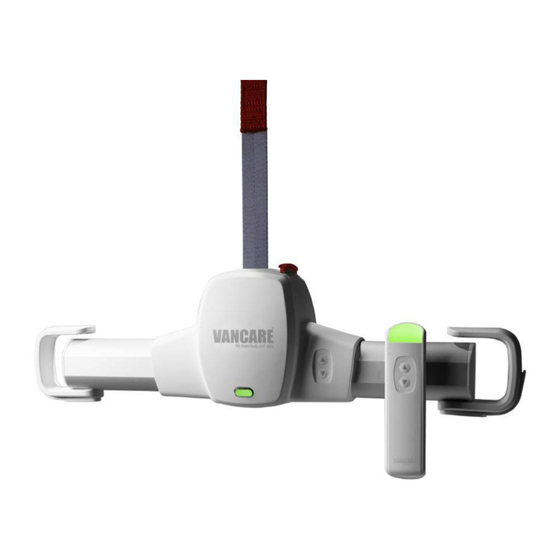

  • Page 1 Installation and Operation Instructions Service and Repair Manual G-Series Portable 450 Portable450...

  • Page 2: Table Of Contents

    Contents Introduction Safety Instructions Technical Specifications for Vancare G-Series Portable Lift Anatomy of the G-Series Portable Lift Getting Access to the G-Series Portable Lift Replacing the G-Series Portable Lift Strap Replacing the G-Series Portable Lift Battery Replacing the G-Series Portable Lift Motor...

  • Page 3: Introduction

    Vancare strives to consistently provide exemplary service, design, and installation to all of its customers. In an ever more competitive market, it is important to standardize installation techniques, thus ensuring that the highest standards of quality and safety are met.
  • Page 4 CAN/CSA-C22.2 No. 60601-1:08 Medical Electrical Equipment – Part 1: General requirements for Standard(s): basic safety and essential performance. ISO10535:2006 Hoists for the transfer of disables persons – Requirements and Test Methods. CAN/CSA-C22.2 60601-1-11:2-15 home use environments. Product: Vancare G-Series Portable Lift Brand Name: G-Series Models: 450 lbs...

  • Page 5: Safety Instructions

    A training program should be established by the facility to familiarize new caregivers with this equipment. • Do not expose the Vancare G-Series Portable directly to water. Warranty does not cover any misuse or abuse of the Vancare G-Series Portable.

  • Page 6: Technical Specifications For Vancare G-Series Portable Lift

    Technical Specifications for Vancare G-Series Portable Lift Maximum Lifting Speed: Lift Case: No load: 1 inch/second Flame retardant ABS 150 lbs/68 kg: 0.6 inches/seconds IP27 hand control - 1m water resistance 450 lbs/204 kg: 0.5 inch/seconds IP23 Lift - protected from fingers and water...

  • Page 7: Anatomy Of The G-Series Portable Lift

    Anatomy of the G-Series Portable Lift Lifts up to 450 lbs! Emergency lowering/stop feature Motor Unit controls Battery Hook bumper Hook bumper Quick magnetic hand G-Series Portable Lift Durable all metal gears control connection weighs just 6 lbs! Wireless bluetooth hand control www.vancare.com...

  • Page 8: Getting Access To The G-Series Portable Lift

    2. Remove three (3) screws from the case using 7/64" Allen key. 3. Open the front cover. 4. Gently pull the charger strip from the PCB. 5. Gently pull the mylar strip from the PCB and remove the cover. Vancare...

  • Page 9: Replacing The G-Series Portable Lift Strap

    6. Replace with a new strap and follow these instructions in reverse to install the new strap. 7. When installing the new strap, make sure the fold of the strap is facing the red wire on the limit switch. www.vancare.com...

  • Page 10: Replacing The G-Series Portable Lift Battery

    8. Replace with a new battery and follow these instructions in reverse to install the new battery. NOTE: Apply one (1) or two (2) drops of Blue Loctite 243 for two (2) screws on line no. 2 when installing them back. Vancare...

  • Page 11: Replacing The G-Series Portable Lift Motor

    8. Pull out the motor with force, replace with a new motor and follow these instructions in reverse to install the new motor. Note: When installing a new motor, make sure the D-slot from the motor lines up with the motor mounting plate. www.vancare.com...

  • Page 12: Replacing The G-Series Portable Lift Limit Switch

    Replacing the Emergency Switch 1. Remove two (2) screws and two (2) bushings from the red emergency push switch using a 3/32" Allen key. 2. Replace the push switch and follow these instructions in reverse to install the new push switch. Vancare...

  • Page 13: Pcb Connections

    PCB Connections 1. On/Off witch 2. Mylar 3. Battery Connector 4. Charger 5. Limit Switch 6. Motor Brake 7. Motors 8. Fixed Hand Control www.vancare.com...

  • Page 14: Replacing The Pcb

    4. Remove four (4) screws from the PCB, using a 1.5 mm Allen key. 5. Gently pull out the PCB from the lift. 6. Replace the PCB and follow these instructions in reverse to install the new PCB. Vancare...

  • Page 15: Pairing And Un-Pairing The Hand Control To The G-Series

    Replacing the Hand Control 1. Disconnect the hand control connector from the circuit board. 2. Turn the grommet until the hand control cable can be pulled out. 3. Insert the cable from the new hand cotrol and reconnect to the circuit board. www.vancare.com...

  • Page 16: Portable Lift Replace The Battery On The Hand Control

    The primary purpose of our ceiling lift system is to safely lift, transfer and reposition a patient with a little effort as possible for the caregiver, regardless of the room type. Vancare s G-Series Lift is easy and safe to use for caregivers as well as patients.
  • Page 17 Notes...
  • Page 18 Notes...
  • Page 19 Notes...
  • Page 20 Vancare | 1515 1st Street, Aurora NE, 68818 Toll Free Phone: 1.800.694.4525 | Tel: 800.694.4525 | Fax: 402.694.4525 Email: info@vanare.com | www.vancare.com Manufactured for Vancare, Inc.
