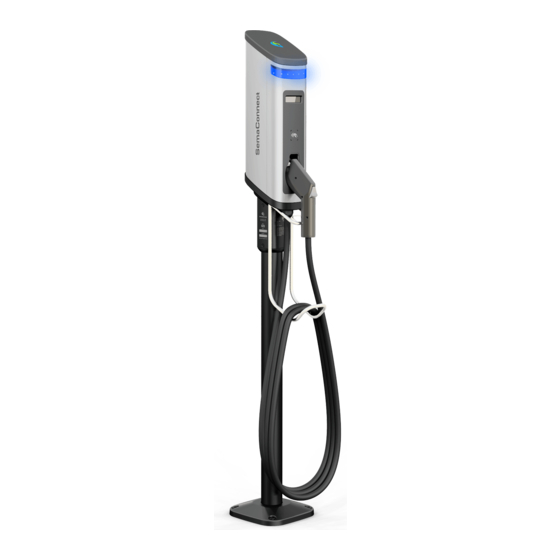

Series 6 EV

Charging Station

1 — Last update: 04/29/2021

Installation Manuals

Table of Contents

Need help?

Do you have a question about the 6 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for SemaConnect 6 Series

Page 2: Table Of Contents
Table of Contents 1. Series 6 EV Charging Station Install Manual ..................1 1.1. Safety and Compliance ........................2 1.2. Key Requirements / Wiring Diagram....................3 1.3. Parts List............................4 1.4. Key Requirements........................... 7 1.4.1. Dimensions ..........................8 1.4.2. Dedicated Power........................10 1.4.3.
Page 3: Series 6 Ev Charging Station Install Manual
Installation Manuals Series 6 EV Charging Station - 1 1. Series 6 EV Charging Station Install Manual Copyright ©2021 SemaConnect, Inc. All rights reserved. Page 1 of 25...
Page 4: Safety And Compliance
SemaConnect charging station arising out of or relating to the use or inability to use this guide, even if SemaConnect, Inc. Or its authorized distributors have been advised of the possibility of such damages.
Page 5: Key Requirements / Wiring Diagram
3. 240 VAC single phase In a delta system, connect the SemaConnect station only to a center-tapped grounded transformer only as shown below. Connect the station to the side where ground is bonded (in figure C line A and C). This allows voltages to remain constant regardless of other loads that may be using the lines.
Page 6: Parts List
2) Single Pedestal| Single pedestal: Qty 1 / Dual pedestal: Qty 0 3) Dual Pedestal| Single pedestal: Qty 0 / Dual pedestal: Qty 1 4) Head Unit Mounting Screws (M5×10) Copyright ©2021 SemaConnect, Inc. All rights reserved. Page 4 of 25...
Page 7 Single pedestal: Qty 1 / Dual pedestal: Qty 1 7) Anchor Plate Single pedestal: Qty 1 / Dual pedestal: Qty 1 8) Sacrificial Bolt (M12×25) Single pedestal: Qty 4 / Dual pedestal: Qty 4 Copyright ©2021 SemaConnect, Inc. All rights reserved. Page 5 of 25...
Page 8 Single pedestal: Qty 2 / Dual pedestal: Qty 2 10) Anchor J-bolt set-3/8” ( three nuts, one flat washer, two spring washer, 1 J bolt) Single pedestal: Qty 4 / Dual pedestal: Qty 4 Copyright ©2021 SemaConnect, Inc. All rights reserved. Page 6 of 25...
Page 9: Key Requirements
Installation Manuals Series 6 EV Charging Station - 1 1.4. Key Requirements Dimensions Dedicated Power Shared Power Copyright ©2021 SemaConnect, Inc. All rights reserved. Page 7 of 25...
Page 10: Dimensions
Installation Manuals Series 6 EV Charging Station - 1 1.4.1. Dimensions Series 6 Dual Pedestal Mount Series 6 Single Pedestal Mount Copyright ©2021 SemaConnect, Inc. All rights reserved. Page 8 of 25...
Page 12: Dedicated Power
5. Each station requires three electrical supply wires (two hot, one ground, no neutral). 6. All data communication is wireless, so no data cabling needed, but cellular communication is required. Station Wiring Diagram – Dedicated Power Copyright ©2021 SemaConnect, Inc. All rights reserved. Page 10 of 25...
Page 14: Shared Power
5. Each station requires three electrical supply wires (two hot, one ground, no neutral). 6. All data communication is wireless, so no data cabling needed, but cellular communication is required. Station wiring Diagram – Shared Power Copyright ©2021 SemaConnect, Inc. All rights reserved. Page 12 of 25...
Page 16: Anchor Plate Installation
Follow the same procedure for both Single and dual pedestal mount installation. • Anchor Plate Key Dimensions When pouring new concrete, request a SemaConnect Anchor Kit which contains: Fit all J-Bolts (4), Pedestal (4) and CMS (2) Disposable Bolts to the anchor plate.
Page 17 • Mark anchoring points with the help of anchor plate template. • Drill 4 holes into the concrete, each minimum 2.2” deep. • Put anchor bolts provided by SemaConnect, ensuring that bolts extend out. • Place anchor plate on top of stud anchors.
Page 18 • Ensure that access panel is to your right, when seen from the front end. • Align Pedestal for plumb with the help of Set screw on the pedestal. Once the Pedestal is plumb, fully tighten the pedestal mounting screw. Copyright ©2021 SemaConnect, Inc. All rights reserved. Page 16 of 25...
Page 19: Pedestal Mount
Series 6 EV Charging Station - 1 1.6. Pedestal Mount Preparing the SemaConnect Series 6 Head Unit • Loosen the Set screws (4 nos) in the head unit(s) and attach Cable rack to charging Station. • Remove the access panel from the head unit.
Page 20 • Call (800)-663-5633 to complete installation. • Please have the station serial number ready with you. If you do not have it, you can find it on left-hand side of the station. Copyright ©2021 SemaConnect, Inc. All rights reserved. Page 18 of 25...
Page 21: Wall/Pole Mount Parts
- Key size 2.5 SemaConnect Parts List: 1) Station Head Unit with J1772 Cable (20ft) Qty: 1 2) Wall/Pole Mount Qty: 1 3) Head Unit Mounting Screws (M5×10) 4) Cable hanger Copyright ©2021 SemaConnect, Inc. All rights reserved. Page 19 of 25...
Page 25: Wall/Pole Mount Installation
• Strictly adhere to the wire color codes to ensure proper installation (Green-Green). And use wire nut and Insulation tape for safety • Carefully push the wire in and attach the access plate Copyright ©2021 SemaConnect, Inc. All rights reserved. Page 23 of 25...
Page 26 • Call (800)-663-5633 to complete installation. • Please have the station serial number ready with you. If you do not have it, you can find it on left hand side of the station. Copyright ©2021 SemaConnect, Inc. All rights reserved. Page 24 of 25...
