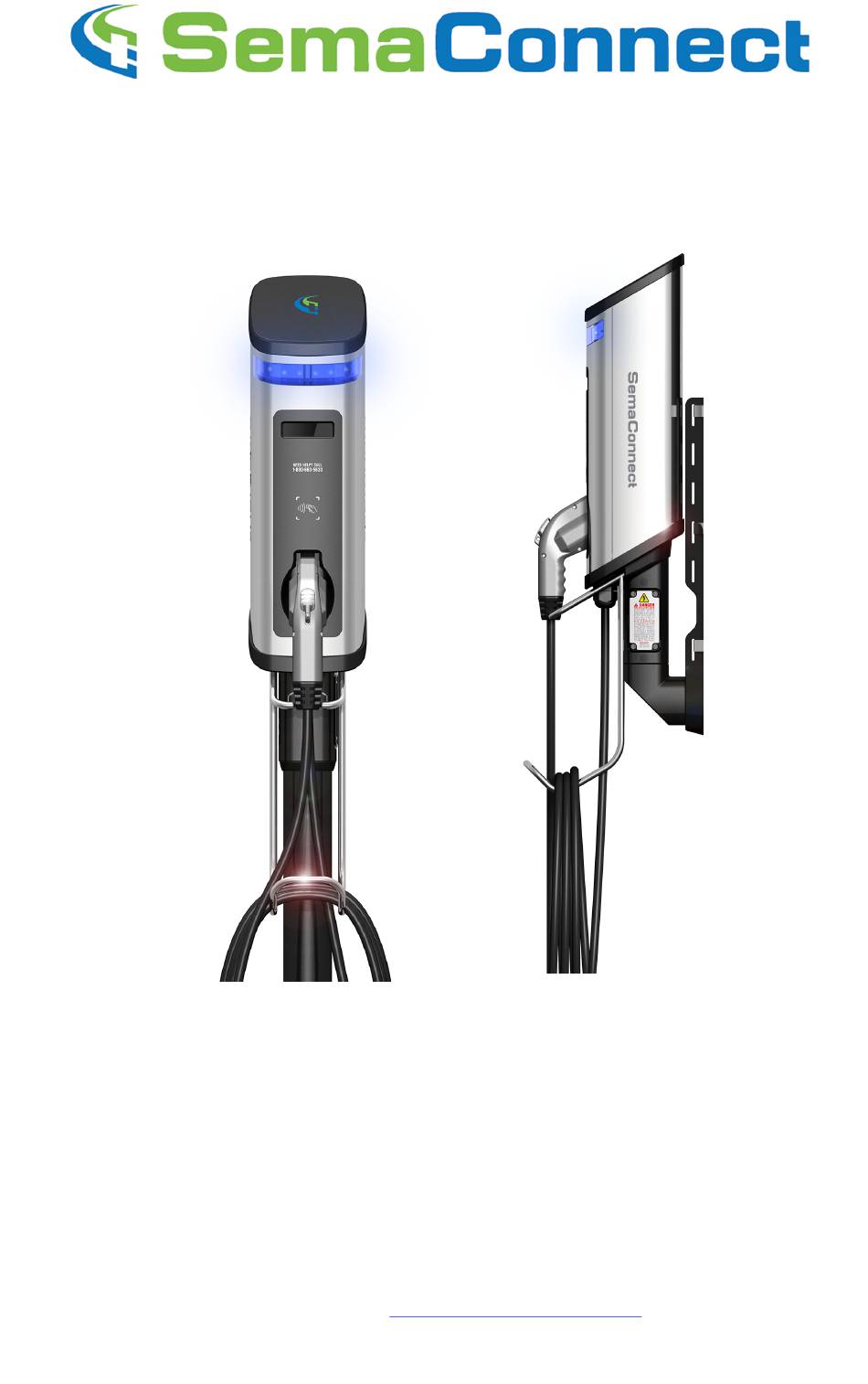

Electric Vehicle Charging Station Installation Guide
Contents
Page 1
Page 3
Page 6
Page 10 Wall/Pole Mount Installation
4961 Telsa Drive, Suite A * Bowie, MD 20715
Safety and Compliance
Single/Dual Pedestal Mount Installation
Pedestal Mount Installation (cont)
SemaConnect, Inc.
800-663-5633 *
www.semaconnect.com
Rev 101219
Advertisement
Related Manuals for SemaConnect 6 Series
Summary of Contents for SemaConnect 6 Series
- Page 1 Electric Vehicle Charging Station Installation Guide Contents Page 1 Safety and Compliance Page 3 Single/Dual Pedestal Mount Installation Page 6 Pedestal Mount Installation (cont) Page 10 Wall/Pole Mount Installation SemaConnect, Inc. 4961 Telsa Drive, Suite A * Bowie, MD 20715 800-663-5633 * www.semaconnect.com Rev 101219...
-
Page 2: Safety And Compliance
SemaConnect is not responsible for damages that may occur during or as a result of installation. IN NO EVENT SHALL SEMACONNECT, INC. OR ITS AUTHORIZED DISTRIBUTORS BE... - Page 3 • 240 VAC single phase • In a delta system, connect the SemaConnect station only to a center-tapped grounded transformer only as shown below. Connect the station to the side where ground is bonded (in figure C line A and C).
- Page 4 EV Charging Station Installation Guide SemaConnect Pedestal Mount Parts Tools Required Electrical Tools:- Wire stipper, Wire nut, Insulation tape Mechanical Tools:- Spirit level Anchor plate J bolt - 3/8” inch wrench Driver Set - For Pedestal levelling - key size 3...
- Page 5 EV Charging Station Installation Guide Head Unit Mounting Screws (M5x10 Socket Flat head) Pedestal Mounting Screw (M12x25 Socket head) Cable hanger Anchor plate Sacrificial Bolt (M12x25) Sacrificial Bolt (M6x30) Anchor J- bolt set-3/8” ( three nuts, one flat washer, two spring washer, 1 J bolt )
- Page 6 EV Charging Station Installation Guide SemaConnect 620 Single and Dual Pedestal mount Installation Key Dimensions SemaConnect 520 Single and Dual Pedestal mount Installation Key Dimensions...
- Page 7 EV Charging Station Installation Guide SemaConnect Anchor Plate Key Dimensions SemaConnect Single and Dual Pedestal Mount Installation (cont) Follow the same procedure for both Single and dual pedestal mount installation. Anchor Plate Installtion Procedure Step-1:- Install the circuit Breaker. Caution-1:- After circuit breaker is installed, make sure it’s turned off.
-
Page 8: Front Side
(Figure-3). SemaConnect Single/Dual Pedestal Installtion Procedure Step-7:- Once the concrete has set, remove the Sacrificial bolts (Figure-4) from the anchor plate. Then place the pedestal on top of anchor plate and screw in four pedestal mounting screw(Figure-5). - Page 9 Step-8:- Align Pedestal for plumb with the help of Set screw on the pedestal(Figure-5). Once the Pedestal is plumb, fully tighten the pedestal mounting screw. Preparing the SemaConnect 620/520 head Unit Step-9:- Loosen the Set screws(4 nos) in the head unit(s) and attach Cable rack to charging Station(Figure-7).
- Page 10 Step-16:- Call 800-663-5633 to complete Installation. Please have station serial number ready with you. If you do not have it, you can find it on left hand sie of the station SemaConnect Wall/Pole Mount Installation Tools Required Electrical Tools:- Wire stipper, Wire nut, Insulation tape...
- Page 11 EV Charging Station Installation Guide Head Unit Mounting Screws (M5x10 Socket Flat head) Cable hanger SemaConnect 620/520 Wall Mount Installation Key Dimensions...
- Page 12 EV Charging Station Installation Guide SemaConnect Wall/Pole Mount Installation Follow the same procedure for Wall and Pole mount installation. Wall/Pole Mount Installtion Procedure Step-1:- Install the circuit Breaker, run the electrical conduit Caution-1:- After circuit breaker is installed, make sure it’s turned off.
- Page 13 EV Charging Station Installation Guide Step-6:- Now Slide the head unit(s) onto wall/pole mount and attach it with four mounting screw(Figure-2). Caution:- Make sure that the wires are not pinched between pedestal and charging station Step-7:- Connect three electrical supply wires. Caution:- stirictly adhere to the wire color codes to ensure proper installation(Green-Green).
