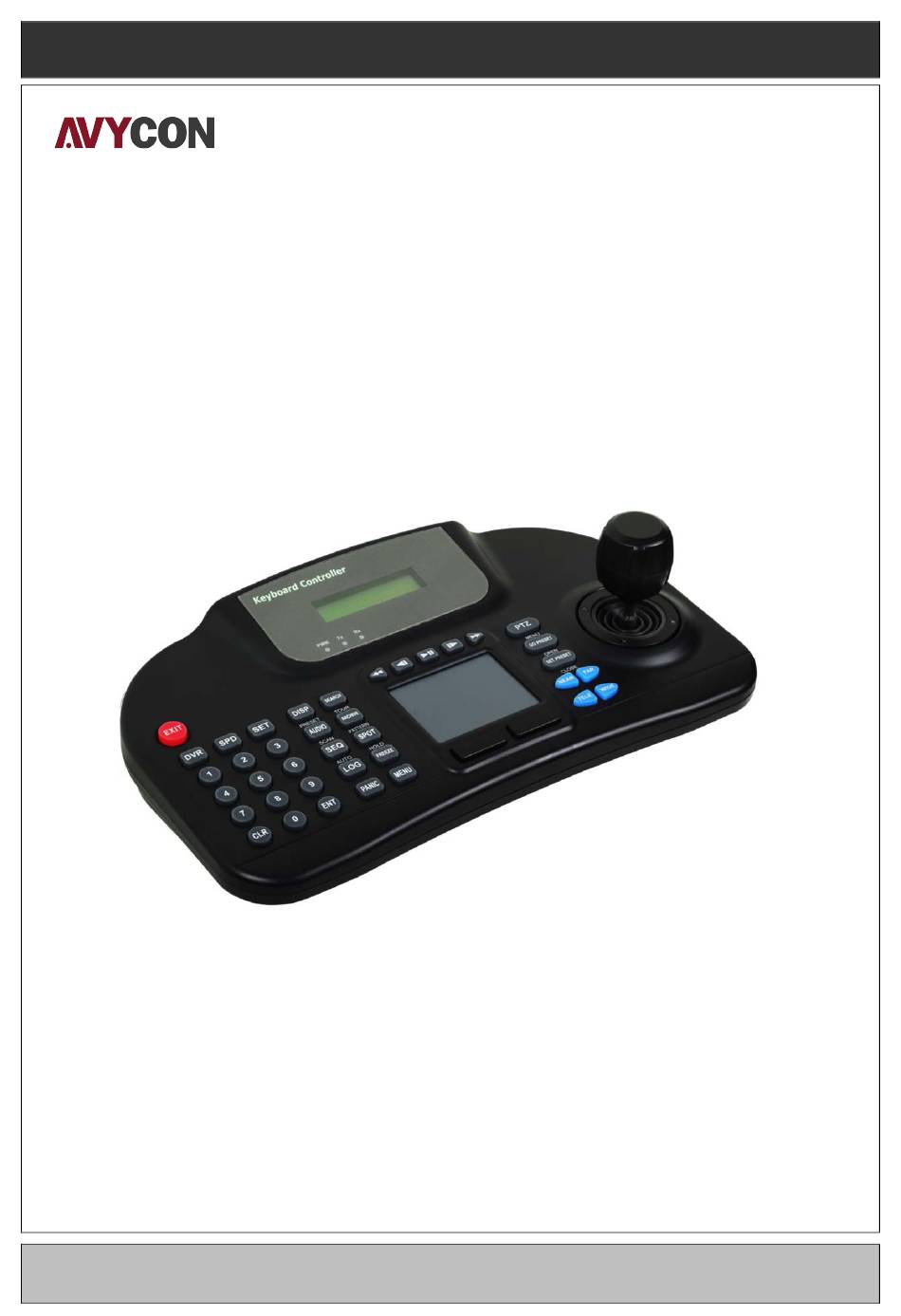

- Page 1 Keyboard Controller Keyboard Controller AVK-P2500 User`s Manual This document contains preliminary information and is subject to change without notice.
- Page 2 Please make sure to connect “Tx to Rx“ or “Rx to Tx” with same polarity. (+ to +) and (- to -). 11.1.2 USB Connection In order to use Touch Pad on AVK-P2500 , a user should connect AVK-P2500 and DVR with provided USB cable. DVR will automatically recognize the Touch Pad.
- Page 3 11.3 Keyboard Configuration DVR Mode KEYS SPD mode DVR control Mode PTZ Mode ① EXIT Key DVR Mode select Key ② SPD Mode select Key Setup Key Number Pad Key Clear Key ③ ENTER Key Display Key Preset Key (PRESET) ④...
- Page 4 System Log Key Emergency recording Search Key Activate Tour Key (TOUR) Archive Key Activate Pattern Key (PATTERN) Spot control Key Hold Key (HOLD) Pause on Live Key DVR Menu Key REW Key Backward Key ⑤ Play/Pause Key Forward Key FF Key PTZ Mode Key Camera Menu Key (MENU)
- Page 5 11.4 Setup 11.4.1 DVR Control Mode Press in DVR Mode to enter Main Setup and enter password. (Default password is 0000) Keyboard Detail Option Firmware version DATE Date setting YY/MM/DD TITLE SET Camera title CONTROL ID ID No. Change DVR SPD Set Baud rate 2.4Kbps~57.6Kbps...
- Page 6 If the DVR Control Mode is selected followings will display on Keyboard LCD and Live OSD as “KBD: #” on the right-bottom corner. Then, a user should be able to operate the DVR functions by AVK-P2500 . 11.5.2.2 Buttons ...
- Page 7 If the PTZ Mode is selected following will display on Keyboard LCD and OSD Then, a user should be able to operate the PTZ camera with AVK-P2500 . In PTZ mode, all buttons are operated according to texts written on each button. The functions are same as Front buttons of DVR as follows: - # + “...
- Page 8 Then, a user should be able to operate the Speed Dome camera directly with AVK-P2500 . NOTE Please check Protocol and Baud rate before operating the Speed Dome Camera using AVK-P2500 . 11.5.3.2 Buttons (PRESET): Press number Key and PRESET then the camera will move to designated point.
