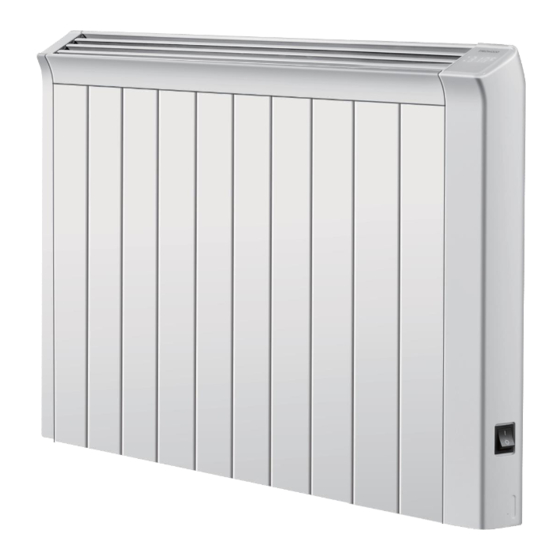

Redwood CA900FI Installation & User Manual Instructions
Panel heater
Hide thumbs
Also See for CA900FI:
- Product instructions (10 pages) ,
- Installation & user manual instructions (13 pages)
Related Manuals for Redwood CA900FI
Summary of Contents for Redwood CA900FI

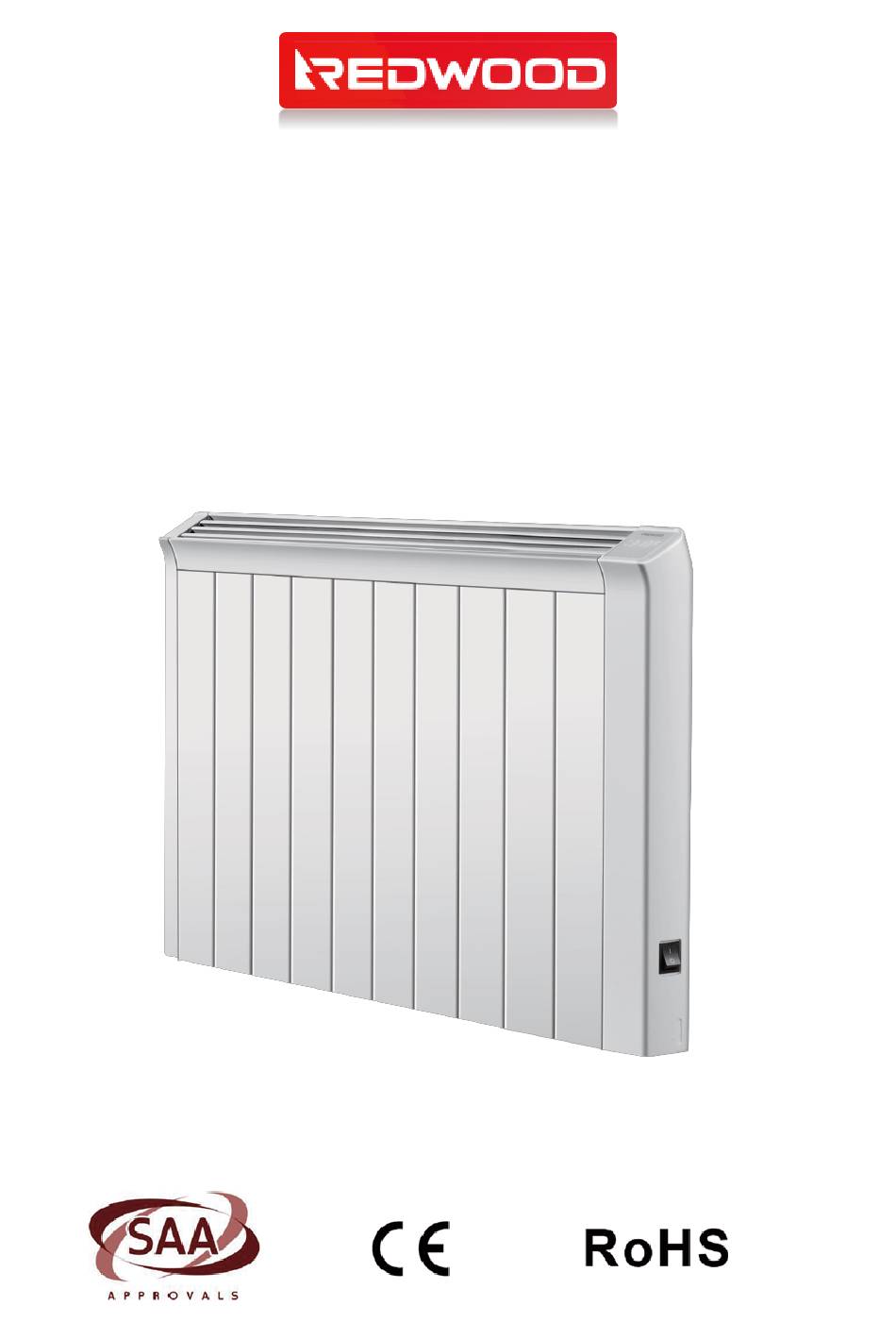

- Page 1 Panel Heater Installation & User Manual Instructions Models: CA900FI, CA180FI, CA240FI...
- Page 2 Please register your warranty at www.theheatingcompany.co.nz/warranty. The Redwood Panel heaters are a high-quality product and will provide you with many years of comfort. The Redwood Panel Heater is covered by a comprehensive 2 Year Manufacturer’s Warranty. For further information or technical advice please contact: www.theheatingcompany.co.nz...
-
Page 3: Installation Location
5. Rear Panel 8. Front Panel 3. Bracket Fixing Position 6. Panel 9. Top Grill Model Nominal Rated Rated Current Number of Voltage Frequency Fins CA900FI 240V 50Hz 4.1 A CA180FI 240V 50Hz 8.2 A CA240FI 240V 50Hz 10 A... -
Page 4: Installation Method
Redwood Panel Heater Dimensions Model Width (mm) Height (mm) Depth (mm) Area size (m CA900FI 554 mm 510 mm 60 mm Up to 12 m CA180FI 850 mm 510 mm 60 mm Up to 25 m CA240FE 1150 mm 510 mm... -
Page 5: Lcd Panel Description
LCD panel description When the lock symbol is displayed, it indicates that the device is locked. In this state, all buttons are invalid. To unlock the heater press and hold “- “ button & input the 6- digit pin number (if the 6 digit password set). When the symbol is blinking, it indicates the heater is searching for WIFI connection. - Page 6 Description of how to add the heater to the mobile App The mobile App is available to download on Apple app store (IOS version) & Google play store (Android version). Scan the below QR code to download the correct mobile APP: Android：...
- Page 7 3. Adding device. Please click on “Add” to add the devices and follow the instructions. 4. Configure the WIFI network. Important: Your mobile device must be connected to WIFI connection and it must be 2.4 GHz WIFI connection prior to following this step. Your mobile WIFI network name will appear on the screen therefore you only require entering the WIFI password and go to the next step.
- Page 8 5. Scanning devices At this point " " should be flashing. Once the device is discovered, please click on the little circle to select the discovered device and press “Next” to continue the process. 6. Editing device details Final step: Feel free to edit & customize the device details before completing the device adding process.
-
Page 9: How To Set The Time
How to set the time If the heater is already connected to the APP, the time of the heater will automatically synchronize with the phone's time. Here's how to set the time by pressing the buttons. 1. Press “ ” until “ ”... - Page 10 On mobile App, You can set the desired temperature by pressing “+” or“-“. Also, set a designated time to turn off the heater automatically by pressing “Appointment shutdown”. And you can press the "Mode switching" button to switch between manual and programming modes Instruction for set time to turn off function in Manual Mode This is to be used when you want the heater to automatically turn off at a designated future time.
- Page 11 Weekly Programmed mode The weekly programming only can be set up through your mobile App. You can set the temperature/mode for "unset" time periods. If you wish to use the same time periods and temp. settings for other days of the week, you can use the “copy”...
-
Page 12: Restore Factory Settings
Lock/ Unlock 1. When the user does not set a password through the mobile App, press “ ” button and hold it for 3-5 seconds to unlock or lock the heater. 2. When the user has set a password through the mobile app, you can lock and unlock it in the App by holding down the heater icon in the "HOME"...
