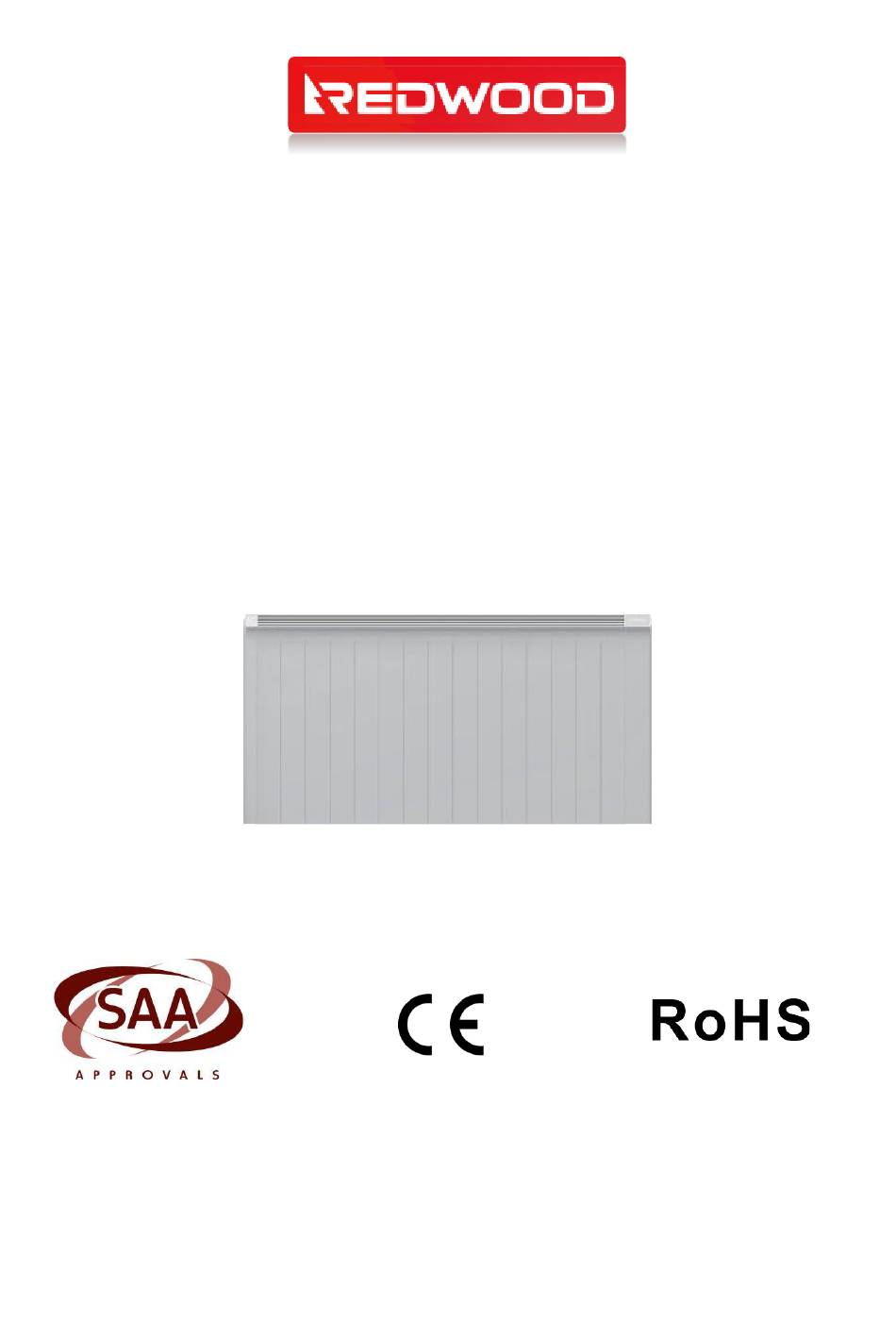

- Page 1 Panel Heater Installation & User Manual Instructions Models: CA900FE, CA180FE, CA240FE...
-
Page 2: Safety Requirements
Please register your warranty at www.theheatingcompany.co.nz/warranty The Redwood Panel heaters are a high-quality product and will provide you with many years of comfort. The Redwood Panel Heater is covered by a comprehensive 2 Year Manufacturer’s Warranty. For further information or technical advice please contact: www.theheatingcompany.co.nz... -
Page 3: Installation Location
2. Display Frame 5. Rear Panel 8. Front Panel 3. Bracket Fixing Position 6. Panel 9. Top Grill Model Nominal Voltage Rated Frequency Rated Current Number of Fins CA900FE 240V 50Hz 4.1 A CA180FE 240V 50Hz 8.2 A CA240FE 240V 50Hz... -
Page 4: Installation Method
Redwood Panel Heater Dimensions Model Width (mm) Height (mm) Depth (mm) Area size (m CA900FE 554 mm 510 mm 60 mm Up to 12 m CA180FE 850 mm 510 mm 60 mm Up to 25 m CA240FE 1150 mm 510 mm... -
Page 5: Manual Mode
Getting to Know your LCD Panel Power button Program symbol (ON – programmed mode, OFF – manual mode) Auto Timer (ON – Timer is set, OFF – Timer is NOT set) Select/ Enter – To switch between the programmed or manual mode Touchpad lock/ unlock symbol Manual mode In manual mode you have an Auto timer on/off mode option. -
Page 6: Programmed Mode
Programmed Mode In the programmed mode, set one of the temperature settings (out of four) for each half hour block of the 24 hours clock. 4 X temperature settings as below: Comfort Temperature: Temperature range: 20 - 35 degrees. Economy Temperature: Temperature range: 13 - 19 degrees. Anti-frost Temperature: Temperature range: 5 –... - Page 7 3. Once the current time is set, then the next step is to set the current day. If you’re planning to use the same schedule for all seven days then you can select any digit. But if you’re planning to program different schedules for different days, please make sure you select the correct digit for the day as below.
- Page 8 5. The final step is to set the weekly schedule. When the display indicates as is flashing, currently day 1 is selected. You can start setting the programming schedule for Monday by pressing the button. (Monday = 1, Tuesday = 2, Wednesday = 3, Thursday = 4, Friday = 5, Saturday = 6, Sunday = 7) Time –...
- Page 9 At this point, and if you wish to continue the same schedule for all seven days, select and press the display indication will change to and then press again to confirm. The heater will make a beep noise and the indicator will turn on confirming the program schedule is saved for all seven days.
-
Page 10: How To Reset To Factory Settings
How to reset to factory settings Turn OFF the heater by pressing the button. When the heater is OFF, press and hold & buttons until it makes a beep noise. Also, all the display backlights will blink twice confirming it has reset to factory settings.
