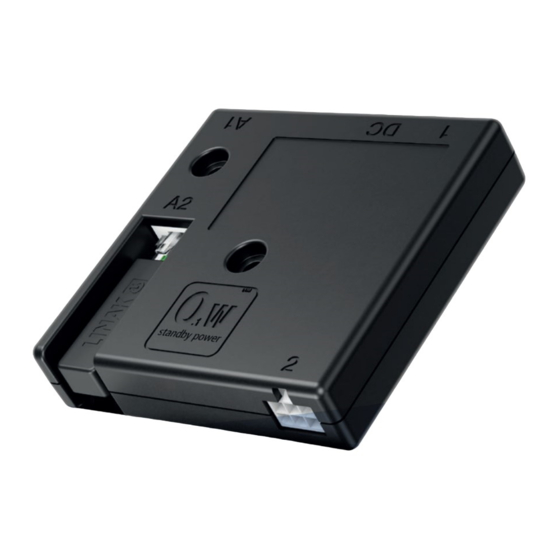

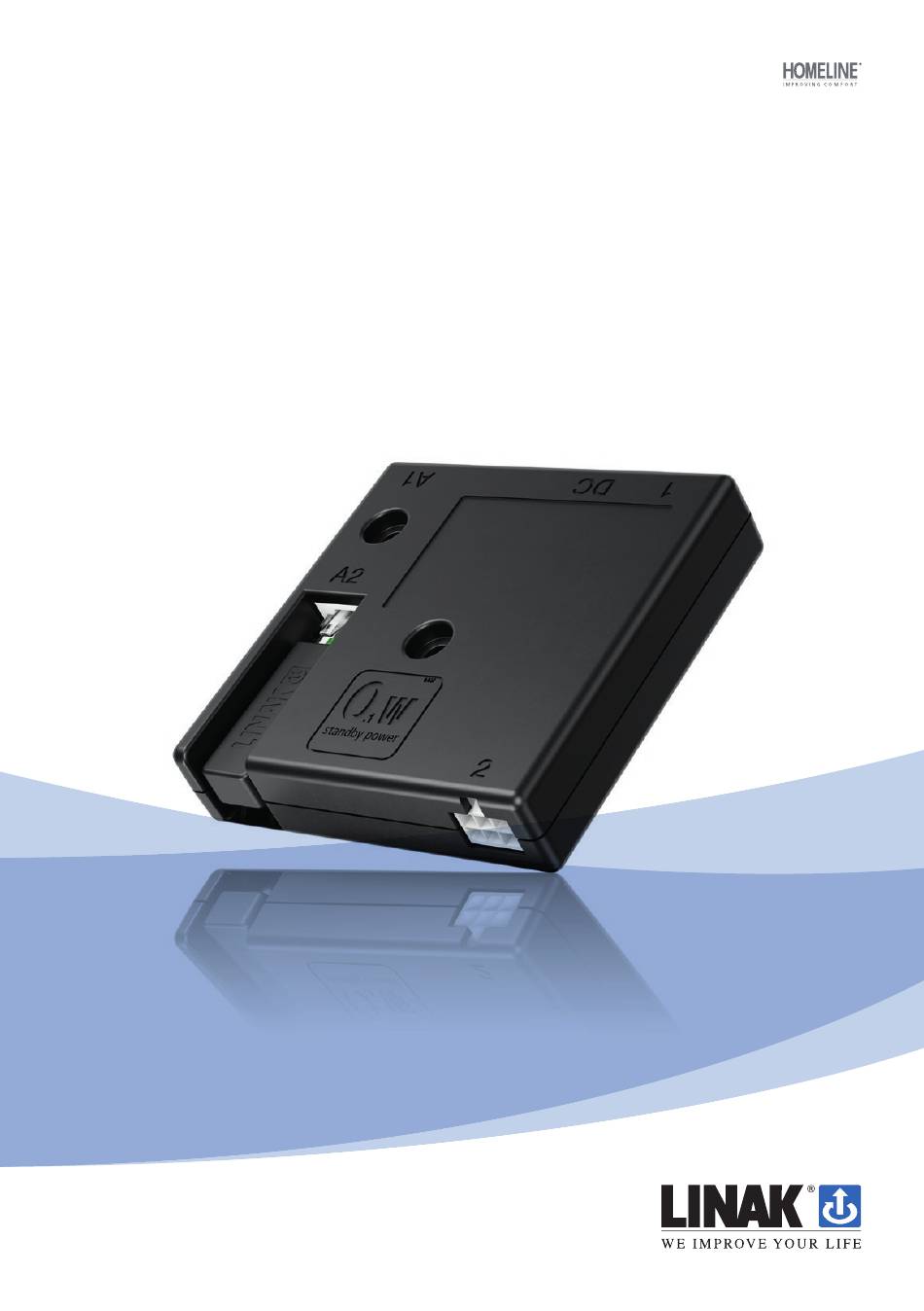

- Page 1 CBD6DC HOMELINE ® User manual LINAK.COM/HOMELINE Page 1 of 20...
-
Page 2: Table Of Contents
Mounting the CBD6DC on the bed frame ................... 14 Electrical connection ........................14 External power supply ........................ 14 Label ............................15 Disposal of LINAK products ......................16 Main groups of disposal ....................... 17 Disposal of batteries ........................17 Drawing appendix ......................... 18 Addresses ............................ -
Page 3: Preface
This User Manual does not address the end-user. It is intended as a source of information for the manufacturer of the equipment or system only, and it will tell you how to install, use and maintain your LINAK electronics. It is the responsibility of the manufacturer of the end-use product to provide a User Manual where relevant safety information from this manual is passed on to the end-user. -
Page 4: Valid For
Valid for: This User Manual is valid for the following products: (See the first 3 - 5 characters on the label) Actuators: TD4 Advanced, TD5 Advanced, and LA40 Control box: CBD6DC Controls: All wireless HOMELINE controls ® Power supply: SMPS001, SMPS002 and SMPS006 Accessories: WiFi2LIN module, BLE2LIN, Bed Control App, LED light rail, and massage motor Page 4 of 20... -
Page 5: Important Information
Important information Important information on LINAK products can be found under the following ® headings: Warning! Failure to comply with these instructions may result in accidents involving serious personal injury. Failing to follow these instructions can result in the product being damaged or being destroyed. -
Page 6: Safety Issues
• If the control box makes unusual noise or smells, switch off the mains voltage immediately. • Take care that the cables are not damaged. • Unplug the mains cable on mobile equipment before it is moved. Misc: Updated manuals and declarations can always be found here: www.linak.com/homeline Page 6 of 20... -
Page 7: Only For Eu Markets
Only for EU markets This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. -
Page 8: Informations Importantes
Informations importantes Les informations importantes sur les produits LINAK peuvent être trouvées dans ® les rubriques suivantes: Attention! Le non respect de ces instructions peut entraîner des accidents impliquant des blessures graves. Ne pas suivre ces instructions peut entraîner l´endommagement ou destruction du produit. -
Page 9: Avant L´installation, Ré-Installation Ou Le Dépannage
• Débranchez le cable d´alimentation sur l´équipement mobile avant qu´il ne soit déplacé. • Les produits ne doivent-être utilisés que dans un environement qui correspond à leur IP. Divers: Les mises à jours des manuels et autres informations peuvent-être trouvées sur www.linak.com/homeline Page 9 of 20... -
Page 10: Seulement Pour Les Marchés Au Sein De L´ue
Seulement pour les marchés au sein de l´UE: Ce produit peut-être utilisé par des enfants âgés de 8 ans et plus, ainsi que les personnes dont les capacités physiques, sensorielles ou mentales sont réduites ou ayant un manque d´expérience et de connaissance si elles ont bénéficié d´une surveillance ou d´instructions concernant l´utilisation du produit en toute sécurité... -
Page 11: Repairs
Products under warranty must also be returned to authorised LINAK service centres. Further information on LINAK warranty can be found on the LINAK website www.linak.com/warranty. EU DECLARATION OF CONFORMITY LINAK A/S Smedevænget 8... -
Page 12: Misc. On The Cbd6Dc Homeline
The CBD6DC is an optimal choice for TD4/TD5 Advanced and LA40 applications together with various accessories, such as massage motors or extra light. Warranty This HOMELINE product is subject to warranty pursuant to the terms of LINAK HOMELINE Warranty Paper, available on the LINAK website www.linak.com/warranty. Maintenance Clean dust and dirt on the outside of the system at appropriate intervals and inspect it for damage and breaks. -
Page 13: Installation
Installation Do not pack the CBD6DC in heat insulating material. Place the CBD6DC so it can emit heat through its surface to the surroundings. Mounting the CBD6DC on the TD4/TD5 Advanced 1. The CBD6DC can be mounted directly on a TD4/TD5 by means of the bracket and one screw. NOTE: Bracket and screw must be ordered separately (item number SA1062W1004). -
Page 14: Mounting The Cbd6Dc On The Bed Frame
Mounting the CBD6DC on the bed frame 1. Mount CBD6DC using two screws with a head diameter of 10 mm (8 to10 mm can be used). 2. Fasten mounting screws (max. torque 1 Nm). Notes: • The surface to which the control box is mounted should have an evenness better than ± 0.5 mm. •... -
Page 15: Label
Label for CBD6DC HOMELINE Page 15 of 20... -
Page 16: Disposal Of Linak Products
Disposal of LINAK products As LINAK customers often ask us how our products can be disposed of or scrapped we have prepared this guidance that enables a classification to different waste fractions for recycling or combustion. Guidance We recommend to disassemble our product into as many fractions as possible at the disposal and try to make it recycable. As examples of main groups within waste fractions we can mention: Metal, plastic, cable shoe, combustible waste and collection for recovery. -
Page 17: Main Groups Of Disposal
Details regarding safe disposal of used and leaking batteries: Batteries should be disposed in accordance with appropriate federal, state and local regulations. LINAK recommends that used or leaking batteries are disposed through the local recycling system. Please do not throw used or leaking batteries in normal household waste or in nature. -
Page 18: Drawing Appendix
DRAWING APPENDIX CBD6DC dimension Screw hole dimension Page 18 of 20... - Page 19 LINAK customer using any LINAK product. LINAK shall be responsible solely that the LINAK products comply with the specifications set out by LINAK and it shall be the responsibility of the LINAK customer to ensure that the specific LINAK product can be used for the application in question.
-
Page 20: Addresses
The user is responsible for determining the suitabil- Fax: +86 755 8610 6990 Tel: +64 9580 2071 ity of LINAK products for a specific application. All sales are subject to the ‘Standard Terms of Sale and Fax: +64 9580 2072 www.linak.cn...
