Summary of Contents for Linak HOMELINE WiFi2LIN

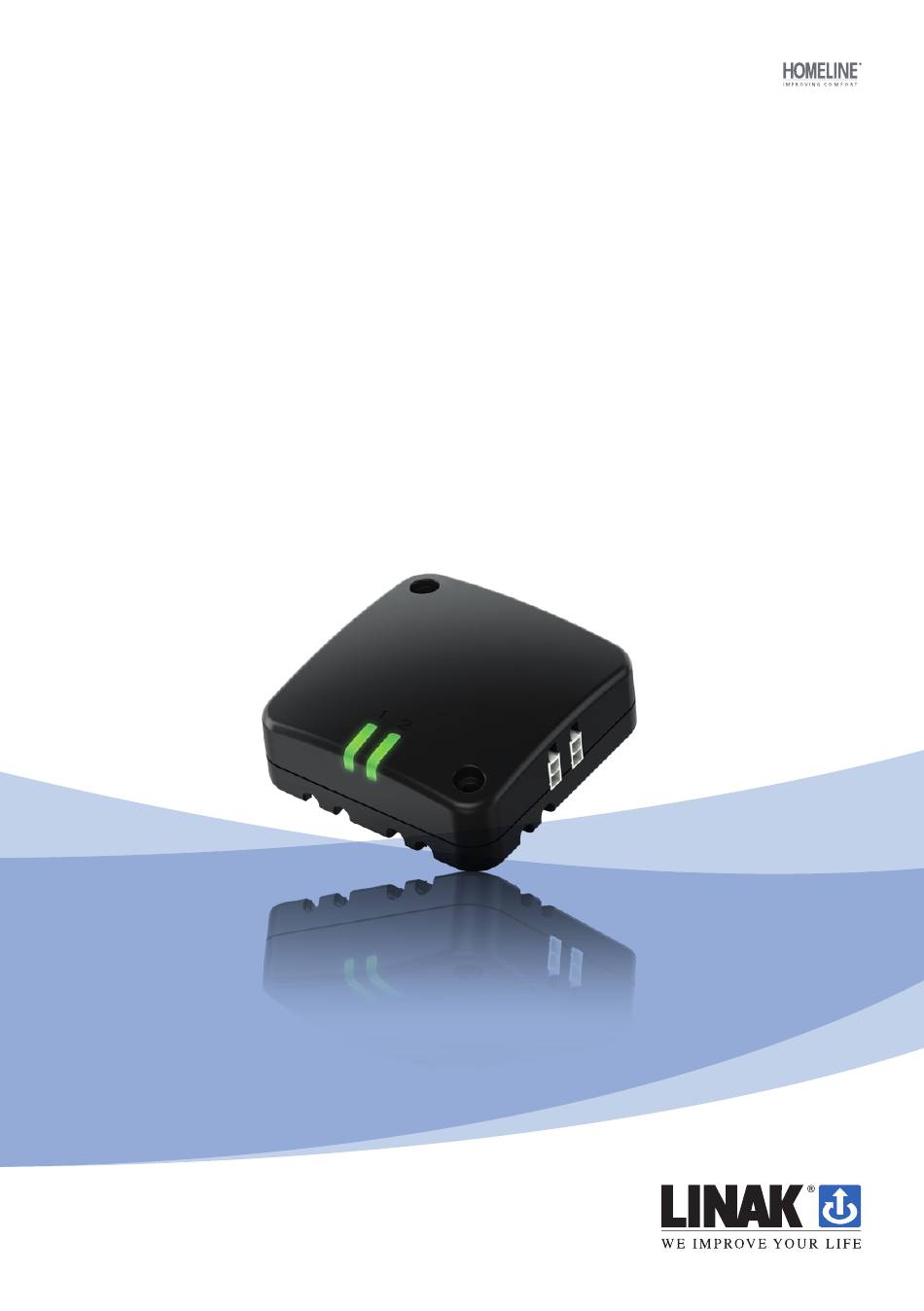

- Page 1 WiFi2LIN User manual LINAK.COM/HOMELINE Page 1 of 20...
-
Page 2: Table Of Contents
Mounting ..........................14 Finishing connection ........................14 Configuration ..........................15 LED overview ..........................15 LED1 - internet and LINAK IoT cloud ..................15 LED2 - actuator system and configuration .................. 15 Resetting ............................16 Software updates ......................... 16 Disposal of LINAK products ......................17 Main groups of disposal ...................... -
Page 3: Preface
This User Manual does not address the end-user. It is intended as a source of information for the manufacturer of the equipment or system only, and it will tell you how to install, use and maintain your LINAK electronics. It is the responsibility of the manufacturer of the end-use product to provide a User Manual where relevant safety information from this manual is passed on to the end-user. -
Page 4: Important Information
Important information Important information on LINAK products can be found under the following ® headings: Warning! Failure to comply with these instructions may result in accidents involving serious personal injury. Failing to follow these instructions can result in the product being damaged or being destroyed. - Page 5 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation •...
- Page 6 - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and the receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/ TV technician for help. This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s).
-
Page 7: Only For Eu Markets
Only for EU markets This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 8: Informations Importantes
Informations importantes Les informations importantes sur les produits LINAK peuvent être trouvées dans ® les rubriques suivantes: Attention! Le non respect de ces instructions peut entraîner des accidents impliquant des blessures graves. Ne pas suivre ces instructions peut entraîner l´endommagement ou destruction du produit. -
Page 9: Seulement Pour Les Marchés Au Sein De L´ue
Seulement pour les marchés au sein de l´UE: Cet appareil peut-être utilisé par des enfants âgés de 8 ans et plus, ainsi que les personnes dont les capacités physiques, sensorielles ou mentales sont réduites ou ayant un manque d´expérience et de connaissance si elles ont bénéficié... -
Page 10: Manufacturer's Declaration
Manufacturer’s declaration DECLARATION OF INCORPORATION OF PARTLY COMPLETED MACHINERY LINAK A/S Smedevænget 8 DK - 6430 Nordborg Herewith declares that LINAK HOMELINE ® products as characterized by the following models and types: Control Boxes CB9H, CBH Advanced, CBH Basic Linear Actuators... -
Page 11: Declaration Of Conformity
9.06 dBm WiFi 2412 - 2472 MHz 17.88 dBm If required, the China RoHS mark must be obtained by the manufacturer of the end products. LINAK A/S can supply the required material information on our products. For more information, visit: https://www.linak.com/about-linak/csr/declarations/ or contact: chemicalcompliance@linak.com... -
Page 12: Misc. On The Homeline ® System
Misc. on the HOMELINE system ® Maintenance Clean dust and dirt on the outside of the system at appropriate intervals and inspect for damage and breaks. Inspect the connections, cables, and plugs and check for correct functioning as well as fixing points. The cleaners and disinfectants must not be highly alkaline or acidic (pH value 6-8). -
Page 13: Description Of The Wifi2Lin Box
The WiFi2LIN box is easy to connect. Simply connect the box to the application using a DC cable for power and a LINbus cable for communication, and apply power. Use the Bed Control IoT app to set up the box to the private network. Via the network, the box connects to the LINAK generic ®... -
Page 14: Installation
Installation Preparing connection Ensure to use cables of sufficient lengths so they can stretch with the actuator system movement. 1. Connect a DC cable to one of the DC sockets on the WiFi2LIN box. 2. Connect a LINbus cable to one of the RJ45 sockets on the WiFi2LIN box. 3. -
Page 15: Configuration
During configuration and use, the WiFi2LIN box indicates various situations/events, for example connection state and errors, via the two LEDs on the box. LED1 is for the internet and the LINAK IoT cloud, while LED2 is for the actuator system and the configuration. -
Page 16: Resetting
2. Press and hold for 10 seconds. Wait while the box resets to factory settings. 3. When the box is reset, the two LEDs show a white light for two seconds. Software updates The WiFi2LIN software is automatically updated via an over-the-air update procedure. When LINAK releases new software, ®... -
Page 17: Disposal Of Linak Products
Disposal of LINAK products As LINAK customers often ask us how our products can be disposed of or scrapped, we have prepared this guidance that enables a classification to different waste fractions for recycling or combustion. Guidance We recommend that our products be disassembled as much as possible and divided into different waste groups for recycling or combustion. -
Page 18: Drawing Appendix
DRAWING APPENDIX WiFi2LIN Drawing No.: 1045W4006 SCALE : 1:1 30.5 30.5 Page 18 of 20... -
Page 19: Label
LINAK customer using any LINAK product. LINAK shall be responsible solely that the LINAK products comply with the specifications set out by LINAK and it shall be the responsibility of the LINAK customer to ensure that the specific LINAK product can be used for the application in question. -
Page 20: Addresses
® without prior notice. LINAK cannot guarantee product availability and reserves the right to discontinue the sale of any product. The user is responsible for determining the suitability of LINAK products for a specific application. All sales are subject to the ‘Standard Terms of Sale and Delivery’, available on LINAK websites.
