HX220 L
CRAWLER EXCAVATOR

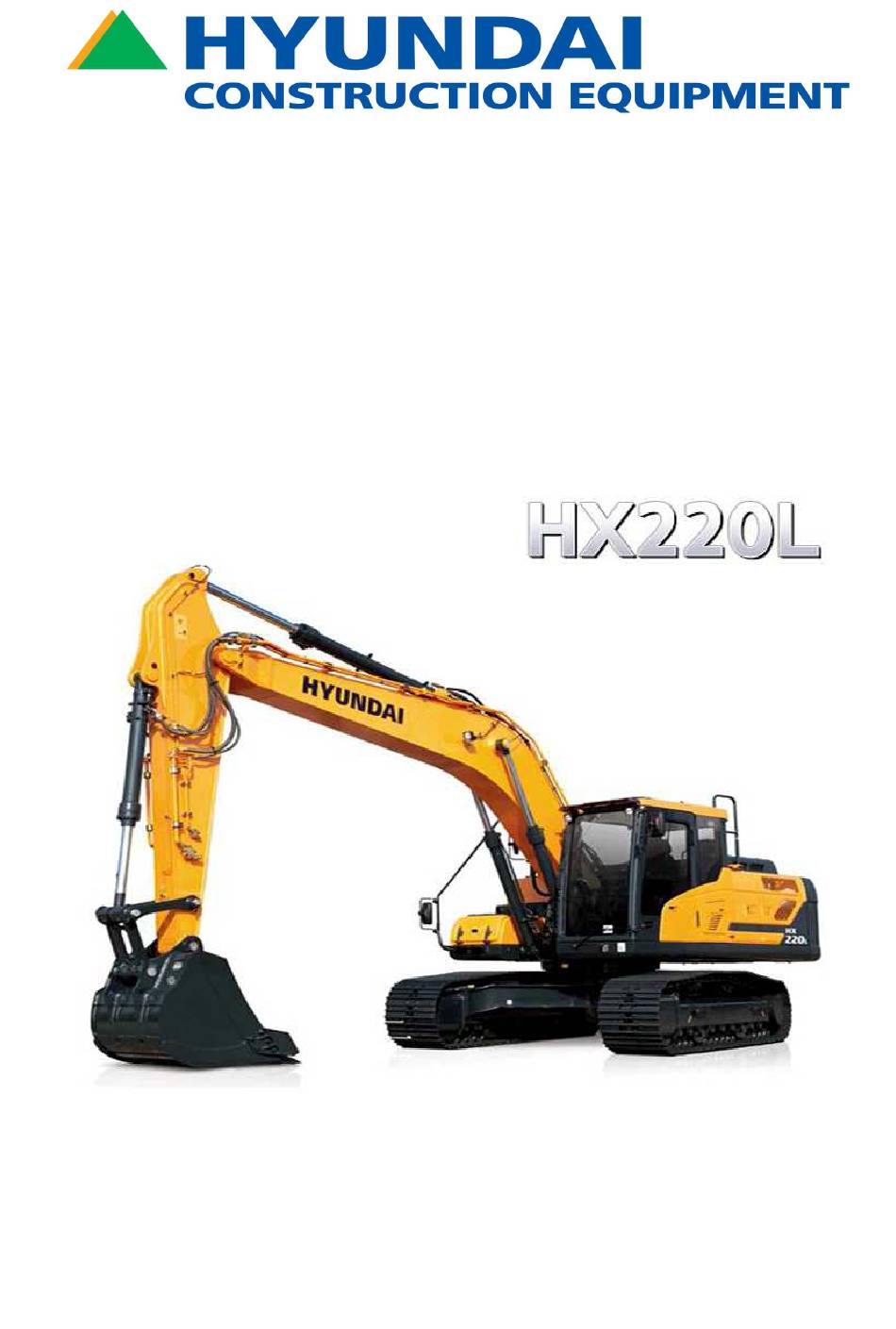

SERVICE MANUAL

Advertisement

loading

Related Manuals for Hyundai HX220 L

Summary of Contents for Hyundai HX220 L

  • Page 1 HX220 L CRAWLER EXCAVATOR SERVICE MANUAL...

  • Page 2: Table Of Contents

    Table of Content FOREWORD 1. Structure 2. How To Read The Service Manual 3. Conversion Table SECTION 1 GENERAL Group 1 Safety Group 2 Specifications SECTION 2 STRUCTURE AND FUNCTION Group 1 Pump Device Group 2 Main Control Valve Group 3 Swing Device (type 1, 2) Group 4 Travel Device (type 1, 2) Group 5 Rcv Lever Group 6 Rcv Pedal...
  • Page 3 Group 11 Intelligent Power Control System Group 12 Anti-restart System Group 13 Self-diagnostic System Group 14 Engine Control System Group 15 Eppr Valve Group 16 Monitoring System Group 17 Fuel Warmer System SECTION 6 TROUBLESHOOTING Group 1 Before Troubleshooting Group 2 Hydraulic And Mechanical System Group 3 Electrical System Group 3 Electrical System Group 4 Mechatronics System...

  • Page 4: Foreword

    This section shows bolt specifications and standard torque values needed when mounting components to the machine. The specifications contained in this shop manual are subject to change at any time and without any advance notice. Contact your HYUNDAI distributor for the latest information. Find manuals at https://best-manuals.com...

  • Page 5: How To Read The Service Manual

    Revised edition mark(①②③…) Any additions, amendments or other changes will When a manual is revised, an edition mark is be sent to HYUNDAI distributors. recorded on the bottom outside corner of the Get the most up-to-date information before you pages.

  • Page 6: Conversion Table

    3. CONVERSION TABLE 3. CONVERSION TABLE Method of using the Conversion Table The Conversion Table in this section is provided to enable simple conversion of figures. For details of the method of using the Conversion Table, see the example given below. Example Example 1.
  • Page 7 Millimeters to inches Millimeters to inches 1mm = 0.03937in 0.039 0.079 0.118 0.157 0.197 0.236 0.276 0.315 0.354 0.394 0.433 0.472 0.512 0.551 0.591 0.630 0.669 0.709 0.748 0.787 0.827 0.866 0.906 0.945 0.984 1.024 1.063 1.102 1.142 1.181 1.220 1.260 1.299 1.339...
  • Page 8 Liter to U.S. Gallon Liter to U.S. Gallon 1ℓ = 0.2642 U.S.Gal 0.264 0.528 0.793 1.057 1.321 1.585 1.849 2.113 2.378 2.642 2.906 3.170 3.434 3.698 3.963 4.227 4.491 4.755 5.019 5.283 5.548 5.812 6.6076 6.340 6.604 6.869 7.133 7.397 7.661 7.925 8.189...
  • Page 9 kgf·m to to lbf lbf·ft ft 1kgf·m = 7.233lbf·ft 14.5 21.7 28.9 36.2 43.4 50.6 57.9 65.1 72.3 79.6 86.8 94.0 101.3 108.5 115.7 123.0 130.2 137.4 144.7 151.9 159.1 166.4 173.6 180.8 188.1 195.3 202.5 209.8 217.0 224.2 231.5 238.7 245.9 253.2...
  • Page 10 kgf/cm kgf/cm to to lbf/in lbf/in 1kgf / cm = 14.2233lbf / in 14.2 28.4 42.7 56.9 71.1 85.3 99.6 113.8 128.0 142.2 156.5 170.7 184.9 199.1 213.4 227.6 241.8 256.0 270.2 284.5 298.7 312.9 327.1 341.4 355.6 369.8 384.0 398.3 412.5 426.7...
  • Page 11 TEMPERATURE TEMPERATURE Fahrenheit-Centigrade Conversion. A simple way to convert a fahrenheit temperature reading into a centigrade temperature reading or vice verse is to enter the accompanying table in the center or boldface column of figures. These figures refer to the temperature in either Fahrenheit or Centigrade degrees. If it is desired to convert from Fahrenheit to Centigrade degrees, consider the center column as a table of Fahrenheit temperatures and read the corresponding Centigrade temperature in the column at the left.

  • Page 12: Section 1 General

    SECTION 1 GENERAL SECTION 1 GENERAL Group 1 Safety Hints -------------------------------------------------------------------------------------------------------- 1-1 Group 2 Specifications ----------------------------------------------------------------------------------------------------- 1-10...

  • Page 13: Group 1 Safety

    SECTION 1 GENERAL SECTION 1 GENERAL GROUP 1 SAFETY GROUP 1 SAFETY FOLLOW SAFE PROCEDURE FOLLOW SAFE PROCEDURE Unsafe wor k practices are dangerous. Understand service procedure before doing work; Do not attempt shortcuts. WEAR PROTECTIVE CLOTHING WEAR PROTECTIVE CLOTHING Wear close fitting clothing and safety equipment appropriate to the job.
  • Page 14 PREPARE FOR EMERGENCIES PREPARE FOR EMERGENCIES Be prepared if a fire starts. Keep a first aid kit and fire extinguisher handy. Keep emergency numbers for doctors, ambulance ser vice, hospital, and fire department near your telephone. 13031GE04 PROTECT AGAINST FLYING DEBRIS PROTECT AGAINST FLYING DEBRIS Guard against injury from flying pieces of metal or debris;...
  • Page 15 KEEP RIDERS OFF EXCAVATOR KEEP RIDERS OFF EXCAVATOR Only allow the operator on the excavator. Keep riders off. Riders on excavator are subject to injury such as being struck by foreign objects and being thrown off the excavator. Riders also obstruct the operator's view resulting in the excavator being operated in an unsafe manner.
  • Page 16 SUPPORT MACHINE PROPERLY SUPPORT MACHINE PROPERLY Always lower the attachment or implement to the ground before you work on the machine. If you must wor k on a lifted machine or attachment, securely support the machine or attachment. Do not support the machine on cinder blocks, hollow tiles, or props that may crumble under 13031GE10 continuous load.
  • Page 17 BEWARE OF EXHAUST FUMES BEWARE OF EXHAUST FUMES Prevent asphyxiation. Engine exhaust fumes can cause sickness or death. If you must operate in a building, be positive there is adequate ventilation. Either use an exhaust pipe extension to remove the exhaust fumes or open doors and windows to bring enough outside air into the area.
  • Page 18 SERVICE MACHINE SAFELY SERVICE MACHINE SAFELY Tie long hair behind your head. Do not wear a necktie, scarf, loose clothing or necklace when you work near machine tools or moving parts. If these items were to get caught, severe injury could result.
  • Page 19 AVOID HEATING NEAR PRESSURIZED AVOID HEATING NEAR PRESSURIZED FLUID LINES FLUID LINES Flammable spray can be generated by heating near pressurized fluid lines, resulting in severe burns to yourself and bystanders. Do not heat by welding, soldering, or using a torch near pressurized fluid lines or other flammable materials.
  • Page 20 PREVENT ACID BURNS PREVENT ACID BURNS Sulfuric acid in battery electrolyte is poisonous. It is strong enough to burn skin, eat holes in clothing, and cause blindness if splashed into eyes. Avoid the hazard by: 1. Filling batteries in a well-ventilated area. 2.
  • Page 21 DISPOSE OF FLUIDS PROPERLY DISPOSE OF FLUIDS PROPERLY Improperly disposing of fluids can harm the environment and ecology. Before draining any fluids, find out the proper way to dispose of waste from your local environmental agency. Use proper containers when draining fluids. Do not use food or beverage containers that may mislead someone into drinking from them.

  • Page 22: Group 2 Specifications

    GROUP 2 SPECIFICATIONS 1. MAJOR COMPONENT Tool box DEF/AdBlue tank Fuel tank Hydraulic tank Main pump After treatment device Engine Charge air cooler Oil cooler Tooth Bucket Turning joint Swing motor Main control valve Radiator Arm cylinder Boom Boom cylinder Handrail Precleaner Counterweight Swing...
  • Page 23 2. SPECIFICATIONS HX220 L 5.68 m (18' 8") BOOM and 2.92 m (9' 7") ARM I(I') B(L) 220F2SP02 Description Unit Specification Operating weight kg (lb) 22100 (48720) Bucket capacity (SAE heaped), standard 0.92 (1.20) Overall length 9530 (31' 3") Overall width, with 600mm shoe 2990 ( 9' 10")
  • Page 24 HX220 L LONG REACH 8.2 m (26' 11") BOOM and 6.3 m (20' 8") ARM I(I') B(L) 220F2SP03 Description Unit Specification Operating weight kg (lb) 24820 (54720) Bucket capacity (SAE heaped), standard 0.52 (0.68) Overall length 12030 (39' 6") Overall width, with 800 mm shoe 3190 (10' 6")
  • Page 25 HX220 L HIGH WALKER 5.68 m (18' 8") BOOM and 2.92 m (9' 7") ARM I(I') B(L) 220F2SP04 Description Unit Specification Operating weight kg (lb) 23560 (51940) Bucket capacity (SAE heaped), standard 0.92 (1.20) Overall length 9470 ( 31' 1") Overall width, with 600 mm shoe 3395 ( 11' 2")
  • Page 26 3. WORKING RANGE HX220 L 5.68 m (18' 8") BOOM 21092SP03 Description 2.0 m (6' 7") Arm 2.40 m (7' 10") Arm 2.92 m (9' 7") Arm 3.90 m (12' 10") Arm Max digging reach 9140 mm (30' 0") 9500 mm (31' 2")
  • Page 27 HX220 L LONG REACH 8.2 m (26' 11") BOOM 220F2SP05 Description 6.3 m (20' 8") Arm Max digging reach 15220 (50' 0") Max digging reach on ground 15120 (49' 7") Max digging depth 11760 (38' 7") Max digging depth (8 ft level) 11650 (38' 3")
  • Page 28 HX220 L HIGH WALKER 5.68 m (18' 8") BOOM 220F2SP06 Description 2.0 m (6' 7") Arm 2.40 m (7' 10") Arm 2.92 m (9' 7") Arm 3.90 m (12'10") Arm Max digging reach 9140 mm (30' 0") 9500 mm (31' 2") 9980 mm (32' 9")
  • Page 29 4. WEIGHT 4. WEIGHT 1) 1) HX220 L HX220 L HX220 L Item Upper structure assembly ·Main frame weld assembly 1880 4140 ·Engine assembly 1150 ·Main pump assembly ·Main control valve assembly ·Swing motor assembly ·Hydraulic oil tank assembly ·Fuel tank assembly ·Counterweight...
  • Page 30 HX220 L HX220 L LONG REACH LONG REACH HX220 L LONG REACH Item Upper structure assembly ·Main frame weld assembly 1880 4140 ·Engine assembly 1150 ·Main pump assembly ·Main control valve assembly ·Swing motor assembly ·Hydraulic oil tank assembly ·Fuel tank assembly ·Counterweight...
  • Page 31 HX220 L HX220 L HIGH WALKER HIGH WALKER HX220 L HIGH WALKER Item Upper structure assembly ·Main frame weld assembly 1950 4300 ·Engine assembly 1150 ·Main pump assembly ·Main control valve assembly ·Swing motor assembly ·Hydraulic oil tank assembly ·Fuel tank assembly ·Counterweight...
  • Page 32 Lifting capacities will vary with different work tools, ground conditions and attachments. The difference between the weight of a work tool attachment must be subtracted. Consult your Hyundai dealer regarding the lifting capacities for specific work tools and attachments. Failure to comply to the rated load can cause possible personal injury or property damage.
  • Page 33 5.68 m (18' 8") boom, 2.40 m (7' 10") arm equipped with 0.92 m (SAE heaped) bucket and 600 mm (24") triple grouser shoe. : Rating over-front : Rating over-side or 360 degree Load radius At max. reach 1.5 m (5 ft) 3.0 m (10 ft) 4.5 m (15 ft) 6.0 m (20 ft)
  • Page 34 HX220 L LONG REACH 8.2 m (26' 11") boom, 6.3 m (20' 8") arm equipped with 0.52 m (SAE heaped) bucket and 800 mm (32") triple grouser shoe. : Rating over-front : Rating over-side or 360 degree Load radius At max. reach Load 4.5 m (15 ft) 6.0 m (20 ft) 7.5 m (25 ft) 9.0 m (30 ft) 10.5 m (35 ft) 12.0 m (40 ft) 13.5 m (45 ft)
  • Page 35 HX220 L HIGH WALKER 5.68 m (18' 8") boom, 2.00 m (6' 7") arm equipped with 0.92 m (SAE heaped) bucket, 600 mm (24") triple grouser shoe. : Rating over-front : Rating over-side or 360 degree Load radius At max. reach Load point 3.0 m (10 ft)
  • Page 36 5.68 m (18' 8") boom, 2.40 m (7' 10") arm equipped with 0.92 m (SAE heaped) bucket, 600 mm (24") triple grouser shoe. : Rating over-front : Rating over-side or 360 degree Load radius At max. reach 1.5 m (5 ft) 3.0 m (10 ft) 4.5 m (15 ft) 6.0 m (20 ft)
  • Page 37 5.68 m (18' 8") boom, 3.90 m (12' 9") arm equipped with 0.92 m (SAE heaped) bucket and 600 mm (24") triple grouser shoe. : Rating over-front : Rating over-side or 360 degree Load radius At max. reach 1.5 m (5 ft) 3.0 m (10 ft) 4.5 m (15 ft) 6.0 m (20 ft)
  • Page 38 Work tools and ground conditions have effects on machine performance. Select an optimum combination according to the working conditions and the type of work that is being done. Consult your Hyundai dealer for information on selecting the correct boom arm bucket combination. 1-26...
  • Page 39 HEAVY DUTY AND ROCK-HEAVY DUTY BUCKET 1.20m 0.90, 1.05 m 0.87 m heaped bucket heaped bucket heaped bucket Recommendation Capacity Width 5.85 m (19' 2") boom Weight CECE Without With 2.0 m arm 2.4 m arm 2.92 m arm 3.90 m arm heaped heaped side cutter...
  • Page 40 600 (24) 700 (28) 800 (32) 900 (36) Operating weight kg (lb) 22100 (48720) 22570 (49760) 22850 (50380) 23130 (50990) HX220 L Ground pressure 0.47 (6.68) 0.41 (5.83) 0.37 (5.26) 0.33 (4.69) kgf/cm (psi) Overall width mm (ft-in) 2990 (9' 10") 3090 (10' 2")
