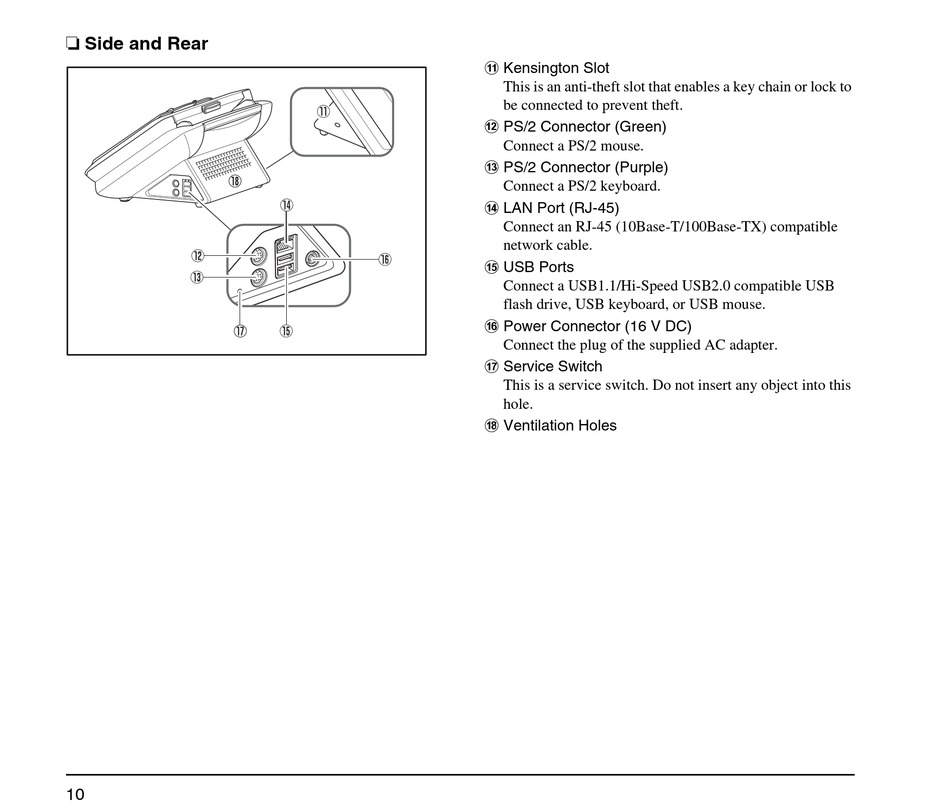

❏ Side and Rear
10
k Kensington Slot
This is an anti-theft slot that enables a key chain or lock to
be connected to prevent theft.
l PS/2 Connector (Green)
Connect a PS/2 mouse.
m PS/2 Connector (Purple)
Connect a PS/2 keyboard.
n LAN Port (RJ-45)
Connect an RJ-45 (10Base-T/100Base-TX) compatible
network cable.
o USB Ports
Connect a USB1.1/Hi-Speed USB2.0 compatible USB
flash drive, USB keyboard, or USB mouse.
p Power Connector (16 V DC)
Connect the plug of the supplied AC adapter.
q Service Switch
This is a service switch. Do not insert any object into this
hole.
r Ventilation Holes
