Originalbetriebsanleitung / Original owner's manual / Notice originale / Istruzioni originali / Manual original / Původní
návod k používání / Eredeti használati utasítás / Izvirna navodila / Pôvodný návod na použitie / Instrukcja oryginalna /
Instrucțiuni originale / Originalne upute / Оригинална инструкция / Orijinal kullanım talimatları
Schwimmbadreiniger
Twin
Schwimmbadreiniger......................................... 4
de
Nettoyeur de piscine........................................ 51
fr
Limpiafondos de piscina..................................99
es
Úszómedence tisztító..................................... 146
hu
Čistič bazénu.................................................. 193
sk
Dispozitiv de curățare a piscinei.................. 240
ro
Уред за почистване на басейни................287
bg
Pool cleaner......................................................28
en
Pulitore per piscina........................................... 75
it
Čistič bazénů.................................................. 123
cs
Čistilnik bazena.............................................. 170
sl
Odkurzacz basenowy....................................216
pl
Čistač bazena................................................264
hr
Yüzme havuzu temizleyicisi............................313
tr

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 061025 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Steinbach 061025

Summary of Contents for Steinbach 061025

  • Page 1 Originalbetriebsanleitung / Original owner's manual / Notice originale / Istruzioni originali / Manual original / Původní návod k používání / Eredeti használati utasítás / Izvirna navodila / Pôvodný návod na použitie / Instrukcja oryginalna / Instrucțiuni originale / Originalne upute / Оригинална инструкция / Orijinal kullanım talimatları Schwimmbadreiniger Twin Schwimmbadreiniger.........

  • Page 3: Package Contents/Components

    Package contents/components Fixing screw Top part Handle Bottom part Floating cable Plastic filter bag, 2x Filter unit, 2x Control unit Buoyancy aid, 4x Safety rope Fleece filter bag, 2x Operating instructions (without illustration)

  • Page 4: Table Of Contents

    Contents Overview........................2 Package contents/components..................27 General Information....................29 Explanation of Symbols....................29 Safety.......................... 30 Unpacking and checking the package contents............33 Description........................34 Description of the pool cleaner..................34 Functions of the control unit..................34 Operation........................35 Cleaning the pool......................35 Switching off the device....................39 Cleaning........................

  • Page 5: General Information

    General Information Read and keep the operating instructions These operating instructions are part of the "Twin" pool cleaner (in the following also called "device"). It contains important information about startup and operation. Read the operating instructions and especially the safety instructions carefully before using the device.

  • Page 6: Safety

    Weight of the packaging unit. Dimensions of the packaging unit. Safety The following signal words are used in this user manual. This signal symbol/word denotes a hazard with an WARNING! average risk level that could lead to death or severe injury if it is not avoided.
  • Page 7 - Do not open the device; leave repairs to an expert. Contact the service address on the back of the instruction manual for this purpose. All liability and warranty claims will be void in the case of arbitrary repairs, improper connection or wrong operation. - Never touch the power cable with wet hands.
  • Page 8 - Never let the device run outside of the water as this can cause damage even after a short time. Safety instructions for persons WARNING! Danger to children and persons with reduced physical, sensory or mental capacities (such as partially disabled persons/older persons with reduced physical and mental capacities) or persons lacking experience and knowledge (such as older children).

  • Page 9: Unpacking And Checking The Package Contents

    WARNING! Risk of injury through insufficient qualification! Insufficient experience or skills for handling the required tools and insufficient knowledge of regional or normative regulations for the required work can lead to severe injuries or material damage. - Assign all work whose risks you cannot estimate due to insufficient personal experience to a qualified expert.

  • Page 10: Description

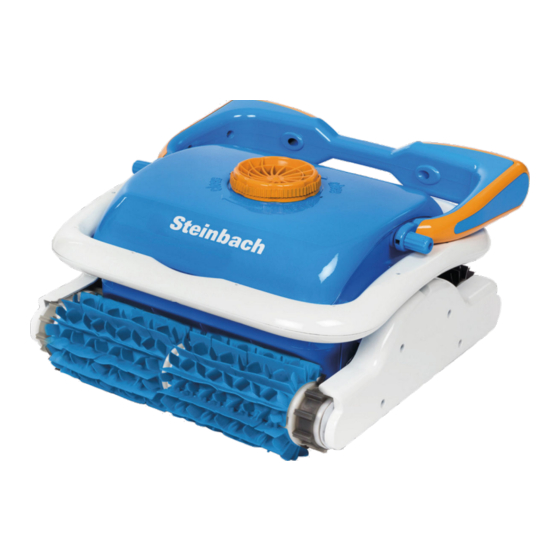

    Checking the delivery for completeness and damage 1. Open the packaging carefully. 2. Take all parts out of the packaging. 3. Check the completeness of the delivery. 4. Check the delivery for damage. Description Description of the pool cleaner The device cleans the floor and the walls of the pool. The cleaning roller of the device removes biofilms in the pool but cannot remove any algae.

  • Page 11: Operation

    Use the TIME button to switch between the running times. After the start of operation, the LED indicator indicates the currently selected and active mode by blinking. - 1H stops cleaning after 1 hour. - 1.5H stops cleaning after 1.5 hours. - 2H stops cleaning after 2 hours.
  • Page 12 5. Select the desired autostart function. See section "Functions of the control unit". 6. Start the cleaning program and adapt the battery runtime to the size of your pool. See section "Functions of the control unit". Selecting the filter bag The device is supplied with filter bags with different degrees of fineness.
  • Page 13 4. Replace the top part and screw it down again with the fixing screw The filter units are inserted. Placing the device in the pool CAUTION! Risk of injury! The device can hurt persons in the pool. - Make sure no one is in the pool while the device is in the water. NOTICE! A lawnmower can damage a cable placed on the ground.
  • Page 14 Connecting the control unit WARNING! Risk of electric shock! Handling the power plug with wet hands can lead to an electric shock. - Never touch the power plug with wet hands. NOTICE! High temperatures can damage the control unit. - Do not cover the control unit. - Place the control unit in the shade, if possible.

  • Page 15: Switching Off The Device

    2. Select your desired autostart function by pressing the AUTOSTART button. 3. Press the ON/OFF button on the control unit. Adapt the cleaning time to your pool size if necessary. Cleaning has started, the indicator indicates the settings of the last selected cleaning program and the battery runtime LED starts to blink.

  • Page 16: Cleaning

    2. Undo the screw fitting of the plug on the control unit and pull of the floating cable The control unit is disconnected. Lifting the device out of the pool WARNING! Risk of electric shock! Risk of electric shock if the control unit drops into the filled pool while it is connected to the power supply.

  • Page 17: Cleaning The Device

    - Do not use any sharp or metal objects such as knives, hard scrapers or similar. - Do not use any cleaning brushes. - Do not use a high-pressure cleaner. Cleaning the device 1. Remove and clean the filter units. 2.

  • Page 18: Storage

    Cleaning the filter units 1. Open the Velcro strap of the filter bags and pull these off the filter units 2. Thoroughly rinse the filter units the filter bags with plain tap water. 3. Pull the cleaned filter bags over the filter units (note the position of the recess) and close the Velcro strap.

  • Page 19: Troubleshooting

    Troubleshooting Fault description Cause Remedy 1H+1.5H blink and a signal The pump is overloaded. Stop the device and check if sounds the wheel is blocked by a foreign object. 1.5H+2H blink and a signal The drive motor is overloaded. Check the drive belt. sounds 1H+2H blink and a signal The device is out of the water.
  • Page 20 Fault description Cause Remedy The device does not The filter is clogged. Clean the filters. completely move up the wall. Algae grows on the walls. Clean the pool walls. The water temperature is too Operate the device at water high or too low. operating temperature (see section "Technical data").
  • Page 21 Fault description Cause Remedy The drive belt tears off. There are foreign objects in Contact customer service. the drive. The device is defective. Contact customer service. Installing the buoyancy aids 1. Unscrew the fixing screw 2. Take the top part off.

  • Page 22: Technical Data

    Technical data Model 061025 Input voltage 20 V Ambient temperature 10 °C to 40 °C Operating temperature (water) 10 °C to 35 °C pH value 7.0 to 7.4 Chlorine value 0.3 - 0.6 mg/l Salt content of water (salt electrolysis) <0.5%...

  • Page 23: Spare Parts

    Spare parts...
  • Page 24 099128 - side cover 099127 - cable 099134 - plastic filter bag, black 099135 - fleece filter bag, white 099133 - control unit for 061025 099131 - drive motor 099130 - filter pump 099132 - S-shaped drive belt 061976 - motor unit (061025)

  • Page 25: Declaration Of Conformity

    Declaration of Conformity Steinbach International GmbH hereby declares that the device meets the following directives: - 2014/35/EU (EN 60335‑1:2012+A11:2014; EN 60335‑2‑41:2003+A1:2004+A2:2010; EN 62233:2008) - 2014/30/EU (EN 55014‑1:2006+A1:2009+A2:2011; EN 55014‑2:2015; EN 61000‑3‑2:2014; EN 61000‑3‑3:2013) You can request the complete text of the EU Declaration of Conformity from the address stated at the end of this instruction manual.
