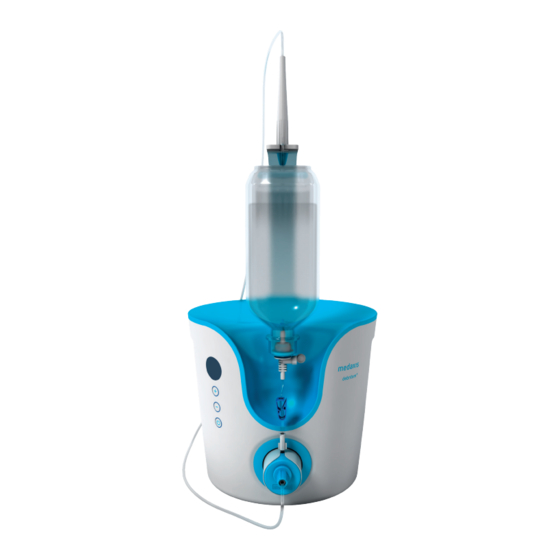

medaxis debritom+ Quick Card

debritom QuickCard - EN
+
1. Turn on debritom +
debritom + ON
2. debritom set-up
+
2a
Insert pump as shown until it stops / turn clockwise until click
2c
Attach rinsing fluid, connect the connecting tube to pump

3. Test of water jet

Press foot on/off switch
§ For a vusual test of water jet (flat or
point, water jet thickness)
§ To test the water jet intensity on your
hand – start with a distance of 25 cm
(approx. twice the hanpiece-length).
Guide the jet starting at the wound
edge, and move the jet slightly back
and forth.
§ If something doesn't work, replace the
handpiece

6. Patient change / end of the treatment

6a Patient change, pump one day
6b End of the treatment
debritom + OFF
Activate foot pedal 1x to connect with
debritom
+
„click"

4. Optimal working parameters

Intensity levels at START for each handpiece : Level 4 (Level 1-5/weak-strong)
debritom + handpiece standard jet REF 2000.0003
Working distance recommended 8-15cm
debritom + handpiece flat jet narrow REF 2000.0004
Working distance recommended 4-10cm
debritom + handpiece flat jet wide. REF 2000.0005
Working distance recommended 3-8cm
Working angle: 3 – 45 degrees to wound surface
TIP flat jet: The flat jet should be applied like a spatula
to the wound.
Close clamp
Remove connecting tube/ Remove pump and handpiece as one unit and dispose of it
This QuickCard does not replace the Instruction for use REF 9000.5503
2b
Connecting tube: close clamp/spike into rinsing fluid/open venting cover
2d
Attach the luer connection - make sure
the connection is tighten securely
Remove handpiece and dispose of it
Medaxis AG
Bahnhofstrasse 9
6340 Baar, Switzerland
www.medaxis.ch
© Medaxis
REF 9000.0000_d EN / 08.11.2017
2e
Open clamp

5. Intensity-Level

Intensity
Intensity
For next patients
=> 2d
Attach LuerCap
