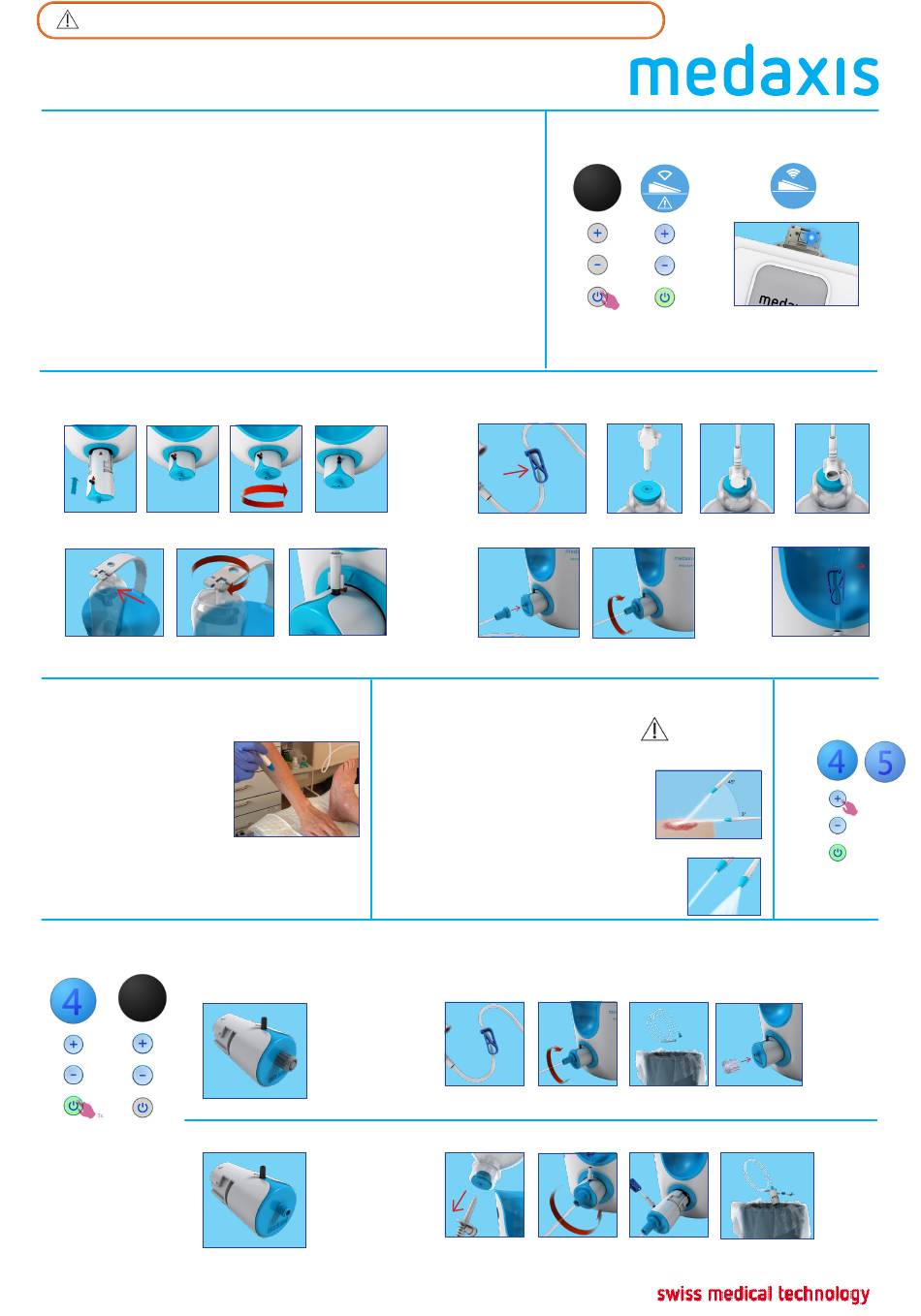

medaxis debritom+ Quick Start Manual

This QuickCard does not replace the Instruction for use REF 9000.5503
debritom
QuickCard - EN
+
Contraindication
Malignant tumor types
– –
Open injury to vessels, unprotected exposed vessels
– –
Eyes, ears, nose
– –
Delicate vessels and structures, such as neurovascular bundles
– –
for complex or highly contaminated wounds
– –
Patients with HIV, hepatitis C or another contagious disease
– –
Warnings with regard to the use of the device for the following conditions, since
they are associated
with higher risk:
Patients with increase tendency to hemorrhage
– –
– – Contaminated wounds
2. debritom set-up
+
2a
Insert pump as shown until it stops / turn clockwise until click
2c
Attach rinsing fluid, connect the connecting tube to pump
3. Test of water jet
Press foot on/off switch
• For a visual test of water jet (flat or
point, water jet thickness)
• To test the water jet intensity on your
hand – start with a distance of 25 cm
(approx. twice the hanpiece-length).
Guide the jet starting at the wound
edge, and move the jet slightly back
and forth.
• If something doesn't work, replace the
handpiece
6. Patient change / end of the treatment
6a Patient change, pump one day
debritom OFF
+
6b End of the treatment
2b
„click"
Connecting tube: close clamp/spike into rinsing fluid/open venting cover
2d
Attach the luer connection - make sure the
connection is tighten strongly
4. Optimal working parameters
Intensity levels at START for each handpiece : Level 4
(Level 1-5/weak-strong)
debritom handpiece standard jet
+
Working distance recommended
debritom handpiece flat jet narrow
+
Working distance recommended
debritom handpiece flat jet wide
+
Working distance recommended
Working angle: 3 – 45 degrees to wound surface
TIP flat jet: The flat jet should be applied like a spatula to the wound.
Close clamp
Remove connecting tube/ Remove pump and handpiece as one unit and dispose of it
1. Turn on debritom
ON
debritom +
REF 2000.0003
8 - 15cm
REF 2000.0004
4 - 10cm
REF 2000.0005
3 - 8cm
Remove handpiece and dispose of it
+
Activate foot pedal 1x to
connect with debritom
+
2e
Open clamp
5. Intensity-
Level
Intensity
Intensity
For next patient
remove LuerCap
=> 2d
Attach LuerCap
