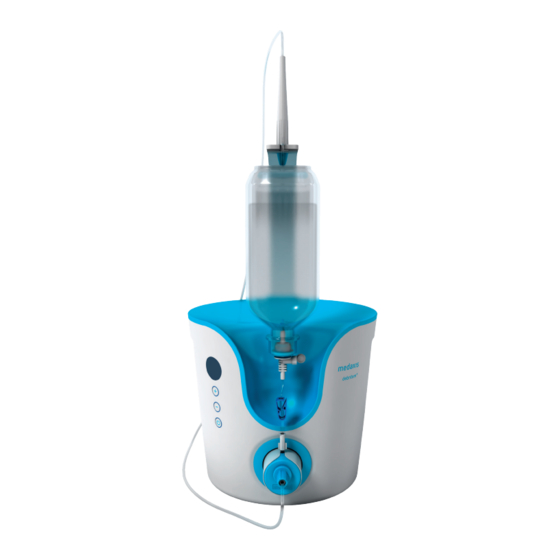

medaxis debritom+ Quick Card

debritom
+
Contraindication
• Malignant tumours
• Open blood vessel lesions, unprotected vascular systems
• Eyes, nose and ears
• Exposed nervous/neurovascular beams
• Complex and/or highly contaminated wounds
• Patients with HIV, hepatitis C or other transmissible diseases/infection
Warning: In the following cases, the risks when using the device increase:
• Patients with a higher tendency to bleeding and arterial ulcers
• Patients with infected wounds
In such cases, the doctor must decide whether and in what form the treatment should
be provided
2. debritom set-up
+
2a
Insert pump as shown until it stops / turn clockwise until click
2c
Attach rinsing fluid, connect the connecting tube to pump
3. Test of water jet
Press foot on/off switch
• For a vusual test of water jet (flat or
point, water jet thickness)
• To test the water jet intensity on your
hand – start with a distance of 25 cm
(approx. twice the hanpiece-length).
Guide the jet starting at the wound
edge, and move the jet slightly back
and forth.
• If something doesn't work, replace the
handpiece
6. Patient change / end of the treatment
6a Patient change, pump one day
debritom OFF
+
6b End of the treatment
QuickCard - EN
„click"
4. Optimal working parameters
2b
Connecting tube: close clamp/spike into rinsing fluid/open venting cover
2d
Attach the luer connection - make sure the
connection is tighten securely
Intensity levels at START for each handpiece : Level 4
(Level 1-5/weak-strong)
debritom handpiece standard jet
+
Working distance recommended
debritom handpiece flat jet narrow
+
Working distance recommended
debritom handpiece flat jet wide
+
Working distance recommended
Working angle: 3 – 45 degrees to wound surface
TIP flat jet: The flat jet should be applied like a spatula to the wound.
Close clamp Remove handpiece and dispose of it
Remove connecting tube/ Remove pump and handpiece as one unit and dispose of it
1. Turn on debritom
+
debritom ON
+
REF 2000.0003
8 - 15cm
REF 2000.0004
4 - 10cm
REF 2000.0005
3 - 8cm
Attach LuerCap
Activate foot pedal 1x to
connect with debritom
+
2e
Open clamp
5. Intensity-
Level
Intensity
Intensity
For next patients
=> 2d
