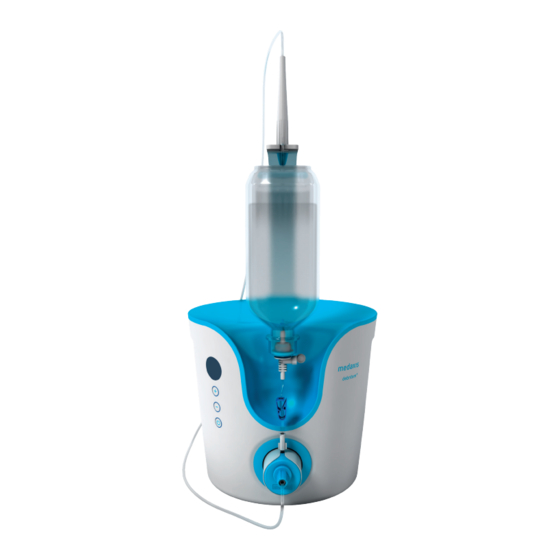

medaxis debritom+ Quick Card

This QuickCard does not replace the Instruction for use REF 9000.5504
debritom
QuickCard - USA
+

Contraindication

Malignant tumors
– –
– – Open injuries to blood vessels, and unprotected blood vessels
Eyes, ears, nose
– –
Delicate vessels and structures, such as neurovascular structures
– –
– – Complex and/or highly contaminated wounds
Patients with HIV, Hepatitis C, and other contagious diseases
– –
A warning with regard to the use of the device for the following conditions, since
they are associated with higher risk. If treatment is indicated for the following
conditions, they should only
be performed under medical guidance and supervision:
Patients with increased tendency to hemorrhage and arterial ulcers
– –
Infected wounds
– –
2. debritom set-up
+
2a
Insert pump as shown until it stops / turn clockwise until click
2c
Attach rinsing fluid, connect the connecting tube to pump

3. Test of water jet

Press foot on/off switch
• For a visual test of water jet (flat or
point, water jet thickness)
• To test the water jet intensity on your
hand – start with a distance of 10"
(approx. twice the hanpiece-length).
Guide the jet starting at the wound
edge, and move the jet slightly back
and forth.
• If something doesn't work, replace the
handpiece

6. Patient change / end of the treatment

6a Patient change, pump one day
debritom OFF
+
6b End of the treatment
2b
„click"
Connecting tube: close clamp/spike into rinsing fluid/open venting cover
2d
Attach the luer connection - make sure the
connection is tighten strongly

4. Optimal working parameters

Intensity levels at START for each handpiece : Level 4
(Level 1-5/weak-strong)
debritom handpiece standard jet
+
Working distance recommended
debritom handpiece flat jet narrow
+
Working distance recommended
debritom handpiece flat jet wide
+
Working distance recommended
Working angle: 3 – 45 degrees to wound surface
TIP flat jet: The flat jet should be applied like a spatula to the wound.
Close clamp
Remove connecting tube/ Remove pump and handpiece as one unit and dispose of it
1. Turn on debritom
ON
debritom +
REF 2000.0003
6-8 "/ 15-20cm
REF 2000.0004
1.5-4 " /4-10cm
REF 2000.0005
1.2-3 " /3-8cm
Remove handpiece and dispose of it
swiss medical technology
+
Activate foot pedal 1x to
connect with debritom
+
2e
Open clamp
5. Intensity-
Level
Intensity
Intensity
For next patient
remove LuerCap
=> 2d
Attach LuerCap
