IMPORTANT! READ CAREFULLY THESE INSTRUCTIONS AND
KEEP THEM IN A SAFE PLACE FOR FUTURE REFERENCE!

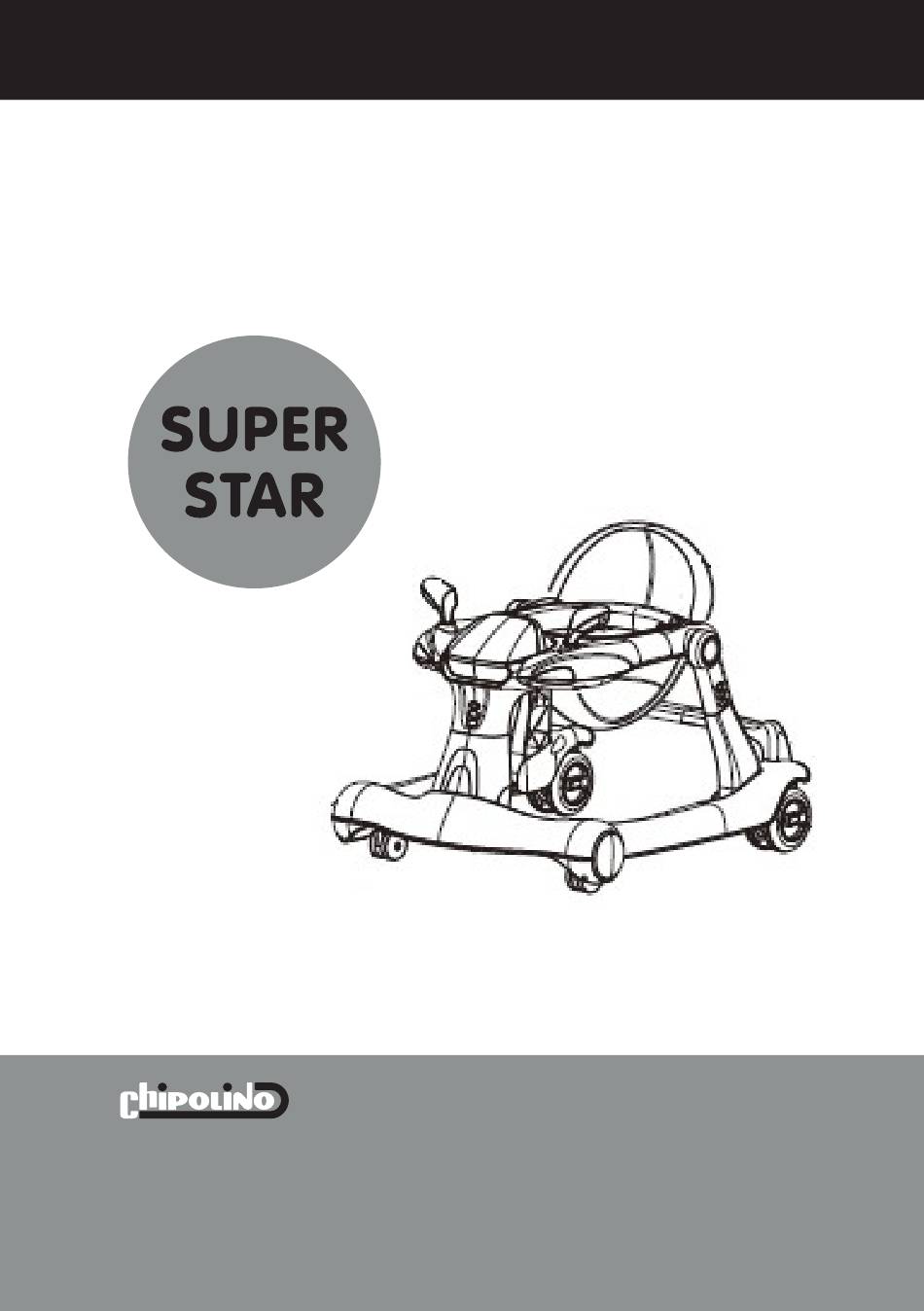

USER MANUAL FOR
BABY WALKER 2 in 1
SUPER STAR
This
baby walker is manufactured in accordance with the
Product Safety Directive 2001/95/EU of the European Parliament and the
Council, to European standard EN 1273:2020 "Child use and care articles. Baby
walking frames. Safety requirements and test methods" as well as Consumer
Protection Law from national legislation.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Chipolino SUPER STAR
Summary of Contents for Chipolino SUPER STAR
- Page 1 IMPORTANT! READ CAREFULLY THESE INSTRUCTIONS AND KEEP THEM IN A SAFE PLACE FOR FUTURE REFERENCE! USER MANUAL FOR BABY WALKER 2 in 1 SUPER STAR This baby walker is manufactured in accordance with the Product Safety Directive 2001/95/EU of the European Parliament and the Council, to European standard EN 1273:2020 “Child use and care articles.
- Page 2 TO SECURE THE SAFE USE OF THIS PRODUCT AND PREVENT BABY FROM INJURIES,...
- Page 4 NOTE: Product is supplied partially assembled. To complete the assembly and disassembly you may need to use a screwdriver (it is not included in set). The assembly actions are numbered from 1 to 10. Use the descriptions below in combination with the figure of the same number. 1 – INSTALLING THE REAR BUMPER. Place the bumper to the corresponding holes on the base, as shown in the figure. Fix it with screws. 2 – INSTALLING FRONT AND REAR WHEELS Insert the wheels to the corresponding holes on bottom side of base and press firmly until they are fixed. 3 – UNFOLDING THE WALKER. 3a – Open the front part of the walker. When it is fixed you will hear a “click” sound (3b-1); 3b – Erect the top base and seat from the base; 3с – Unfold the top panel and seat, then insert the legs in the base (1), until you hear a “click”. Place the top base over the front and already unfolded part of the walker and press until you hear “click” and it is fixed. ATTENTION! Before installing the walker’s legs you must first unfold the top base with seat (to move them upwards), so they can be under the handlebars! 3d – Lift the backrest of the seat. 4 – INSTALLING THE WING MIRRORS Insert the mirrors in the corresponding openings by pressing them until thye are fixed. 5 –...
- Page 5 FUNCTIONS • Height adjustment in three postions. • Front swivel wheels at 360 • Rear straight moving wheels. • Music panel with light and melodies. front wheel rear wheel “click” “click” а Batteries:2pcs type AA/1,5V screw Battery Slide switch compartment cover ON/OFF Backrest...
- Page 6 stoppers Height adjustment buttons Release buttons fo front part Legs release buttons release stop Mechanism on rear wheels to adjust wheels speed and stop the wheels...
- Page 7 CARE AND MAINTENANCE Periodically check the good working order of all parts. Any broken or damaged parts must be immediately repaired or replaced. Do not pour water over the walker. Clean with damp soft towel and a neutral liquid. The upholstery may be ahnd washed at 30 Never use abrasive, bleach or spirit based detergents. Discontinue using the walker if you find damage or non-working function. After each cleaning, leave the walker to fully dry and only after that use it or store it. Do not store in areas with hot air or close to heat sources to avoid deforming. Store the product in a clean and dry place. Do not leave it to environmental effects – sun, rain, moisture or harsh temperature fluctuations! Do not put heavy items on the walker during transportation or storing.
- Page 8 CHIPOLINO LTD., 1 Goliamokonarsko Shosse Str, Plovdiv, BULGARIA; tel.: +359 32 600 889; www.chipolino.com...
