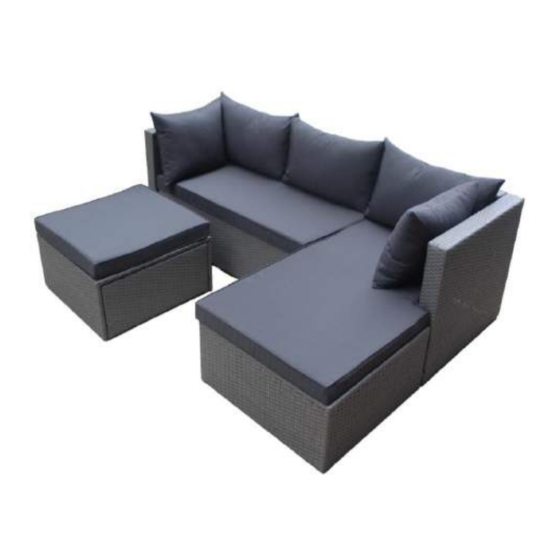

3pc aw wicker sofa set

Advertisement

Quick Links

3PC AW WICKER SOFA SET
ASSEMBLY INSTRUCTIONS
ITEM# SW-RK970
SKU# 810503339
DO NOT RETURN THIS PRODUCT TO THE STORE. FOR MISSING PARTS OR QUESTIONS TO THIS PRODUCT PLEASE CALL US
AT 1-888-733-8169 OR EMAIL US AT customerservice _01@yeah.net OR customerservice _02@yeah.net OR customerservice _03@yeah.net
IMPORTANT :
Please read all the instructions and warnings before assembling . In order to make the whole product adjust to the best, please install all the screws on the product
before fully tighten, and note to put the washer to the screw before putting the screw into the screw hole.
WARNING :
Use the correct screws as indicated. All screws should be hand tighten until the complete piece is assembled ( This will make the
assembly process much easier ). Once the piece is fully assembled, then go back and tighten all screws with provided tool.
Keep all children and pets away from assembly area. Children and pets should be supervised when they are in the area of the product construction .
Keep assembly area at leat 6 feet from any obstruction such as a fence, garage, house, overhanging branches, laundry line or electrical wires.
Some parts may contain sharp edges. When assembling and using this product, basic safety precautions should always be followed to reduce the risk of personal
injury and damage to the product. Please read all instructions before assembly and use.
The product is for sitting purpose only. The product is not to be used for standing purposes and will not function as a stool or step-ladder. Use on even surfaces
only.
Sofa and Lounger tested for use at weight of 350 lb (159kg). Ottoman tested for use at weight of 250 lb (113.6kg).
Improper use of this product or failure to use as directed may result in injury. Not intended for commercial use.
CARE & MAINTENANCE
STAIN RESISTANT CUSHIONS CARE —— KEEP THE CUSHIONS IN STORAGE IN RAINING DAY.
SPILLS: Immediately wipe up the spill using a white damp cloth. Repeat process if necessary until stain is gone. Allow cushion to air dry.
FABRIC CARE: Hand wash cold, non-chlorine bleach when needed, lay flat to dry. Cool iron if necessary. Do not dry clean.
ALL WEAHTER WICKER PRODUCT CARE
Before using, clean the product completely with a soft dry towel. When not in use, wipe free of any dirt or loose objects, wash with a mild solution of soap and
water, rinse thoroughly and dry completely. Do not use strong detergent or abrasive cleaners. Screws can be loosen over a peirod of usage, please check the screws
occasionally and re-tighten if necessary.

Advertisement

loading
Need help?

Need help?

Do you have a question about the SW-RK970 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Big Lots SW-RK970

  • Page 1 3PC AW WICKER SOFA SET ASSEMBLY INSTRUCTIONS ITEM# SW-RK970 SKU# 810503339 DO NOT RETURN THIS PRODUCT TO THE STORE. FOR MISSING PARTS OR QUESTIONS TO THIS PRODUCT PLEASE CALL US AT 1-888-733-8169 OR EMAIL US AT customerservice _01@yeah.net OR customerservice _02@yeah.net OR customerservice _03@yeah.net IMPORTANT : Please read all the instructions and warnings before assembling .
  • Page 2: Parts List

    PARTS LIST Part Part Image Image Left Arm Board Washer (With Connector Hole ) Sofa Seat Panel Sofa Back Panel Allen Wrench (With Connector and Connector Hole) Lounger Seat Panel Wrench Lounger Back Panel Plastic Plug (With Connector and Connector Hole) Right Arm Board Ottoman Cushion ( With Connector )
  • Page 3 ASSEMBLING SITTING ARRANGEMENT 1 STEP 1 STEP 2 Secure Sofa Back Panel (C) to Left Arm Board (A) and Sofa Seat Secure Sofa Seat Panel (B) to Left Arm Board (A) with 3 Screw (I), 3 Panel (B) with 5 Screw (I), 5 Washer (K) and 5 Nut (L) by using Allen Washer (K) and 3 Nut (L) by using Allen Wrench (M) and Wrench (N) Wrench (M) and Wrench (N) .
  • Page 4 STEP 5 Secure Right Arm Board (F) to Lounger Back Panel (E) and Lounger Seat Panel (D) with 3 Screw (I), 3 Washer (K) and 3 Nut (L) by using Allen Wrench (M) and Wrench (N) . Connect Right Arm Board (F) to Lounger Back Panel (E) by Connector. Do not tighten all screws now. STEP 6 STEP 7 Secure 1 Ottoman Side Board (H) to Ottoman Seat Board (G) 4 Screw...
  • Page 5 ASSEMBLING SITTING ARRANGEMENT 2 STEP 1 STEP 2 Secure Lounger Back Panel (E) to Left Arm Board (A) and Lounger Secure Left Arm Board (A) to Lounger Seat Panel (D) with 3 Screw Seat Panel (D) with 3 Screw (I), 3 Washer (K) and 3 Nut (L) by using (I), 3 Washer (K) and 3 Nut (L) by using Allen Wrench (M) and Allen Wrench (M) and Wrench (N) .
  • Page 6 STEP 5 Secure Right Arm Board (F) to Sofa Seat Panel (B) and Sofa Back Panel (C) with 4 Screw (I), 4 Washer (K) and 4 Nut (L) by using Allen Wrench (M) and Wrench (N) . Connect Right Arm Board (F) to Sofa Back Panel (C) by Connector. Do not tighten all screws now. STEP 6 STEP 7 Secure 1 Ottoman Side Board (H) to Ottoman Seat Board (G) 4 Screw...
