BIG LOTS
ASSEMBLY INSTRUCTIONS

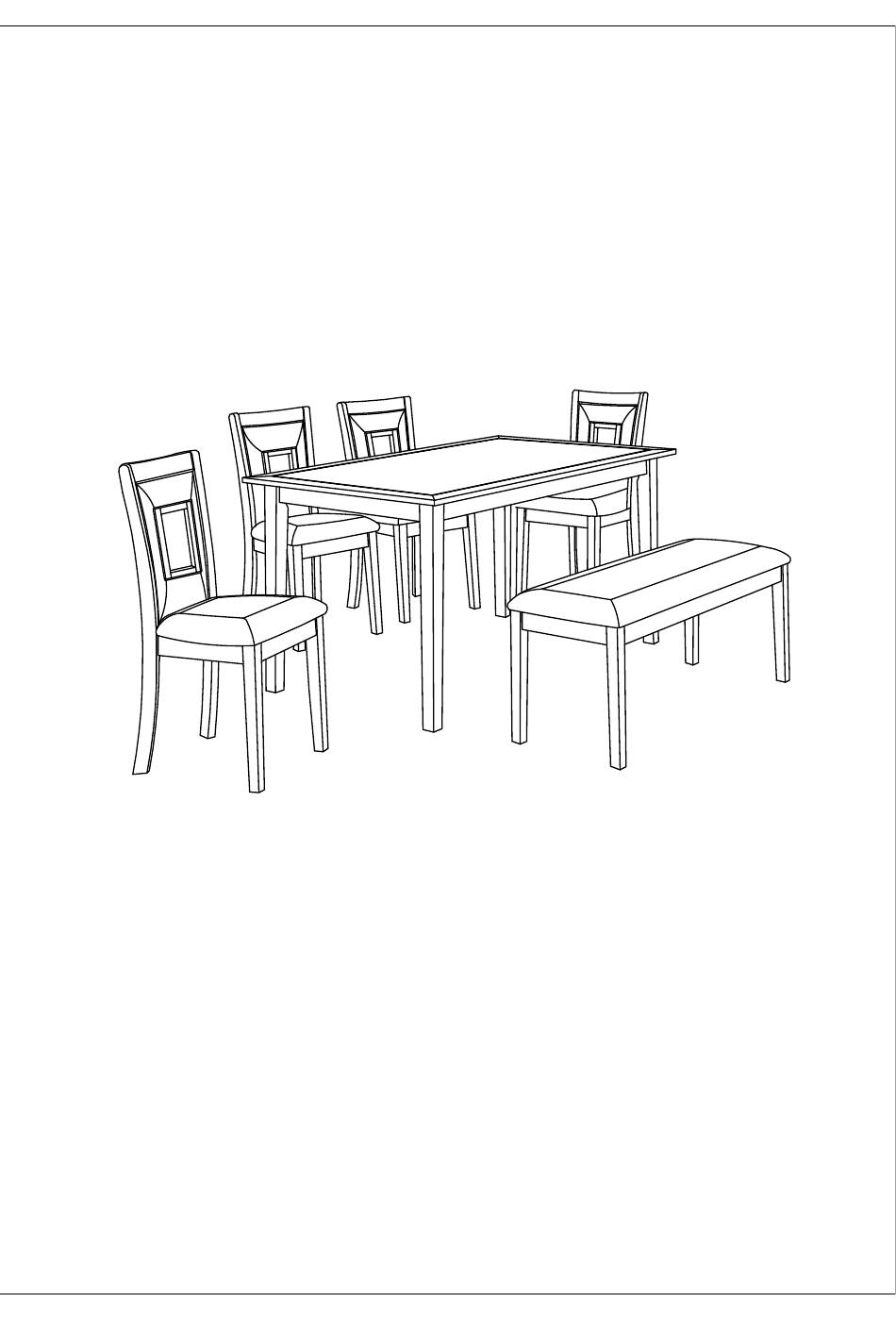

6PCS PU DINING SET
ITEM NO. BIG-178
SKU NO. 810110498
Big Lots Customer Care
Phone #: 1-866-BIGLOTS(1-866-244-5687)
Email Add: Talk2Us@BigLots.com
'For spare screws and bolts, please contact big lots customer care'
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the BIG-178 and is the answer not in the manual?

Questions and answers

Summary of Contents for Big Lots BIG-178

  • Page 1 BIG LOTS ASSEMBLY INSTRUCTIONS 6PCS PU DINING SET ITEM NO. BIG-178 SKU NO. 810110498 Big Lots Customer Care Phone #: 1-866-BIGLOTS(1-866-244-5687) Email Add: Talk2Us@BigLots.com 'For spare screws and bolts, please contact big lots customer care'...
  • Page 2 GENERAL INFORMATION, TIPS & TRICKS 1. Please read the assembly instructions prior to assembling this product. 2. To avoid damages, assemble this product on a non-abrasive surface such as carpet. 3. Make sure all bolts and nuts are tightly fastened before the product is used. 4.
  • Page 3 TABLE PART LIST A. TABLE TOP 1 PC B. TABLE LEG 4 PCS TABLE HARDWARE LIST FLAT WASHER 2. SPRING WASHER 4. OPEN WRENCH SIZE: 5/16" DIA SIZE: 5/16" DIA SIZE: 5/16" DIA SIZE: 5/16" DIA QTY: 8 PCS QTY: 8 PCS QTY: 8 PCS QTY: 1 PC...
  • Page 5 TABLE ASSEMBLY INSTRUCTIONS DIAGRAM #1 3. Attach the legs (B) to the apron REQUIRED HARDWARE IN THIS STEP of table top (A) using 8 flat DESCRIPTION SKETCH washers (1), 8 spring washers (2), FLAT WASHER 8 PCS and 8 nuts (3) as shown. 8 PCS SPRING WASHER 8 PCS...
  • Page 6 TABLE ASSEMBLY INSTRUCTIONS DIAGRAM #2 3. Turn the table upright. Make sure the table is level, and tightly fasten all nuts (3) using the open-end wrench (4) as shown. The Table is now ready for use...
  • Page 7 CHAIR PART LIST C. CHAIR BACK 4 PCS D. SEAT FRAME 4 PCS E. FRONT LEG 8 PCS F. SEAT BOARD 4 PCS CHAIR HARDWARE LIST FLAT WASHER 2. SPRING WASHER 4. OPEN WRENCH SIZE: 5/16" DIA SIZE: 5/16" DIA SIZE: 5/16"...
  • Page 8 CHAIR ASSEMBLY INSTRUCTIONS DIAGRAM #3 REQUIRED HARDWARE IN THIS STEP DESCRIPTION SKETCH FLAT WASHER 4 PCS 4 PCS SPRING WASHER 4 PCS 1. Attach 2 front legs (E) to seat frame (D) using 4 nuts (3), 4 spring washers (2) and 4 flat washers (1) as shown. Note: The seat frame (D) has two screw holes on each side, which are used to attach the seat.
  • Page 10 4. Place seat board (F) upside down on a non-abrasive table surface . The rear (tapered end) of the seat board (F) should be near the table edge. Hint: Protect the non-abrasive table surface and seat board (F) by laying a towel in-between the seat board and table. 5.
  • Page 12 BENCH PART LIST G. CUSHION 1 PC E. FRONT LEG 4 PCS H. SEAT FRAME 1 PC BENCH HARDWARE LIST FLAT WASHER 2. SPRING WASHER 4. OPEN WRENCH SIZE: 5/16" DIA SIZE: 5/16" DIA SIZE: 5/16" DIA SIZE: 5/16" DIA QTY: 8 PCS QTY: 8 PCS QTY: 8 PCS...
  • Page 13 BENCH ASSEMBLY INSTRUCTIONS DIAGRAM #7 REQUIRED HARDWARE IN THIS STEP DESCRIPTION SKETCH FLAT WASHER 8 PCS 8 PCS SPRING WASHER 8 PCS 1 PC OPEN WRENCH 1. Attach 4 front legs (E) to seat frame (H) using 8 nuts (3), 8 spring washers (2) and 8 flat washers (1) as shown.
  • Page 14 BENCH ASSEMBLY INSTRUCTIONS DIAGRAM #8 REQUIRED HARDWARE IN THIS STEP DESCRIPTION SKETCH WOOD SCREW 8 PCS 4. Place cushion (G) upside down on a non-abrasive table surface. Hint: Protect the non-abrasive table surface and cushion (G) by laying a towel in-between the cushion and table. 5.
  • Page 15 BENCH ASSEMBLY INSTRUCTIONS DIAGRAM #9 The bench is now ready for use. Printed in Vietnam...
