- Page 1 DW60M6043 Series DW60M5043 Series DW60M5042 Series Dishwasher user manual imagine the possibilities Thank you for purchasing this Samsung product. DW5500MM_DD81-02437S-01_EN.indd 1 DW5500MM_DD81-02437S-01_EN.indd 1 2021-07-27 2021-07-27 4:22:32 4:22:32...
- Page 2 Safety instructions Congratulations on your new Samsung dishwasher. This manual contains important information on the installation, use and care of your appliance. Please take time to read this manual to take full advantage of your dishwasher’s many benefits and features.
- Page 3 1. This appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Page 4 Safety instructions 8. CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
- Page 5 INSTRUCTIONS WHEN USING YOUR DISHWASHER This dishwasher is not designed for commercial use. It is intended for use in domestic households and in similar working and residential environments such as: • Shops • Offices and showrooms and by residents in establishments such as: •...
- Page 6 Safety instructions INSTRUCTIONS FOR PROTECTING YOUR CHILDREN This appliance is not a toy! To avoid the risk of injury, keep children well away and do not allow them to play in or around the dishwasher or to use the controls. They will not understand the potential dangers WARNING posed by it.
- Page 7 Do not connect the appliance to the mains electricity supply by a multi‐socket unit or an extension lead. These do not guarantee the required safety of the appliance (e.g. danger of overheating). CAUTION This appliance may only be installed in mobile installations such as ships if a risk assessment of the installation has been carried out by a suitably qualified engineer.
- Page 8 Safety instructions Never open the casing/housing of the appliance. Tempering with electrical connections or components and mechanical parts is highly dangerous and CAUTION can cause operational faults or electric shock. While the appliance is under guarantee, repairs should only be undertaken by a service technician authorised by the manufacturer.
- Page 9 Contents PARTS AND FEATURES Dishwasher features Control panel Displays USING THE DETERGENT AND WATER Water softener Loading the salt into the softener SOFTENER Using detergent Using rinse aid How to use the multi tab option Setting mode LOADING THE DISHWASHER RACKS Loading the upper basket Loading the lower basket Folding spikes of lower basket...
- Page 10 Parts and features DISHWASHER FEATURES Knife rack Upper rack Salt storage 6 6 6 Lower rack Dispenser Cutlery basket < DW60M6043FS > Door Base Inlet hose Drain hose Inlet valve < DW60M5043FS/DW60M5042F* > Depending on the models, actual parts may look differ from the figures. 10_ Parts and features DW5500MM_DD81-02437S-01_EN.indd 10 DW5500MM_DD81-02437S-01_EN.indd 10...

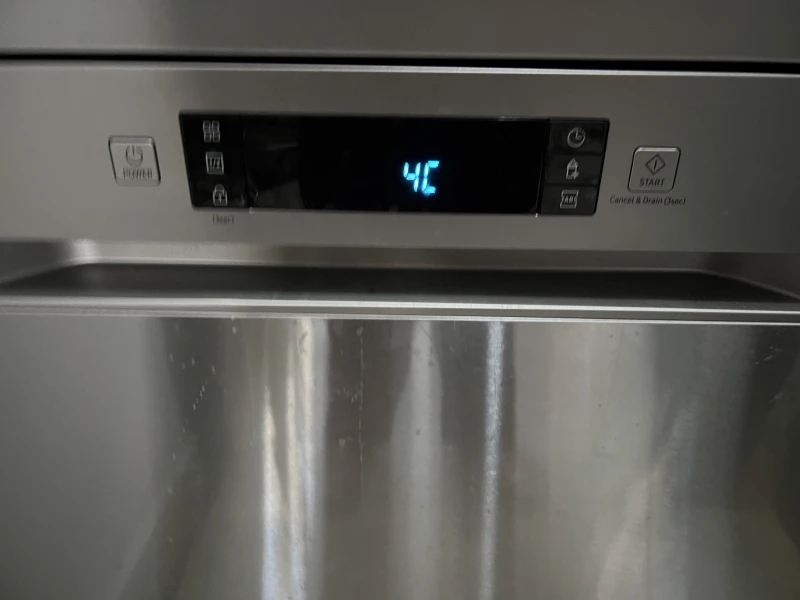

- Page 11 CONTROL PANEL DW60M6043F*/DW60M5043F*/DW60M5042F* DW60M6043F* DW60M5043F* DW60M5042F* POWER Press to turn the dishwasher on or off. Program Press to select a desired wash cycle. For small amount of loading items, use either the upper or lower basket only to save energy. Press the Half load button to select the upper or lower basket.
- Page 12 Parts and features DISPLAYS DW60M6043F*/DW60M5043F*/DW60M5042F* DW60M6043 DW60M5043 DW60M5042 Program icons Press the Program button to select each program. Intensive70 Select this cycle for heavily soiled items. This cycle detects the level of soil and automatically initiates the Auto wash optimal cycle, which is appropriate for all levels of soiled items. (DW60M6043F*) For normally soiled loads, such as pots, plates, glasses, and lightly Normal...
- Page 13 Using the detergent and water softener WATER SOFTENER The water softener is designed to remove minerals and salts from the water, which would have a detrimental or adverse effect on the operation of the appliance. We recommend using soft water for better results. Hard water contains impurities that can reduce the washing performance.
- Page 14 Using the detergent and water softener LOADING THE SALT INTO THE SOFTENER Always use salt intended for use with dishwasher. The salt container is located beneath the lower rack and should be filled as follows: ATTENTION • Only use salt specifically designed for use in dishwashers. All other types of salt not specifically designed for use in a dishwasher, especially table salt, will damage the water softener.
- Page 15 USING DETERGENT All dishwasher cycles require detergent in the detergent compartment. Add the correct amount of detergent for the selected cycle to ensure the best performance. CAUTION: Use dishwasher detergent only. Regular detergent produces too much foam, which may decrease the dishwasher’s performance or cause it to malfunction. WARNING: Do not swallow dishwasher detergent.
- Page 16 Using the detergent and water softener DW60M5043F*/DW60M5042F* 1. Open the detergent dispenser fl ap by pushing the detergent dispenser release catch. The flap is always open at the end of a dishwashing cycle. 2. Add the recommended amount of detergent to the main wash detergent compartment.
- Page 17 2. Fill the rinse aid reservoir with rinse aid. Use the viewing port when filling the rinse aid reservoir. CAUTION: Do not fill the reservoir above the full level indicator. Excess rinse aid can overflow during the wash cycle. 3. Turn the rinse aid indicator dial to a number between 1 and 6.
- Page 18 Using the detergent and water softener HOW TO USE THE MULTI TAB OPTION Your dishwasher has a Multi tab option which allows the replacement of salt and rinse aid with a Multi detergent tablets. This option can select on Intensive70, Eco program only. The Multi tab setting is only for use with Multi detergent tablets.
- Page 19 SETTING MODE You can change the sound, auto door open function, rinse aid level, and water hardness setting to your preference. Entering the Setting mode 1. Turn the dishwasher on. 2. Press and hold the Program button for fi ve seconds within 60 seconds from turning on the dishwasher.
- Page 20 Rinse aid level setting (applicable models only) You can change the amount of rinse aid applied during a cycle. 1. Press the Delay start button to select the rinse aid level setting menu. The display shows the current setting. • Default setting →...
- Page 21 Loading the dishwasher racks For best performance of the dishwasher, follow these loading guidelines. Features and appearance of racks and silverware baskets may vary from your model. Attention before or after loading the dishwasher racks Scrape off any large amounts of leftover food. It is not necessary to rinse the dishes under running water.
- Page 22 DW60M5043F*/DW60M5042F* You can adjust the height of the upper rack in your Samsung dishwasher so that the lower rack can accommodate larger sized dishes. With the upper rack set at the highest position, the lower rack can accommodate plates up to 12 in.
- Page 23 LOADING THE LOWER BASKET We recommend that you place large items which are most difficult to clean in to the lower rack: pots, pans, lids, serving dishes and bowls, as shown in the figure to the right. It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top spray arm.
- Page 24 Loading the dishwasher racks CUTLERY(SILVERWARE) TRAY Silverware should be placed in the cutlery tray with handles at the bottom: The spoon should be loaded individually into the appropriate slots, especially long utensils should be placed in the horizontal position at the front of the upper basket.
- Page 25 FOR WASHING IN THE DISHWASHER THE FOLLOWING CUTLERY/ DISHES Not suitable Limited suitability Plastic items that are not heat resistant. Some types of glasses can become dull after a large number of washes. Older cutlery with glued parts that is not temperature resistant.
- Page 26 Washing programmes TURNING ON THE APPLIANCE Starting a cycle wash 1. Draw out the lower and upper basket, load the dishes and push them back.. It is recommended to load the lower basket fi rst, then the upper one (see the section entitled “Loading the dishwasher racks”).
- Page 27 AT THE END OF THE WASH CYCLE When the working cycle has finished, the buzzer of dishwasher will beep shortly, then stop. In the digital display appears “0”, only in this case the programme has ended. 1. Switch off the dishwasher by pressing the POWER button. 2.
- Page 28 Washing programmes WASH CYCLE TABLE DW60M6043F* Program Description of Cycle Running time (min.) Energy (kWh) Water (ℓ) Pre Wash (50 °C) Wash (65 °C) Rinse Intensive70 1.72 16.1 Rinse Rinse (70 °C) Drying Wash (50 °C) Rinse 0.822 10.5 Rinse (50 °C) Drying Pre Wash (40 °C) Wash (50 °C)
- Page 29 DW60M5043F* Program Description of Cycle Running time (min.) Energy (kWh) Water (ℓ) Pre Wash (50 °C) Wash (65 °C) Rinse Intensive70 1.69 18.2 Rinse Rinse (70 °C) Drying Wash (50 °C) Rinse 1.039 12.0 Rinse (50 °C) Drying Pre Wash (40 °C) Wash (50 °C) Delicate Rinse...
- Page 30 Cleaning and care CLEANING THE FILTERS Filtering system For your convenience, we have placed the drain pump and filtering system within easy reach inside the tub. There are three components of the filtering system: the main filter, the coarse filter, and the fine filter.
- Page 31 Cleaning and care CLEANING THE SPRAY ARMS It is necessary to clean the spray arms regularly as hard water residue can clog the spray arm jets and bearings. To remove the middle spray arm, hold the nut, rotate the arm clockwise to remove it. To remove the lower spray arm, pull out the spray arm upward.
- Page 32 HOW TO MAINTAIN YOUR DISHWASHER • After Every Wash After every wash, turn off the water supply to the appliance and leave the door slightly ajar so that moisture and odours not trapped inside. • Remove the Plug Before cleaning or performing maintenance, always remove the plug from the socket. •...
- Page 33 Setting up your dishwasher WARNING : Electrical shock hazard Disconnect electrical power before installing dishwasher. Failure to do so could result in death or electrical shock. ATTENTION: The installation of the pipes and electrical equipments should be done by professionals. About electricity connecting CAUTION, for personal safety: DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE.
- Page 34 Hot water connection The water supply to the appliance can also be connected to the house hot water line (centralized system, heating system), as long as it does not exceed a temperature of 60 °C. In this case, the wash cycle time will be shortened by about 15 minutes and the wash efficiency slightly reduced. The connection must be made to the hot water line following the same procedures as those for the connection to the cold water line.
- Page 35 Setting up your dishwasher CONNECTION OF DRAIN HOSES Insert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it run into the sink, making sure to avoid bending or crimping it. The top of the hose must be at a height between 30 and 80 cm. The free end of the hose must not be immersed in water to avoid the back flow of it.
- Page 36 Troubleshooting The manufacturer, following a policy of constant development and up-dating of the product, may make modifications without giving prior notice. BEFORE CALLING FOR SERVICE PROBLEM POSSIBLE CAUSE WHAT TO DO Dishwasher doesn’t • Fuse blown or the circuit • Replace fuse or reset circuit breaker.
- Page 37 Troubleshooting PROBLEM POSSIBLE CAUSE WHAT TO DO Spots and filming on 1. Extremely hard water. To remove spots from glassware: glasses and flatware 2. Low inlet temperature. 1. Take out all metal utensils out of the dishwasher. 3. Overloading the dishwasher.
- Page 38 PROBLEM POSSIBLE CAUSE WHAT TO DO Dishwasher leaks • Overfill dispenser or rinse • Be careful not to overfill the rinse aid aid spills. dispenser. Spilled rinse aid could cause overusing and lead to overflowing. Wipe away any spills with a damp cloth. •...
- Page 39 Appendix SPECIFICATIONS Model DW60M6043F* DW60M5043F* DW60M5042F* Type Free Standing Power 220 - 240 V~, 50 Hz Water Pressure 0.04 - 1.0 MPa Rated Power Usage 1760 - 2100 W Hot water Connection Max 60 °C Condensed Drying + Condensed Drying Drying Type Auto Door Open Drying Sytem System...
- Page 40 For standard test DW60M6040F*/DW60M5043F*/DW60M5042F* The information for comparability test as follows: • Washing capacity: 13 place settings • Test standard: EN 50242 • Position of upper basket: to lower position • Wash cycle: Eco • Additional options: None • Rinse aid setting: d5 •...
- Page 41 Terminology for dishwasher A motor that sucks the water remaining on the floor of the dishwater and 1. Circulation Motor infects water using high pressure through the internal water passages to the top Middle and lower nozzles. The pump that drains the polluted water from the dishwater generated 2.
- Page 42 Note DW5500MM_DD81-02437S-01_EN.indd 42 DW5500MM_DD81-02437S-01_EN.indd 42 2021-07-27 2021-07-27 4:23:06 4:23:06...
- Page 43 Note DW5500MM_DD81-02437S-01_EN.indd 43 DW5500MM_DD81-02437S-01_EN.indd 43 2021-07-27 2021-07-27 4:23:06 4:23:06...
- Page 44 QUESTIONS OR COMMENTS? COUNTRY/LOCATION CALL OR VISIT US ONLINE AT 1800 40 SAMSUNG (1800 40 7267864) (Toll-Free) INDIA www.samsung.com/in/support 1800 5 SAMSUNG (1800 5 7267864) (Toll-Free) This product is RoHS compliant. DD81-02437S-01 DW5500MM_DD81-02437S-01_EN.indd 44 DW5500MM_DD81-02437S-01_EN.indd 44 2021-07-27 2021-07-27 4:23:06 4:23:06...
