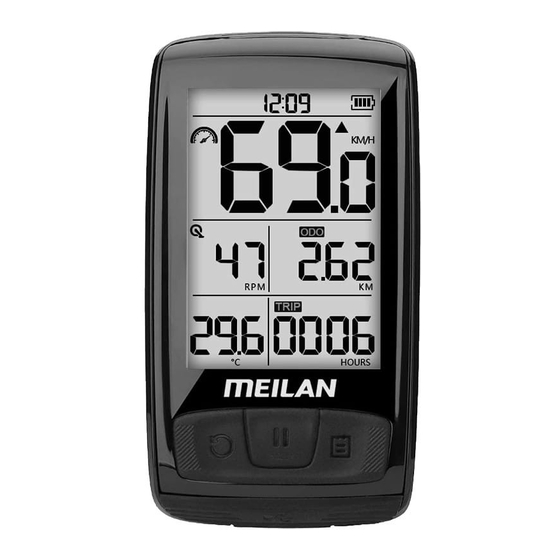

Blade Wireless Bike Computer
Quick Start Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Blade and is the answer not in the manual?

Questions and answers

Related Manuals for meilan Blade

Summary of Contents for meilan Blade

  • Page 1 Blade Wireless Bike Computer Quick Start Guide...
  • Page 2 Introduction Blade is one bike computer using Bleutooth and Ant+ wireless protocols. The package contains a Bluetooth speed & cadence sensor, which can display speed, cadence, distance, exercise time and other data. It can also support the display of heart rate...

  • Page 3: Table Of Contents

    01 • Installing the mount: F-mount and Stem mount 02 Installing the speed and cadence sensor (C3) 05 Setting up the BLADE 05 • Pair Sensors with Blade via Meilan APP 08 • Restore the factory setup 08 Starting a Workout 08 •...

  • Page 4: Installing The Blade

    (1). Place the bike mount on the stem with the rubber side down. (2). Attach the stem mount securely using the two rubber bands. (3). Place the Blade in the mounting grooves and turn clockwise until it locks in place. To remove, turn counterclockwise or clockwise and lift.

  • Page 5: Installing The Speed And Cadence Sensor (C3)

    (3). Replace and tighten the screw. (4). Place the Blade in the mounting grooves and turn clockwise until it locks in place. To remove, turn counterclockwise or clockwise and lift.
  • Page 6 (1). Use a coin to twist the cover counter-clockwise until it is loose enough to remove (the arrow points to unlocked). (2). Remove the cover, the battery and blue battery insulator sheet. (3). Insert the battery with the positive side facing up. Use a coin to twist the cover clockwise back into place.
  • Page 7 Align so that the magnet will pass by the indicator sensing area on the body of the MEILAN C3 sensor. The magnet will have to within 0.8 inch (about 2cm) to get a reading. Attach the magnet to the crank arm using two nylon ties.

  • Page 8: Setting Up The Blade

    Align so that the magnet will pass by the indicator line on the arm of the MEILAN C3 sensor. The magnet will have to pass within 0.8 inch (about 2cm) to get a reading. Once again, adjust the position of the sensor and/or magnet if required.
  • Page 9 (5). Tap icon of “BLADE” to enter the setting menu, then set ODO and update firmware. (6). Pairing sensors. Tap on the sensor, search and add sensor. Meanwhile, rotate the wheel to activate the sensor. BLADE supports the display of speed, cadence value (standard with a sensor), and also supports the display of heart rate and power value (requiring additional purchase of related equipment).
  • Page 10 (7). After the paired, set or modify the name of sensor and wheel circumference, then complete the setting. * Set tire circumference : Refer to “ Tire circumference table” (Page 12) In the personal configutaion, you can set the measurement (KM/H or MPH) (8).

  • Page 11: Restore The Factory Setup

    NOTE: 1. Time setting: After connecting to the APP, the time is automatically synchronized with the phone time. 2. When you in update device software process, don’t turn off your phone and bike computer, and do not exit the update menu. Otherwise your bike computer may be damaged.

  • Page 12: Icon Description

    3. Press to start the next lap. 4. Press to manual pause the BLADE when you stop moving. But BLADE has an automatic Start/Stop function , no manual operation is required for a short pause.

  • Page 13: Packing List

    Then enter the history view. Long press the exit the history view. 6. After the current data is saved, BLADE will automatically display the last riding record. At this time, the computer interface will have one icon on the history record interface.

  • Page 14: Parameter

    6. The product is guaranteed for one year from the date of sale for non-human damage, and the accessories are not covered by the warranty. You can contact the after-sales service center through Meilan global distributors or by writing to Meilan. When sending for repairs, you need to effectively keep the internal storage information.

  • Page 15: Appendix

    Appendix • Tire circumference table Tire circumference can be determined by either of the following two methods: • Measure the actual tire circumference (L) After ensuring that the tire pressure is appropriate, sit on your bike, roll it forward so that the tire makes one full revolution (use the valve or other marking as a reference), and measure the distance traveled on the road.

  • Page 16: Frequently Asked Queations And Video Links

    You can also go to check our installment and functionality introduction in our official website/Youtube/Facebook links as below. Facebook YouTube Website MEILAN (HONGKONG) CO., LIMITED 5/F, B16 Building, Hezhou, Hengfeng Industrial City, Xixiang Street, Baoan District, Shenzhen, 518000 China Phone : +86 755 23159119 E-mail : service@meilankj.com...
