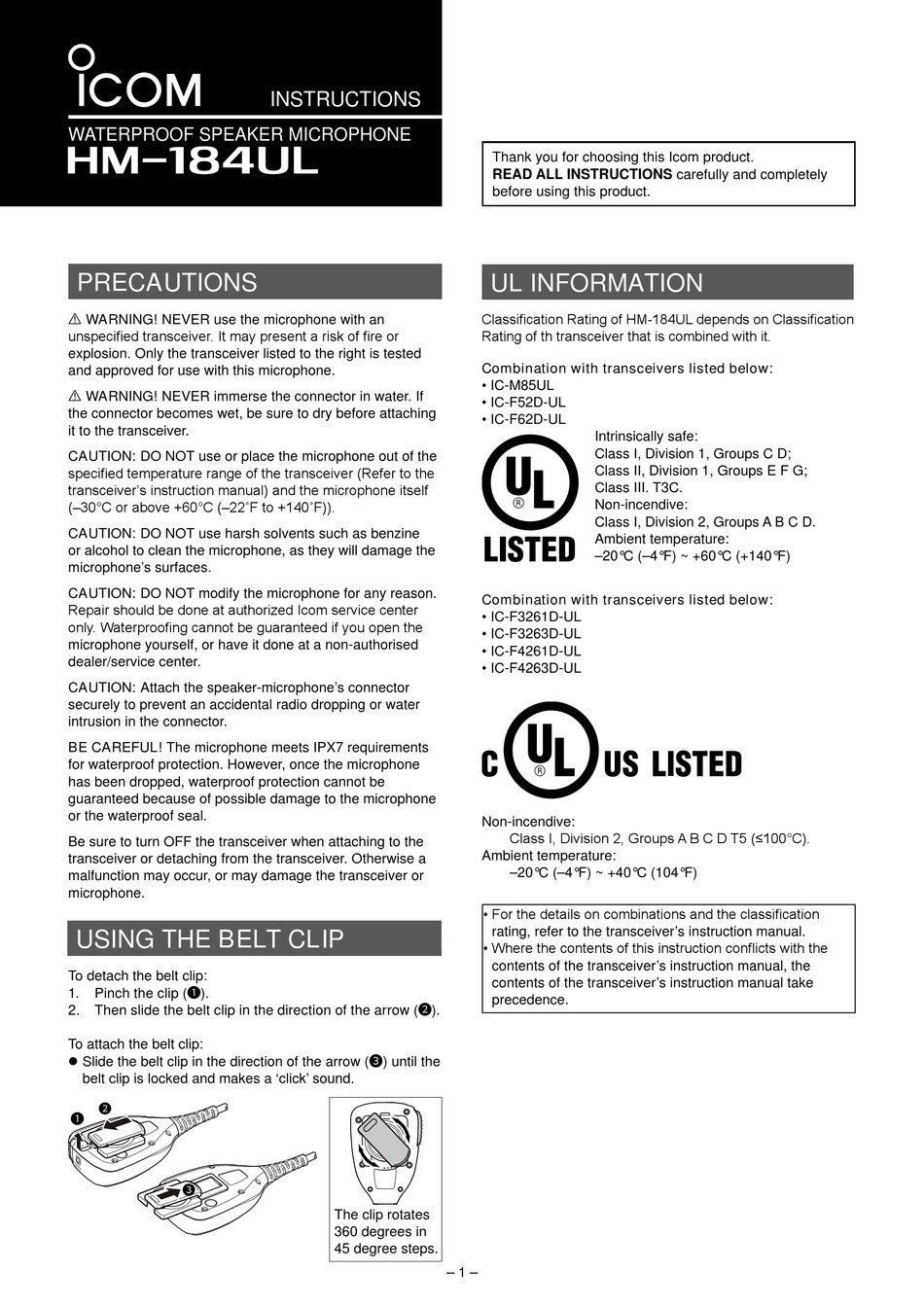

Icom HM-184UL Instructions

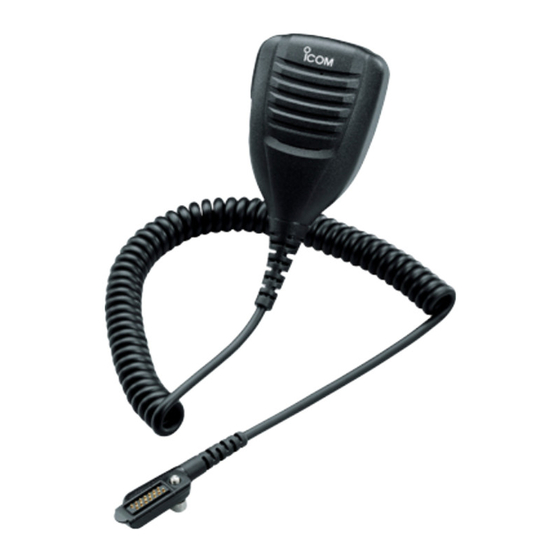

WATERPROOF SPEAKER MICROPHONE
HM-184UL
PRECAUTIONS
R WARNING! NEVER use the microphone with an
unspecified transceiver. It may present a risk of fire or
explosion. Only the transceiver listed to the right is tested
and approved for use with this microphone.
R WARNING! NEVER immerse the connector in water. If
the connector becomes wet, be sure to dry before attaching
it to the transceiver.
CAUTION: DO NOT use or place the microphone out of the
specified temperature range of the transceiver (Refer to the
transceiverʼs instruction manual) and the microphone itself
(–30°C or above +60°C (–22˚F to +140˚F)).
CAUTION: DO NOT use harsh solvents such as benzine
or alcohol to clean the microphone, as they will damage the
microphone's surfaces.
CAUTION: DO NOT modify the microphone for any reason.
Repair should be done at authorized Icom service center
only. Waterproofing cannot be guaranteed if you open the
microphone yourself, or have it done at a non-authorised
dealer/service center.
CAUTION: Attach the speaker-microphone's connector
securely to prevent an accidental radio dropping or water
intrusion in the connector.
BE CAREFUL! The microphone meets IPX7 requirements
for waterproof protection. However, once the microphone
has been dropped, waterproof protection cannot be
guaranteed because of possible damage to the microphone
or the waterproof seal.
Be sure to turn OFF the transceiver when attaching to the
transceiver or detaching from the transceiver. Otherwise a
malfunction may occur, or may damage the transceiver or
microphone.
USING THE BELT CLIP
To detach the belt clip:
1. Pinch the clip (1).
2. Then slide the belt clip in the direction of the arrow (2).
To attach the belt clip:
z Slide the belt clip in the direction of the arrow (3) until the
belt clip is locked and makes a 'click' sound.
2
1
3
INSTRUCTIONS
The clip rotates
360 degrees in
45 degree steps.
Thank you for choosing this Icom product.
READ ALL INSTRUCTIONS carefully and completely
before using this product.
UL INFORMATION
Classification Rating of HM-184UL depends on Classification
Rating of th transceiver that is combined with it.
Combination with transceivers listed below:
• IC-M85UL
• IC-F52D-UL
• IC-F62D-UL
Intrinsically safe:
Class I, Division 1, Groups C D;
Class II, Division 1, Groups E F G;
Class III. T3C.
Non-incendive:
Class I, Division 2, Groups A B C D.
Ambient temperature:
–20°C (–4°F) ~ +60°C (+140°F)
Combination with transceivers listed below:
• IC-F3261D-UL
• IC-F3263D-UL
• IC-F4261D-UL
• IC-F4263D-UL
Non-incendive:
Class I, Division 2, Groups A B C D T5 (≤100°C).
Ambient temperature:
–20°C (–4°F) ~ +40°C (104°F)
• For the details on combinations and the classification
rating, refer to the transceiver's instruction manual.
• Where the contents of this instruction conflicts with the
contents of the transceiver's instruction manual, the
contents of the transceiver's instruction manual take
precedence.
– 1 –
