SPECIAL TOOLS

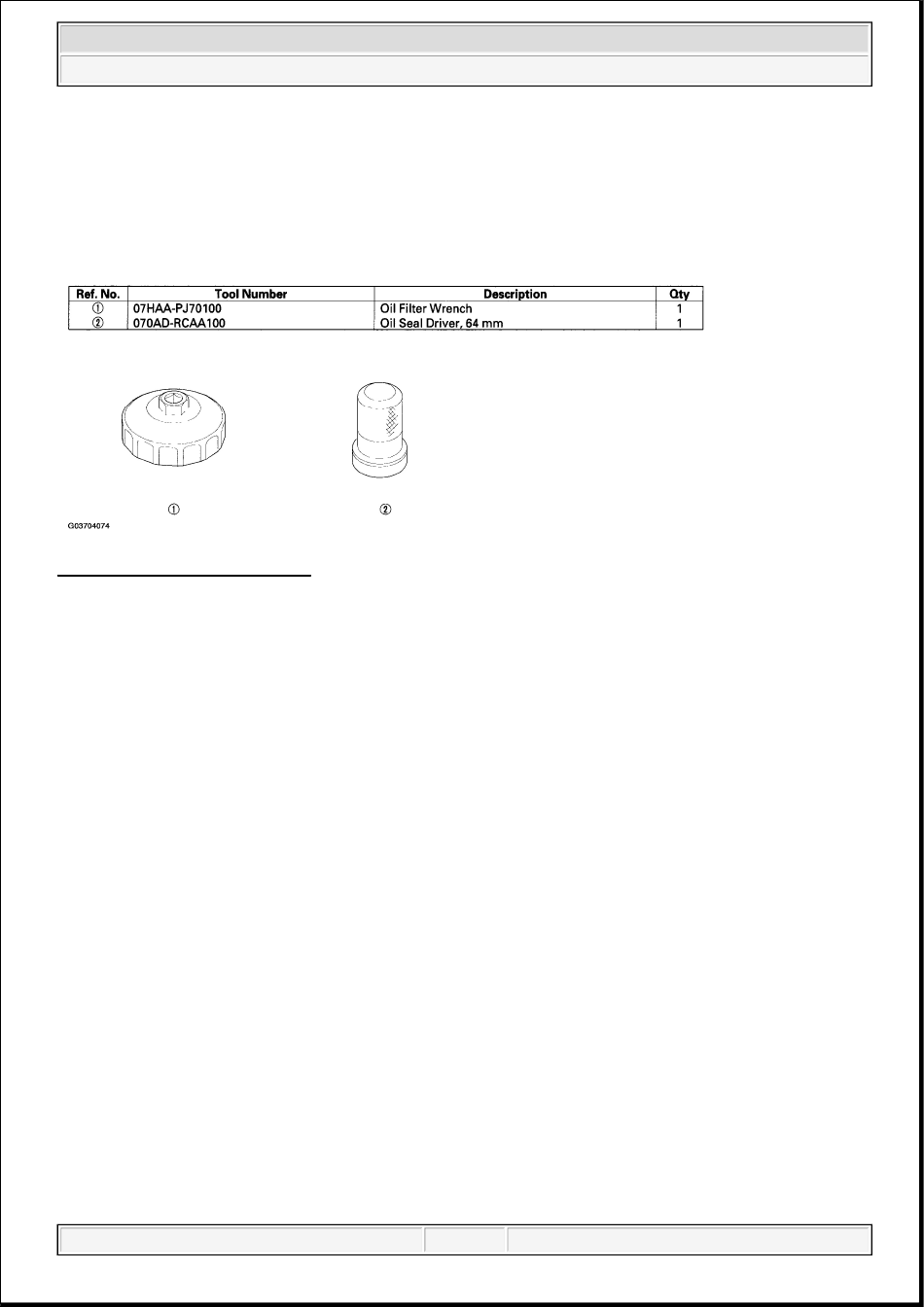

Fig. 1: Identifying Special Tools
Courtesy of AMERICAN HONDA MOTOR CO., INC.
COMPONENT LOCATION INDEX
martes, 17 de julio de 2018 19:41:00
martes, 17 de julio de 2018 19:40:48
2006 Honda Odyssey LX
2006 Honda Odyssey LX
2005-06 ENGINE Engine Lubrication - Odyssey
2005-06 ENGINE Engine Lubrication - Odyssey
2005-06 ENGINE
Engine Lubrication - Odyssey
Page 1
Page 1
© 2011 Mitchell Repair Information Company, LLC.
© 2011 Mitchell Repair Information Company, LLC.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Odyssey LX 2006 and is the answer not in the manual?

Questions and answers

Related Manuals for Honda Odyssey LX 2006

Summary of Contents for Honda Odyssey LX 2006

  • Page 1 2005-06 ENGINE Engine Lubrication - Odyssey 2005-06 ENGINE Engine Lubrication - Odyssey SPECIAL TOOLS Fig. 1: Identifying Special Tools Courtesy of AMERICAN HONDA MOTOR CO., INC. COMPONENT LOCATION INDEX martes, 17 de julio de 2018 19:40:48 martes, 17 de julio de 2018 19:41:00 Page 1 Page 1 ©...
  • Page 2 2006 Honda Odyssey LX 2005-06 ENGINE Engine Lubrication - Odyssey Fig. 2: Identifying Engine Lubrication System Components (J35A6 Engine) Courtesy of AMERICAN HONDA MOTOR CO., INC. martes, 17 de julio de 2018 19:40:48 Page 2 © 2011 Mitchell Repair Information Company, LLC.
  • Page 3 2006 Honda Odyssey LX 2005-06 ENGINE Engine Lubrication - Odyssey Fig. 3: Identifying Engine Lubrication System Components (J35A7 Engine - 1 Of 2) Courtesy of AMERICAN HONDA MOTOR CO., INC. martes, 17 de julio de 2018 19:40:48 Page 3 © 2011 Mitchell Repair Information Company, LLC.
  • Page 4 2006 Honda Odyssey LX 2005-06 ENGINE Engine Lubrication - Odyssey Fig. 4: Identifying Engine Lubrication System Components (J35A7 Engine - 2 Of 2) Courtesy of AMERICAN HONDA MOTOR CO., INC. SYMPTOM TROUBLESHOOTING INDEX martes, 17 de julio de 2018 19:40:48 Page 4 ©...

  • Page 5: Oil Pressure Switch Test

    2006 Honda Odyssey LX 2005-06 ENGINE Engine Lubrication - Odyssey SYMPTOM TROUBLESHOOTING INDEX Symptom Diagnostic procedure Also check for 1. Check the loose of the engine oil fill cap, oil drain bolt, and oil filter. 2. Check for oil leaks.
  • Page 6 2006 Honda Odyssey LX 2005-06 ENGINE Engine Lubrication - Odyssey Fig. 5: Removing BLU/YEL Wire From Engine Oil Pressure Switch Courtesy of AMERICAN HONDA MOTOR CO., INC. martes, 17 de julio de 2018 19:40:48 Page 6 © 2011 Mitchell Repair Information Company, LLC.

  • Page 7: Oil Pressure Switch Replacement

    1. Disconnect the oil pressure switch connector, then remove the oil pressure switch. Fig. 6: Removing Oil Pressure Switch Courtesy of AMERICAN HONDA MOTOR CO., INC. 2. Remove any old liquid gasket from the switch and switch mounting hole. 3. Apply liquid gasket to the new oil pressure switch threads, then install the oil pressure switch.

  • Page 8: Oil Pressure Test

    1. Remove the engine oil pressure switch, then install an oil pressure gauge (A). Fig. 7: Installing Oil Pressure Gauge Courtesy of AMERICAN HONDA MOTOR CO., INC. 2. Start the engine. Shut it off immediately if the gauge registers no oil pressure. Repair the problem before continuing.

  • Page 9: Engine Oil Replacement

    2. Remove the drain bolt (A), and drain the engine oil Fig. 8: Removing Drain Bolt & Draining Engine Oil Courtesy of AMERICAN HONDA MOTOR CO., INC. 3. Reinstall the drain bolt with a new washer (B). 4. Refill with the recommended oil (see LUBRICANTS & FLUIDS ).

  • Page 10: Engine Oil Filter Replacement

    2006 Honda Odyssey LX 2005-06 ENGINE Engine Lubrication - Odyssey LIFE INDICATOR ). ENGINE OIL FILTER REPLACEMENT SPECIAL TOOLS REQUIRED Oil filter wrench 07HAA-PJ70100 1. Using the oil filter wrench, remove the oil filter. 2. Inspect the engine block seating surface to be sure all of the old filter gasket has been removed.
  • Page 11 2005-06 ENGINE Engine Lubrication - Odyssey Fig. 9: Inspecting Threads And Rubber Seal On Filter Courtesy of AMERICAN HONDA MOTOR CO., INC. 4. Install the oil filter by hand. 5. After the rubber seal seats, tighten the oil filter clockwise with the oil filter wrench.
  • Page 12 2005-06 ENGINE Engine Lubrication - Odyssey Fig. 10: Tightening Oil Filter Courtesy of AMERICAN HONDA MOTOR CO., INC. 6. If four numbers or triangle(s) are printed around the outside of the filter, you can use the following procedure to tighten the filter ) .
  • Page 13 2005-06 ENGINE Engine Lubrication - Odyssey Fig. 11: Tightening Filter Chart Courtesy of AMERICAN HONDA MOTOR CO., INC. 7. After installation, fill the engine with oil up to the specified level, run the engine for more than 3 minutes, then check for oil leakage.
  • Page 14 2005-06 ENGINE Engine Lubrication - Odyssey Fig. 12: Removing Oil Filter Feed Pipe Courtesy of AMERICAN HONDA MOTOR CO., INC. 3. Install two 20 x 1.5 mm nuts (A) onto the new oil filter feed pipe, and hold one nut with a wrench, then tighten the other nut.
  • Page 15 2005-06 ENGINE Engine Lubrication - Odyssey Fig. 13: Installing Nuts Onto Oil Filter Feed Pipe Courtesy of AMERICAN HONDA MOTOR CO., INC. 4. Tighten the oil filter feed pipe to 49 N-m (5.0 kgf-m, 36 lbf-ft), then remove the nuts from the oil filter feed pipe.
  • Page 16 2005-06 ENGINE Engine Lubrication - Odyssey Fig. 14: Removing Oil Jet Bolt & Oil Jet Courtesy of AMERICAN HONDA MOTOR CO., INC. 3. Carefully install the new oil jet and tighten the oil jet bolt. 4. Install the crankshaft (see CRANKSHAFT AND PISTON INSTALLATION ).

  • Page 17: Oil Pump Overhaul

    Check the oil jet bolt operation with an air nozzle. It should take at least 120 kPa (1.2 kgf/cm, 17 psi) to unseat the check ball. Fig. 15: Checking Ball Moves Smoothly Courtesy of AMERICAN HONDA MOTOR CO., INC. OIL PUMP OVERHAUL martes, 17 de julio de 2018 19:40:48 Page 17 ©...

  • Page 18: Exploded View

    2006 Honda Odyssey LX 2005-06 ENGINE Engine Lubrication - Odyssey EXPLODED VIEW Fig. 16: Exploded View Of Oil Pump Courtesy of AMERICAN HONDA MOTOR CO., INC. Special Tools Required Oil seal driver, 64 mm 070AD-RCAA100 REMOVAL 1. Drain the engine oil (see ENGINE OIL REPLACEMENT ).

  • Page 19: Engine Installation

    9. Remove the oil pan (see OIL PAN REMOVAL ). 10. Remove the oil screen (A). Fig. 17: Removing Oil Screen Courtesy of AMERICAN HONDA MOTOR CO., INC. martes, 17 de julio de 2018 19:40:48 Page 19 © 2011 Mitchell Repair Information Company, LLC.
  • Page 20 Service Limit: 0.20 mm (0.008 in.) Fig. 18: Checking Inner Rotor-To-Outer Rotor Radial Clearance Courtesy of AMERICAN HONDA MOTOR CO., INC. 3. Check the housing-to-rotor axial clearance between the rotors (A) and pump housing (B). If the housing-to-rotor axial clearance exceeds the service limit, replace the oil pump assembly.
  • Page 21 2005-06 ENGINE Engine Lubrication - Odyssey Fig. 19: Checking Housing-To-Rotor Axial Clearance Between Rotors And Pump Housing Courtesy of AMERICAN HONDA MOTOR CO., INC. 4. Check the housing-to-outer rotor radial clearance between the outer rotor (A) and pump housing (B).

  • Page 22: Installation

    Fig. 20: Checking Housing-To-Outer Rotor Radial Clearance Between Outer Rotor And Pump Housing Courtesy of AMERICAN HONDA MOTOR CO., INC. 5. Inspect both rotors and pump housing for scoring or other damage. Replace the parts, if necessary. 6. Apply liquid thread lock to the pump housing screws, then install the oil pump cover.
  • Page 23 2005-06 ENGINE Engine Lubrication - Odyssey Fig. 21: Tapping Oil Seal Courtesy of AMERICAN HONDA MOTOR CO., INC. 3. Remove all of the old liquid gasket from the oil pump mating surfaces, bolts, and bolt holes. 4. Clean and dry the oil pump mating surfaces.
  • Page 24 2005-06 ENGINE Engine Lubrication - Odyssey Fig. 22: Applying Liquid Gasket To Engine Block Mating Surface Of Oil Pump Courtesy of AMERICAN HONDA MOTOR CO., INC. 6. Grease the lip of the oil seal, and apply oil to the new O-ring (A).
  • Page 25 2005-06 ENGINE Engine Lubrication - Odyssey Fig. 23: Applying Oil To O-Ring Courtesy of AMERICAN HONDA MOTOR CO., INC. 7. Install the dowel pins (B), then align the inner rotor with the crankshaft, and install the oil pump (C). 8. Clean the excess grease off the crankshaft, and check the seal for distortion.
  • Page 26 2006 Honda Odyssey LX 2005-06 ENGINE Engine Lubrication - Odyssey 14. Install the timing belt: J35A6 engine (see TIMING BELT REPLACEMENT ) J35A7 engine (see TIMING BELT REPLACEMENT ) 15. Remove the engine hanger. 16. After assembly, wait at least 30 minutes before filling the engine with oil.
