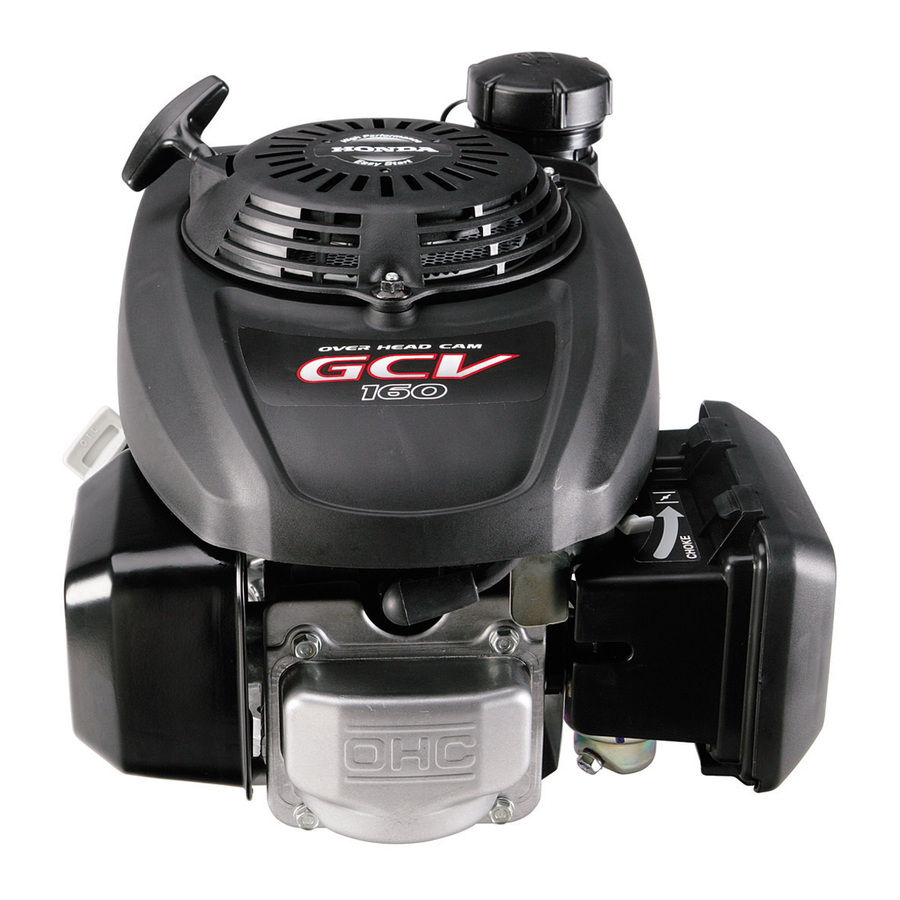

GENERAL PURPOSE ENGINE
GCV160
GCV160A
GCV160A0
GCV160E
GCV160LE
GCV160L A
GCV160L A0
8
13ZM00E8
© Honda Motor Co., Ltd. 2009

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GCV160 and is the answer not in the manual?

Questions and answers

Selwyn Rayner
March 2, 2025

I want to see the auto choke illustration

1 comments:
Mr. Anderson
May 14, 2025

The auto choke illustration for the Honda GCV160 includes a choke system that automatically adjusts during engine startup. When starting cold, the choke lever is moved to the choke position. Pulling down the bail releases the choke mechanism, which then gradually opens as the engine warms up. The system includes components like the insulator, which must be installed correctly with the large tab in the lower right corner, and the air guide and gasket, which align with specific shapes to ensure proper fit.

This answer is automatically generated

SANTOS PARDO
July 31, 2025

Self propel not working Need advise on how to trouble shot.

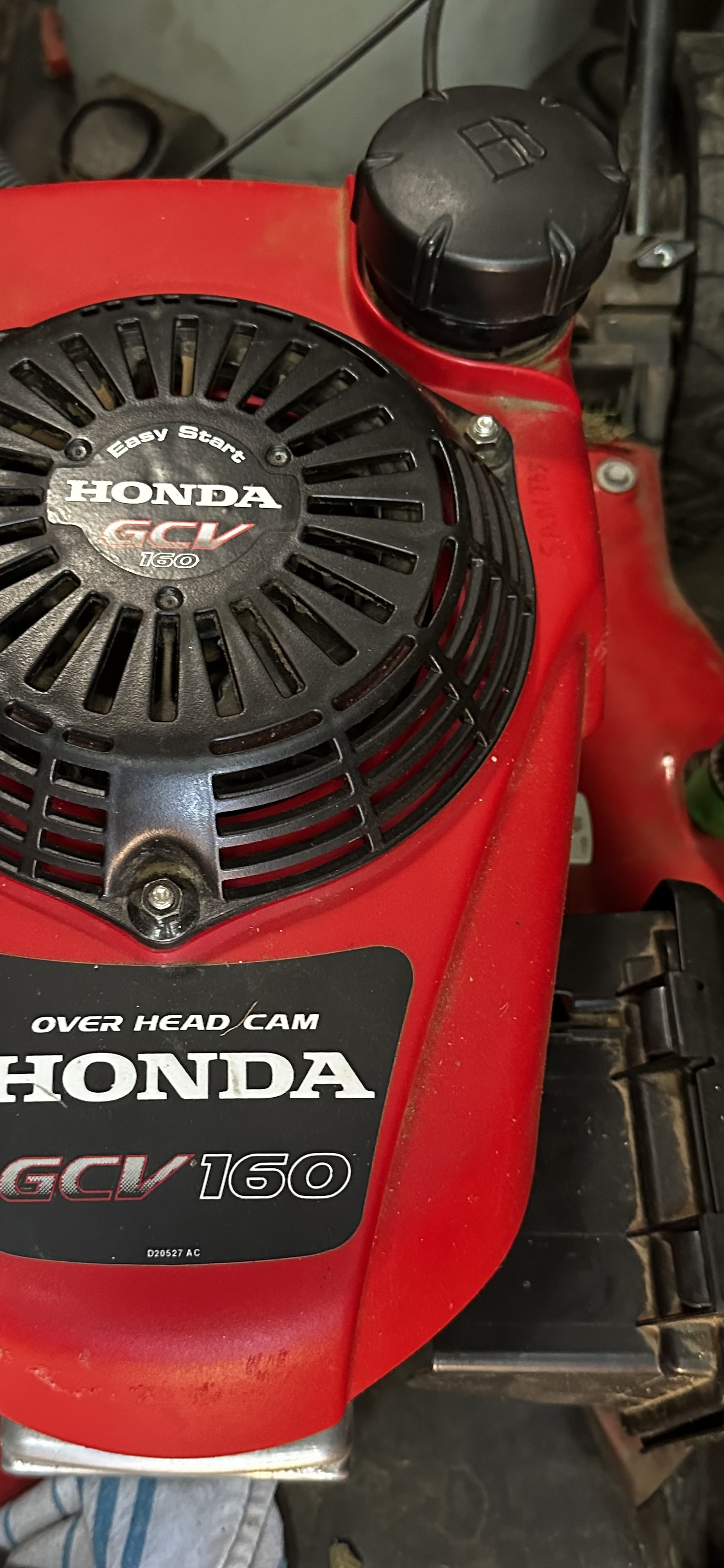

User image 688bb7d58c018
James
July 17, 2025

Type of oil to use in a GCV160 Honda Power Washer Year 2013 - sn: 0A13161N050041

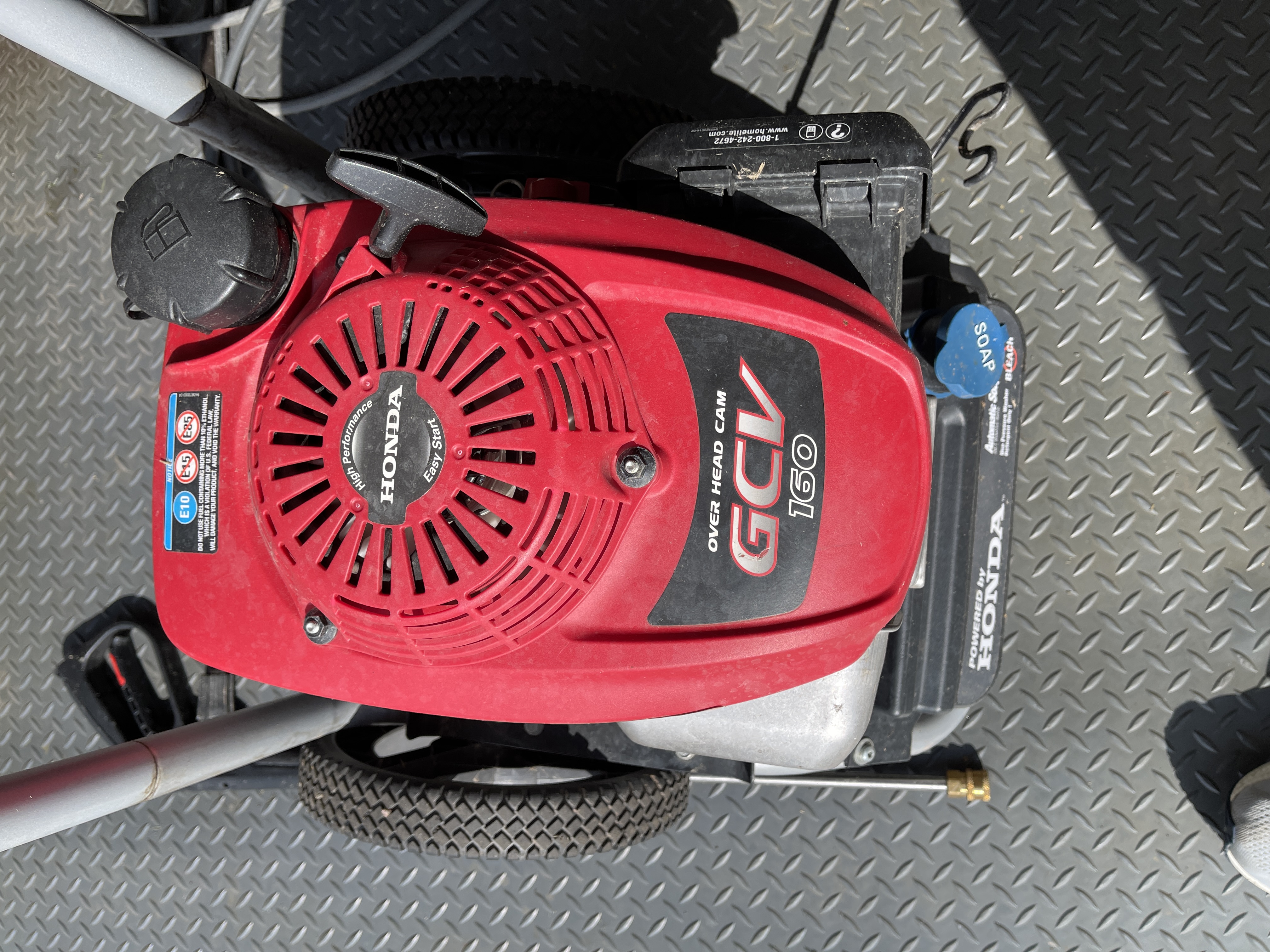

User image 6879809ce2da2

Summary of Contents for Honda GCV160

  • Page 1 GENERAL PURPOSE ENGINE GCV160 GCV160A GCV160A0 GCV160E GCV160LE GCV160L A GCV160L A0 13ZM00E8 © Honda Motor Co., Ltd. 2009...
  • Page 2 FOREWORD INDEX ENGINE GROUP PART NUMBER INDEX GCV160 PART NAME INDEX...
  • Page 4: Table Of Contents

    We recommend obtaining such revisions in order to keep your parts catalogue up-to-date at all times. To check whether a parts catalogue revision has been issued, please contact your Honda distributor. September 10, 1997 Initial version issue date Honda Motor Co., Ltd. 2009.01.10...
  • Page 5: How To Refer To The Part Information

    How to refer to the part information Reference with “Illustrated index” Reference with “Part number index” Reference with “Part name index” 2009.01.10...
  • Page 6: Part Catalogue Structure

    Reference number • Title number marked with the parenthesis or parentheses indicates that it continues from the previous page. Part number Honda color code Description Assemblies • Sections framed with broken lines in the exploded view drawings are available as complete assemblies. (Their in- dividual parts can also be obtained.)
  • Page 7: When The Parts Were Revised

    When the parts were revised Abbreviations used in the parts catalogue • The following abbreviations are used in the parts name column. Be sure to check the A ... Ampere FR..Front serial number!! A.C..Alternating current IN...Inlet ASSY.
  • Page 8: How To Check The Part Block And Serial Numbers

    How to check the part block and serial numbers Engine parts Carburetor parts Part block E-3~ E-14 Stamped Stamped Numbers carburetor engine needed identification number number Check point DZM0-A DZM0-B TYPE CARBURETOR CARBURETOR ENGINE SERIAL NUMBER IDENTIFICATION NUMBER IDENTIFICATION NUMBER 2009.01.10...
  • Page 9: Models, Parts Catalogue Codes And Applicable Serial Numbers

    A2G7 1000001~9999999 A1E8 A1E8 BB62B D A1G7 A1G7 BB62A C / D BB62B D GJAE- BB62A C / D GJAE- GCV160 GCV160 1000001~9999999 BB62B D 1000001~1000107 A7E1 A7E1 BB62F A A1W2 A1W2 BB62B D A1W7 A1W7 BB62A C / D...
  • Page 10 No. type serial No. identification No. BB62A C / D BB62B D BB62B D BB62B D BB62A C / D GJAE- GCV160 BB62B D 1000001~9999999 BB62A C / D BB62B D N1W1 N1W1 N7A1 N7A1 BB62F A GJAEA- BB62B D / E...
  • Page 11 Parts Applicable Applicable Parts Applicable Applicable Model Type catalogue engine carburetor Model Type catalogue engine carburetor type serial No. identification No. type serial No. identification No. BB62B D / E A2E7 A2E7 GJAEA-1000001~ BB62W A / B GJAEA-1000001~ BB62W A / B A2E8 A2E8 C4E1...
  • Page 12 Parts Applicable Applicable Parts Applicable Applicable Model Type catalogue engine carburetor Model Type catalogue engine carburetor type serial No. identification No. type serial No. identification No. BB62B D / E GJAEA- GJAEA-1000001~ N7S1 N7S1 BB62F B BB62W A / B 1000001~5386302 BB62G B N1W7 N1W7...
  • Page 13 Parts Applicable Applicable Parts Applicable Applicable Model Type catalogue engine carburetor Model Type catalogue engine carburetor type serial No. identification No. type serial No. identification No. BB62W B GCV160A0 GJAPA-1000001~ A2E7 A2E7 S2G7 S2G7 BB75E A BHH1 BHH1 S3H2 S3H2 BB62Z B A1E7 A1E7...
  • Page 14 Parts Applicable Applicable Parts Applicable Applicable Model Type catalogue engine carburetor Model Type catalogue engine carburetor type serial No. identification No. type serial No. identification No. BB62B D / E A3E7 A3E7 N1T9 N1T9 BB62W A BB62B E A3E9 A3E9 N1W7 N1W7 BB62W A A3G9...
  • Page 15 Parts Applicable Applicable Parts Applicable Applicable Model Type catalogue engine carburetor Model Type catalogue engine carburetor type serial No. identification No. type serial No. identification No. S2E3 S2E3 BB65K A N1AF N1AF S3E9 S3E9 BB65E A BB65A A / B N5AF N5AF S3G9...
  • Page 16 Parts Applicable Applicable Model Type catalogue engine carburetor type serial No. identification No. N1AF N1AF N5AF N5AF BB65A B N5MF N5MF N7A1 N7A1 BB62Y B GCV160LA0 N7S1 N7S1 GJARA-1000001~ BB62Z B BB75E A BB62Z B BB75E A * Of carburetor identification numbers, only the portions underlined in the example below are used for registration. BB 62B 2009.01.10...
  • Page 17: Features Of Each Type

    Features of each type • See the following table for the features of each type. (Items in brackets are optional) GCV160 Model Type Specifications A1E7 A1E8 A1G7 A1W2 A1W7 A2E4 20mm Ø Straight (133.8mm) 22.2mm Ø Straight (100.4mm) 22.2mm Ø Straight (117.4mm) (Depth 24mm)
  • Page 18 Model GCV160 Type Specifications A2E7 A2E8 A2E9 A2G7 A7E1 N1E1 N1E2 N1E7 N1J1 20mm Ø Straight (133.8mm) 22.2mm Ø Straight (100.4mm) 22.2mm Ø Straight (117.4mm) (Depth 24mm) 22.2mm Ø Straight (117.4mm) (Depth 52mm) 22.2mm Ø Straight Crankshaft (135.7mm) 25mm Ø Straight (117.4mm)
  • Page 19 GCV160 Model Type Specifications N1W N1W1 N1W2 N1W7 N1W8 N1W9 N2E1 N2E2 N2E3 N2E7 20mm Ø Straight (133.8mm) 22.2mm Ø Straight (100.4mm) 22.2mm Ø Straight (117.4mm) (Depth 24mm) 22.2mm Ø Straight (117.4mm) (Depth 52mm) 22.2mm Ø Straight Crankshaft (135.7mm) 25mm Ø Straight (117.4mm)
  • Page 20 GCV160 GCV160A Model Type Specifications N2E8 N2E9 N7A1 A1AE A1AF A1AS A1AW A1C A1E7 A1E8 20mm Ø Straight (133.8mm) 22.2mm Ø Straight (100.4mm) 22.2mm Ø Straight (117.4mm) (Depth 24mm) 22.2mm Ø Straight (117.4mm) (Depth 52mm) 22.2mm Ø Straight Crankshaft (135.7mm) 25mm Ø...
  • Page 21 GCV160A Model Type Specifications A1W7 A2E7 A2E8 A2E9 A2G7 A7E1 BHH BHH1 20mm Ø Straight (133.8mm) 22.2mm Ø Straight (100.4mm) 22.2mm Ø Straight (117.4mm) (Depth 24mm) 22.2mm Ø Straight (117.4mm) (Depth 52mm) 22.2mm Ø Straight Crankshaft (135.7mm) 25mm Ø Straight (117.4mm) 25mm Ø...
  • Page 22 Model GCV160A Type Specifications C1E1 C2E1 C3E1 C4E1 EHHB E1A2 E1A4 E1G7 E2G7 E5A4 NBL1 20mm Ø Straight (133.8mm) 22.2mm Ø Straight (100.4mm) 22.2mm Ø Straight (117.4mm) (Depth 24mm) 22.2mm Ø Straight (117.4mm) (Depth 52mm) 22.2mm Ø Straight Crankshaft (135.7mm) 25mm Ø...
  • Page 23 GCV160A Model Type Specifications N1AF N1E1 N1E7 N1W7 N1W8 N1W9 N2E7 N2E8 N2E9 20mm Ø Straight (133.8mm) 22.2mm Ø Straight (100.4mm) 22.2mm Ø Straight (117.4mm) (Depth 24mm) 22.2mm Ø Straight (117.4mm) (Depth 52mm) 22.2mm Ø Straight Crankshaft (135.7mm) 25mm Ø Straight (117.4mm) 25mm Ø...
  • Page 24 Model GCV160A Type Specifications N5AF N5MF N7A1 N7S1 RTL1 R3A1 STA1 STL1 20mm Ø Straight (133.8mm) 22.2mm Ø Straight (100.4mm) 22.2mm Ø Straight (117.4mm) (Depth 24mm) 22.2mm Ø Straight (117.4mm) (Depth 52mm) 22.2mm Ø Straight Crankshaft (135.7mm) 25mm Ø Straight (117.4mm) 25mm Ø...
  • Page 25 Model GCV160A GCV160A0 Type Specifications S1A1 S2G7 S3A2 S3H2 A1AW A1E7 A2E7 BHH1 C1E1 20mm Ø Straight (133.8mm) 22.2mm Ø Straight (100.4mm) 22.2mm Ø Straight (117.4mm) (Depth 24mm) 22.2mm Ø Straight (117.4mm) (Depth 52mm) 22.2mm Ø Straight Crankshaft (135.7mm) 25mm Ø Straight (117.4mm) 25mm Ø...
  • Page 26 GCV160A0 Model Type Specifications C2E1 C3E1 C4E1 E2G7 S2G7 S3H2 20mm Ø Straight (133.8mm) 22.2mm Ø Straight (100.4mm) 22.2mm Ø Straight (117.4mm) (Depth 24mm) 22.2mm Ø Straight (117.4mm) (Depth 52mm) 22.2mm Ø Straight Crankshaft (135.7mm) 25mm Ø Straight (117.4mm) 25mm Ø Straight (135.7mm) (3/8-24 UNF) 25mm Ø...
  • Page 27 GCV160E Model Type Specifications A1E7 A1E8 A1G7 A1G9 A1W7 A2A9 A2E7 A2E8 A2E9 A2G4 A2G7 A2G9 A3E7 20mm Ø Straight (133.8mm) 22.2mm Ø Straight (100.4mm) 22.2mm Ø Straight (117.4mm) (Depth 24mm) 22.2mm Ø Straight (117.4mm) (Depth 52mm) 22.2mm Ø Straight Crankshaft (135.7mm) 25mm Ø...
  • Page 28 Model GCV160E Type Specifications A3E9 A3G9 A3T9 A3W7 A3W8 A4G4 A4G7 A4G9 A7E1 N1E1 N1E2 N1E7 N1J1 20mm Ø Straight (133.8mm) 22.2mm Ø Straight (100.4mm) 22.2mm Ø Straight (117.4mm) (Depth 24mm) 22.2mm Ø Straight (117.4mm) (Depth 52mm) 22.2mm Ø Straight Crankshaft (135.7mm) 25mm Ø...
  • Page 29 GCV160E Model Type Specifications N1T8 N1T9 N1W7 N1W8 N1W9 N2E7 N2E8 N2E9 N3T8 N3T9 N3W8 N3W9 N7A1 S1E1 S1G4 20mm Ø Straight (133.8mm) 22.2mm Ø Straight (100.4mm) 22.2mm Ø Straight (117.4mm) (Depth 24mm) 22.2mm Ø Straight (117.4mm) (Depth 52mm) 22.2mm Ø Straight Crankshaft (135.7mm) 25mm Ø...
  • Page 30 Model GCV160E GCV160LE Type Specifications S2E1 S2E2 S2E3 S3E9 S3G9 S4E4 S4E9 S4G4 S4G9 A2A9 A4A9 A7H1 N7A1 20mm Ø Straight (133.8mm) 22.2mm Ø Straight (100.4mm) 22.2mm Ø Straight (117.4mm) (Depth 24mm) 22.2mm Ø Straight (117.4mm) (Depth 52mm) 22.2mm Ø Straight Crankshaft (135.7mm) 25mm Ø...
  • Page 31 GCV160LA Model Type Specifications A1AF E1A2 N1AF N5AF N5MF N7A1 N7S1 20mm Ø Straight (133.8mm) 22.2mm Ø Straight (100.4mm) 22.2mm Ø Straight (117.4mm) (Depth 24mm) 22.2mm Ø Straight (117.4mm) (Depth 52mm) 22.2mm Ø Straight Crankshaft (135.7mm) 25mm Ø Straight (117.4mm) 25mm Ø...
  • Page 32 Model GCV160LA GCV160LA0 Type Specifications A1AF E1A2 N1AF N5AF N5MF N7A1 N7S1 20mm Ø Straight (133.8mm) 22.2mm Ø Straight (100.4mm) 22.2mm Ø Straight (117.4mm) (Depth 24mm) 22.2mm Ø Straight (117.4mm) (Depth 52mm) 22.2mm Ø Straight Crankshaft (135.7mm) 25mm Ø Straight (117.4mm) 25mm Ø...
  • Page 33 GCV160LA0 Model Type Specifications 20mm Ø Straight (133.8mm) 22.2mm Ø Straight (100.4mm) 22.2mm Ø Straight (117.4mm) (Depth 24mm) 22.2mm Ø Straight (117.4mm) (Depth 52mm) 22.2mm Ø Straight Crankshaft (135.7mm) 25mm Ø Straight (117.4mm) 25mm Ø Straight (135.7mm) (3/8-24 UNF) 25mm Ø Straight (135.7mm) (7/16-20 UNF) M14 Stepped thread (137.4mm)
  • Page 34: Fuel Hose, General Purpose Hoses And Vinyl Hose

    Fuel hose, general purpose hoses and vinyl hose • The standard part fuel hose, general purpose hose and vinyl hose may be substituted by the coiled bulk part. • When ordering the standard part fuel hose, general purpose hose and vinyl hose use the bulk part number written in the parts catalog in brackets ( ) underneath the part name.
  • Page 35: Flat Rate Service Time

    Editorial style FLAT RATE SERVICE TIME The service items shown in the text are listed with the exchange work time for the repair sales parts as the subject. Other representative service items not using repair parts (removal/ Flat rate service time (FRT) means the standard time required to installation, adjustment, inspection/measuring, and other work) are service a product, which is listed in this manual to help the dealers listed collectively in the list in the preface, classified according to the...
  • Page 36 • The set value for the technological level of the workers uses a person with three years of experience in the repair of Honda * When FRT is not presented, please calculate wages based on ap- products as the standard.
  • Page 37 Explanation of FRT by using an example Indicating work condition or application condition of the (The example may differ from the actual presented items) service item. Ref. (Relative ref. Number) Indicating work contents that are included in the service L.O.N. F.R.T.
  • Page 38 Indication mark for the listing of service items that continues to the following page Ref. (Relative ref. Number) L.O.N. F.R.T. Description a) Category codes and classification 1111L1 VALVE, INTAKE • • • • • • • • • • • • 4.1 •...
  • Page 39 Major service items without using spare parts (1) Removal/Installation, (2) Adjustment, (3) Inspection/Measurement, (4) Overhaul, (5) Other work E: Engine, T: Transmission, D: Drive system, B: Body and related parts (2) Adjustment (5) Other work DESCRIPTION DESCRIPTION ENGINE OIL-CHANGE VALVE CLEARANCE-ADJUSTMENT 1113A1 1101E1 NOTE: For 1 product...
  • Page 40: Illustrated Index

    ENGINE GROUP CYLINDER BARREL OIL PAN CRANKSHAFT E-10 E-11 PISTON/CONNECTING ROD CAMSHAFT PULLEY RECOIL STARTER E-12 E-12-1 E-14 FAN COVER(1) FAN COVER(2) CARBURETOR 2009.01.10...
  • Page 41 ENGINE GROUP E-15 E-16 E-19 AIR CLEANER MUFFLER FLYWHEEL(1) E-19-1 E-19-2 E-19-3 FLYWHEEL(2) FLYWHEEL(3) FLYWHEEL(4) E-21 E-21-10 E-22 STARTER MOTOR COMBINATION SWITCH CONTROL(1) 2009.01.10...
  • Page 42 ENGINE GROUP E-22-1 E-22-2 E-22-3 CONTROL(2) CONTROL(3) CHOKE BASE E-27 E-28 E-40 TOP COVER LABEL/TOOL BLADE HOLDER E-40-1 MUFFLER CAP 2009.01.10...
  • Page 43 CYLINDER BARREL Ref. (Relative ref. Number) L.O.N. F.R.T. Description 1 1101A0 BARREL, CYLINDER ••••••••••••• 3 1111D5 COVER, CYLINDER HEAD AND/OR PACKING, HEAD COVER ••••••••• 4 1111D1 COVER, BREATHER AND/OR PACKING, BREATHER COVER ••••• 7 1101E6 OIL SEAL, CRANKSHAFT :UPPER •• 8 6141C1 PLUG, SPARK ••••••••••••••••••...
  • Page 44 CYLINDER BARREL Ref. (Relative ref. Number) L.O.N. F.R.T. Description .INCLUDES: Valve clearance adjustment 1111P3A .Replace intake and exhaust all add ••••••••••••••••••••• 1111P4 SPRING, VALVE :EXHAUST ••••••• .INCLUDES: Valve clearance adjustment 1111P4A .Replace intake and exhaust all add ••••••••••••••••••••• Reqd. QTY Ref.
  • Page 45 CYLINDER BARREL Reqd. QTY Ref. GCV GCV GCV GCV GCV GCV Serial No. Part No. Description Parts catalogue code (9) 12000-ZL8-425 BARREL ASSY., CYLINDER •••••• - -------- -------- A1AE,A1AF,A1AS,A1C,A1E,A1E7,A1E8,A1M,A1W7,A2C,A2E7 A2E8,A2E9,A2G7,A3A,A3E,A7E1,BHH,BHH1,NBL1,N1AF,N1C N1E1,N1E7,N1L,N1R,N1U,N1W7,N1W8,N1W9,N2E7,N2E8 N2E9,N2U,N3U,N3V,N5AF,N5C,N5MF,N5R,N7A1,N7S1,STA1 STL1,S1A,S1A1,S3A,S3H2 - -------- -------- A1A,A1G7,A1G9,A1P,A2A9,A2G4,A2G9,A2R,A3E7,A3E9 A3G9,A3T9,A3W7,A3W8,A4G4,A4G7,A4G9,N1A,N1D,N1E2 N1J1,N1T8,N1T9,N3T8,N3T9,N3W8,N3W9,S1E1,S2E,S2E1 10 12209-ZM0-003 SEAL, VALVE STEM ••••••••••••...
  • Page 46 CYLINDER BARREL Reqd. QTY Ref. Part No. Description GCV GCV GCV GCV GCV GCV Serial No. Parts catalogue code 11) 14711-Z0J-000 VALVE, IN. (ROCKNEL) •••••••• - -------- -------- A1W7,A2E8,A2E9,A2G7,A7E1,E1A2,N1E1,N1E7,N1W7,N1W8 N1W9,N2E7,N2E8,N2E9,R3A - -------- -------- A1A,A1AF,A1AW,A1C,A1E,A1E8,A1G7,A1G9,A1P,A2A,A2A9 A2C,A2G4,A2G9,A2R,A3A,A3E,A3E7,BHH,EHHB,E1A4,E1G7 E2G7,E5A4,N1A,N1AF,N1C,N1D,N1E2,N1J1,N1T8,N1T9,N3V N5AF,N5C,N5MF,N5R,N7A1,N7S1,R1A,R3A1,STA1,S1A,S1A1 S1E1,S1M,S2E,S2E1,S3A,S3H - -------- 6330748 A1AE,A1AS,A1E7,A1M,A2E7,BHH1,C1E,C1E1,C2E,C2E1,C3E C3E1,C4E,C4E1,NBL1,N1L,N1R,N1U,N2U,N3U,N5A,RTL1 STL1,S2G7,S3A2,S3H2 - -------- -------- A1E7,A2E7,N1R...
  • Page 47 OIL PAN Ref. (Relative ref. Number) L.O.N. F.R.T. Description 1 1131C1 PAN, OIL ••••••••••••••••••••• (6,20) 1101B9 EXTENSION, OIL FILLER AND/OR PACKING, OIL FILLER EXTENSION 9 1161C4 GOVERNOR ASSEMBLY •••••••••••• (10,12) 1161A7 HOLDER, GOVERNOR WEIGHT •••••• (17,18) 1161B6 SLIDER, GOVERNOR ••••••••••••• 14 1161B4 SHAFT, GOVERNOR ARM ••••••••••...
  • Page 48 OIL PAN Reqd. QTY Ref. Part No. Description GCV GCV GCV GCV GCV GCV Serial No. Parts catalogue code 2 15650-ZM0-801 GAUGE ASSY., OIL LEVEL •••••• 1 -------- -------- A1AE,A1E,A1E7,A1E8,A1G7,A1P,A1U,A1W2,A1W7,A2E,A2E4 A2E7,A2E8,A2E9,A2G7,A2U,A3E,A4E,A7E1,BHH,BHH1,NBL1 N1E1,N1E2,N1E7,N1R,N1U,N1W,N1W1,N1W2,N1W7,N1W8 N1W9,N2E,N2E1,N2E2,N2E3,N2E7,N2E8,N2E9,N2U,N3U,N3V N7A1,N7S1,STA1,STL1,S1M,S2G7,S3A,S3H,S3H2 15650-Z0L-820 •••••••••••••••••••••••••••• 1 -------- -------- C1E,C1E1,C2E,C2E1,C3E,C3E1,C4E,C4E1,EHHB,E1A2,E1A4 E1G7,E2G7,E5A4,RTL1,R1A,R3A,R3A1 15650-Z0M-800 ••••••••••••••••••••••••••••...
  • Page 49 OIL PAN Reqd. QTY Ref. GCV GCV GCV GCV GCV GCV Serial No. Part No. Description Parts catalogue code 7 15650-ZM0-003 GAUGE ASSY., OIL LEVEL •••••• - -------- -------- A1J,A1M,N1D,N1J1,N1L - -------- -------- A1A,A1C,A2A,A2C,A2R,N1,N2,N2D - -------- 3724306 A1A,A1AF,A1AS,A1C,A2A,A2C,A2R,A3A,N1A,N1AF,N1C,N5A N5AF,N5C,S1A,S1A1,S3A2 15650-Z0L-000 ••••••••••••••••••••••••••••...
  • Page 50 OIL PAN Reqd. QTY Ref. Part No. Description GCV GCV GCV GCV GCV GCV Serial No. Parts catalogue code 18 90602-ZE1-000 CLIP, GOVERNOR HOLDER ••••••• 19 91202-ZL8-003 OIL SEAL, 28X41.25X6 •••••••• 1 -------- -------- A1A,A1AE,A1AF,A1AS,A1AW,A1C,A1E,A1E7,A1E8,A1G7 A1G9,A1J,A1M,A1P,A1U,A1W2,A1W7,A2A,A2A9,A2C,A2E A2E4,A2E7,A2E8,A2E9,A2G4,A2G7,A2G9,A2U,A3A,A3E A3E7,A3E9,A3G9,A3T9,A3W7,A3W8,A4E,A4G4,A4G7,A4G9 A7E1,BHH,BHH1,C1E,C1E1,C2E,C2E1,C3E,C3E1,C4E,C4E1 EHHB,E1A2,E1G7,E2G7,NBL1,N1,N1D,N1E1,N1E2,N1E7 N1J1,N1R,N1T8,N1T9,N1U,N1W,N1W1,N1W2,N1W7,N1W8 N1W9,N2,N2D,N2E,N2E1,N2E2,N2E3,N2E7,N2E8,N2E9,N2U N3T8,N3T9,N3U,N3V,N3W8,N3W9,N7A1,N7S1,RTL1,R1A,R3A...
  • Page 51 CRANKSHAFT Ref. (Relative ref. Number) L.O.N. F.R.T. Description (2,3,4,6,7,8,9,10) 1101F0 CRANKSHAFT ••••••••••••••••••• Reqd. QTY Ref. GCV GCV GCV GCV GCV GCV Serial No. Part No. Description Parts catalogue code 1 13310-ZM0-000 CRANKSHAFT COMP. •••••••••••• 1 -------- -------- A1A,A1AE,A1AF,A1AS,A1AW,A1C,A1E,A1E7,A1E8,A1G7 A1G9,A1J,A1M,A1P,A1U,A1W2,A1W7,C1E,C1E1,E1A2,E1A4 E1G7,N1,N1A,N1AF,N1C,N1D,N1E1,N1E2,N1E7,N1J1,N1L N1R,N1T8,N1T9,N1U,N1W,N1W1,N1W2,N1W7,N1W8,N1W9,R1A S1A,S1A1,S1E1,S1G4,S1M 2 13310-ZM0-600...
  • Page 52 PISTON/CONNECTING ROD Ref. (Relative ref. Number) L.O.N. F.R.T. Description (2,3,6) 1111R1 PISTON AND/OR RING SET AND/OR BEARING AND/OR ROD •••••••••• .INCLUDES: Inspection/ Measurement/Cleaning Reqd. QTY Ref. GCV GCV GCV GCV GCV GCV Serial No. Part No. Description Parts catalogue code 1 13101-ZL8-000 PISTON ••••••••••••••••••••••...
  • Page 53 PISTON/CONNECTING ROD Reqd. QTY Ref. GCV GCV GCV GCV GCV GCV Serial No. Part No. Description Parts catalogue code (1) 13101-Z2A-010 PISTON •••••••••••••••••••••• - -------- -------- A1AW,A3G9,A3T9,A4G4,A4G7,A4G9,C1E,C1E1,C2E,C2E1 C3E,C3E1,C4E,C4E1,S1G4,S2E2,S2E3,S3E9,S3G9,S4E4 S4E9,S4G4,S4G9 5383515 -------- A1A,A1AE,A1AF,A1AS,A1C,A1E,A1E7,A1E8,A1M,A1W7,A2A A2C,A2E7,A2E8,A2E9,A2G7,A2R,A3A,A3E,A7E1,BHH,BHH1 NBL1,N1A,N1AF,N1C,N1E1,N1E7,N1L,N1R,N1U,N1W7,N1W8 N1W9,N2E7,N2E8,N2E9,N2U,N3U,N3V,N5A,N5AF,N5C,N5MF N5R,N7A1,N7S1,RTL1,STA1,STL1,S1A,S1A1,S1M,S2G7,S3A S3A2,S3H,S3H2 8024761 -------- EHHB,E1A2,E1A4,E1G7,E2G7,E5A4,R1A,R3A,R3A1 2033979 -------- A1E7,A1E8,A1G7,A1G9,A1P,A1W7,A2A9,A2E7,A2E8,A2E9 A2G4,A2G7,A2G9,A2R,A3E7,A3E9,A3W7,A3W8,A7E1,N1D N1E1,N1E2,N1E7,N1J1,N1R,N1T8,N1T9,N1W7,N1W8,N1W9...
  • Page 54 PISTON/CONNECTING ROD Reqd. QTY Ref. Part No. Description GCV GCV GCV GCV GCV GCV Serial No. Parts catalogue code (3) 13200-Z0J-000 ROD ASSY., CONNECTING ••••••• - -------- -------- A1AW,BHH1,C1E,C1E1,C2E,C2E1,C3E,C3E1,C4E,C4E1,N5MF N5R,S1M,S2G7 4 90001-ZE1-000 BOLT, CONNECTING ROD •••••••• 5 90551-ZE0-000 CLIP, PISTON PIN, 13MM •••••• 6 13010-ZL8-003 RING SET, PISTON (RIKEN) ••••...
  • Page 55 PISTON/CONNECTING ROD Reqd. QTY Ref. GCV GCV GCV GCV GCV GCV Serial No. Part No. Description Parts catalogue code (6) 13010-Z0L-014 RING SET, PISTON (STD.) (TEIKOKU) - -------- -------- A1AW,A3G9,A3T9,A4G4,A4G7,A4G9,C1E,C1E1,C2E,C2E1 C3E,C3E1,C4E,C4E1,S1G4,S2E2,S2E3,S3E9,S3G9,S4E4 S4E9,S4G4,S4G9 5383515 -------- A1A,A1AE,A1AF,A1AS,A1C,A1E,A1E7,A1E8,A1M,A1W7,A2A A2C,A2E7,A2E8,A2E9,A2G7,A2R,A3A,A3E,A7E1,BHH,BHH1 NBL1,N1A,N1AF,N1C,N1E1,N1E7,N1L,N1R,N1U,N1W7,N1W8 N1W9,N2E7,N2E8,N2E9,N2U,N3U,N3V,N5A,N5AF,N5C,N5MF N5R,N7A1,N7S1,RTL1,STA1,STL1,S1A,S1A1,S1M,S2G7,S3A S3A2,S3H,S3H2 8024761 -------- EHHB,E1A2,E1A4,E1G7,E2G7,E5A4,R1A,R3A,R3A1 2033979 -------- A1E7,A1E8,A1G7,A1G9,A1P,A1W7,A2A9,A2E7,A2E8,A2E9 A2G4,A2G7,A2G9,A2R,A3E7,A3E9,A3W7,A3W8,A7E1,N1D...
  • Page 56 E-10 CAMSHAFT PULLEY Ref. (Relative ref. Number) L.O.N. F.R.T. Description 1 1111N5 PULLEY, CAMSHAFT ••••••••••••• .INCLUDES: Valve clearance adjustment (13) 1111R8 SHAFT, CAM PULLEY •••••••••••• .INCLUDES: Valve clearance adjustment 3 1111N6 BELT, TIMING ••••••••••••••••• .INCLUDES: Valve clearance adjustment (15) 1111A2 ARM, ROCKER :INTAKE •••••••••• .INCLUDES: Valve clearance adjustment 1111A2A .Replace exhaust rocker arm...
  • Page 57 E-10 CAMSHAFT PULLEY Reqd. QTY Ref. GCV GCV GCV GCV GCV GCV Serial No. Part No. Description Parts catalogue code 4 14431-ZL8-000 ARM, IN. VALVE ROCKER ••••••• 5 14441-ZL8-000 ARM, EX. VALVE ROCKER ••••••• 6 14461-ZL8-000 SHAFT, ROCKER ARM ••••••••••• 11 90012-333-000 SCREW, TAPPET ADJUSTING •••••...
  • Page 58 E-11 RECOIL STARTER Ref. (Relative ref. Number) L.O.N. F.R.T. Description (13,14,17) 1121B9 STARTER, RECOIL •••••••••••••• (16) 1121A3 GRIP, RECOIL STARTER ••••••••• 9 1121B3 ROPE, RECOIL STARTER ••••••••• Reqd. QTY Ref. GCV GCV GCV GCV GCV GCV Serial No. Part No. Description Parts catalogue code 1 28400-ZM0-003ZA STARTER ASSY., RECOIL...
  • Page 59 E-11 RECOIL STARTER Reqd. QTY Ref. GCV GCV GCV GCV GCV GCV Serial No. Part No. Description Parts catalogue code (1) 28400-ZM0-632ZB STARTER ASSY., RECOIL (LONG ROPE) *R8*....BRIGHT RED - -------- 2425099 A1E7,A1E8,A2E4,A2E7,A2E8,A2E9,A2G7,N1R 1297892 2425099 A1E,A1P,A2E - -------- -------- S2E 28400-ZM0-632ZC *YR288R*..CANOA ORANGE R - -------- -------- A1W2,A1W7,N1W1,N1W2,N1W8,N1W9 28400-ZM0-632ZD *R280*....POWER RED...
  • Page 60 E-11 RECOIL STARTER Reqd. QTY Ref. Part No. Description GCV GCV GCV GCV GCV GCV Serial No. Parts catalogue code 8 28461-ZL8-003 GRIP, STARTER ••••••••••••••• - -------- -------- A1A,A1AE,A1AF,A1AS,A1AW,A1C,A1E,A1E7,A1E8,A1M,A1W7 A2A,A2C,A2E7,A2E8,A2E9,A2G7,A2R,A3A,A3E,A7E1,BHH BHH1,C1E,C1E1,C2E,C2E1,C3E,C3E1,C4E,C4E1,EHHB,E1A2 E1A4,E1G7,E2G7,E5A4,N1A,N1AF,N1C,N1E1,N1E7,N1L,N1R N1U,N1W7,N1W8,N1W9,N2E7,N2E8,N2E9,N2U,N3U,N3V,N5A N5AF,N5C,N5MF,N5R,N7A1,N7S1,R1A,R3A,S1A,S1A1,S1M S2G7,S3A,S3A2,S3H,S3H2 9 28462-ZL8-003 ROPE, RECOIL STARTER •••••••• 1 -------- -------- A2R,A7E1,A7H1,E1A4,E5A4,N1A,N1AF,N1C,N1D,N1E1,N1E2 N1E7,N1J1,N1L,N1U,N2D,N2E,N2E1,N2E2,N2E3,N2E7,N2E8 N2E9,N2U,N3V,N5A,N5AF,N5C,N5MF,N5R,N7A1,N7S1...
  • Page 61 E-12 FAN COVER(1) Ref. (Relative ref. Number) L.O.N. F.R.T. Description (31) 3101A3 COCK, FUEL ••••••••••••••••••• 3 3101J3 BRACKET, FUEL COCK ••••••••••• (32) 3101V5 TUBE, FUEL (FUEL COCK-CARBURETOR) •••••• 6 1141G8 COVER, ENGINE COOLING FAN •••• 11 3101F1 TUBE, FUEL TANK •••••••••••••• 16 3101H9 PUMP, FUEL •••••••••••••••••••...
  • Page 62 E-12 FAN COVER(1) Reqd. QTY Ref. Part No. Description GCV GCV GCV GCV GCV GCV Serial No. Parts catalogue code (4) 17620-ZL8-013 CAP ASSY., FUEL TANK •••••••• - -------- -------- A1AE,A1AF,A1AS,A1E7,A1E8,A1G7,A1M,A1W7,A2E7,A2E8 A2E9,A2G7,A3A,A7E1,BHH,BHH1,C1E,C1E1,C2E,C2E1,EHHB E1A2,E1A4,E1G7,E2G7,E5A4,NBL1,N1A,N1AF,N1C,N1E7 N1J1,N1L,N1R,N1W7,N1W8,N1W9,N2E7,N2E8,N2E9,N3U,N5A N5AF,N5C,N5MF,N5R,N7A1,N7S1,RTL1,R1A,R3A,R3A1,STA1 STL1,S1A,S1A1,S1M,S2G7,S3A,S3A2,S3H,S3H2 2226713 -------- A1A,A1C,A1E,A1J,A1P,A1U,A1W2,A2A,A2C,A2E,A2E4,A2R A2U,A3E,A4E,N1,N1D,N1E1,N1E2,N1U,N1W,N1W1,N1W2,N2 N2D,N2E,N2E1,N2E2,N2E3,N2U,N3V - -------- -------- A1C,A1E,A2C,A3E,N1E1,N1U,N2U,N3V 17620-Z0M-000...
  • Page 63 E-12 FAN COVER(1) Reqd. QTY Ref. GCV GCV GCV GCV GCV GCV Serial No. Part No. Description Parts catalogue code (6) 19610-Z0L-800ZA COVER COMP., FAN *NH1*....BLACK - -------- -------- STA1,STL1,S1A,S1A1,S3A - -------- 7158461 S3H2 19610-Z0L-800ZB *R280*....POWER RED - -------- -------- S3A 19610-Z0L-800ZC *T89*...CRAFTSMAN RED - -------- -------- S3A 19610-Z0L-800ZD *T93*..HUSQVARNA GRAY...
  • Page 64 E-12 FAN COVER(1) Reqd. QTY Ref. Part No. Description GCV GCV GCV GCV GCV GCV Serial No. Parts catalogue code (6) 19610-Z0L-010ZA COVER COMP., FAN *NH1*....BLACK 7081944 -------- A1AW,A1E7,A1M,A2E7,BHH1,N1L,N1R,N1U,N2U,N3U,N3V S2G7 - -------- -------- A1AW,A1E7,A1M,A2E7,BHH1,N1L,N1R,N1U,N2U,N3U,S2G7 19610-Z0L-010ZD *R280*....POWER RED 7081944 -------- A1E7,A2E7,BHH1,N1R,N3U,N3V - -------- -------- A1E7,A2E7,BHH1,N1R,N3U,N3V 19610-Z0L-801ZA *NH1*....BLACK 7158462 -------- S3H2...
  • Page 65 E-12 FAN COVER(1) Reqd. QTY Ref. GCV GCV GCV GCV GCV GCV Serial No. Part No. Description Parts catalogue code 11) 95001-55150-40 TUBE, FUEL, 5.3X150 (95001-55001-60M) - -------- -------- A1E,A1M,A3E,C1E,C1E1,C2E,C2E1,C3E,C3E1,C4E,C4E1 EHHB,E1A2,E1A4,E1G7,E2G7,E5A4,N1E1,N1L,N1R,N3U S2G7,S3H2 - -------- -------- A1A,A1C,A1E7,A1E8,A1G7,A1G9,A1J,A1P,A1U,A1W2,A1W7 A2A,A2A9,A2C,A2E,A2E4,A2E7,A2E8,A2E9,A2G4,A2G7 A2G9,A2U,A3E7,A3E9,A3G9,A3T9,A3W7,A3W8,A4E,A4G4 A4G7,A4G9,N1,N1D,N1E2,N1E7,N1J1,N1T8,N1T9,N1U,N1W N1W1,N1W2,N1W7,N1W8,N1W9,N2,N2D,N2E,N2E1,N2E2,N2E3 N2E7,N2E8,N2E9,N2U,N3T8,N3T9,N3V,N3W8,N3W9,S1E1 S1G4,S2E,S2E1,S2E2,S2E3,S3E9,S3G9,S4E4,S4E9,S4G4 S4G9...
  • Page 66 E-12 FAN COVER(1) Reqd. QTY Ref. Part No. Description GCV GCV GCV GCV GCV GCV Serial No. Parts catalogue code 11) 91425-Z0L-801 TUBE, FUEL, 5.3X150(FKM) •••• - -------- -------- A1AW,BHH1,N5MF,N5R,S1M 3698327 -------- A1A,A1AS,A1C,A2A,A2C,A2R,BHH,NBL1,N1A,N1C,N5A,N5C 4030140 -------- RTL1,STA1,STL1,S1A,S1A1,S3A 4062256 -------- A1AE,A1AF,A3A,N1AF,N5AF 4803408 -------- S3A2,S3H 8020872 -------- R1A,R3A,R3A1 2075803 -------- A2R 91425-Z0L-802...
  • Page 67 E-12 FAN COVER(1) Reqd. QTY Ref. GCV GCV GCV GCV GCV GCV Serial No. Part No. Description Parts catalogue code 19 17701-Z0M-780 TUBE, FUEL TANK ••••••••••••• - -------- -------- A7E1,N7S1 - -------- -------- N7A1 - -------- 4029852 N7A1 - -------- 2075802 N7A1 17701-Z0L-771 TUBE, FUEL TANK (FKM) •••••••...
  • Page 68: Ref

    E-12 FAN COVER(1) Reqd. QTY Ref. Part No. Description GCV GCV GCV GCV GCV GCV Serial No. Parts catalogue code 29 95003-25021-20 TUBE, VINYL, 9X11X210 (95003-25001-10M) - -------- -------- A7E1,N7A1,N7S1 30 95003-36010-20 TUBE, VINYL, 11X13X100 (95003-36001-10M) - -------- -------- A7E1,N7A1,N7S1 31 16950-ZM0-003 COCK ASSY., FUEL ••••••••••••...
  • Page 69 E-12 FAN COVER(1) Reqd. QTY Ref. GCV GCV GCV GCV GCV GCV Serial No. Part No. Description Parts catalogue code 32) 17702-Z0L-801 TUBE, FUEL (FKM) •••••••••••• - -------- -------- A1AW,BHH1,N5MF,N5R,S1M 3698327 -------- A1A,A1AS,A1C,A2A,A2C,A2R,BHH,NBL1,N1A,N1C,N5A,N5C 4029853 -------- N7A1 4030140 -------- RTL1,STA1,STL1,S1A,S1A1,S3A 4062256 -------- A1AE,A1AF,A3A,N1AF,N5AF 4803408 -------- S3A2,S3H 8020872 -------- R1A,R3A,R3A1 1762463 -------- A2A9,A2R,N7A1...
  • Page 70 E-12 FAN COVER(1) Reqd. QTY Ref. Part No. Description GCV GCV GCV GCV GCV GCV Serial No. Parts catalogue code 33 95002-02080 CLIP, TUBE (B8) ••••••••••••• - -------- -------- N1J1 2439089 -------- A1A,A1C,A1E,A1E7,A1E8,A1G7,A1P,A1W2,A1W7,A2A,A2C A2E,A2E4,A2E7,A2E8,A2E9,A2G7,A2R,A3E,A7E1,N1,N1D N1E1,N1E2,N1E7,N1R,N1U,N1W,N1W1,N1W2,N1W7,N1W8 N1W9,N2,N2E,N2E1,N2E3,N2E7,N2E8,N2E9,N2U,N3U,N3V N7A1 - -------- -------- A1E,A1G9,A1M,A1P,A2G4,A3E,A3E7,A3E9,A3G9,A3T9,A3W7 A3W8,A4G4,A4G7,A4G9,C1E,C1E1,C2E,C2E1,C3E,C3E1,C4E C4E1,EHHB,E1A2,E1A4,E1G7,E2G7,E5A4,N1D,N1E1,N1E2 N1L,N1R,N1T8,N1T9,N3T8,N3T9,N3U,N3W8,N3W9,N7S1...
  • Page 71 E-12 FAN COVER(1) Reqd. QTY Ref. GCV GCV GCV GCV GCV GCV Serial No. Part No. Description Parts catalogue code 40 17624-ZL8-003 PACKING, FUEL CAP ••••••••••• - -------- -------- A1A,A1AE,A1AF,A1AS,A1C,A1E,A1E7,A1E8,A1M,A1W7,A2A A2C,A2E7,A2E8,A2E9,A2G7,A2R,A3A,A3E,A7E1,BHH,BHH1 C1E,C1E1,C2E,C2E1,EHHB,E1A2,E1A4,E1G7,E2G7,E5A4 NBL1,N1A,N1AF,N1C,N1E1,N1E7,N1L,N1R,N1U,N1W7,N1W8 N1W9,N2E7,N2E8,N2E9,N2U,N3U,N3V,N5A,N5AF,N5C,N5MF N5R,N7A1,N7S1,RTL1,R1A,R3A,R3A1,STA1,STL1,S1A,S1A1 S1M,S2G7,S3A,S3A2,S3H,S3H2 17624-ZE7-000 •••••••••••••••••••••••••••• - -------- -------- A1AW,C3E,C3E1,C4E,C4E1 2009.01.10...
  • Page 72 E-12-1 FAN COVER(2) Ref. (Relative ref. Number) L.O.N. F.R.T. Description 1 3101H9 PUMP, FUEL ••••••••••••••••••• 4 3101E5 TUBE, DIAPHRAGM •••••••••••••• 5 3101A3 COCK, FUEL ••••••••••••••••••• 7 3101H8 STRAINER, FUEL ••••••••••••••• 9 3101H7 TANK, FUEL ••••••••••••••••••• (17) 3101F1 TUBE, FUEL TANK •••••••••••••• 19 3101V5 TUBE, FUEL (FUEL COCK-CARBURETOR) ••••••...
  • Page 73: Tube B, Fuel (Fkm)

    E-12-1 FAN COVER(2) Reqd. QTY Ref. GCV GCV GCV GCV GCV GCV Serial No. Part No. Description Parts catalogue code 11 17516-Z0L-000 CLIP, TANK MOUNTING ••••••••• 12 17532-Z0L-000 RUBBER A, TANK MOUNTING ••••• 13 17533-Z0L-000 RUBBER B, TANK MOUNTING ••••• 14 17534-Z0L-000 NUT, TANK MOUNTING ••••••••••...
  • Page 74: 90041-Z0M-780

    E-12-1 FAN COVER(2) Reqd. QTY Ref. Part No. Description GCV GCV GCV GCV GCV GCV Serial No. Parts catalogue code 21) 19610-Z0L-860ZA COVER COMP., FAN *NH1*....BLACK - -------- 6702082 S1A,S3A 19610-Z0L-860ZC *T89*...CRAFTSMAN RED - -------- 6702082 S3A 19610-Z0L-860ZD *T93*..HUSQVARNA GRAY - -------- 6702082 S3A 19610-Z0L-860ZE *T98*....MTD RED - -------- 6702082 S3A...
  • Page 75: 90601-Z0M-003

    E-12-1 FAN COVER(2) Reqd. QTY Ref. GCV GCV GCV GCV GCV GCV Serial No. Part No. Description Parts catalogue code 28) 90043-Z0J-900 BOLT, STUD (H=39.5MM) ••••••• 6702083 -------- A2R,BHH,N1A,N1AF,N5AF,N5MF,N5R 1 -------- -------- A2R,BHH,N1A,N1AF,N5AF,N5MF,N5R 29 90601-Z0M-003 CLIP, PURSE LOCK •••••••••••• 1 -------- -------- A7H1,N7A1,N7S1 30 90659-680-013 CLIP, WIRE HARNESS ••••••••••...
  • Page 76: Clip, Tube (C8)

    E-12-1 FAN COVER(2) Reqd. QTY Ref. GCV GCV GCV GCV GCV GCV Serial No. Part No. Description Parts catalogue code 41 95002-41000-08 CLAMP, TUBE (D10) ••••••••••• 1 -------- -------- A1A,A1AF,A2R,BHH,E1A2,N1A,N1AF,N5AF,N5MF,N5R 3 -------- -------- N7A1,N7S1 42 95002-41200-08 CLAMP, TUBE (D12) ••••••••••• 1 -------- -------- A1A,A1AF,A2R,BHH,E1A2,N1A,N1AF,N5AF,N5MF,N5R,N7A1 N7S1 2 -------- -------- R3A,S1A,S1M,S3A,S3H...
  • Page 77 E-14 CARBURETOR Ref. (Relative ref. Number) L.O.N. F.R.T. Description 1 3111B1 GASKET SET, CARBURETOR ••••••• (23) 3111D7 SCREW SET, PILOT ••••••••••••• 7 3111F3 CARBURETOR ••••••••••••••••••• 3111E1 VALVE SET, FLOAT AND/OR FLOAT SET ••••••••••••••••••••••••• (11,18) 3111C0 INSULATOR, CARBURETOR AND/OR PACKING, INSULATOR •••••••••• 12 3111C8 PACKING, CARBURETOR ••••••••••...
  • Page 78 E-14 CARBURETOR Reqd. QTY Ref. Part No. Description GCV GCV GCV GCV GCV GCV Serial No. Parts catalogue code 4 16016-892-005 SCREW SET A ••••••••••••••••• - -------- -------- A1C,A2C (CARBURETOR NO.) - -------- BB62A D A1E,A1J,A1P,A1U,A2E,A2U,A3E,A4E,N1,N1D,N1E1,N1E2 N1U,N1W,N2,N2D,N2E,N2E1,N2E2,N2E3,N2U,N3V 5 16028-ZE0-005 SCREW SET ••••••••••••••••••• 6 16029-ZG0-901 SCREW SET (THROTTLE STOP) •••...
  • Page 79 E-14 CARBURETOR Reqd. QTY Ref. GCV GCV GCV GCV GCV GCV Serial No. Part No. Description Parts catalogue code (7) 16100-Z0L-782 CARBURETOR ASSY. (BB62F B) •• - -------- -------- N7S1 1456296 -------- A7E1 1456296 4029852 N7A1 1527132 1809862 N7A1 1527132 2704005 A7E1 16100-Z0L-802 CARBURETOR ASSY.
  • Page 80 E-14 CARBURETOR Reqd. QTY Ref. Part No. Description GCV GCV GCV GCV GCV GCV Serial No. Parts catalogue code (7) 16100-Z1L-003 CARBURETOR ASSY. (BB62Y A) •• 4029853 -------- N7A1 1809863 -------- N7A1 2704006 -------- A7E1 - -------- -------- N7A1,N7S1 16100-Z0L-013 CARBURETOR ASSY.
  • Page 81 E-14 CARBURETOR Reqd. QTY Ref. GCV GCV GCV GCV GCV GCV Serial No. Part No. Description Parts catalogue code 9 16166-ZM0-003 NOZZLE, MAIN •••••••••••••••• 1 -------- -------- A1A,A1AE,A1AF,A1AS,A1AW,A1C,A1E,A1E7,A1E8,A1G7 A1G9,A1M,A1P,A1W7,A2A,A2A9,A2C,A2E7,A2E8,A2E9,A2G4 A2G7,A2G9,A2R,A3A,A3E,A3E7,A3E9,A3G9,A3T9,A3W7 A3W8,A4G4,A4G7,A4G9,A7E1,BHH,BHH1,C1E,C1E1,C2E C2E1,C3E,C3E1,C4E,C4E1,EHHB,E1A2,E1A4,E1G7,E2G7 E5A4,NBL1,N1A,N1AF,N1C,N1D,N1E1,N1E2,N1E7,N1J1,N1L N1R,N1T8,N1T9,N1U,N1W7,N1W8,N1W9,N2E7,N2E8,N2E9 N2U,N3T8,N3T9,N3U,N3V,N3W8,N3W9,N5A,N5AF,N5C,N5MF N5R,N7A1,N7S1,RTL1,R1A,R3A,R3A1,STA1,STL1,S1A,S1A1 S1E1,S2E,S2E1,S3A,S3H2 16166-Z0L-841 •••••••••••••••••••••••••••• - -------- -------- S1M,S2E2,S2G7,S3A2,S3E9,S3H,S4E4,S4E9 16166-Z1L-851 ••••••••••••••••••••••••••••...
  • Page 82 E-14 CARBURETOR Reqd. QTY Ref. Part No. Description GCV GCV GCV GCV GCV GCV Serial No. Parts catalogue code 12 16221-883-800 PACKING, CARBURETOR ••••••••• - -------- -------- A1AW,A1C,A1E,A1E8,A1W7,A2A,A2C,A2E8,A2E9,A2G7,A3A A3E,A7E1,EHHB,E1A2,E1A4,E1G7,E2G7,E5A4,N1C,N1E1 N1E7,N1W7,N1W8,N1W9,N2E7,N2E8,N2E9,N5C,R1A,R3A R3A1,STA1,S1A1 - -------- -------- A1A,A1AF,A2R,BHH,N1A,N1AF,N5AF,N5MF,N5R,N7A1,N7S1 S1A,S1M,S3A,S3H - -------- 6349022 A1AE,A1AS,A1E7,A1M,A2E7,BHH1,C1E,C1E1,C2E,C2E1,C3E C3E1,C4E,C4E1,NBL1,N1L,N1R,N1U,N2U,N3U,N3V,N5A RTL1,STL1,S2G7,S3A2,S3H2 - -------- 2441644 A1E7,A1E8,A1G7,A1G9,A1P,A1W7,A2A9,A2E7,A2E8,A2E9...
  • Page 83 E-14 CARBURETOR Reqd. QTY Ref. GCV GCV GCV GCV GCV GCV Serial No. Part No. Description Parts catalogue code 16 99101-124-0600 JET, MAIN, #60 •••••••••••••• - (1) - (1) - - -------- -------- A3G9,A3T9,A4G4,A4G7,A4G9,C3E,C3E1,C4E,C4E1,S2E3 S3G9,S4G4,S4G9 (1) - - (1) - - (1) (1) (1) - (1) (1) -------- -------- A1A,A1AE,A1AF,A1AS,A1AW,A1C,A1E,A1E7,A1E8,A1G7 A1G9,A1M,A1P,A1W7,A2A,A2A9,A2C,A2E7,A2E8,A2E9,A2G4 A2G7,A2G9,A2R,A3A,A3E,A3E7,A3E9,A3W7,A3W8,A7E1,BHH...
  • Page 84 E-14 CARBURETOR Reqd. QTY Ref. Part No. Description GCV GCV GCV GCV GCV GCV Serial No. Parts catalogue code 16) 99101-124-0650 JET, MAIN, #65 •••••••••••••• 1 -------- -------- A1A,A1AE,A1AF,A1AS,A1AW,A1C,A1E,A1E7,A1E8,A1G7 A1G9,A1M,A1P,A1W7,A2A,A2A9,A2C,A2E7,A2E8,A2E9,A2G4 A2G7,A2G9,A2R,A3A,A3E,A3E7,A3E9,A3G9,A3T9,A3W7 A3W8,A4G4,A4G7,A4G9,A7E1,BHH,BHH1,C1E,C1E1,C2E C2E1,C3E,C3E1,C4E,C4E1,EHHB,E1A2,E1A4,E1G7,E2G7 E5A4,NBL1,N1A,N1AF,N1C,N1D,N1E1,N1E2,N1E7,N1J1,N1L N1R,N1T8,N1T9,N1U,N1W7,N1W8,N1W9,N2E7,N2E8,N2E9 N2U,N3T8,N3T9,N3U,N3V,N3W8,N3W9,N5A,N5AF,N5C,N5MF N5R,N7A1,N7S1,RTL1,R1A,R3A,R3A1,STA1,STL1,S1A,S1A1 S1E1,S2E,S2E1,S2E3,S3A,S3G9,S3H2,S4G4,S4G9 - (1) (1) (1) - (1) (1) -------- -------- S1G4,S1M,S2E2,S2G7,S3A2,S3E9,S3H,S4E4,S4E9 99101-124-0680 JET, MAIN, #68 ••••••••••••••...
  • Page 85 E-14 CARBURETOR Reqd. QTY Ref. GCV GCV GCV GCV GCV GCV Serial No. Part No. Description Parts catalogue code 23 16016-ZG0-W00 SCREW SET ••••••••••••••••••• 1 -------- -------- A1A,A1AS,A1AW,A1E7,A1E8,A1G7,A1G9,A1M,A1W2,A1W7 A2A,A2A9,A2E4,A2E7,A2E8,A2E9,A2G4,A2G7,A2G9,A2R A3E7,A3E9,A3G9,A3T9,A3W7,A3W8,A4G4,A4G7,A4G9,A7E1 BHH,BHH1,C1E,C1E1,C2E,C2E1,C3E,C3E1,C4E,C4E1,EHHB E1A4,E1G7,E2G7,E5A4,NBL1,N1A,N1C,N1E7,N1J1,N1L,N1R N1T8,N1T9,N1W1,N1W2,N1W7,N1W8,N1W9,N2E7,N2E8,N2E9 N3T8,N3T9,N3U,N3W8,N3W9,N5A,N5C,N7A1,N7S1,S1G4 S2E3,S3G9,S4G4,S4G9 (CARBURETOR NO.) BB62B D -------- A1E,A1J,A1P,A1U,A2E,A2U,A3E,A4E,N1,N1D,N1E1,N1E2 N1U,N1W,N2,N2D,N2E,N2E1,N2E2,N2E3,N2U,N3V 1 -------- -------- A1C,A1E,A1P,A2C,A3E,E1A2,N1D,N1E1,N1E2,N1U,N2U,N3V - -------- -------- A1AE,A1AF,A3A,N1AF,N5AF...
  • Page 86 E-14 CARBURETOR Reqd. QTY Ref. Part No. Description GCV GCV GCV GCV GCV GCV Serial No. Parts catalogue code 24 16015-887-782 CHAMBER SET, FLOAT •••••••••• - -------- -------- A1AE,A1AF,A1AS,A1E8,A1G7,A1W2,A1W7,A2E4,A2E8,A2E9 A2R,N1E7,N1W1,N1W2,N1W8,N1W9,N2E9,N7A1 - -------- -------- A2G7,A7E1,N1J1,N1W7,N2E7,N2E8 - -------- -------- A1E7,A2E7,N1R,N3U (CARBURETOR NO.) BB62A D -------- A1E,A1J,A1P,A1U,A2E,A2U,A3E,A4E,N1,N1D,N1E1,N1E2 N1U,N1W,N2,N2D,N2E,N2E1,N2E2,N2E3,N2U,N3V BB62B D -------- A1A,A1C,A2A,A2C...
  • Page 87 E-15 AIR CLEANER Ref. (Relative ref. Number) L.O.N. F.R.T. Description 1 1111K5 TUBE, BREATHER ••••••••••••••• 2 3121B8 ELEMENT, AIR CLEANER ••••••••• 3 3121A5 CASE, AIR CLEANER •••••••••••• 5 3121D9 PACKING, AIR CLEANER ••••••••• Reqd. QTY Ref. GCV GCV GCV GCV GCV GCV Serial No.
  • Page 88 E-15 AIR CLEANER Reqd. QTY Ref. Part No. Description GCV GCV GCV GCV GCV GCV Serial No. Parts catalogue code (3) 17220-ZM0-010 CASE ASSY., AIR CLEANER ••••• - -------- -------- A1AW,A7H1,S1G4 6624356 -------- A1E7,A1M,A2E7,BHH1,C1E,C1E1,C2E,C2E1,C3E,C3E1,C4E C4E1,N1L,N1R,N1U,N2U,N3U,N3V,S2G7,S3H2 2441542 -------- A1E7,A1E8,A1G7,A1G9,A1P,A1W7,A2E7,A2E8,A2E9,A2G4 A2G7,A2G9,A3E7,A3E9,A3G9,A3T9,A3W7,A3W8,A4A9,A4G4 A4G7,A4G9,A7E1,N1D,N1E1,N1E2,N1E7,N1J1,N1R,N1T8 N1T9,N1W7,N1W8,N1W9,N2E7,N2E8,N2E9,N3T8,N3T9,N3W8 N3W9,S1E1,S2E,S2E1,S2E2,S2E3,S3E9,S3G9,S4E4,S4E9 S4G4,S4G9...
  • Page 89 E-15 AIR CLEANER Reqd. QTY Ref. GCV GCV GCV GCV GCV GCV Serial No. Part No. Description Parts catalogue code (7) 90003-ZM0-010 BOLT, FLANGE, 6X85(CT200) ••• 6349023 -------- A1AE,A1AS,A1E7,A1M,A2E7,BHH1,C1E,C1E1,C2E,C2E1,C3E C3E1,C4E,C4E1,NBL1,N1L,N1R,N1U,N2U,N3U,N3V,N5A RTL1,STL1,S2G7,S3A2,S3H2 - -------- -------- A7H1,S1G4 2441645 -------- A1E7,A1E8,A1G7,A1G9,A1P,A1W7,A2E7,A2E8,A2E9,A2G4 A2G7,A2G9,A3E7,A3E9,A3G9,A3T9,A3W7,A3W8,A4A9,A4G4 A4G7,A4G9,A7E1,N1D,N1E1,N1E2,N1E7,N1J1,N1R,N1T8 N1T9,N1W7,N1W8,N1W9,N2E7,N2E8,N2E9,N3T8,N3T9,N3W8 N3W9,S1E1,S2E,S2E1,S2E2,S2E3,S3E9,S3G9,S4E4,S4E9 S4G4,S4G9...
  • Page 90 E-15 AIR CLEANER Reqd. QTY Ref. GCV GCV GCV GCV GCV GCV Serial No. Part No. Description Parts catalogue code 8 95701-06014-08 BOLT, FLANGE, 6X14 •••••••••• - -------- -------- A1A,A1AE,A1AF,A1AS,A1AW,A1C,A1E,A2A,A2A9,A2C,A2R A3A,A3E,BHH,EHHB,E1A4,E1G7,E2G7,E5A4,NBL1,N1A,N1AF N1C,N5A,N5AF,N5C,N5MF,N5R,N7A1,N7S1,RTL1,R1A,R3A1 STA1,STL1,S1A,S1A1,S1M,S3A,S3A2,S3H - -------- -------- A1E8,A1W7,A2E8,A2E9,A2G7,A7E1,E1A2,N1E1,N1E7,N1W7 N1W8,N1W9,N2E7,N2E8,N2E9,R3A - -------- 6624355 A1E7,A1M,A2E7,BHH1,C1E,C1E1,C2E,C2E1,C3E,C3E1,C4E C4E1,N1L,N1R,N1U,N2U,N3U,N3V,S2G7,S3H2 - -------- 2441541 A1E7,A1E8,A1G7,A1G9,A1P,A1W7,A2E7,A2E8,A2E9,A2G4 A2G7,A2G9,A3E7,A3E9,A3G9,A3T9,A3W7,A3W8,A4A9,A4G4...
  • Page 91 E-16 MUFFLER Ref. (Relative ref. Number) L.O.N. F.R.T. Description 1 3131C5 MUFFLER, EXHAUST ••••••••••••• 2 3131D6 PROTECTOR, EXHAUST MUFFLER ••• 5 3131B4 GASKET, EXHAUST MUFFLER •••••• 7 3131A8 DEFLECTOR, EXHAUST MUFFLER ••• 9 3131A1 ARRESTER, SPARK •••••••••••••• .INCLUDES: Spark arrester check 12 3131A0 ARRESTER KIT, SPARK ••••••••••...
  • Page 92 E-16 MUFFLER Reqd. QTY Ref. Part No. Description GCV GCV GCV GCV GCV GCV Serial No. Parts catalogue code (2) 18321-Z0L-000 PROTECTOR, MUFFLER •••••••••• 1 -------- -------- A1A,A1AF,A1AS,A1AW,A1C,A1E,A1E7,A1E8,A1M,A1W7,A2A A2C,A2E7,A2E8,A2E9,A2G7,A2R,A3A,A3E,C1E,C1E1,C2E C2E1,C3E,C3E1,C4E,C4E1,E1A2,E1A4,E1G7,E2G7,E5A4 N1A,N1AF,N1C,N1E1,N1E7,N1L,N1R,N1U,N1W7,N1W8,N1W9 N2E7,N2E8,N2E9,N2U,N3U,N3V,N5A,N5AF,N5C,N5MF,N5R R1A,R3A1,S1A,S1A1,S2G7,S3A2 3 90004-ZL8-000 BOLT, FLANGE, 6X79(CT200) ••• 4 90013-883-000 BOLT, FLANGE, 6X12(CT200) •••...
  • Page 93 E-19 FLYWHEEL(1) Ref. (Relative ref. Number) L.O.N. F.R.T. Description 2 1121A7 PLATE, SIDE •••••••••••••••••• (24) 6141A5 COIL, IGNITION(ONE) •••••••••• (17,22) 2161B5 FLYWHEEL ••••••••••••••••••••• (18) 6111B3 CORD, STOP SWITCH •••••••••••• 6 6151D9 SWITCH, ENGINE STOP •••••••••• (23) 6141A0 BRAKE ASSEMBLY, ENGINE STOP •• 8 4151E0 SPRING, BRAKE LEVER ••••••••••...
  • Page 94 E-19 FLYWHEEL(1) Reqd. QTY Ref. Part No. Description GCV GCV GCV GCV GCV GCV Serial No. Parts catalogue code 3 30500-Z0J-003 COIL ASSY., IGNITION (PHELON) (USE FOR F/W OF PHELON) - -------- -------- A2R,BHH,E2G7,E5A4,N1A,N1AF,N1C,N1E1,N1E7,N1W7,N1W8 N1W9,N2E7,N2E8,N2E9,N5A,N5AF,N5C,N5MF,N5R,RTL1,R1A R3A1 1 -------- -------- BHH1,EHHB,E1A2,E1A4,E1G7,N1L,R3A - -------- 3092797 A1A,A1AE,A1AF,A1AS,A1C,A1E,A1E7,A1E8,A1W7,A2A,A2C A2E7,A2E8,A2E9,A2G7,A3A,A3E,A7E1,N1R,N1U,N2U,N3U N3V,N7A1,STA1,S1A,S1A1,S3A...
  • Page 95 E-19 FLYWHEEL(1) Reqd. QTY Ref. GCV GCV GCV GCV GCV GCV Serial No. Part No. Description Parts catalogue code 5 32195-ZM0-000 CORD, STOP SWITCH ••••••••••• - -------- -------- A1A,A1G7,A1G9,A1J,A1P,A1U,A1W2,A2A9,A2E,A2E4,A2G4 A2G9,A2U,A3E7,A3E9,A3G9,A3T9,A3W7,A3W8,A4A9,A4E A4G4,A4G7,A4G9,A7H1,N1,N2,S2E2,S2E3,S3E9,S3G9,S4E4 S4E9,S4G4,S4G9 - -------- -------- A1C,A1E,A1E7,A1E8,A1W7,A2A,A2C,A2E7,A2E8,A2E9,A2G7 A3E,A7E1 32195-ZM0-800 •••••••••••••••••••••••••••• - -------- -------- A2R,N1C,N5A,N5C,STA1,S1A1,S3H2 1 -------- -------- S1A,S1E1,S2E,S2E1,S3A 32195-Z0L-000 ••••••••••••••••••••••••••••...
  • Page 96 E-19 FLYWHEEL(1) Reqd. QTY Ref. Part No. Description GCV GCV GCV GCV GCV GCV Serial No. Parts catalogue code (7) 75100-Z0L-900 BRAKE ASSY. ••••••••••••••••• 1 -------- -------- A1A,A1AF,A1E7,A1M,A2E7,S1M,S2G7,S3H 8 75113-ZM0-000 SPRING, BRAKE LEVER ••••••••• 1 -------- -------- A1A,A1AE,A1AF,A1AS,A1AW,A1C,A1E,A1E7,A1E8,A1G7 A1G9,A1J,A1M,A1P,A1U,A1W2,A1W7,A2A,A2A9,A2C,A2E A2E4,A2E7,A2E8,A2E9,A2G4,A2G7,A2G9,A2U,A3A,A3E A3E7,A3E9,A3G9,A3T9,A3W7,A3W8,A4A9,A4E,A4G4,A4G7 A4G9,A7E1,A7H1,C1E,C1E1,C2E,C2E1,C3E,C3E1,C4E,C4E1 E1A2,E1G7,E2G7,N1,N2,RTL1,R1A,R3A,R3A1,STA1,S1A...
  • Page 97 E-19 FLYWHEEL(1) Reqd. QTY Ref. GCV GCV GCV GCV GCV GCV Serial No. Part No. Description Parts catalogue code 13 90201-878-003 NUT, SPECIAL, 14MM •••••••••• - -------- -------- A1A,A1AE,A1AF,A1AS,A1C,A1E,A1E7,A1E8,A1G7,A1G9,A1M A1P,A1W7,A2A,A2A9,A2C,A2E7,A2E8,A2E9,A2G4,A2G7 A2G9,A3A,A3E,A3E7,A3E9,A3G9,A3T9,A3W7,A3W8,A4A9 A4G4,A4G7,A4G9,A7E1,BHH1,C1E,C1E1,C2E,C2E1,C3E C3E1,C4E,C4E1,EHHB,E1A2,E1A4,E1G7,E2G7,E5A4,N1C N1D,N1E1,N1E2,N1E7,N1J1,N1L,N1R,N1T8,N1T9,N1U,N1W7 N1W8,N1W9,N2E7,N2E8,N2E9,N2U,N3T8,N3T9,N3U,N3V N3W8,N3W9,N5A,N5C,N7A1,N7S1,RTL1,R1A,R3A,R3A1,STA1 S1A,S1A1,S1E1,S1M,S2E,S2E1,S2E2,S2E3,S2G7,S3A,S3A2 S3E9,S3G9,S3H,S3H2,S4E4,S4E9,S4G4,S4G9 - -------- -------- A2R,BHH,N1A,N1AF,N5AF,N5MF,N5R - -------- 6702082 A2R,BHH,N1A,N1AF,N5AF,N5MF,N5R 90201-Z0T-800 ••••••••••••••••••••••••••••...
  • Page 98 E-19 FLYWHEEL(1) Reqd. QTY Ref. Part No. Description GCV GCV GCV GCV GCV GCV Serial No. Parts catalogue code 15 93892-04012-00 SCREW-WASHER, 4X12 •••••••••• 1 -------- -------- A1A,A1AE,A1AF,A1AS,A1AW,A1C,A1E,A1E7,A1E8,A1G7 A1G9,A1J,A1M,A1P,A1U,A1W2,A1W7,A2A,A2A9,A2C,A2E A2E4,A2E7,A2E8,A2E9,A2G4,A2G7,A2G9,A2U,A3A,A3E A3E7,A3E9,A3G9,A3T9,A3W7,A3W8,A4A9,A4E,A4G4,A4G7 A4G9,A7E1,A7H1,N1,N2,STA1,S1A,S1A1,S1E1,S1M,S2E S2E1,S2E2,S2E3,S2G7,S3A,S3A2,S3E9,S3G9,S3H,S3H2 S4E4,S4E9,S4G4,S4G9 1 -------- -------- N1R,N7A1,N7S1 16 94103-04000 WASHER, PLAIN, 4MM ••••••••••...
  • Page 99 E-19 FLYWHEEL(1) Reqd. QTY Ref. GCV GCV GCV GCV GCV GCV Serial No. Part No. Description Parts catalogue code 21) 75110-Z0Y-000 BRAKE SUB ASSY. ••••••••••••• 7132771 -------- S3H2 1 -------- -------- S1A,S3A,S3H2 7132771 -------- S1A,S3A 22 31105-Z0L-820 FLYWHEEL ASSY. (PHELON) (USE FOR IGN.
  • Page 100 E-19-1 FLYWHEEL(2) Ref. (Relative ref. Number) L.O.N. F.R.T. Description 2 1121A7 PLATE, SIDE •••••••••••••••••• 3 6141A5 COIL, IGNITION(ONE) •••••••••• 7 2161B5 FLYWHEEL ••••••••••••••••••••• 8 6111B3 CORD, STOP SWITCH •••••••••••• Reqd. QTY Ref. GCV GCV GCV GCV GCV GCV Serial No. Part No.
  • Page 101 E-19-2 FLYWHEEL(3) Ref. (Relative ref. Number) L.O.N. F.R.T. Description 3 6141A5 COIL, IGNITION(ONE) •••••••••• 7 2161B5 FLYWHEEL ••••••••••••••••••••• 8 6111B3 CORD, STOP SWITCH •••••••••••• 9 6151D9 SWITCH, ENGINE STOP •••••••••• 11 2161K1 BRAKE, ENGINE STOP ••••••••••• 12 4151E0 SPRING, BRAKE LEVER •••••••••• Reqd.
  • Page 102 E-19-3 FLYWHEEL(4) Ref. (Relative ref. Number) L.O.N. F.R.T. Description 2 1141G7 FAN, ENGINE COOLING •••••••••• 3 1121A7 PLATE, SIDE •••••••••••••••••• 6 6141A5 COIL, IGNITION(ONE) •••••••••• 7 2161B5 FLYWHEEL ••••••••••••••••••••• 8 6111B3 CORD, STOP SWITCH •••••••••••• Reqd. QTY Ref. GCV GCV GCV GCV GCV GCV Serial No.
  • Page 103 E-21 STARTER MOTOR Ref. (Relative ref. Number) L.O.N. F.R.T. Description 3 6121D5 MOTOR, STARTER ••••••••••••••• (10,11) 6121D4 CORD, TERMINAL EARTH ••••••••• Reqd. QTY Ref. GCV GCV GCV GCV GCV GCV Serial No. Part No. Description Parts catalogue code 1 22534-Z0L-820 HOLDER, WIRE ••••••••••••••••...
  • Page 104 E-21-10 COMBINATION SWITCH Ref. (Relative ref. Number) L.O.N. F.R.T. Description 1 1121F3 PLATE, SIDE(A) ••••••••••••••• 3 6151E1 SWITCH, COMBINATION •••••••••• Reqd. QTY Ref. GCV GCV GCV GCV GCV GCV Serial No. Part No. Description Parts catalogue code 1 19612-Z0L-830 PLATE, SIDE ••••••••••••••••• - -------- -------- E1A4,E5A4 2 22534-Z0L-820 HOLDER, WIRE ••••••••••••••••...
  • Page 105 E-22 CONTROL(1) Ref. (Relative ref. Number) L.O.N. F.R.T. Description 1 1161A0 ARM, GOVERNOR •••••••••••••••• 2 1161B1 ROD, GOVERNOR •••••••••••••••• 3 1161C5 SPRING, GOVERNOR ••••••••••••• 4 1161C2 SPRING, THROTTLE RETURN •••••• 5 1161C0 SPRING, LEVER •••••••••••••••• (20) 1161A2 BASE, CONTROL •••••••••••••••• 8 1161B8 SPRING, CONTROL LEVER RETURN •...
  • Page 106 E-22 CONTROL(1) Reqd. QTY Ref. Part No. Description GCV GCV GCV GCV GCV GCV Serial No. Parts catalogue code (2) 16555-Z0L-800 ROD, GOVERNOR ••••••••••••••• - -------- -------- A1A,A1AW,A1C,A1E,A1E8,A1W7,A2A,A2C,A2E8,A2E9,A2G7 A3E,A7E1,BHH,EHHB,E1G7,E2G7,N1E1,N1E7,N1W7,N1W8 N1W9,N2E7,N2E8,N2E9,N7A1,N7S1 - -------- 6349022 A1AS,A1E7,A1M,A2E7,BHH1,C1E,C1E1,C2E,C2E1,C3E,C3E1 C4E,C4E1,NBL1,N1R,N1U,N2U,N3U,N3V,S2G7 - -------- 2441644 S1E1,S2E,S2E1 - -------- 6349022 A1A,BHH,N7A1,N7S1 16555-Z0L-801 ••••••••••••••••••••••••••••...
  • Page 107 E-22 CONTROL(1) Reqd. QTY Ref. GCV GCV GCV GCV GCV GCV Serial No. Part No. Description Parts catalogue code 6 16576-891-000 HOLDER, CABLE ••••••••••••••• - -------- -------- A1J,A1U,A2U,A4E,BHH,N2D,N2E2 - -------- 2439633 A1A,A1C,A1E,A1E7,A1E8,A1G7,A1P,A1W2,A1W7,A2A,A2C A2E,A2E4,A2E7,A2E8,A2E9,A2G7,A3E,A7E1,N1,N1D,N1E1 N1E2,N1E7,N1J1,N1R,N1U,N1W,N1W1,N1W2,N1W7,N1W8 N1W9,N2,N2E,N2E1,N2E3,N2E7,N2E8,N2E9,N2U,N3U,N3V N7A1 - -------- -------- A1A,A1C,A1E7,A1E8,A1W7,A2A,A2C,A2E7,A2E8,A2E9,A2G7 A7E1,N1E7,N1U,N1W7,N1W8,N1W9,N2E7,N2E8,N2E9,N2U N3V,N7A1 - -------- 1239887 A1E7,A1E8,A1G7,A1W7,A2E7,A2E8,A2E9,A2G7,A2G9,A3E7...
  • Page 108 E-22 CONTROL(1) Reqd. QTY Ref. Part No. Description GCV GCV GCV GCV GCV GCV Serial No. Parts catalogue code (7) 16580-ZM0-J61 BASE COMP., CONTROL ••••••••• - -------- -------- BHH1,N1W9 - -------- 2352103 N1T9,N1W9,N3T9,N3W9 16580-ZM0-V91 •••••••••••••••••••••••••••• - -------- -------- N1R 2352104 -------- N1R 16580-ZM1-J41 ••••••••••••••••••••••••••••...
  • Page 109 E-22 CONTROL(1) Reqd. QTY Ref. GCV GCV GCV GCV GCV GCV Serial No. Part No. Description Parts catalogue code 11 90016-ZM0-000 BOLT, FLANGE, 6X45(CT200) ••• 1 -------- -------- A1A,A1AS,A1AW,A1C,A1E,A1E7,A1E8,A1G7,A1G9,A1J,A1M A1P,A1U,A1W2,A1W7,A2A,A2A9,A2C,A2E,A2E4,A2E7,A2E8 A2E9,A2G4,A2G7,A2G9,A2U,A3E,A3E7,A3E9,A3G9,A3T9 A3W7,A3W8,A4E,A4G4,A4G7,A4G9,A7E1,BHH,BHH1,C1E C1E1,C2E,C2E1,C3E,C3E1,C4E,C4E1,EHHB,E1G7,E2G7 NBL1,N1,N1D,N1E1,N1E2,N1E7,N1J1,N1R,N1T8,N1T9,N1U N1W,N1W1,N1W2,N1W7,N1W8,N1W9,N2,N2D,N2E,N2E1,N2E2 N2E3,N2E7,N2E8,N2E9,N2U,N3T8,N3T9,N3U,N3V,N3W8 N3W9,N7A1,N7S1,S1E1,S1G4,S2E,S2E1,S2E2,S2E3,S2G7 S3E9,S3G9,S4E4,S4E9,S4G4,S4G9 12 93500-05016-0A SCREW, PAN, 5X16 •••••••••••• 1 -------- -------- A1A,A1AW,A1C,A1E,A1E7,A1E8,A1G7,A1G9,A1J,A1M,A1P A1U,A1W2,A1W7,A2A,A2A9,A2C,A2E,A2E4,A2E7,A2E8,A2E9 A2G4,A2G7,A2G9,A2U,A3E,A3E7,A3E9,A3G9,A3T9,A3W7...
  • Page 110 E-22 CONTROL(1) Reqd. QTY Ref. Part No. Description GCV GCV GCV GCV GCV GCV Serial No. Parts catalogue code 13 94050-06000 NUT, FLANGE, 6MM •••••••••••• 1 -------- -------- A1A,A1AS,A1AW,A1C,A1E,A1E7,A1E8,A1G7,A1G9,A1J,A1M A1P,A1U,A1W2,A1W7,A2A,A2A9,A2C,A2E,A2E4,A2E7,A2E8 A2E9,A2G4,A2G7,A2G9,A2U,A3E,A3E7,A3E9,A3G9,A3T9 A3W7,A3W8,A4E,A4G4,A4G7,A4G9,A7E1,BHH,BHH1,C1E C1E1,C2E,C2E1,C3E,C3E1,C4E,C4E1,EHHB,E1G7,E2G7 NBL1,N1,N1D,N1E1,N1E2,N1E7,N1J1,N1R,N1T8,N1T9,N1U N1W,N1W1,N1W2,N1W7,N1W8,N1W9,N2,N2D,N2E,N2E1,N2E2 N2E3,N2E7,N2E8,N2E9,N2U,N3T8,N3T9,N3U,N3V,N3W8 N3W9,N7A1,N7S1,S1E1,S1G4,S2E,S2E1,S2E2,S2E3,S2G7 S3E9,S3G9,S4E4,S4E9,S4G4,S4G9 1 -------- -------- N1AF,R3A,S1A,S1M,S3A,S3H 14 35120-ZL8-003 SWITCH ASSY., ENGINE STOP (N.O)
  • Page 111 E-22 CONTROL(1) Reqd. QTY Ref. GCV GCV GCV GCV GCV GCV Serial No. Part No. Description Parts catalogue code 20) 16580-Z0M-810 BASE COMP., CONTROL ••••••••• - -------- -------- S2G7 - -------- 2130839 S1E1,S2E,S2E1 16580-Z0M-781 •••••••••••••••••••••••••••• 2112489 -------- A7E1,N7A1 - -------- -------- A7H1 16580-Z0M-811 ••••••••••••••••••••••••••••...
  • Page 112 E-22 CONTROL(1) Reqd. QTY Ref. GCV GCV GCV GCV GCV GCV Serial No. Part No. Description Parts catalogue code 24 16617-VG3-000 HOLDER, CABLE ••••••••••••••• 2439634 -------- A1A,A1C,A1E,A1E7,A1E8,A1G7,A1P,A1W2,A1W7,A2A,A2C A2E,A2E4,A2E7,A2E8,A2E9,A2G7,A3E,A7E1,N1,N1D,N1E1 N1E2,N1E7,N1J1,N1R,N1U,N1W,N1W1,N1W2,N1W7,N1W8 N1W9,N2,N2E,N2E1,N2E3,N2E7,N2E8,N2E9,N2U,N3U,N3V N7A1 1 -------- -------- A1AW,A1E,A1G9,A1M,A1P,A2A9,A2G4,A3E,A3E9,A3G9,A3T9 A3W7,A3W8,A4G4,A4G7,A4G9,C1E,C1E1,C2E,C2E1,C3E C3E1,C4E,C4E1,E1G7,E2G7,NBL1,N1D,N1E1,N1E2,N1J1 N1R,N1T8,N1T9,N3T8,N3T9,N3U,N3W8,N3W9,N7S1,S1G4 S2E2,S2E3,S3E9,S3G9,S4E4,S4E9,S4G4,S4G9 1 -------- -------- A1A,A1E7,A2E7,N1U,N2U,N3V,N7A1 1239888 -------- A1E7,A1E8,A1G7,A1W7,A2E7,A2E8,A2E9,A2G7,A2G9,A3E7 A7E1,N1E7,N1W7,N1W8,N1W9,N2E7,N2E8,N2E9,N7A1 25 16576-891-000...
  • Page 113 E-22-1 CONTROL(2) Ref. (Relative ref. Number) L.O.N. F.R.T. Description 1 1161A0 ARM, GOVERNOR •••••••••••••••• 2 1161B1 ROD, GOVERNOR •••••••••••••••• 3 1161C5 SPRING, GOVERNOR ••••••••••••• 4 1161C2 SPRING, THROTTLE RETURN •••••• 9 1161A2 BASE, CONTROL •••••••••••••••• 11 8101R5 ROD, GOVERNOR CHOKE CONTROL •• 13 6151K1 SWITCH, THROTTLE/GOVERNOR ENGINE STOP •••••••••••••••••...
  • Page 114 E-22-1 CONTROL(2) Reqd. QTY Ref. GCV GCV GCV GCV GCV GCV Serial No. Part No. Description Parts catalogue code 18 90114-SA0-000 NUT, SELF-LOCK, 6MM ••••••••• 1 -------- -------- A2R,N1A,N1C,N1L,N5A,N5C 19 90136-SM4-901 NUT, SELF-LOCK, 5MM ••••••••• 1 -------- -------- A2R,N1A,N1C,N1L,N5A,N5C 20 93892-04012-00 SCREW-WASHER, 4X12 •••••••••• 1 -------- -------- A2R,N1A,N1C,N1L,N5A,N5C 21 94050-06000 NUT, FLANGE, 6MM ••••••••••••...
  • Page 115 E-22-2 CONTROL(3) Ref. (Relative ref. Number) L.O.N. F.R.T. Description 1 1161A0 ARM, GOVERNOR •••••••••••••••• 2 1161B1 ROD, GOVERNOR •••••••••••••••• 3 1161C5 SPRING, GOVERNOR ••••••••••••• 4 1161C2 SPRING, THROTTLE RETURN •••••• (17) 1161A2 BASE, CONTROL •••••••••••••••• 7 8101U5 LEVER, GOVERNOR CHOKE CONTROL (10) 8101R5 ROD, GOVERNOR CHOKE CONTROL ••...
  • Page 116 E-22-2 CONTROL(3) Reqd. QTY Ref. Part No. Description GCV GCV GCV GCV GCV GCV Serial No. Parts catalogue code 6 16580-Z0L-810 BASE COMP., CONTROL ••••••••• 1 -------- -------- A1AE,A1AF,A3A,E1A2,RTL1,R1A,R3A1,STA1,STL1,S1A1 S3A2,S3H2 - -------- -------- R3A - -------- -------- S1A,S1M,S3A,S3H - -------- 6901760 S1A,S1M,S3A,S3H 16580-Z0L-830 ••••••••••••••••••••••••••••...
  • Page 117 E-22-3 CHOKE BASE Ref. (Relative ref. Number) L.O.N. F.R.T. Description 8 8101BD ROD, CHOKE BASE STOP ••••••••• 14 8101V7 LEVER, CHOKE BASE •••••••••••• Reqd. QTY Ref. GCV GCV GCV GCV GCV GCV Serial No. Part No. Description Parts catalogue code 2 16592-ZJ1-000 SPRING, CABLE RETURN ••••••••...
  • Page 118 E-27 TOP COVER Ref. (Relative ref. Number) L.O.N. F.R.T. Description 2 1111D6 COVER, ENGINE TOP •••••••••••• Reqd. QTY Ref. GCV GCV GCV GCV GCV GCV Serial No. Part No. Description Parts catalogue code 1 16613-883-610 GROMMET, CHOKE ROD •••••••••• - -------- -------- A1G9,A2A9,A2G9,A3E9,A3G9,A4G9,C1E1,C2E1,C3E1,C4E1 NBL1,RTL1,R3A1,STA1,STL1,S1A1,S1E1,S2E1,S2E2,S2E3 S3E9,S3G9,S4E9,S4G9 2 19721-Z0L-000ZA COVER, TOP...
  • Page 119 GCV GCV GCV GCV GCV GCV Serial No. Part No. Description Parts catalogue code 1 87101-ZM0-000 MARK, EMBLEM (GCV160 5.5) ••• - -------- -------- A1E8,A1G7,A1J,A2A,A2E8,A2E9,A2G7,N1C,N1E7,N1W7 N2E7,N2E8,N2E9,N5C,S1A1 - -------- -------- A1A,A1E7,A2E7,A2R,N1R - -------- 1212768 N2U 2414991 2425659 N1W9 - -------- -------- A1C,A2C 87101-ZM0-010 ••••••••••••••••••••••••••••...
  • Page 120 - -------- 2436351 A1E,A1E7,A1E8,A1G7,A1P,A1W2,A1W7,A2E,A2E4,A2E7 A2E8,A2E9,A2G7,A3E,A7E1,N1,N1D,N1E1,N1E2,N1E7,N1R N1U,N1W,N1W1,N1W2,N1W7,N1W8,N1W9,N2,N2E,N2E1,N2E3 N2E7,N2E8,N2E9,N2U,N3U,N3V 6 87528-ZL8-000 MARK, CHOKE ••••••••••••••••• 1 -------- -------- E1A4,E5A4,N1AF,N5AF,N5MF,N5R 7 87101-Z0L-780 MARK, EMBLEM (GCV160 5.5) ••• - -------- -------- A7E1,N7A1,N7S1 - -------- 2189259 N7A1 - -------- 2674958 A7E1 87101-Z0L-800 •••••••••••••••••••••••••••• 2674959 -------- A7E1 87101-Z0L-801 ••••••••••••••••••••••••••••...
  • Page 121 E-28 LABEL/TOOL Reqd. QTY Ref. GCV GCV GCV GCV GCV GCV Serial No. Part No. Description Parts catalogue code 20) 87114-ZH7-840 LABEL, WARNING (NOT CERTIFIED FOR SALE) - -------- -------- BHH1,C3E,C3E1,C4E,C4E1,S2G7 5125202 -------- A1E,A1E7,A1E8,A1M,A1W7,A2E7,A2E8,A2E9,A2G7,A3E A7E1,N1E7,N1L,N1W7,N1W8,N1W9,N2E7,N2E8,N2E9,N7S1 S3H2 8015580 -------- E1G7,E2G7 - -------- -------- A1M,A3G9,A3T9,A4G4,A4G7,A4G9,C1E,C1E1,C2E,C2E1 E2G7,N1L,S1G4,S2E2,S2E3,S3E9,S3G9,S3H2,S4E4,S4E9 S4G4,S4G9 - -------- -------- A1E7,A2E7...
  • Page 122 Parts catalogue code 21 87114-ZH7-840 LABEL, WARNING (NOT CERTIFIED FOR SALE) - -------- -------- C1E,C1E1,C2E,C2E1 1739042 -------- A1P 22 87101-ZM0-020 MARK, EMBLEM (GCV160) ••••••• - -------- -------- A1AW,C1E,C1E1,C2E,C2E1,C3E,C3E1,C4E,C4E1 - -------- -------- A1E7,A1M,A2E7,BHH1,E2G7,N1L,N1R,N1U,S2G7,S3H2 2189260 -------- A2A9,A2R,N1D,N1R,S1E1 87101-ZM0-801 •••••••••••••••••••••••••••• - -------- -------- A3G9,A3T9,A4G7,A4G9,S2E2,S2E3,S3E9,S3G9,S4E9,S4G9...
  • Page 123 E-40 BLADE HOLDER Ref. (Relative ref. Number) L.O.N. F.R.T. Description NO INFORMATION ••••••••••••••• Reqd. QTY Ref. GCV GCV GCV GCV GCV GCV Serial No. Part No. Description Parts catalogue code 1 72600-VE1-G00 HOLDER ASSY., BLADE ••••••••• 1 -------- -------- BHH,BHH1,EHHB 2 75111-VE1-G01 PLATE, BALL CONTROL •••••••••...
  • Page 124 E-40-1 MUFFLER CAP Ref. (Relative ref. Number) L.O.N. F.R.T. Description NO INFORMATION ••••••••••••••• Reqd. QTY Ref. GCV GCV GCV GCV GCV GCV Serial No. Part No. Description Parts catalogue code 1 18348-ZL8-000 CAP, MUFFLER •••••••••••••••• - -------- -------- A1AS,N1E1 18348-Z0L-000 ••••••••••••••••••••••••••••...
  • Page 125: Part No. Index

    PART NO. INDEX Part Number Address Page Ref. Part Number Address Page Ref. Part Number Address Page Ref. Part Number Address Page Ref. Part Number Address Page Ref. 06000 16100-Z0L-811 16600-Z0L-840 81 21 16100-Z0L-812 16561-ZM0-870 16600-Z1L-840 83 28 06180-Z0J-000 89 12 16100-Z0L-841 16561-ZM0-V30 16610-Z0L-800...
  • Page 126 PART NO. INDEX Part Number Address Page Ref. Part Number Address Page Ref. Part Number Address Page Ref. Part Number Address Page Ref. Part Number Address Page Ref. 17534-Z0L-000 70 14 19610-Z0L-800ZA F5 19610-ZM0-000ZA F4 28400-ZM0-632ZD F1 32196-Z0L-S20 17620-Z0J-800 70 15 19610-Z0L-800ZB F5 19610-ZM0-000ZB F4 28400-ZM0-633ZA F1...
  • Page 127 PART NO. INDEX Part Number Address Page Ref. Part Number Address Page Ref. Part Number Address Page Ref. Part Number Address Page Ref. Part Number Address Page Ref. 75141-VE1-G00 90003-ZM0-010 90201-ZM0-J20 57 11 93903-24480 99101-124-0620 G9 80 16 75150-VE1-G02 90004-ZL8-000 90206-001-000 54 12 93913-25220...
  • Page 128: Part Name Index

    PART NAME INDEX Part name Address Page Ref. Part name Address Page Ref. Part name Address Page Ref. [ A ] BOLT, FLANGE, 6X85 •••••••••••• G15 CLIP, PISTON PIN, 13MM•••••••• E12 BOLT, FLANGE, 6X86 •••••••••••• G14 CLIP, PURSE LOCK•••••••••••••• F9 ARM, EX.
  • Page 129 Ref. Part name Address Page Ref. CRANKSHAFT COMP. ••••••••••••• E9 HOLDER, CABLE••••••••••••••••• I8 MARK, HONDA••••••••••••••••••• I13 HOLDER, GOVERNOR WEIGHT••••••• E7 MARK, OIL CAUTION••••••••••••• I14 HOLDER, WIRE•••••••••••••••••• H7 MARK, OPERATOR CAUTION•••••••• I16 MARK, RECOIL COVER•••••••••••• I16 MARK, THROTTLE INDICATION••••• I7 MOTOR ASSY., STARTER•••••••••• H13 MUFFLER COMP.•••••••••••••••••...
  • Page 130 PART NAME INDEX Part name Address Page Ref. Part name Address Page Ref. Part name Address Page Ref. PLATE, SIDE •••••••••••••••••• H10 SCREW, PAN, 5X8••••••••••••••• I6 [ T ] SCREW, RECESSED, 5X18••••••••• I6 SCREW, RECESSED, 5X28••••••••• I4 TANK, FUEL•••••••••••••••••••• F14 PLATE, SPRING HOOK •••••••••••...
  • Page 131 FOREWORD INDEX ENGINE GROUP PART NUMBER INDEX PART NAME INDEX...
  • Page 133 Published by Honda Motor Co., Ltd. Printed in Japan E.Y A 70.2009.01...
  • Page 134 January 18,2009 13ZM00E8 CODE NO. PARTS CATALOGUE NEWS GCV160 GCV160A PARTS GCV160A0 Honda Motor Co., Ltd. Service Division CATALOGUE GCV160E NEWS GCV160LE PARTS CATALOGUE - CORRECTED GCV160LA GCV160LA0 Printed in Japan NEWS NO. Reqd.QTY Block Ref. Note Part No. Description Serial No.
  • Page 135 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Note Part No. Description Serial No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 17701-Z0L-810 TUBE, FUEL TANK ....------- ------- A1A,A1AF,A2A9,A2R,A4A9,BHH,E1A2,N1A N1AF,N5AF,N5MF,N5R ------- 6901760 S1A,S1M,S3A,S3H ------- 8028729 17702-ZM0-800 TUBE, FUEL ....
  • Page 136 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Note Part No. Description Serial No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 ------- ------- R3A,S1A,S1M,S3A,S3H 95001-45110-40 TUBE, FUEL, 4.5X110 (95001-45001-60M) 6901761 ------- S1A,S1M,S3A,S3H 8028730 ------- 95001-75160-40 TUBE, FUEL, 7.3X160 (95001-75001-60M) 6901761 -------...
  • Page 137 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Note Part No. Description Serial No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 ------- 6901760 S1A,S1M,S3A,S3H ------- 8028729 16221-Z0L-900 SPACER, CARBURETOR ... 6901761 ------- S1A,S1M,S3A,S3H 8028730 ------- NOTE A:PART NO.CHANGE D:NEWLY PROVIDED E:PART NO.DELETION K:REQUIRED NO.CORRECTION L:APPLICATION SERIAL NO.CORRECTION T:APPLICATION CORRECTION Z:REMARKS CHANGE...
  • Page 138 January 26,2009 13ZM00E8 CODE NO. PARTS CATALOGUE NEWS GCV160 GCV160A PARTS GCV160A0 Honda Motor Co., Ltd. Service Division CATALOGUE GCV160E NEWS GCV160LE PARTS CATALOGUE - CORRECTED GCV160LA GCV160LA0 Printed in Japan NEWS NO. Reqd.QTY Block Ref. Note Part No. Description Serial No.
  • Page 139 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Note Part No. Description Serial No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 ------- ------- A1A,A1AE,A1AF,A1AS,A1AW,A1C,A1E,A1E7 A1E8,A1M,A1W7,A2A,A2C,A2E7,A2E8,A2E9 A2G7,A2R,A3A,A3E,A7E1,BHH,EHHB,E1A2 E1A4,E1G7,E2G7,E5A4,NBL1,N1A,N1AF,N1C N1E1,N1E7,N1R,N1U,N1W7,N1W8,N1W9,N2E7 N2E8,N2E9,N2U,N3U,N3V,N5A,N5AF,N5C,N5MF N5R,N7A1,N7S1,RTL1,R1A,R3A,R3A1,STA1 STL1,S1A,S1A1,S1M,S2G7,S3A,S3A2,S3H,S3H2 ------- ------- BHH1,N1L E-14 16015-Z0L-881 CHAMBER SET, FLOAT (CARBURETOR NO.)
  • Page 140 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Note Part No. Description Serial No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 ------- ------- A1A,A1AS,A1AW,A1C,A1E,A1E7,A1E8,A1G7 A1G9,A1M,A1P,A1W7,A2A,A2A9,A2C,A2E7 A2E8,A2E9,A2G4,A2G7,A2G9,A2R,A3E,A3E7 A3E9,A3G9,A3T9,A3W7,A3W8,A4G4,A4G7,A4G9 A7E1,BHH,BHH1,C1E,C1E1,C2E,C2E1,C3E C3E1,C4E,C4E1,EHHB,E1A4,E1G7,E2G7,E5A4 NBL1,N1A,N1C,N1D,N1E1,N1E2,N1E7,N1J1 N1L,N1R,N1T8,N1T9,N1U,N1W7,N1W8,N1W9 N2E7,N2E8,N2E9,N2U,N3T8,N3T9,N3U,N3V N3W8,N3W9,N5A,N5C,N7A1,N7S1,S1G4,S2E3 S3G9,S4G4,S4G9 ------- ------- E1A2 (CARBURETOR NO.) ------- BB62H A...
  • Page 141 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Note Part No. Description Serial No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 - (1) (1) (1) - (1) (1) ------- ------- A1A,A1AE,A1AF,A1AS,A1AW,A1C,A1E,A1E7 A1E8,A1G7,A1G9,A1M,A1P,A1W7,A2A,A2A9 A2C,A2E7,A2E8,A2E9,A2G4,A2G7,A2G9,A2R A3A,A3E,A3E7,A3E9,A3W7,A3W8,A7E1,BHH BHH1,C1E,C1E1,C2E,C2E1,EHHB,E1A2,E1A4 E1G7,E2G7,E5A4,NBL1,N1A,N1AF,N1C,N1D N1E1,N1E2,N1E7,N1J1,N1L,N1R,N1T8,N1T9 N1U,N1W7,N1W8,N1W9,N2E7,N2E8,N2E9,N2U...
  • Page 142 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Note Part No. Description Serial No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 ------- ------- A1A,A1AE,A1AF,A1AS,A1AW,A1C,A1E,A1E7 A1E8,A1G7,A1G9,A1M,A1P,A1W7,A2A,A2A9 A2C,A2E7,A2E8,A2E9,A2G4,A2G7,A2G9,A2R A3A,A3E,A3E7,A3E9,A3G9,A3T9,A3W7,A3W8 A4G4,A4G7,A4G9,A7E1,BHH,BHH1,C1E,C1E1 C2E,C2E1,C3E,C3E1,C4E,C4E1,EHHB,E1A2 E1A4,E1G7,E2G7,E5A4,NBL1,N1A,N1AF,N1C N1D,N1E1,N1E2,N1E7,N1J1,N1L,N1R,N1T8 N1T9,N1U,N1W7,N1W8,N1W9,N2E7,N2E8,N2E9 N2U,N3T8,N3T9,N3U,N3V,N3W8,N3W9,N5A N5AF,N5C,N5MF,N5R,N7A1,N7S1,RTL1,R1A R3A,R3A1,STA1,STL1,S1A,S1A1,S1E1,S2E S2E1,S3A,S3H2 - (1) (1) (1) - (1) (1) ------- -------...
  • Page 143 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Note Part No. Description Serial No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 ------- ------- A1E7,A2E7,N1R,N3U (CARBURETOR NO.) BB62A D ------- A1E,A1J,A1P,A1U,A2E,A2U,A3E,A4E,N1,N1D N1E1,N1E2,N1U,N1W,N2,N2D,N2E,N2E1,N2E2 N2E3,N2U,N3V (CARBURETOR NO.) BB62B D ------- A1A,A2A (CARBURETOR NO.) BB64B C -------...
  • Page 144 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Note Part No. Description Serial No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 ------- ------- A2G7,A7E1,N1J1,N1W7,N2E7,N2E8 ------- ------- A1E7,A2E7,N1R,N3U (CARBURETOR NO.) BB62A D ------- A1E,A1J,A1P,A1U,A2E,A2U,A3E,A4E,N1,N1D N1E1,N1E2,N1U,N1W,N2,N2D,N2E,N2E1,N2E2 N2E3,N2U,N3V (CARBURETOR NO.) BB62B D ------- A1A,A1C,A2A,A2C...
  • Page 145 February 01,2009 13ZM00E8 CODE NO. PARTS CATALOGUE NEWS GCV160 GCV160A PARTS GCV160A0 Honda Motor Co., Ltd. Service Division CATALOGUE GCV160E NEWS GCV160LE PARTS CATALOGUE - CORRECTED GCV160LA GCV160LA0 Printed in Japan NEWS NO. Reqd.QTY Block Ref. Note Part No. Description Serial No.
  • Page 146 February 08,2009 13ZM00E8 CODE NO. PARTS CATALOGUE NEWS GCV160 GCV160A PARTS GCV160A0 Honda Motor Co., Ltd. Service Division CATALOGUE GCV160E NEWS GCV160LE PARTS CATALOGUE - CORRECTED GCV160LA GCV160LA0 Printed in Japan NEWS NO. Reqd.QTY Block Ref. Note Part No. Description Serial No.
  • Page 147 March 08,2009 13ZM00E8 CODE NO. PARTS CATALOGUE NEWS GCV160 GCV160A PARTS GCV160A0 Honda Motor Co., Ltd. Service Division CATALOGUE GCV160E NEWS GCV160LE PARTS CATALOGUE - CORRECTED GCV160LA GCV160LA0 Printed in Japan NEWS NO. Reqd.QTY Block Ref. Note Part No. Description Serial No.
  • Page 148 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Note Part No. Description Serial No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 6702083 ------- A2R,BHH,N1AF,N5AF,N5MF NOTE A:PART NO.CHANGE D:NEWLY PROVIDED E:PART NO.DELETION K:REQUIRED NO.CORRECTION L:APPLICATION SERIAL NO.CORRECTION T:APPLICATION CORRECTION Z:REMARKS CHANGE...
  • Page 149 March 15,2009 13ZM00E8 CODE NO. PARTS CATALOGUE NEWS GCV160 GCV160A PARTS GCV160A0 Honda Motor Co., Ltd. Service Division CATALOGUE GCV160E NEWS GCV160LE PARTS CATALOGUE - CORRECTED GCV160LA GCV160LA0 Printed in Japan NEWS NO. Reqd.QTY Block Ref. Note Part No. Description Serial No.
  • Page 150 March 21,2009 13ZM00E8 CODE NO. PARTS CATALOGUE NEWS GCV160 GCV160A PARTS GCV160A0 Honda Motor Co., Ltd. Service Division CATALOGUE GCV160E NEWS GCV160LE GCV160LA GCV160LA0 Printed in Japan NEWS NO. GCV160A0-N5RE TYPE sales parts information NOTE: This Parts Catalogue News explains only the parts of the different model that are produced to conform to addition of the GCV160A0-N5RE type.
  • Page 151 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Base Additional type type •Features of each type Model GCV160LA0 GCV160A0 Type N5RE Specifications 20mm Ø Straight (133.8mm) 22.2mm Ø Straight (100.4mm) 22.2mm Ø Straight (117.4mm) (Depth 24mm) 22.2mm Ø Straight (117.4mm) (Depth 52mm) 22.2mm Ø Straight Crankshaft (135.7mm) 25mm Ø...
  • Page 152 GCV GCV 160 160 160 160 160 E-11 STARTER ASSY., RECOIL 28400-ZL8-023ZC *R280*....POWER RED 28400-ZL8-023ZA STARTER ASSY., RECOIL *NH1*....BLACK E-12-1 19610-Z0L-851ZA COVER COMP., FAN 19610-Z0L-851ZE *NH1*....BLACK E-28 87531-Z0Y-M11ZB MARK, HONDA *TYPE2*(BLACK) ... 87531-Z0Y-M11ZA 87114-ZH7-840 LABEL, WARNING 87114-ZH7-821 (NOT CERTIFIED FOR SALE)
  • Page 153 March 29,2009 13ZM00E8 CODE NO. PARTS CATALOGUE NEWS GCV160 GCV160A PARTS GCV160A0 Honda Motor Co., Ltd. Service Division CATALOGUE GCV160E NEWS GCV160LE PARTS CATALOGUE - CORRECTED GCV160LA GCV160LA0 Printed in Japan NEWS NO. Reqd.QTY Block Ref. Note Part No. Description Serial No.
  • Page 154 May 17,2009 13ZM00E8 CODE NO. PARTS CATALOGUE NEWS GCV160 GCV160A PARTS GCV160A0 Honda Motor Co., Ltd. Service Division CATALOGUE GCV160E NEWS GCV160LE PARTS CATALOGUE - CORRECTED GCV160LA GCV160LA0 Printed in Japan NEWS NO. Reqd.QTY Block Ref. Note Part No. Description Serial No.
  • Page 155 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Note Part No. Description Serial No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 E-14 CARBURETOR E-14 16100-Z0L-874 CARBURETOR ASSY. (BB75E A) ... ------- 1064371 S2G7 ------- ------- S1M,S3H 16100-Z0L-875 CARBURETOR ASSY.
  • Page 156 June 19,2009 13ZM00E8 CODE NO. PARTS CATALOGUE NEWS GCV160 GCV160A PARTS GCV160A0 Honda Motor Co., Ltd. Service Division CATALOGUE GCV160E NEWS GCV160LE PARTS CATALOGUE - CORRECTED GCV160LA GCV160LA0 Printed in Japan NEWS NO. Reqd.QTY Block Ref. Note Part No. Description Serial No.
  • Page 157 June 21,2009 13ZM00E8 CODE NO. PARTS CATALOGUE NEWS GCV160 GCV160A PARTS GCV160A0 Honda Motor Co., Ltd. Service Division CATALOGUE GCV160E NEWS GCV160LE PARTS CATALOGUE - CORRECTED GCV160LA GCV160LA0 Printed in Japan NEWS NO. Reqd.QTY Block Ref. Note Part No. Description Serial No.
  • Page 158 June 29,2009 13ZM00E8 CODE NO. PARTS CATALOGUE NEWS GCV160 GCV160A PARTS GCV160A0 Honda Motor Co., Ltd. Service Division CATALOGUE GCV160E NEWS GCV160LE PARTS CATALOGUE - CORRECTED GCV160LA GCV160LA0 Printed in Japan NEWS NO. Reqd.QTY Block Ref. Note Part No. Description Serial No.
  • Page 159 July 05,2009 13ZM00E8 CODE NO. PARTS CATALOGUE NEWS GCV160 GCV160A PARTS GCV160A0 Honda Motor Co., Ltd. Service Division CATALOGUE GCV160E NEWS GCV160LE GCV160LA GCV160LA0 Printed in Japan NEWS NO. GCV160LA0-SBT, S3T TYPES sales parts information NOTE: This Parts Catalogue News explains only the parts of the different model that are produced to conform to addition of the GCV160LA0-SBT, S3T types.
  • Page 160 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Base Additional Base Additional •Features of each type type type type type Model GCV160LA0 Type Specifications 20mm Ø Straight (133.8mm) 22.2mm Ø Straight (100.4mm) 22.2mm Ø Straight (117.4mm) (Depth 24mm) 22.2mm Ø Straight (117.4mm) (Depth 52mm) 22.2mm Ø...
  • Page 161 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Part No. Description Base Part No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 12000-Z0L-406 BARREL ASSY., CYLINDER ..12000-Z0L-407 91201-ZL8-003 OIL SEAL, 25.4X62X6 ..91201-Z0Y-003 VALVE, IN. (ROCKNEL) ..14711-Z0J-000 11300-ZM0-405 PAN ASSY., OIL ....
  • Page 162 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Part No. Description Base Part No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 91424-Z8B-821 TUBE, FUEL, 4.5X110(FKM) ..91427-Z8B-821 TUBE, FUEL, 7.3X160(FKM) ..CLAMP, TUBE (D10) .... 95002-41000-08 95002-41200-08 CLAMP, TUBE (D12) ....
  • Page 163 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Part No. Description Base Part No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 FLYWHEEL ASSY. (TEC) 31105-ZM0-000 (USE FOR IGN. COIL OF TEC) CORD, STOP SWITCH .... 32195-Z0L-000 SWITCH ASSY., ENGINE STOP 35120-ZM0-003...
  • Page 164 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Part No. Description Base Part No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 E-19-2 FLYWHEEL (3) E-19-2 13331-357-000 KEY, SPECIAL WOODRUFF, 25X18 . 30500-ZL8-014 COIL ASSY., IGNITION (TEC) (USE FOR F/W OF TEC) 30547-Z0L-S00 CLAMPER, STOP SWITCH CORD ..
  • Page 165 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Part No. Description Base Part No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 75110-Z0Y-000 BRAKE SUB ASSY....75113-ZM0-000 SPRING, BRAKE LEVER ..90013-883-000 BOLT, FLANGE, 6X12(CT200) ..90014-952-000 BOLT, FLANGE, 6X14(CT200) ..
  • Page 166 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Part No. Description Base Part No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 CLIP A, CABLE (NIFCO) 90681-959-003 (3.8MM BLACK) 30547-Z0L-S00 CLAMPER, STOP SWITCH CORD ..30548-ZL8-000 CLAMPER, STOP SWITCH CORD ..
  • Page 167 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Part No. Description Base Part No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 E-28 LABEL/TOOL E-28 LABEL, WARNING 87114-ZH7-821 (NOT CERTIFIED FOR SALE) 87529-Z0Y-840 MARK, AUTO CHOKE ..... 87516-Z0J-000 MARK, OPERATOR CAUTION ..
  • Page 168 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Part No. Description Base Part No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 DISK COMP., DRIVEN ... 75150-VE1-G02 PULLEY, DRIVE ....75162-Z0L-000 SPRING, CLUTCH ....75183-VE1-G01 BOLT, FLANGE, 10X24 ..90101-VE1-G00 BEARING, RADIAL BALL, 6006 91051-VE1-R00...
  • Page 169 July 13,2009 13ZM00E8 CODE NO. PARTS CATALOGUE NEWS GCV160 GCV160A PARTS GCV160A0 Honda Motor Co., Ltd. Service Division CATALOGUE GCV160E NEWS GCV160LE PARTS CATALOGUE - CORRECTED GCV160LA GCV160LA0 Printed in Japan NEWS NO. Reqd.QTY Block Ref. Note Part No. Description Serial No.
  • Page 170 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Note Part No. Description Serial No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 17231-Z0L-030 COVER, AIR CLEANER ... ------- 1167575 A1A,A1AF,A2R,BHH,E1A2,N1A,N1AF,N5AF N5MF,N5R,N7A1,N7S1,R3A,S1A,S1M,S3A,S3H 17231-Z0L-050 ......------- ------- SBT,S3T 1167576 ------- A1A,A1AF,A2R,BHH,E1A2,N1A,N1AF,N5AF N5MF,N5R,N7A1,N7S1,R3A,S1A,S1M,S3A,S3H...
  • Page 171 August 31,2009 13ZM00E8 CODE NO. PARTS CATALOGUE NEWS GCV160 GCV160A PARTS GCV160A0 Honda Motor Co., Ltd. Service Division CATALOGUE GCV160E NEWS GCV160LE PARTS CATALOGUE - CORRECTED GCV160LA GCV160LA0 Printed in Japan NEWS NO. Reqd.QTY Block Ref. Note Part No. Description Serial No.
  • Page 172 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Note Part No. Description Serial No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 ------- 1243452 BHH,R3A,S1M,S3A,S3H 18321-Z0L-J01 ......------- ------- SBT,S3T 1243453 ------- BHH,R3A,S1M,S3A,S3H NOTE A:PART NO.CHANGE D:NEWLY PROVIDED E:PART NO.DELETION K:REQUIRED NO.CORRECTION L:APPLICATION SERIAL NO.CORRECTION T:APPLICATION CORRECTION Z:REMARKS CHANGE...
  • Page 173 September 13,2009 13ZM00E8 CODE NO. PARTS CATALOGUE NEWS GCV160 GCV160A PARTS GCV160A0 Honda Motor Co., Ltd. Service Division CATALOGUE GCV160E NEWS GCV160LE PARTS CATALOGUE - CORRECTED GCV160LA GCV160LA0 Printed in Japan NEWS NO. Reqd.QTY Block Ref. Note Part No. Description Serial No.
  • Page 174 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Note Part No. Description Serial No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 E-19 FLYWHEEL (1) Ref. (Relative ref. Number) No. LON Description (17,22,26,27) 2161B5 FLYWHEEL ・・・・・・・・・・・・・・・・・・・・・ E-19 30500-ZL8-014 COIL ASSY., IGNITION (TEC)
  • Page 175 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Note Part No. Description Serial No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 31105-ZL8-000 FLYWHEEL ASSY. (TEC) (USE FOR IGN. COIL OF TEC) ------- ------- N1T8,N1T9,N1W,N1W1,N1W2,N1W7,N1W8,N1W9 N3T8,N3T9,N3W8,N3W9,S1G4 - (1) - ------- 6702082 31110-ZL8-004...
  • Page 176 October 25,2009 13ZM00E8 CODE NO. PARTS CATALOGUE NEWS GCV160 GCV160A PARTS GCV160A0 Honda Motor Co., Ltd. Service Division CATALOGUE GCV160E NEWS GCV160LE PARTS CATALOGUE - CORRECTED GCV160LA GCV160LA0 Printed in Japan NEWS NO. Reqd.QTY Block Ref. Note Part No. Description Serial No.
  • Page 177 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Note Part No. Description Serial No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 18321-Z0L-800 ......1152562 ------- A1E7,A1M,A2E7,C1E,C1E1,C2E,C2E1,C3E C3E1,C4E,C4E1,E2G7,N1L,N5RE,S2G7 18321-Z0L-810 ......1152562 ------- BHH1,S3H2 E-19 19612-ZM0-J20 PLATE, SIDE ....------- ------- N1E1,N1E2,N1E7,N1R,N1W,N1W1,N1W2,N1W8 N1W9,N2E,N2E1,N2E2,N2E3,N2E9,N7A1...
  • Page 178 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Note Part No. Description Serial No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 E-28 LABEL/TOOL E-28 87114-ZH7-840 LABEL, WARNING (NOT CERTIFIED FOR SALE) ------- ------- C1E,C1E1,C2E,C2E1 1739042 2679341 87519-Z0J-000 MARK, OPERATOR CAUTION ..
  • Page 179 November 08,2009 13ZM00E8 CODE NO. PARTS CATALOGUE NEWS GCV160 GCV160A PARTS GCV160A0 Honda Motor Co., Ltd. Service Division CATALOGUE GCV160E NEWS GCV160LE PARTS CATALOGUE - CORRECTED GCV160LA GCV160LA0 Printed in Japan NEWS NO. Reqd.QTY Block Ref. Note Part No. Description Serial No.
  • Page 180 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Note Part No. Description Serial No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 28400-ZL8-023ZC *R280*....POWER RED ------- ------- E1A4,E5A4,N5R,N5RB ------- ------- 28400-ZL8-023ZA *PARTS NO. DELETION 28400-ZL8-023ZC *PARTS NO. DELETION NOTE A:PART NO.CHANGE D:NEWLY PROVIDED E:PART NO.DELETION K:REQUIRED NO.CORRECTION L:APPLICATION SERIAL NO.CORRECTION T:APPLICATION CORRECTION Z:REMARKS CHANGE...
  • Page 181 November 08,2009 13ZM00E8 CODE NO. PARTS CATALOGUE NEWS GCV160 GCV160A PARTS GCV160A0 Honda Motor Co., Ltd. Service Division CATALOGUE GCV160E NEWS GCV160LE GCV160LA GCV160LA0 Printed in Japan NEWS NO. GCV160LA0-N5RB TYPE sales parts information NOTE: This Parts Catalogue News explains only the parts of the different model that are produced to conform to addition of the GCV160LA0-N5RB type.
  • Page 182 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Base Additional •Features of each type type type Model GCV160LA0 Type N5RB Specifications 20mm Ø Straight (133.8mm) 22.2mm Ø Straight (100.4mm) 22.2mm Ø Straight (117.4mm) (Depth 24mm) 22.2mm Ø Straight (117.4mm) (Depth 52mm) 22.2mm Ø Straight Crankshaft (135.7mm) 25mm Ø...
  • Page 183 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Part No. Description Base Part No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 E-12-1 FAN COVER (2) Ref. (Relative ref. Number) No. LON Description (49) 3101H7 TANK, FUEL ・・・・・・・・・・・・・・・・・・・ E-12-1 06175-Z0L-305 TANK KIT, FUEL ....
  • Page 184 December 28,2009 13ZM00E8 CODE NO. PARTS CATALOGUE NEWS GCV160 GCV160A PARTS GCV160A0 Honda Motor Co., Ltd. Service Division CATALOGUE GCV160E NEWS GCV160LE PARTS CATALOGUE - CORRECTED GCV160LA GCV160LA0 Printed in Japan NEWS NO. Reqd.QTY Block Ref. Note Part No. Description Serial No.
  • Page 185 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Note Part No. Description Serial No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 16580-Z0Y-800 *PARTS NO. DELETION NOTE A:PART NO.CHANGE D:NEWLY PROVIDED E:PART NO.DELETION K:REQUIRED NO.CORRECTION L:APPLICATION SERIAL NO.CORRECTION T:APPLICATION CORRECTION Z:REMARKS CHANGE...
  • Page 186 January 16,2010 13ZM00E8 CODE NO. PARTS CATALOGUE NEWS GCV160 GCV160A PARTS GCV160A0 Honda Motor Co., Ltd. Service Division CATALOGUE GCV160E NEWS GCV160LE PARTS CATALOGUE - CORRECTED GCV160LA GCV160LA0 Printed in Japan NEWS NO. Reqd.QTY Block Ref. Note Part No. Description Serial No.
  • Page 187 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Note Part No. Description Serial No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 E-14 CARBURETOR Ref. (Relative ref. Number) No. LON Description 30 3111T9 CARBURETOR KIT ・・・・・・・・・・・・・・・ E-14 16100-Z0L-874 CARBURETOR ASSY.
  • Page 188 March 14,2010 13ZM00E8 CODE NO. PARTS CATALOGUE NEWS GCV160 GCV160A PARTS GCV160A0 Honda Motor Co., Ltd. Service Division CATALOGUE GCV160E NEWS GCV160LE PARTS CATALOGUE - CORRECTED GCV160LA GCV160LA0 Printed in Japan NEWS NO. Reqd.QTY Block Ref. Note Part No. Description Serial No.
  • Page 189 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Note Part No. Description Serial No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 90015-ZE5-010 BOLT, GOVERNOR ARM ... ------- ------- A1A,A1AS,A1AW,A1C,A1E,A1E7,A1E8,A1G7 A1G9,A1J,A1M,A1P,A1U,A1W2,A1W7,A2A,A2A9 A2C,A2E,A2E4,A2E7,A2E8,A2E9,A2G4,A2G7 A2G9,A2U,A3E,A3E7,A3E9,A3G9,A3T9,A3W7 A3W8,A4E,A4G4,A4G7,A4G9,A7E1,BHH,BHH1 C1E,C1E1,C2E,C2E1,C3E,C3E1,C4E,C4E1 EHHB,E1G7,E2G7,NBL1,N1,N1D,N1E1,N1E2 N1E7,N1J1,N1R,N1T8,N1T9,N1U,N1W,N1W1 N1W2,N1W7,N1W8,N1W9,N2,N2D,N2E,N2E1 N2E2,N2E3,N2E7,N2E8,N2E9,N2U,N3T8,N3T9...
  • Page 190 March 04,2010 13ZM00E8 CODE NO. PARTS CATALOGUE NEWS GCV160 GCV160A PARTS GCV160A0 Honda Motor Co., Ltd. Service Division CATALOGUE GCV160E NEWS GCV160LE GCV160LA GCV160LA0 Printed in Japan NEWS NO. GCV160A0-S3TE TYPE sales parts information NOTE: This Parts Catalogue News explains only the parts of the different model that are produced to conform to addition of the GCV160A0-S3TE type.
  • Page 191 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Base Additional •Features of each type type type Model GCV160LA0 GCV160A0 Type S3TE Specifications 20mm Ø Straight (133.8mm) 22.2mm Ø Straight (100.4mm) 22.2mm Ø Straight (117.4mm) (Depth 24mm) 22.2mm Ø Straight (117.4mm) (Depth 52mm) 22.2mm Ø Straight Crankshaft (135.7mm) 25mm Ø...
  • Page 192 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Part No. Description Base Part No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 16541-Z8B-000 SHAFT, GOVERNOR ARM ..16541-ZM0-000 E-12-1 06175-Z0L-305 TANK KIT, FUEL ....- (1) - E-16 18321-Z0L-800 PROTECTOR, MUFFLER ...
  • Page 193 June 28,2010 13ZM00E8 CODE NO. PARTS CATALOGUE NEWS GCV160 GCV160A PARTS GCV160A0 Honda Motor Co., Ltd. Service Division CATALOGUE GCV160E NEWS GCV160LE PARTS CATALOGUE - CORRECTED GCV160LA GCV160LA0 Printed in Japan NEWS NO. Reqd.QTY Block Ref. Note Part No. Description Serial No.
  • Page 194 August 06,2010 13ZM00E8 CODE NO. PARTS CATALOGUE NEWS GCV160 GCV160A PARTS GCV160A0 Honda Motor Co., Ltd. Service Division CATALOGUE GCV160E NEWS GCV160LE PARTS CATALOGUE - CORRECTED GCV160LA GCV160LA0 Printed in Japan NEWS NO. GCV160E-N2EE TYPE sales parts information NOTE: This Parts Catalogue News explains only the parts of the different model that are produced to conform to addition of the GCV160E-N2EE type.
  • Page 195 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Base Additional •Features of each type type type Model GCV160E Type N2E8 N2EE Specifications 20mm Ø Straight (133.8mm) 22.2mm Ø Straight (100.4mm) 22.2mm Ø Straight (117.4mm) (Depth 24mm) 22.2mm Ø Straight (117.4mm) (Depth 52mm) 22.2mm Ø Straight Crankshaft (135.7mm) 25mm Ø...
  • Page 196 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Part No. Description Base Part No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 12000-Z1L-405 BARREL ASSY., CYLINDER ..BARREL ASSY., CYLINDER ..12000-ZL8-425 VALVE, IN. (ROCKNEL) ..14711-Z0J-000 14711-ZL8-000 VALVE, IN.
  • Page 197 January 23,2011 13ZM00E8 CODE NO. PARTS CATALOGUE NEWS GCV160 GCV160A PARTS Honda Motor Co., Ltd. GCV160A0 CATALOGUE GCV160E Customer Service Technology Development Division NEWS GCV160LE GCV160LA GCV160LA0 Printed in Japan NEWS NO. GCV160A0-SBTE TYPE sales parts information NOTE: This Parts Catalogue News explains only the parts of the different model that are produced to conform to addition of the GCV160A0-SBTE type.
  • Page 198 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Base Additional •Features of each type type type Model GCV160LA0 GCV160A0 Type SBTE Specifications 20mm Ø Straight (133.8mm) 22.2mm Ø Straight (100.4mm) 22.2mm Ø Straight (117.4mm) (Depth 24mm) 22.2mm Ø Straight (117.4mm) (Depth 52mm) 22.2mm Ø Straight Crankshaft (135.7mm) 25mm Ø...
  • Page 199 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Part No. Description Base Part No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 CYLINDER BARREL Ref. (Relative ref. Number) No. LON Description (15) 1111D5 COVER, CYLINDER HEAD AND/OR PACKING, HEAD COVER ・・・・・・・・・...
  • Page 200 90015-ZE5-010 BOLT, GOVERNOR ARM.... SBTE 94050-06000 NUT, FLANGE, 6MM....SBTE 16221-Z0L-900 SPACER, CARBURETOR.... SBTE E-28 MARK, EMBLEM(GCV160)..87101-Z8B-000 SBTE 87519-Z0J-000 MARK, OPERATOR CAUTION..SBTE 87114-ZH7-850 LABEL, WARNING....87114-ZH7-821 SBTE NOTE A:PART NO.CHANGE D:NEWLY PROVIDED E:PART NO.DELETION K:REQUIRED NO.CORRECTION L:APPLICATION SERIAL NO.CORRECTION...
  • Page 201 April 30,2011 13ZM00E8 CODE NO. PARTS CATALOGUE NEWS GCV160 GCV160A PARTS Honda Motor Co., Ltd. GCV160A0 CATALOGUE GCV160E Customer Service Technology Development Division NEWS GCV160LE GCV160LA PARTS CATALOGUE - CORRECTED GCV160LA0 Printed in Japan NEWS NO. Reqd.QTY Block Ref. Note Part No.
  • Page 202 June 27,2011 13ZM00E8 CODE NO. PARTS CATALOGUE NEWS GCV160 GCV160A PARTS Honda Motor Co., Ltd. GCV160A0 CATALOGUE GCV160E Customer Service Technology Development Division NEWS GCV160LE GCV160LA PARTS CATALOGUE - CORRECTED GCV160LA0 Printed in Japan NEWS NO. Reqd.QTY Block Ref. Note Part No.
  • Page 203 August 10,2011 13ZM00E8 CODE NO. PARTS CATALOGUE NEWS GCV160 GCV160A PARTS Honda Motor Co., Ltd. GCV160A0 CATALOGUE GCV160E Customer Service Technology Development Division NEWS GCV160LE GCV160LA PARTS CATALOGUE - CORRECTED GCV160LA0 Printed in Japan NEWS NO. Reqd.QTY Block Ref. Note Part No.
  • Page 204 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Note Part No. Description Serial No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 ------- ------- A1E7,A1E8,A1G7,A1G9,A1W7,A2A9,A2E7,A2E8, A2E9,A2G4,A2G7,A2G9,A3E7,A3E9,A3G9,A3T9, A3W7,A3W8,A4G4,A4G7,A4G9,BHH1,C1E,C1E1, C2E,C2E1,C3E,C3E1,C4E,C4E1,E2G7, N1E7,N1T8,N1T9,N1W7,N1W8,N1W9,N2E7,N2E8, N2E9,N2EE,N3T8,N3T9,N3W8,N3W9,N7A1,N7S1, S1G4,S2E3,S3G9,S4G4,S4G9 NOTE A:PART NO.CHANGE D:NEWLY PROVIDED E:PART NO.DELETION K:REQUIRED NO.CORRECTION L:APPLICATION SERIAL NO.CORRECTION T:APPLICATION CORRECTION Z:REMARKS CHANGE...
  • Page 205 August 12,2011 13ZM00E8 CODE NO. PARTS CATALOGUE NEWS GCV160 GCV160A PARTS Honda Motor Co., Ltd. GCV160A0 CATALOGUE GCV160E Customer Service Technology Development Division NEWS GCV160LE GCV160LA GCV160LA0 Printed in Japan NEWS NO. GCV160E-A7Q1 TYPE sales parts information NOTE: This Parts Catalogue News explains only the parts of the different model that are produced to conform to addition of the GCV160E-A7Q1 type.
  • Page 206 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Base Additional •Features of each type type type Model GCV160E Type A7E1 A7Q1 Specifications 20mm Ø Straight (133.8mm) 22.2mm Ø Straight (100.4mm) 22.2mm Ø Straight (117.4mm) (Depth 24mm) 22.2mm Ø Straight (117.4mm) (Depth 52mm) 22.2mm Ø Straight Crankshaft (135.7mm) 25mm Ø...
  • Page 207 90201-Z0T-800 NUT, SPECIAL, 14MM.... 90201-878-003 A7Q1 E-22 16580-Z0M-782 BASE COMP., CONTROL... 16580-Z0M-781 A7Q1 E-28 MARK, EMBLEM(GCV160 5.5)..87101-Z0L-800 A7Q1 LABEL, WARNING 87114-ZH7-840 (NOT CERTIFIED FOR SALE) A7Q1 87519-Z0J-000 MARK, OPERATOR CAUTION..A7Q1 NOTE A:PART NO.CHANGE D:NEWLY PROVIDED E:PART NO.DELETION K:REQUIRED NO.CORRECTION L:APPLICATION SERIAL NO.CORRECTION...
  • Page 208 September 20,2011 13ZM00E8 CODE NO. PARTS CATALOGUE NEWS GCV160 GCV160A PARTS Honda Motor Co., Ltd. GCV160A0 CATALOGUE GCV160E Customer Service Technology Development Division NEWS GCV160LE GCV160LA PARTS CATALOGUE - CORRECTED GCV160LA0 Printed in Japan NEWS NO. Reqd.QTY Block Ref. Note Part No.
  • Page 209 160 160 160 160 160 ------- ------- A1A,A1AF,A2R,BHH,E1A2,N1A,N1AF,N5AF,N5MF N5R,N5RB,N7A1,N7S1 ------- ------- R3A,S1A,S1M,S3A,S3H,S3T,SBT E-28 LABEL/TOOL E-28 87169-Z8B-000 MARK,RECOIL COVER GCV160..1372040 ------- S3H2,S3TE ------- ------- SBTE NOTE A:PART NO.CHANGE D:NEWLY PROVIDED E:PART NO.DELETION K:REQUIRED NO.CORRECTION L:APPLICATION SERIAL NO.CORRECTION T:APPLICATION CORRECTION Z:REMARKS CHANGE...
  • Page 210 September 27,2011 13ZM00E8 CODE NO. PARTS CATALOGUE NEWS GCV160 GCV160A PARTS Honda Motor Co., Ltd. GCV160A0 CATALOGUE GCV160E Customer Service Technology Development Division NEWS GCV160LE GCV160LA PARTS CATALOGUE - CORRECTED GCV160LA0 Printed in Japan NEWS NO. Reqd.QTY Block Ref. Note Part No.
  • Page 211 October 29,2011 13ZM00E8 CODE NO. PARTS CATALOGUE NEWS GCV160 GCV160A PARTS Honda Motor Co., Ltd. GCV160A0 CATALOGUE GCV160E Customer Service Technology Development Division NEWS GCV160LE GCV160LA PARTS CATALOGUE - CORRECTED GCV160LA0 Printed in Japan NEWS NO. Reqd.QTY Block Ref. Note Part No.
  • Page 212 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Note Part No. Description Serial No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 16580-ZM0-872 ......2352104 ------- A1E7,A1E8,A1G7,A2A9,A2E7,A2E8,A2E9,A3W7 ------- ------- A1E7,A2E7,C1E,C1E1,C2E,C2E1,C3E,C3E1 C4E,C4E1,E2G7 2352104 2511561 A1G9,A2G4,A2G7,A2G9,A3E7,A3E9,A3W8 2352104 2511561 A2A9 ------- 2511561 A3G9,A4A9,A4G4,A4G7,A4G9...
  • Page 213 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Note Part No. Description Serial No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 90016-ZE7-W00 SCREW, RECESSED, 5X28..------- ------- A1E7,A1E8,A1G7,A1G9,A1W7,A2A9,A2E7,A2E8 A2E9,A2G4,A2G7,A2G9,A3E7,A3E9,A3G9,A3T9 A3W7,A3W8,A4A9,A4G4,A4G7,A4G9,A7E1,A7H1 BHH1,C1E,C1E1,C2E,C2E1,C3E,C3E1,C4E C4E1,E1G7,N1E7,N1R,N1T8,N1T9,N1W7,N1W8 N1W9,N2E7,N2E8,N2E9,N2EE,N3T8,N3T9,N3W8 N3W9,N7A1,S1G4,S2E3,S2G7,S3G9,S4G4,S4G9 ------- ------- A1E7,A2E7,BHH1,C1E,C1E1,C2E,C2E1,C3E C3E1,C4E,C4E1,E2G7,N1R,N7A1,N7S1 ------- 3135603...
  • Page 214 November 27,2011 13ZM00E8 CODE NO. PARTS CATALOGUE NEWS GCV160 GCV160A PARTS Honda Motor Co., Ltd. GCV160A0 CATALOGUE GCV160E Customer Service Technology Development Division NEWS GCV160LE GCV160LA PARTS CATALOGUE - CORRECTED GCV160LA0 Printed in Japan NEWS NO. Reqd.QTY Block Ref. Note Part No.
  • Page 215 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Note Part No. Description Serial No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 ------- ------- A1AW,A1E7,A1M,A2E7,BHH1,C1E,C1E1,C2E C2E1,C3E,C3E1,C4E,C4E1,E2G7,N1L,N1R,N1U N2U,N3U,N3V 7055345 ------- A1AW,A1E7,A1M,A2E7,BHH1,C1E,C1E1,C2E C2E1,C3E,C3E1,C4E,C4E1,N1L,N1R,N1U,N2U N3U,N3V 2659549 ------- A1G9,A1P,A2G4,A2G7,A2G9,A3E7,A3E9,A3G9 A3T9,A3W7,A3W8,A4G4,A4G7,A4G9,N1J1,N1T9 N1W7,N2E7,N2E8,N3T8,N3W8,N3W9 3020071 ------- A2A9,A4A9...
  • Page 216 January 20,2012 13ZM00E8 CODE NO. PARTS CATALOGUE NEWS GCV160 GCV160A PARTS Honda Motor Co., Ltd. GCV160A0 CATALOGUE GCV160E Customer Service Technology Development Division NEWS GCV160LE GCV160LA PARTS CATALOGUE - CORRECTED GCV160LA0 Printed in Japan NEWS NO. Reqd.QTY Block Ref. Note Part No.
  • Page 217 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Note Part No. Description Serial No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 E-12 33609-GK4-620 COLLAR, FR. WINKER.... ------- ------- A1A,A1AS,A1AW,A1C,A1E,A1E7,A1E8,A1G7,A1G9 A1J,A1M,A1P,A1U,A1W2,A1W7,A2A,A2A9,A2C, A2E,A2E4,A2E7,A2E8,A2E9,A2G4,A2G7,A2G9, A2R,A2U,A3E,A3E7,A3E9,A3G9,A3T9,A3W7,A3W8 A4E,A4G4,A4G7,A4G9,A7E1,A7Q1,BHH,BHH1, E1G7,E2G7,EHHB,N1,N1A,N1C,N1D,N1E1,N1E2, N1E7,N1J1,N1L,N1R,N1T8,N1T9,N1U,N1W,N1W1, N1W2,N1W7,N1W8,N1W9,N2,N2D,N2E,N2E1,N2E2, N2E3,N2E7,N2E8,N2E9,N2EE,N2U,N3T8,N3T9, N3U,N3V,N3W8,N3W9,N5A,N5C,N7A1,N7S1,NBL1,...
  • Page 218 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Note Part No. Description Serial No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 93891-05010-08 SCREW-WASHER, 5X10 ------- ------- A1A,A1AE,A1AF,A1AS,A1AW,A1C,A1E,A1E7,A1E8 A1G7,A1G9,A1J,A1M,A1P,A1U,A1W2,A1W7,A2A, A2A9,A2C,A2E,A2E4,A2E7,A2E8,A2E9,A2G4, A2G7,A2G9,A2R,A2U,A3A,A3E,A3E7,A3E9,A3G9, A3T9,A3W7,A3W8,A4E,A4G4,A4G7,A4G9,A7E1, A7Q1,BHH,BHH1,C1E,C1E1,C2E,C2E1,C3E,C3E1, C4E,C4E1,E1A2,E1A4,E1G7,E2G7,E5A4,EHHB, N1,N1A,N1AF,N1C,N1D,N1E1,N1E2,N1E7,N1J1, N1L,N1R,N1T8,N1T9,N1U,N1W,N1W1,N1W2,N1W7, N1W8,N1W9,N2,N2D,N2E,N2E1,N2E2,N2E3,N2E7, N2E8,N2E9,N2EE,N2U,N3T8,N3T9,N3U,N3V,N3W8 N3W9,N5A,N5AF,N5C,N5MF,N5R,N7A1,N7S1,NBL1...
  • Page 219 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Note Part No. Description Serial No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 ------- ------- A1E7,A1E8,A1G7,A1G9,A1M,A1P,A1W7,A2A9 A2E7,A2E8,A2E9,A2G4,A2G7,A2G9,A3E7,A3E9 A3G9,A3T9,A3W7,A3W8,A4G4,A4G7,A4G9,C1E C1E1,C2E,C2E1,C3E,C3E1,C4E,C4E1,E2G7 N1D,N1E1,N1E2,N1E7,N1J1,N1L,N1R,N1T8 N1T9,N1U,N1W7,N1W8,N1W9,N2E7,N2E8,N2E9 N2EE,N2U,N3T8,N3T9,N3U,N3V,N3W8,N3W9 S1G4,S2E,S2E3,S2G7,S3G9,S3H2,S4G4,S4G9 ------- 2075802 ------- 3176791 S1E1,S2E1,S2E2,S3E9,S4E4,S4E9 95002-02100 CLIP, TUBE(B10)....
  • Page 220 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Note Part No. Description Serial No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 16950-ZM0-003 COCK ASSY., FUEL....------- ------- N1J1 2439089 ------- A1A,A1C,A1E,A1E7,A1E8,A1G7,A1P,A1W2 A1W7,A2A,A2C,A2E,A2E4,A2E7,A2E8,A2E9 A2G7,A2R,A3E,A7E1,N1,N1D,N1E1,N1E2,N1E7 N1R,N1U,N1W,N1W1,N1W2,N1W7,N1W8,N1W9,N2 N2E,N2E1,N2E3,N2E7,N2E8,N2E9,N2U,N3U N3V,N7A1 ------- ------- A1AW,A1E,A1M,A3E,BHH1,C1E,C1E1,C2E,C2E1,...
  • Page 221 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Note Part No. Description Serial No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 ------- ------- A1E,A1M,A3E,C1E,C1E1,C2E,C2E1,C3E,C3E1 C4E,C4E1,E1A2,E1A4,E1G7,E2G7,E5A4,EHHB N1E1,N1L,N1R,N3U,N7S1,S2G7,S3H2 ------- 3698326 NBL1 ------- 4030139 RTL1,STL1 ------- 4803407 S3A2,S3H ------- 8020871 R1A,R3A,R3A1 2510375 -------...
  • Page 222 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Note Part No. Description Serial No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 90043-ZL8-000 BOLT, STUD(H=42.5MM)..------- ------- A1A,A1AE,A1AF,A1AS,A1AW,A1C,A1E,A1E7 A1E8,A1G7,A1J,A1M,A1P,A1U,A1W2,A1W7,A2A A2C,A2E,A2E4,A2E7,A2E8,A2E9,A2G7,A2R A2U,A3A,A3E,A4E,A7E1,BHH,BHH1,E1A2,E1A4 E1G7,E2G7,E5A4,EHHB,N1,N1A,N1AF,N1C,N1D N1E1,N1E2,N1E7,N1J1,N1L,N1R,N1U,N1W N1W1,N1W2,N1W7,N1W8,N1W9,N2,N2D,N2E N2E1,N2E2,N2E3,N2E7,N2E8,N2E9,N2U,N3U N3V,N5A,N5AF,N5C,N5MF,N5R,N7A1,N7S1 NBL1,R1A,R3A,R3A1,RTL1,S1A,S1A1,S1M S2G7,S3A,S3A2,S3H,S3H2,STA1,STL1 ------- -------...
  • Page 223 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Note Part No. Description Serial No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 E-12-1 16854-ZH8-000 RUBBER, SUPPORTER(107MM)..------- ------- A1A,A1AF,A2A9,A2R,A4A9,A7H1,BHH,E1A2 N1A,N1AF,N5AF,N5MF,N5R,N5RE,N7A1,N7S1 ------- 6901760 S1A,S1M,S3A,S3H ------- 8028729 ------- ------- A1A,A1AF,A2R,BHH,E1A2,N1A,N7A1,N7S1 ------- 1854820 N1AF,N5AF,N5MF,N5R,N5RB...
  • Page 224 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Note Part No. Description Serial No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 93891-05010-08 ......------- ------- A1A,A1AF,A2R,BHH,E1A2,N1A,N7A1,N7S1 ------- 1854820 N1AF,N5AF,N5MF,N5R,N5RB 95002-40800-08 CLAMP, TUBE(D8)....------- ------- A1A,A1AF,A2R,BHH,E1A2,N1A,N7A1,N7S1,R3A S1A,S1M,S3A,S3H,S3T,S3TE,SBT ------- 1854820 N1AF,N5AF,N5MF,N5R,N5RB...
  • Page 225 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Note Part No. Description Serial No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 2659549 3273291 A1G9,A1P,A2G4,A2G7,A2G9,A3E7,A3E9,A3G9 A3T9,A3W7,A3W8,A4G4,A4G7,A4G9,N1J1,N1T9 N1W7,N2E7,N2E8,N3T8,N3W8,N3W9 3020071 3273291 A2A9,A4A9 7055345 ------- A1A,A2R,BHH,N1A 16100-Z0L-023 CARBURETOR ASSY.(BB62W C)..3273292 ------- A1G9,A1P,A2G4,A2G7,A2G9,A3E7,A3E9,A3G9 A3T9,A3W7,A3W8,A4G4,A4G7,A4G9,N1J1,N1T9...
  • Page 226 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Note Part No. Description Serial No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 E-22 CONTROL(1) ILLSTRATION CORRECT AND NEWLY PROVIDED Ref. (Relative ref. Number) No. LON Description 30 3111D9 SPACER, CARBURETOR ・・・・・・・・・・・...
  • Page 227 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Note Part No. Description Serial No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 2462270 3176791 S1E1,S2E1,S2E2,S3E9,S4E4,S4E9 16584-883-300 SPRING, CONTROL ADJUSTING..------- ------- A7E1, A7Q1,N7A1,N7S1,S2E,S2G7 ------- 3176791 S1E1,S2E1,S2E2,S3E9,S4E4,S4E9 16599-ZG1-M10 COLLAR, STOPPER....
  • Page 228 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Note Part No. Description Serial No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 ------- 1854820 N1AF,N5AF,N5MF,N5R,N5RB 16613-893-000 GROMMET, CHOKE ROD.... ------- ------- A1AE,A1AF,A3A,E1A2 ------- ------- E1A4,E5A4,N1AF,N5AF,N5MF,N5R ------- ------- N5RE ------- ------- N1AF,N5AF,N5MF,N5R...
  • Page 229 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Note Part No. Description Serial No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 ------- 1854820 N1AF,N5AF,N5MF,N5R,N5RB 90681-959-003 CLIP A, CABLE(NIFCO) (3.8MM BLACK) ------- ------- E1A2,N1AF,N5AF,N5MF,N5R ------- ------- N1AF,N5AF,N5MF,N5R ------- 1854820 N1AF,N5AF,N5MF,N5R,N5RB...
  • Page 230 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Note Part No. Description Serial No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 16551-ZM0-010 ARM, GOVERNOR....1854821 ------- N1AF,N5AF,N5MF,N5R,N5RB 16555-Z0L-801 ROD, GOVERNOR....1854821 ------- N1AF,N5AF,N5MF,N5R,N5RB 16561-Z8B-V30 SPRING, GOVERNOR....1854821 ------- N1AF,N5AF,N5MF,N5R,N5RB 16562-ZM0-000...
  • Page 231 January 21,2012 13ZM00E8 CODE NO. PARTS CATALOGUE NEWS GCV160 GCV160A PARTS Honda Motor Co., Ltd. GCV160A0 CATALOGUE GCV160E Customer Service Technology Development Division NEWS GCV160LE GCV160LA GCV160LA0 Printed in Japan NEWS NO. GCV160E-A4EV TYPE sales parts information NOTE: This Parts Catalogue News explains only the parts of the different model that are produced to conform to addition of the GCV160E-A4EV type.
  • Page 232 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Base Additional •Features of each type type type Model GCV160LE GCV160E Type A4A9 A4EV Specifications 20mm Ø Straight (133.8mm) 22.2mm Ø Straight (100.4mm) 22.2mm Ø Straight (117.4mm) (Depth 24mm) 22.2mm Ø Straight (117.4mm) (Depth 52mm) 22.2mm Ø Straight Crankshaft (135.7mm) ...
  • Page 233 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Part No. Description Base Part No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 12000-Z1L-406 BARREL ASSY., CYLINDER..A4EV 90013-Z1L-000 BOLT, FLANGE, 6X13.... 90013-883-000 A4EV 98079-55846 PLUG, SPARK(BPR5ES)(NGK)..A4EV BARREL ASSY., CYLINDER..
  • Page 234 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Part No. Description Base Part No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 95002-40800-08 CLAMP, TUBE(D8)....A4EV 95002-41000-08 CLAMP, TUBE(D10)....A4EV 95002-41200-08 CLAMP, TUBE(D12)....A4EV CLIP, TUBE(C11)....95002-70000 A4EV 06175-Z8B-800...
  • Page 235 A4EV SCREW, RECESSED, 5X28..90016-ZE7-W00 A4EV E-28 LABEL, WARNING 87114-ZH7-821 (NOT CERTIFIED FOR SALE) A4EV MARK, EMBLEM(GCV160)..87101-Z8B-000 A4EV MARK, FUEL COCK CAUTION..87524-Z8B-000 A4EV 87519-Z0J-000 MARK, OPERATOR CAUTION..A4EV NOTE A:PART NO.CHANGE D:NEWLY PROVIDED E:PART NO.DELETION K:REQUIRED NO.CORRECTION L:APPLICATION SERIAL NO.CORRECTION...
  • Page 236 March 29,2012 13ZM00E8 CODE NO. PARTS CATALOGUE NEWS GCV160 GCV160A PARTS Honda Motor Co., Ltd. GCV160A0 CATALOGUE GCV160E Customer Service Technology Development Division NEWS GCV160LE GCV160LA PARTS CATALOGUE - CORRECTED GCV160LA0 Printed in Japan NEWS NO. Reqd.QTY Block Ref. Note Part No.
  • Page 237 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Note Part No. Description Serial No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 ------- 3360946 A1G9,A1P,A2G4,A2G7,A2G9,A3E7,A3E9,A3G9 A3T9,A3W7,A3W8,A4G4,A4G7,A4G9,A7E1,N1J1 N1T9,N1W7,N2E7,N2E8,N3T8,N3W8,N3W9,S1E1 S2E1 E-12-1 16952-ZA8-800 STRAINER, FUEL....------- 1428001 N5RE,S3TE ------- ------- A4EV ------- ------- ------- -------...
  • Page 238 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Note Part No. Description Serial No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 ------- 1583553 S3H2 2441276 ------- S1E1,S2E1 7161135 ------- S1A,S3A ------- ------- ------- 2528590 R3A,S3A 16100-Z0L-023 CARBURETOR ASSY.(BB62W C)..
  • Page 239 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Note Part No. Description Serial No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 ------- 1059693 S2G7 ------- 2467992 S2E2,S2E3,S3E9,S3G9,S4E4,S4E9,S4G4,S4G9 16015-887-782 CHAMBER SET, FLOAT..... (CARBURETOR NO.) ------- BB62W A A1A,A2A9,A2R,A4A9,BHH,E1A2,N1A ------- BB62Y A N7A1,N7S1...
  • Page 240 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Note Part No. Description Serial No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 ------- 7132770 A1A,A1AF,S1M,S3H 75100-Z1L-000 ......------- ------- A4EV,A7Q1 3217935 ------- A1G9,A1P,A2G4,A2G7,A2G9,A3E7,A3E9,A3G9 A3T9,A3W7,A3W8,A4G4,A4G7,A4G9,A7E1,S2E2 S2E3,S3E9,S3G9,S4E4,S4E9,S4G4,S4G9 3238210 ------- A2A9,A4A9,A7H1 NOTE A:PART NO.CHANGE D:NEWLY PROVIDED E:PART NO.DELETION K:REQUIRED NO.CORRECTION L:APPLICATION SERIAL NO.CORRECTION T:APPLICATION CORRECTION Z:REMARKS CHANGE...
  • Page 241 June 23,2012 13ZM00E8 CODE NO. PARTS CATALOGUE NEWS GCV160 GCV160A PARTS Honda Motor Co., Ltd. GCV160A0 CATALOGUE GCV160E Customer Service Technology Development Division NEWS GCV160LE GCV160LA PARTS CATALOGUE - CORRECTED GCV160LA0 Printed in Japan NEWS NO. Reqd.QTY Block Ref. Note Part No.
  • Page 242 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Note Part No. Description Serial No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 ------- 2467992 S2E2,S2E3,S3E9,S3G9,S4E4,S4E9,S4G4,S4G9 ------- ------- ------- 3180268 16600-Z1L-840 ......------- 1546574 S3TE,SBTE 1059694 ------- S2G7 ------- ------- S1G4...
  • Page 243 July 30,2012 13ZM00E8 CODE NO. PARTS CATALOGUE NEWS GCV160 GCV160A PARTS Honda Motor Co., Ltd. GCV160A0 CATALOGUE GCV160E Customer Service Technology Development Division NEWS GCV160LE GCV160LA PARTS CATALOGUE - CORRECTED GCV160LA0 Printed in Japan NEWS NO. Reqd.QTY Block Ref. Note Part No.
  • Page 244 PARTS CATALOGUE NEWS BOOKNo.:13ZM00E8 Reqd.QTY Block Ref. Note Part No. Description Serial No. Parts catalogue code GCV GCV GCV GCV GCV 160 160 160 160 160 16620-Z8D-841 THERMOWAX ASSY....1546575 ------- S3TE,SBTE 3360947 ------- S1G4,S2E2,S2E3,S3E9,S3G9,S4E4 S4E9,S4G4,S4G9 3180269 ------- S3H,S3T,SBT NOTE A:PART NO.CHANGE D:NEWLY PROVIDED E:PART NO.DELETION K:REQUIRED NO.CORRECTION L:APPLICATION SERIAL NO.CORRECTION M:PART DESCRIPTION CORRECTION T:APPLICATION CORRECTION Z:REMARKS CHANGE...

This manual is also suitable for:

Gcv160aGcv160a0Gcv160eGcv160leGcv160laGcv160la0

Table of Contents

Save PDF
