Net World Sports Forza 360 Manual

Wheel

Advertisement

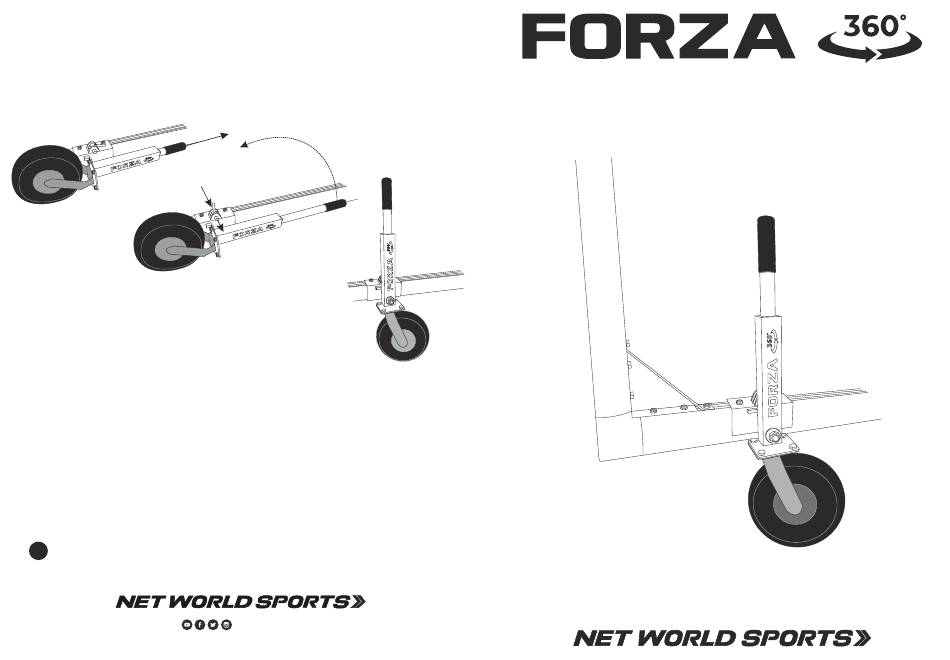

To operate wheel:

1: extend lever arm.
2: pull lever.
3: Lock bolt into place.
3
Please take extreme care when raising or lowering
wheels. Injury can occur.
This product is not a toy, serious injury can occur
if misused.
i
Always inspect for defects before use and repair or replace damaged parts.
Do not use with faulty parts.
Please adhere to safety instructions at all times.
www.networldsports.co.uk / / +44 (0) 1691 683 807 / / cs@networldsports.co.uk
www.networldsports.com / / 1-866-861-9095 / / cs@networldsports.com
1
2
@NetWorldSports
WHEEL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Forza 360 and is the answer not in the manual?

Questions and answers

Summary of Contents for Net World Sports Forza 360

  • Page 1 To operate wheel: 1: extend lever arm. 2: pull lever. WHEEL 3: Lock bolt into place. Please take extreme care when raising or lowering wheels. Injury can occur. This product is not a toy, serious injury can occur if misused. Always inspect for defects before use and repair or replace damaged parts.
  • Page 2 PARTS LIST Attach castor to Lever & bracket using M10x25 bolts (38055), M10 nuts and washers. CASTOR WHEEL LEVER & BRACKET (LEFT HAND) LEVER & BRACKET M10x25 bolt (RIGHT HAND) STEEL SPACER PLATE M10 washer and nut NUTS, BOLTS AND X1 SET WASHERS (M10) To fit wheel bracket to goal first place the steel spacer plate over 2 pre...
