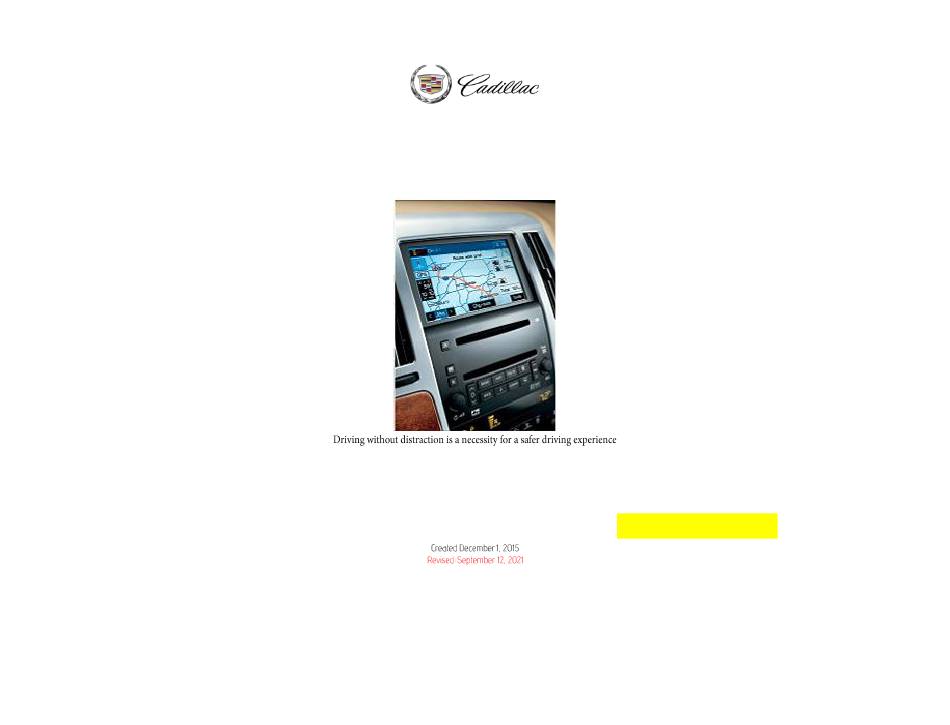

- Page 1 Courtesy of: DiscountCarStereo.com Serving the internet community since 1995 AUX-STS QUICK START AUX INSTALLATION GUIDE FOR 2005-11 CADILLAC STS WITH XM TUNER MODULE...
-
Page 2: Installation
XM Tuner module and retain XM subscription (if subscribed) to provide a 3.5mm ack to which users connect and play all kinds of audio devices including MP3 players, Smartphones, Tablets, iPod etc. The AUX-STS also works if XM subscription has expired. To verify vehicle has required XM tuner module, simply press “BAND”... - Page 3 Fig. 3 Fig. 5 radio connectors 16-pin connector 4. Disconnect factory 16-pin XM radio plug (See Fig. 4) from radio (See 6. Connect adapter 16-pin plug to radio cavity vacated in step 4 Fig. 3). To disconnect, pull back blue locking tab, then press and pull 7.
-
Page 4: Operation
Operation Turn ignition and radio “ON” 2. Repeatedly press “BAND” button until XM is displayed Most recent XM or preview channel will play, otherwise XM subscribers: there may be silence. Fig.7 3. Connect audio device to 3.5mm jack using the included 3 ft. audio cable or Warning: Jack may be left freestanding, but to be mounted, ensure similar (See Fig. - Page 5 3. Will the AUX-STS work if XM subscription has expired? YES; so long vehicle has an XM tuner module (DRR), the AUX-STS will work. XM subscription not required; XM Tuner module (metal box hidden in remote location) is required. To check for tuner, see question #4.
