Zamel Exta Free RCR-01 Manual Instruction

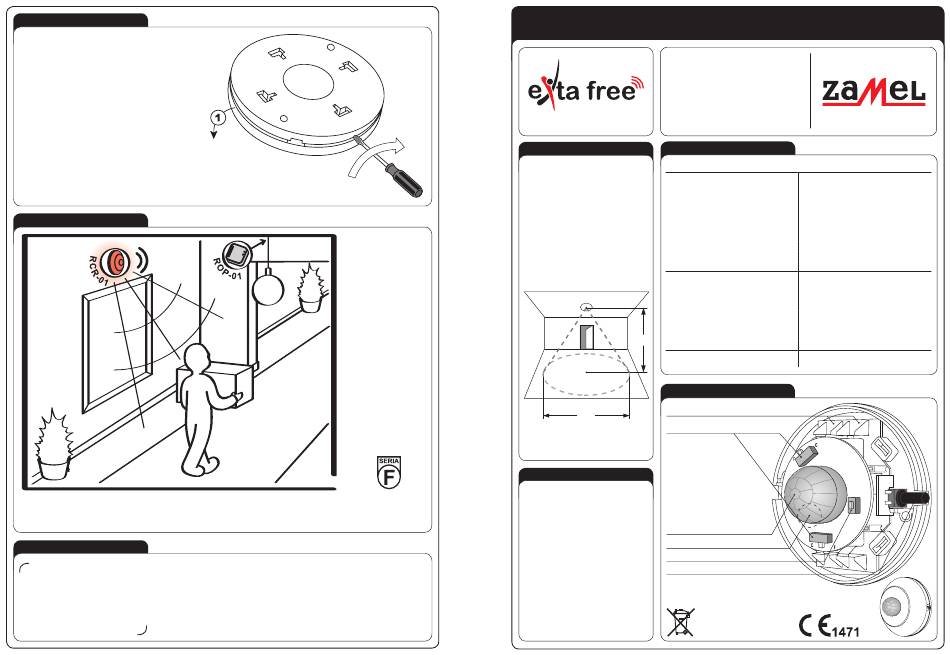

MOUNTING
The sensor can be mounted in any place by means of do-
uble-sided adhesive tape or wall plugs 5x(3x30) mm.
Mounting by means of wall plugs:
1. Remove the upper cover - to do it put a screwdriver into a
slot between the cover and the base and switch it lifting up
the cover at the same time.
2. Choose a place on the wall to mount the RCR-01 devi-
ce, make two holes corresponding mounting holes from the
transmitter's base.
3. Set wall plugs in the holes.
4. Fix the base by means of tightening screws into wall plugs.
5. Place the upper cover's latches into the latches of the
base.
CAUTION: The device has factory mounted batteries se-
cured with special separator. Before the first device use
remove the separator.
APPLICATION
Wireless lighting operation system. RCR-01 sensor sends a radio control signal
to ROP-01 receiver after movement detection.
WARRANTY CARD
There is 24 months guarantee on the product
1. ZAMEL provides a two-year warranty for its products.
2. The ZAMEL warranty does not cover: a) mechanical defects resulting from transport, loading / unloading or other circumstances
b) defects resulting from incorrect installation or operation of ZAMEL products; c) defects resulting from any changes made by CUS-
TOMERS or third parties, to products sold or equipment necessary for the correct operation of products sold; d) defects resulting
from force majeure or other aleatory events for which ZAMEL is not liable; e) power supply (batteries) to be equipped with a device
in the moment of sale (if they appear);
3. All complaints in relation to the warranty must be provided by the CUSTOMER in writing to the retailer after discovering a defect.;
4. ZAMEL will review complaints in accordance with existing regulations.;
5. The way a complaint is settled, e.g. replacement of the product, repair or refund, is left to the discretion of ZAMEL.
6. Guarantee does not exclude, does not limit, nor does it suspend the rights of the PURCHASER resulting from the discrepancy
between the goods and the contract.
Salesman stamp and signature, date of sale

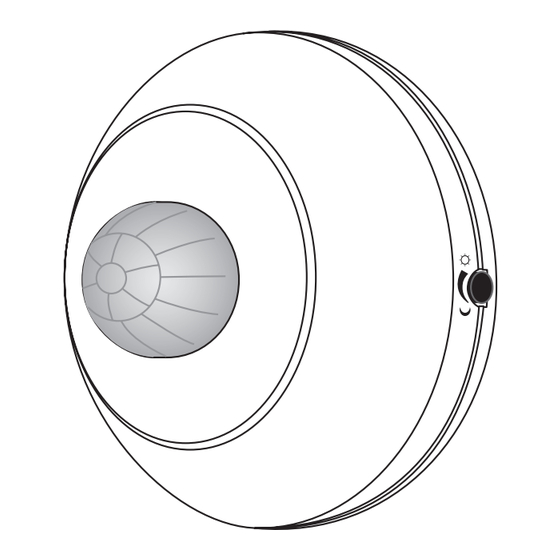

RADIO MOTION SENSOR RCR-01
DESCRIPTION
RCR-01 radio motion sensor is an inde-
pendent battery powered transmitter. The
sensor detects heat radiation changes
caused by the presence or movement of
an object which is in the operation ran-
ge. After movement detection the system
sends a radio signal to a programmed re-
ceiver or a group of receivers which con-
trol lighting. The motion sensor is resistant
to the ambient temperature changes and
to air thermal motion. Operation mode
with twilight sensor (with adjusted sensi-
tivity of luminous density measurement)
enables to limits sensor's operation range
to operation after twilight.
Operation range (ceiling mounting)
Angle of view: 60°
Operation range: 2,5 m
FEATURES
● (PIR) motion sensor used in radio con-
trol of EXTA FREE receivers;
The ZAMEL company
devices which are
● easy installation and mounting by me-
characterised with this sign
ans of double-sided adhesive tape
can cooperate
or screws;
with each other.
● twilight switch is built-in (motion sensor
operation can be blocked e.g. during
a day);
● sending information and battery status
are optically signalled,
● wide range of operation (up to 200m);
● possibility of cooperation with any num-
ber of EXTA FREE system receivers;
● possibility of simultaneous switching
on/switching off any number of EXTA
FREE system receivers;
● possibility of increasing operation ran-
ge by means of RTN-01 retransmitter.
ZAMEL Sp. z o.o.
ul. Zielona 27, 43-200 Pszczyna, Poland
tel. +48 (32) 210 46 65, fax +48 (32) 210 80 04
www.zamelcet.com, e-mail: marketing@zamel.pl
TECHNICAL DATA
Input rated voltage: 3 V DC
Battery type: 2x AAA / R03
Number of channels: 1
Twilight sensor adjustment range: 2 ÷ 20 lx
Transmission: radio 868,32 MHz
Optic signalling of transmitter's operation: LED red diode
Ambient temperature range: -10 ÷ +55
Operating position: free
Casing mounting: wall plugs, double-sided adhesive tape
Casing protection degree: IP20 (EN 60529)
Protection level: III
Pollution degree: 2
2,5m
Reference standard: ETSI EN 300 220-1,
APPEARANCE
Battery bases
3m
Switches of operation modes
Motion sensor lens
Optic signalling range of operation
PROG push-button
Sensitivity potentiometer
The symbol means selective
collecting of electrical and electronic
equipment.
It is forbidden to put the used
equipment together with other waste.
MANUAL INSTRUCTION
RCR-01
Battery life: 1 year (depending on use)
Coding way: unidirectional
Coding: addressing transmission
Range: up to 200 m in the open area
o C
Dimensions: Ø70 x 40 mm
Weight: 0,07 kg
ETSI EN 300 220-2
VER. 003_20.05.2011
