4. OPERATING INSTRUCTION

4.1 Quick Start Guide

(1) Standby Button
Press the button once to switch on the DAC, vice versa, press once to put the DAC into
standby mode. The Standby LED shall be on when the DAC is in Standby Mode. The LED shall
be off when the DAC is in Operating Mode.
(2) Control Button (From left to right)
a. INPUT + / Input - :
Press the buttons to select the input source, namely, COAX, AES1, AES2, OPT, I2S-A,
I2S-B, I2S-C, USB. Press + to select the next right input. Press – to select the previous
left input. The respective input source LED shall be on to indicate that the input
source is selected.
b. PHASE
Press the button to toggle Phase Output. LED On: Positive Phase, LED Off: Negative
Phase
c. OS/NOS
Press the button to toggle between OS/NOS model. The LED lit to indicate the DAC is
in NOS mode.
d. MUTE
Press the button to enable/disable Mute. When mute, the Input Signal LED will be
blinking from Left to Right.
© DENAFRIPS CO. LTD. & VINSHINE AUDIO PTE. LTD. (SINGAPORE)
1
2

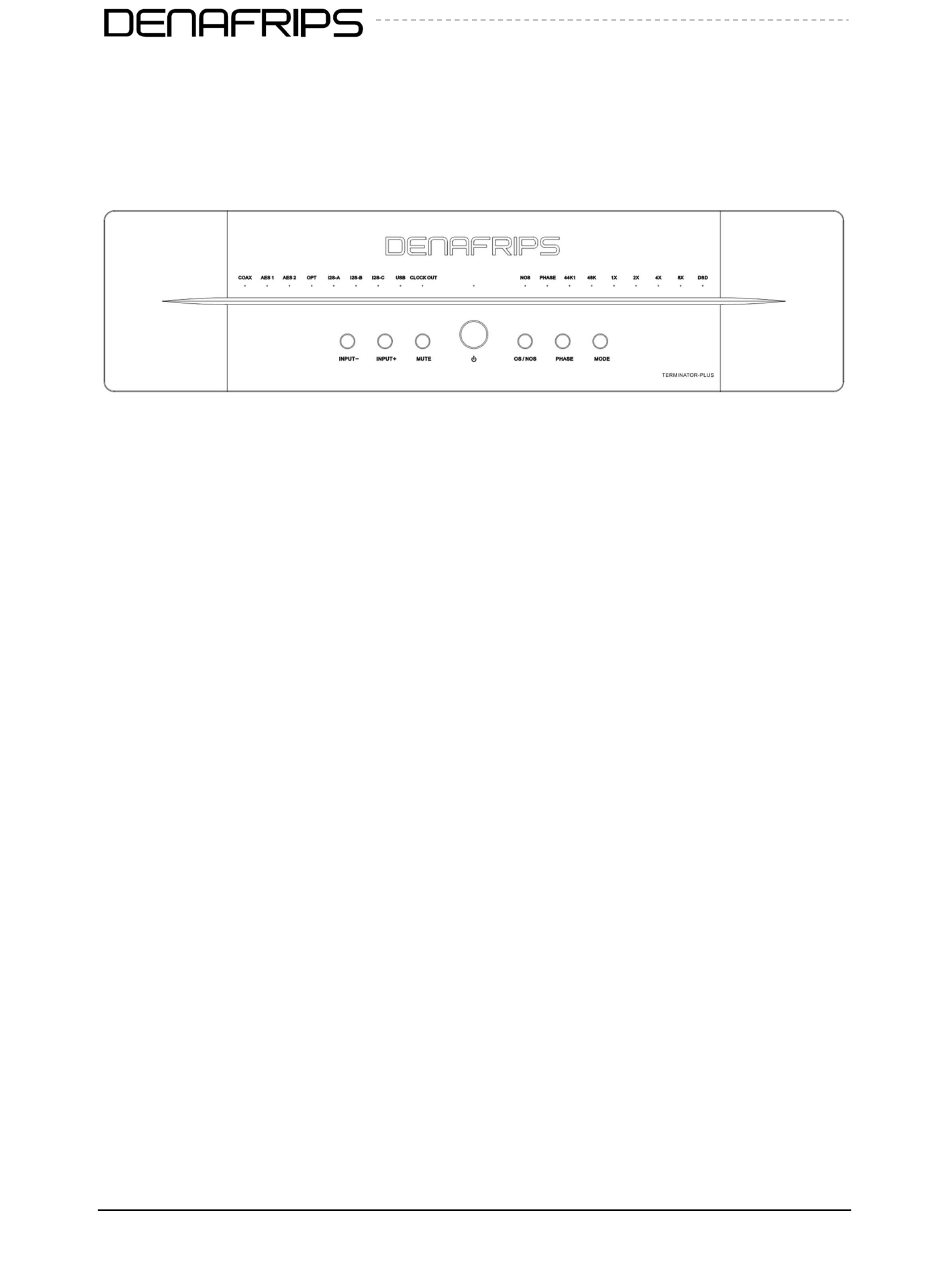

Figure 1. Front Panel
