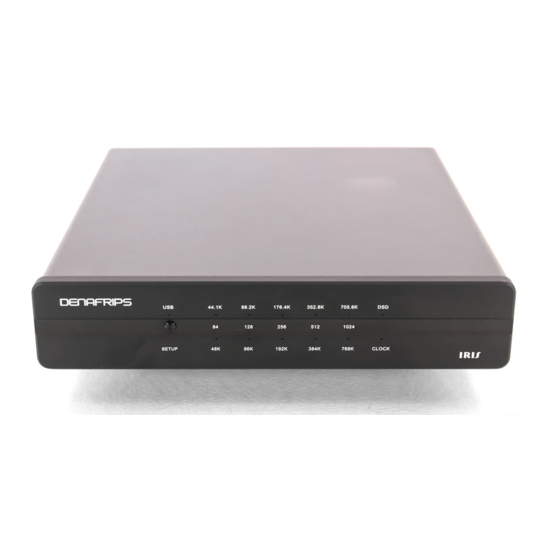

DENAFRIPS IRIS Owner's Manual

Digital to digital converter
Hide thumbs
Table of Contents

Advertisement

Quick Links

IRIS DDC

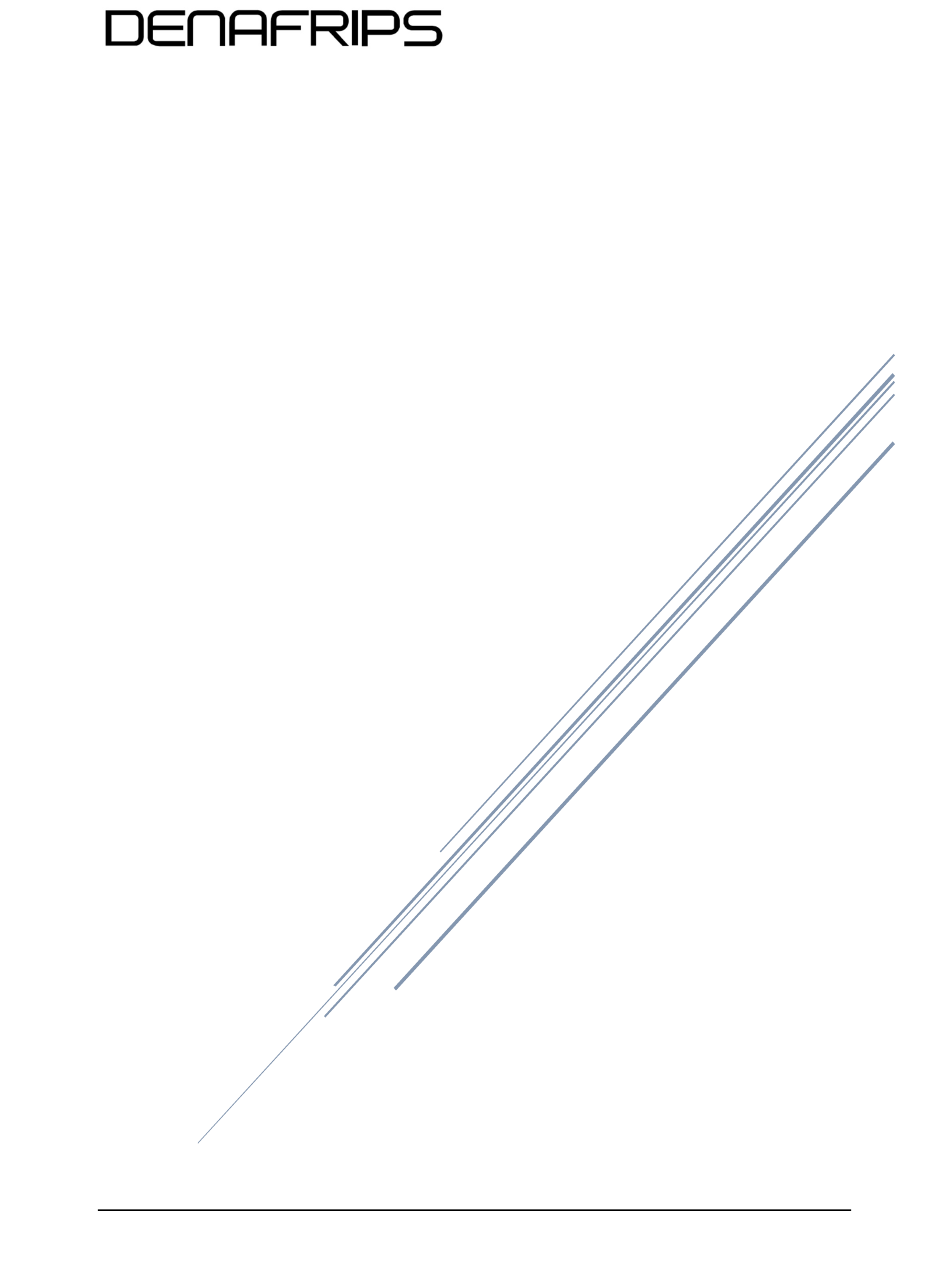

OWNER'S MANUAL
V1.0
19th July 2020
© DENAFRIPS CO. LTD. & VINSHINE AUDIO PTE. LTD. (SINGAPORE)
ALL RIGHTS RESERVED

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IRIS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DENAFRIPS IRIS

Summary of Contents for DENAFRIPS IRIS

  • Page 1 IRIS DDC OWNER’S MANUAL V1.0 19th July 2020 © DENAFRIPS CO. LTD. & VINSHINE AUDIO PTE. LTD. (SINGAPORE) ALL RIGHTS RESERVED...

  • Page 2: Table Of Contents

    CLOCK IN ........................5 OPERATING INSTRUCTION ....................6 Quick Start Guide ......................6 USB DRIVER INSTALLATION – WINDOWS OS ............10 SPECIFICATIONS ........................ 14 WARRANTY ........................15 © DENAFRIPS CO. LTD. & VINSHINE AUDIO PTE. LTD. (SINGAPORE) ALL RIGHTS RESERVED...

  • Page 3: Installation & Safety Instructions

     The electronics in modern hi-fi equipment is complex and may, therefore, be adversely affected or damaged by lightning. For protection of the audio system during electrical storms, disconnect the mains plugs. © DENAFRIPS CO. LTD. & VINSHINE AUDIO PTE. LTD. (SINGAPORE) ALL RIGHTS RESERVED...

  • Page 4: Introduction

    DAC. It transforms the Computer Audio System into a high-quality transport. The sonic improvement is evident as soon as the IRIS DDC is added into the Digital Audio chain. © DENAFRIPS CO. LTD. & VINSHINE AUDIO PTE. LTD. (SINGAPORE)

  • Page 5: Design Highlights

    3. DESIGN HIGHLIGHTS 3.1 DIGITAL ISOLATION The IRIS Digital Signals are completely isolated by the 50-Mbps high speed photocouplers. The optical isolation yields even lowered noise-floor and achieved high signal to noise ratio. 3.2 FEMTO CRYSTAL OSCILLATOR The IRIS is equipped with dual FEMTO Clocks operating at audio frequencies 45.1584Mhz, 49.152Mhz.

  • Page 6: Proprietary, State-Of-The-Art Usb Interface

    DAC. 3.6 CLOCK IN The IRIS supports clock in of audio frequencies 45.1584Mhz, 49.152Mhz. It makes a perfect companion with the TERMINATOR-PLUS to synchronize the CLOCKS. © DENAFRIPS CO. LTD. & VINSHINE AUDIO PTE. LTD. (SINGAPORE)

  • Page 7: Operating Instruction

     CLOCK light should be on/off as the Setup button is pressed momentarily  CLOCK light on = Enable clock in  CLOCK light off = Disable clock in © DENAFRIPS CO. LTD. & VINSHINE AUDIO PTE. LTD. (SINGAPORE) ALL RIGHTS RESERVED...
  • Page 8 48 kHz 96 kHz 192K 192 kHz 48 kHz 384K 384 kHz 768K 768 kHz DSD 64 DSD 128 DSD 256 DSD 512 Table 1. Sampling Rate © DENAFRIPS CO. LTD. & VINSHINE AUDIO PTE. LTD. (SINGAPORE) ALL RIGHTS RESERVED...
  • Page 9 Description: (1) AC Power Supply CAUTION! IRIS supports AC mains range from 100-250VAC. Please check the voltage switch underneath the DDC, switch it to the correct voltage before connecting the AC mains. (2) Digital Input Interface IRIS support USB input only.
  • Page 10 (4) CLOCK IN The IRIS supports the following clock frequencies input, leveraging the high-quality OCXO of the TERMINATOR-PLUS DAC, it may be connected to IRIS CLOCK-IN to improve the sonic performance. MASTER CLOCK  45.1548MHz, 49.152Mhz © DENAFRIPS CO. LTD. & VINSHINE AUDIO PTE. LTD. (SINGAPORE)

  • Page 11: Usb Driver Installation - Windows Os

     Double click the “DENAFRIPS_UsbAudio_v4.82.0” (or the latest version) to install the USB driver.  Follow the on-screen instruction to complete the installation Figure 3. Welcome screen © DENAFRIPS CO. LTD. & VINSHINE AUDIO PTE. LTD. (SINGAPORE) ALL RIGHTS RESERVED...
  • Page 12 Figure 4. Default Installation Directory Figure 5. Preinstallation Successful © DENAFRIPS CO. LTD. & VINSHINE AUDIO PTE. LTD. (SINGAPORE) ALL RIGHTS RESERVED...
  • Page 13  Power on the DDC. Select USB input  The USB DDC shall be detected. The driver status can be monitored as follows Figure 7. Taskbar & Control Panel © DENAFRIPS CO. LTD. & VINSHINE AUDIO PTE. LTD. (SINGAPORE) ALL RIGHTS RESERVED...
  • Page 14  Select DENAFRIPS USB DDC as default Windows OS Soundcard Press Set Default button Properties of the DENAFRIPS USB DDC Direct-Sound default format ASIO Buffer Size Playback software recommendation:  roon  JRiver  Foobar2000  Sonicstudio Amarra © DENAFRIPS CO. LTD. & VINSHINE AUDIO PTE. LTD. (SINGAPORE)

  • Page 15: Specifications

    24bit/44.1, 48, 88.2, 96, 176.4, 192 kHz All Input Supported Format (PCM) 44.1 – 768 kHz USB & I²S Only Dimension 220W x 250D x 44H mm (Feet +18mm) Weight 3.5 Kg © DENAFRIPS CO. LTD. & VINSHINE AUDIO PTE. LTD. (SINGAPORE) ALL RIGHTS RESERVED...

  • Page 16: Warranty

    6. WARRANTY DENAFRIPS IRIS purchased from the Authorized Distributor comes with 36 months of warranty from the date of purchase / delivery (whichever later). Defective Warranty Policy Within First 30 Days DENAFRIPS to bear both way shipping fee. Within 1st Year Customer to bear one-way shipping fee.
