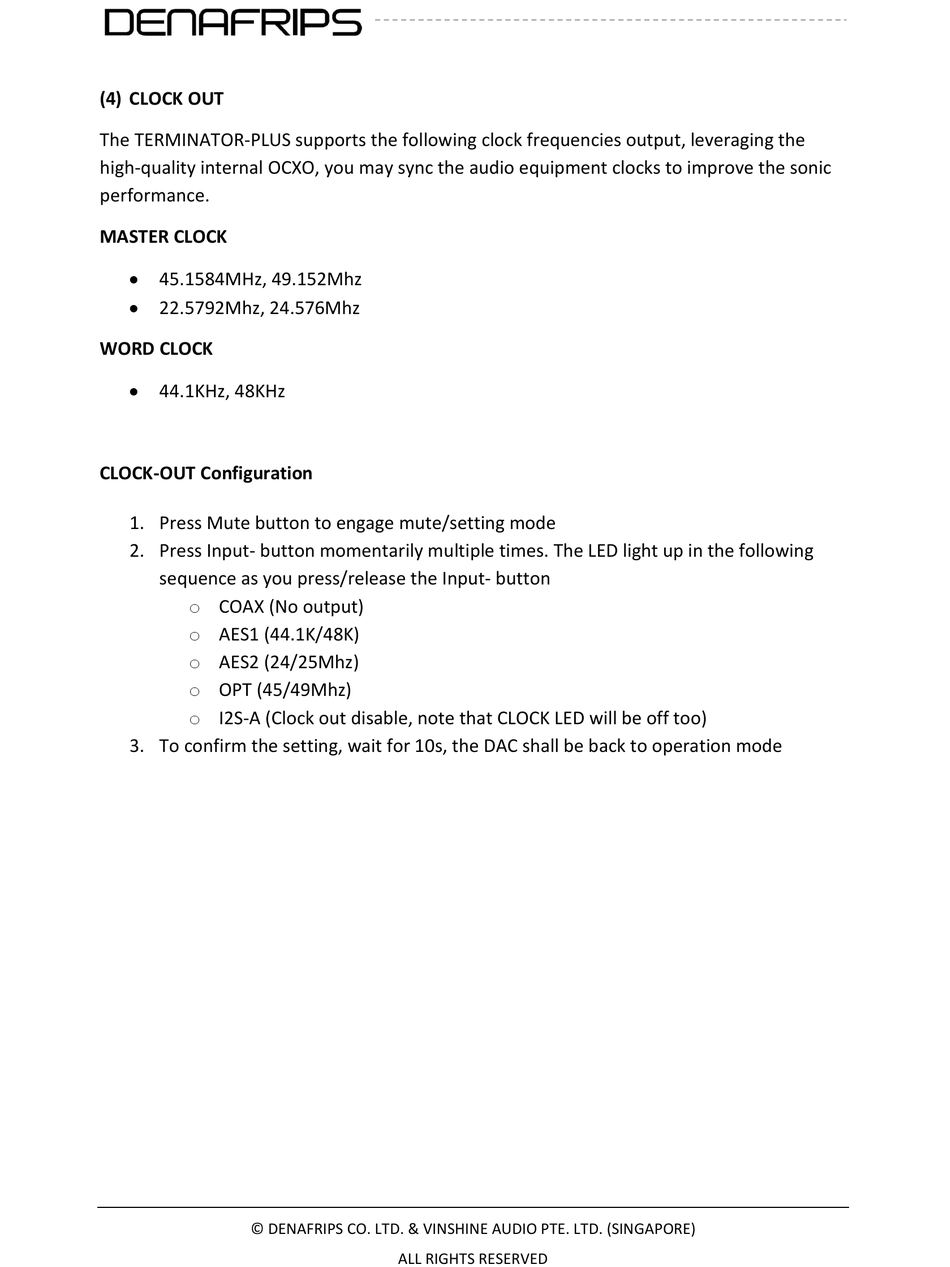

DENAFRIPS TERMINATOR-PLUS Owner's Manual page 13

(4) CLOCK OUT
The TERMINATOR-PLUS supports the following clock frequencies output, leveraging the
high-quality internal OCXO, you may sync the audio equipment clocks to improve the sonic
performance.
MASTER CLOCK
 45.1584MHz, 49.152Mhz
 22.5792Mhz, 24.576Mhz
WORD CLOCK
 44.1KHz, 48KHz
CLOCK-OUT Configuration
1. Press Mute button to engage mute/setting mode
2. Press Input- button momentarily multiple times. The LED light up in the following
sequence as you press/release the Input- button
o COAX (No output)
o AES1 (44.1K/48K)
o AES2 (24/25Mhz)
o OPT (45/49Mhz)
o I2S-A (Clock out disable, note that CLOCK LED will be off too)
3. To confirm the setting, wait for 10s, the DAC shall be back to operation mode
