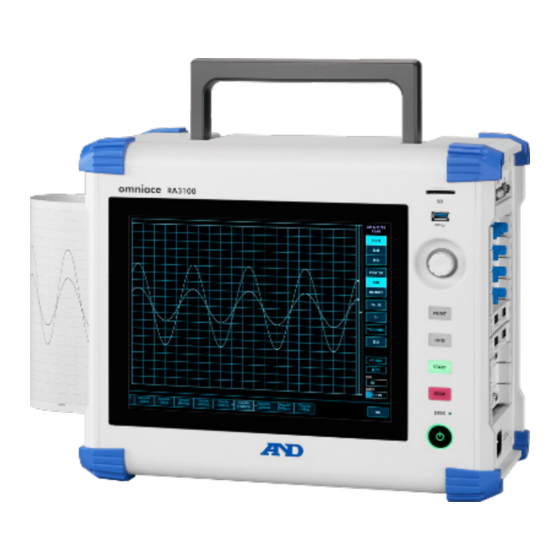

AND OMNIACE RA3100 Instruction Manual

AND OMNIACE RA3100 Instruction Manual

Viewer
Hide thumbs Also See for OMNIACE RA3100:

Advertisement

Quick Links

RA3100
Viewer
Instruction Manual
1WMPD4004532

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OMNIACE RA3100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for AND OMNIACE RA3100

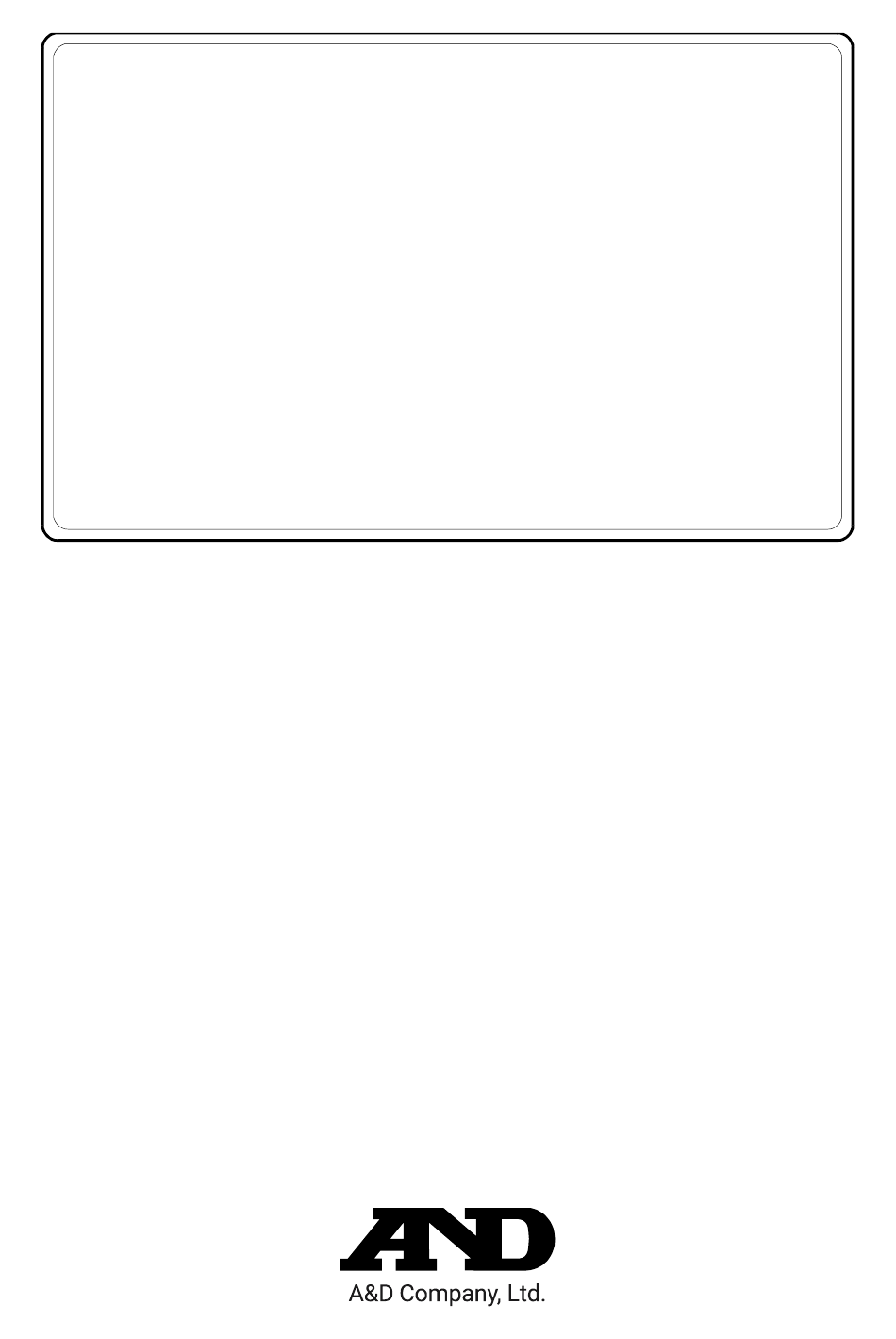

  • Page 1 RA3100 Viewer Instruction Manual 1WMPD4004532...
  • Page 2 Microsoft Windows, Word, and Excel are trademarks or registered trademarks of Microsoft Corporation in the United States and other countries. Intel and Intel Core are trademarks of Intel Corporation in the United States and/or other countries. Product names and company names in this manual are trademarks or registered trademarks of their...
  • Page 3: Introduction

    OMNIACE RA3100. RA3100 Symbols in This Manual Terms and symbols used in this manual denote as follows. This indicates a condition or practice that could result in converted files being overwritten Note if the software is misused due to neglect of a Note, as well as measurement limitations and additional explanations.
  • Page 4: Table Of Contents

    2.1. Differences between the RA3100 and RA3100 Viewer ..............9 2.1.1. Hamburger Button ........................9 2.2. Mouse Operations (Used as Substitute for the Touch Panel and Jog Dial) ......... 10 2.2.1. Basic Operations ........................10 Usage Method ..........................12 3.1.
  • Page 5: Environment

    Display Resolution of 1280 x 1024 or higher Perform installation and execute the RA3100 Viewer using an account with administrator privileges. The RA3100 Viewer does not support multiple accounts. It does not operate with accounts other than the account used for installation.
  • Page 6 1.Environment - 1.2.Setup Method The settings differ according to the version of Windows. Enable [Developer Mode] or select [Sideload apps]. If [Developer mode] is set instead of [Sideload apps], [Developer mode] is acceptable. The [Turn on developer mode?] dialog is displayed. Click the [Yes] button.
  • Page 7: Extracting The Zip File

    Use the standard software of Windows 10 or other compression/extraction software to extract the file. The procedure for using the standard software of Windows 10 is indicated below. Right-click the ZIP file in Explorer, and select [Extract All]. The [Extract Compressed (Zipped) Folders] screen is displayed.
  • Page 8: Installation Method

    The [Select Setup Language] screen is displayed. Click the [OK] button. To create a shortcut on the desktop, select [Create a shortcut on your desktop], and click [Next]. Click the [Install] button to start installation. When the [Completing the RA3100Viewer Setup Wizard] screen is displayed, installation is complete.
  • Page 9: Functions

    The differences in functions are as follows. (1) The RA3100 Viewer has a title bar and hamburger button on the top of the screen. (2) The touch panel and jog dial operations of the RA3100 are performed using the mouse with the RA3100 Viewer.
  • Page 10: Mouse Operations (Used As Substitute For The Touch Panel And Jog Dial)

    2.2. Mouse Operations (Used as Substitute for the Touch Panel and Jog Dial) 2.2.1. Basic Operations The Ctrl, Shift, and Alt keys on the keyboard can be combined with mouse wheel operations to configure settings and move or enlarge/reduce the waveform.
  • Page 11 2.Functions - 2.2.Mouse Operations (Used as Substitute for the Touch Panel and Jog Dial) Action Mouse operation and behavior Changing the X axis Ctrl key + rotate mouse wheel up: Enlarge scale scale of the waveform Ctrl key + rotate mouse wheel down: Reduce scale...
  • Page 12: Usage Method

    This operation is performed on the RA3100 main unit. The operator inserts the USB stick or SD memory card "3.3. Copying Recorded into a Windows PC and manually copies the RA3100 Operation (2) Data on a USB Stick to a folder in Explorer.
  • Page 13: Copying Recorded Data From The Ra3100 To A Usb Stick

    Place a check mark (✔) on t he dat a t o back up Place a check mark (✔) i n t he sel ect i on f i el d of t he dat a t o back up and t ap t he 【Export】key in the center to export the recorded data.
  • Page 14: Copying Recorded Data On A Usb Stick To A Windows Pc

    Connect the USB stick or SD card that the data was copied to in "3.2. Copying Recorded Data from the RA3100 to a USB Stick" to a Windows PC. Copy the entire "RA3100" folder on the USB stick or SD card to a local disk in Explorer. Drag and drop...
  • Page 15: Starting The Software

    3.4. Starting the Software Click the [A&D] - [RA3100Viewer] in the Windows Start menu. Note The display of the Windows Start menu differs according to the version of Windows and the environment settings. 3.5. Configuring the Recorded Data Folder Click the hamburger button (circled in red) on the top left of the [RA3100 Viewer] screen.
  • Page 16: Specifying Replay Data

    The replay function is the same as the RA3100 main unit. See the instruction manual included with the main unit. Refer to "2.2. Mouse Operations (Used as Substitute for the Touch Panel and Jog Dial)", as there are differences between the input device of the RA3100 main unit and the PC.
  • Page 17: Capturing And Printing Waveform Images

    3.Usage Method - 3.8.Capturing and Printing Waveform Images 3.8. Capturing and Printing Waveform Images Use the standard Windows capture function. To print captured images, paste the image to an application such as Word or Excel and use the print function of that application. Capture range Operation...
  • Page 18 MEMO...
  • Page 19 Viewer RA3100 Instruction Manual 1WMPD4004532 1st Edition...
  • Page 20 A&D Company, Limited 3-23-14 Higashi-Ikebukuro, Toshima-ku, Tokyo 170-0013, JAPAN Telephone: [81] (3) 5391-6132 Fax: [81] (3) 5391-1566 A&D ENGINEERING, INC. 1756 Automation Parkway, San Jose, California 95131, U.S.A. Telephone: [1] (408) 263-5333 Fax: [1] (408)263-0119 A&D INSTRUMENTS LIMITED Unit 24/26 Blacklands Way, Abingdon Business Park, Abingdon, Oxfordshire OX14 1DY United Kingdom Telephone: [44] (1235) 550420 Fax: [44] (1235) 550485 A&D AUSTRALASIA PTY LTD...
