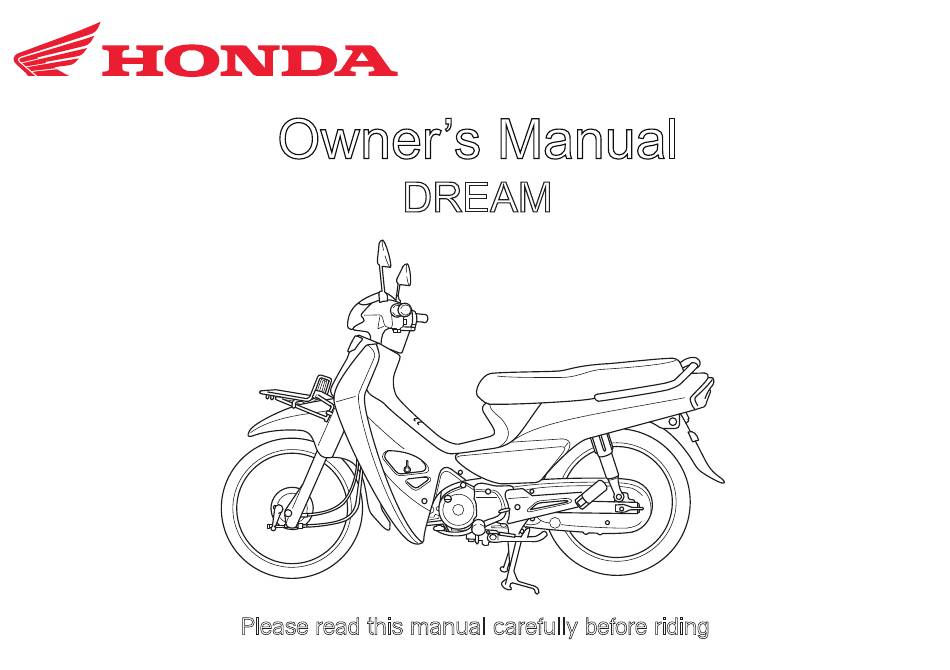

Owner's Manual
DREAM
Please read this manual carefully before riding
AND125MDN

Advertisement

Table of Contents
loading

Summary of Contents for Honda DREAM 2022

  • Page 1 Owner’s Manual DREAM Please read this manual carefully before riding AND125MDN...
  • Page 2 How can you contact to CR Section? Customer can contact to CR by the following: : 010 922 922 E-mail : cr@ncxhonda.com.kh Working Hours : 08:00AM-05:00PM Working Days : Every Monday to Saturday (except National Holidays and cr@ncxhonda.com.kh Company Holiday) Honda Cambodia – NCX www.ncxhonda.com.kh...
  • Page 3 This publication includes the latest production information available before printing. Honda Motor Co., Ltd. reserves the right to make changes at any time without notice and without incurring any obligation.
  • Page 5 Welcome Congratulations on your purchase of a new The following code in this manual ● Honda vehicle. Your selection of a Honda indicates the country. makes you part of a worldwide family of satisfied customers who appreciate Honda's Country Code...
  • Page 6 A Few Words About Safety Your safety, and the safety of others, is very DANGER important. Operating this vehicle safely is an You WILL be KILLED or SERIOUSLY important responsibility. HURT if you don’t follow instructions. To help you make informed decisions about safety, we have provided operating procedures WARNING and other information on safety labels and in...
  • Page 7: Table Of Contents

    Contents Vehicle Safety P. 2 Operation Guide P. 12 Maintenance P. 33 Troubleshooting P. 69 Information P. 78 Specifications P. 89...
  • Page 8: Vehicle Safety

    Vehicle Safety This section contains important information for safe riding of your vehicle. Please read this section carefully. Safety Guidelines ..........P. 3 Safety Precautions..........P. 6 Riding Precautions ..........P. 7 Accessories & Modifications......P. 10 Loading ..............P. 11...
  • Page 9: Safety Guidelines

    Safety Guidelines Safety Guidelines helmet and protective apparel. Instruct your passenger on holding onto the grab rail or your waist, leaning with you in turns, and keeping their feet on Follow these guidelines to enhance your safety: the footpegs, even when the vehicle is stopped. Perform all routine and regular inspections ●...
  • Page 10 Safety Guidelines Make Yourself Easy to See Keep Your Honda in Safe Condition Make yourself more visible, especially at night, by It's important to keep your vehicle properly wearing bright reflective clothing, positioning yourself maintained and in safe riding condition.
  • Page 11 Safety Guidelines If you decide to continue riding, first turn the ignition WARNING switch to the OFF position, and evaluate the condition Running the engine of your vehicle of your vehicle. Inspect for fluid leaks, check the tightness of critical nuts and bolts, and check the while in an enclosed or even partially handlebar, control levers, brakes, and wheels.
  • Page 12: Safety Precautions

    Safety Precautions Safety Precautions Face shield with unobstructed field of vision or ● other approved eye protection Ride cautiously and keep your hands on the ● WARNING handlebar and feet on the footpegs. Keep passenger's hands onto the grab rail or Not wearing a helmet increases the ●...
  • Page 13: Riding Precautions

    Riding Precautions Riding Precautions Exercise caution on low traction surfaces. ● The tyres slip more easily on such surfaces and braking distances are Running-in Period longer. During the first 500 km (300 miles) of running, Avoid continuous braking. ● follow these guidelines to ensure your vehicle's Repeated braking, such as when future reliability and performance.
  • Page 14 Riding Precautions Engine Braking Parking Engine braking helps slow your vehicle down Park on a firm, level surface. ● when you release the throttle. For further If you must park on a slight incline or loose ● slowing action, downshift to a lower gear. Use surface, park so that the vehicle cannot engine braking with intermittent use of the move or fall over.
  • Page 15 Riding Precautions Using the centre stand Turn the handlebar fully to the left. To lower the centre stand, stand on the left Turning the handlebar to the right side of the vehicle. reduces stability and may cause the Hold the left handle grip and the left grab vehicle to fall.
  • Page 16: Accessories & Modifications

    We strongly advise that you do not add any seriously hurt or killed. accessories that were not specifically designed for your vehicle by Honda or make Follow all instructions in this owner's modifications to your vehicle from its original manual regarding accessories and design.
  • Page 17: Loading

    Loading Loading WARNING Overloading or improper loading can Carrying extra weight affects your vehicle's ● cause a crash and you can be seriously handling, braking and stability. hurt or killed. Always ride at a safe speed for the load you are carrying.
  • Page 18: Operation Guide

    Basic Operation Flow Pre-ride Inspection (P.38) Acceleration Carefully inspect your vehicle to make sure that it is safe to ride. Apply throttle gradually. Obey the speed limit. Shift Change (P.26) Starting the Engine (P.23) Start and warm the engine. Avoid revving the engine. Starting the Vehicle How to use basic features.
  • Page 19 Parking (P.8) Braking Close the throttle and apply the Park on a firm level surface. front and rear brakes together. Use the stand, and lock the The brakelight will indicate that steering. you have applied the brakes. Stopping If pulling off the road, signal early enough to show traffic that you are pulling over, and pull over smoothly.
  • Page 20 Parts Location Battery (P.49) Fuse (P.77) Tool kit (P.48) Right side cover (P.53) Throttle grip (P.67) Front brake lever (P.57) Rear brake pedal (P.56) Oil fill cap/dipstick (P.54) Brakelight switch Rear suspension spring (P.63) preload adjuster Kickstarter pedal (P.24) (P.68)
  • Page 21 Headlight case (P.51) Helmet holder Choke lever (P.31) Seat (P.23) (P.30) Fuel fill cap (P.28) Document bag (P.32) Seat lock (P.30) Rear suspension spring preload adjuster (P.68) Fuel valve (P.22) Drive chain (P.65) Side stand (P.64) Centre stand (P.9) Shift lever (P.26)
  • Page 22 Instruments Speedometer Gear range Shows proper speed range for each gear. Odometer Total distance ridden. Fuel gauge Needle in the red mark, remaining fuel approximately: 0.8 L (0.21 US gal, 0.18 Imp gal)
  • Page 23 Indicators If one of these indicators does not come on when it should, have your dealer check for problems. Neutral indicator Comes on when the transmission is in Neutral. Gear position indicators Indicate 1st to 4th gear position. High beam indicator Right turn signal indicator Left turn signal indicator...
  • Page 24 Switches Headlight switch • : Headlight, taillight, position light and meter lights on. • : Position light, taillight and meter lights on. • : Headlight, taillight, position light and meter lights off. Start button Turn signal switch Pressing the switch turns the turn signal off. Horn button Headlight dimmer switch •...
  • Page 25 Ignition switch Switches the electrical system on/off, Turns electrical system locks the steering. on for starting/riding. Key can be removed when in the Turns engine off. OFF or LOCK position. LOCK Locks steering. Continued...
  • Page 26 Switches (Continued) Steering Lock Locking Turn the handlebar all the way to the left or Lock the steering when parking to help right. prevent theft. Push the key down, and turn the ignition A U-shaped wheel lock or similar device is switch to the LOCK position.
  • Page 27 Shutter Close Remove the ignition key from the ignition The ignition switch for this vehicle is switch. equipped with a shutter. After parking the Align the projection of the shutter key with vehicle, close the shutter for theft prevention. the slot of the shutter, and turn the shutter key counterclockwise.
  • Page 28 Fuel Valve The two-way fuel valve is used to control the flow of fuel from the fuel tank to the carburetor. ON: normal position for riding. OFF: for parking, storing, or transportation.
  • Page 29 Starting the Engine Start your engine using the following procedure. Continued...
  • Page 30 Starting the Engine (Continued) To restart a warm engine, follow the Shift the transmission to Neutral ( indicator comes on). procedure for “Warm Engine”. Move the choke lever left all the way to fully NOTICE • If the engine does not start within 5 seconds, Using the start button turn the ignition switch to the OFF position With the throttle 1/8 - 1/4 open, press the...
  • Page 31 Warm Engine Do not use the choke. Start the engine following steps under “Cold Engine.” If the engine does not start: Turn the ignition switch to the OFF position. Move the choke lever right all the way to fully OFF. Open the throttle fully.
  • Page 32 Shifting Gears Your vehicle transmission has four forward gears. The gearshift operation differs when stopping and when moving. When stopping, change can be made from 4th to neutral directly with the 4-step rotary Stopping system. When moving, the forward 4-step return system is used.
  • Page 33 Proper shifting can prevent damaging the Downshifting engine and transmission. Downshifting at speeds higher than those in the table below may overrev the engine and Upshifting can cause damage to the engine and The upper limit speed of each gear is shown transmission.
  • Page 34 Refuelling Fuel type: Unleaded petrol only Fuel octane number: Your vehicle is designed to use Research Octane Number (RON) 91 or higher. Tank capacity: 4.0 L (1.06 US gal, 0.88 Imp Lower edge of filler neck gal) Refuelling and Fuel Guidelines (P.9) Opening the Fuel Fill Cap Open the seat.
  • Page 35 Closing the Fuel Fill Cap Install and tighten the fuel fill cap firmly by turning it clockwise. Make sure that the arrow marks on the fuel fill cap and fuel tank is aligned. Close the seat. WARNING Petrol is highly flammable and explosive.
  • Page 36 Storage Equipment To open the Seat Insert the ignition key into the seat lock and Seat Turn turn it clockwise to unlock. To close the Seat Close and push down on the rear of the seat until locks. Ignition key Make sure that the seat is locked securely to pull it up lightly.
  • Page 37 Helmet Holder WARNING The helmet holders are located under the Riding with a helmet attached to the seat. holder can interfere with your ability to Use the helmet holders only when parked. safely operate the vehicle and could Helmet holders lead to a crash in which you can be seriously hurt or killed.
  • Page 38 Storage Equipment (Continued) Document Bag Tool Kit The document bag is in the document The tool kit is in the tool kit compartment compartment on the reverse side of the seat. Tool kit Tool kit Document Document bag compartment compartment Removing the right side cover (P.53)
  • Page 39: Maintenance

    Maintenance Please read “Importance of Maintenance” and “Maintenance Fundamentals” carefully before attempting any maintenance. Refer to “Specifications” for service data. Importance of Maintenance ......P. 34 Adjusting the Rear Suspension ......P. 68 Maintenance Schedule........P. 35 Maintenance Fundamentals ......P. 38 Tool ...............
  • Page 40: Importance Of Maintenance

    Importance of Maintenance Importance of Maintenance Maintenance Safety Keeping your vehicle well-maintained is Always read the maintenance instructions absolutely essential to your safety and to before you begin each task and make sure that protect your investment, obtain maximum you have the tools, parts, and skills required. performance, avoid breakdowns, and reduce air We cannot warn you of every conceivable pollution.
  • Page 41: Maintenance Schedule

    Maintenance work should be performed in new owner. accordance with Honda's standards and specifications by properly trained and equipped Honda recommends that your dealer should technicians. Your dealer meets all of these road test your vehicle after each periodic requirements. Keep an accurate record of maintenance is carried out.
  • Page 42 Inspect (clean, adjust, lubricate, or replace, if necessary) dealer, unless you have the necessary tools and are Replace mechanically skilled. Clean Procedures are provided in an official Honda Shop Manual. Lubricate : Technical. In the interest of safety, have your vehicle serviced by your dealer.
  • Page 43 Maintenance Schedule Frequency Pre-ride Annual Regular Refer to Items Check × 1,000 km 1 12 18 24 30 Check Replace page P. 38 × 1,000 mi 0.6 4 12 16 20 Secondary Air Supply System – Secondary Air Supply Pair Filter 3 years –...
  • Page 44: Maintenance Fundamentals

    Maintenance Fundamentals Brakes - Check operation; ● Pre-ride Inspection Front and Rear: check shoes wear and freeplay, adjust if necessary P. 56, P. 57, To ensure safety, it is your responsibility to P. 62 perform a pre-ride inspection and make sure Lights and horn - Check that lights, that any problem you find is corrected.
  • Page 45 Maintenance Fundamentals Replacing Parts Battery Always use Honda Genuine Parts or their Your vehicle has a maintenance-free type equivalents to ensure reliability and safety. battery. You do not have to check the battery electrolyte level or add distilled water. Clean the...
  • Page 46 Maintenance Fundamentals WARNING What to do in an emergency If any of the following occur, immediately see The battery gives off explosive your doctor. hydrogen gas during normal operation. Electrolyte splashes into your eyes: ● Wash your eyes repeatedly with cool water for at least 15 minutes.
  • Page 47 Always replace the battery with another maintenance-free battery of the same type. NOTICE Installing non-Honda electrical accessories can NOTICE overload the electrical system, discharging the Replacing a fuse with one that has a higher rating greatly battery and possibly damaging the system.
  • Page 48 “Resource Conserving” on the circular API For recommended engine oil, see service symbol. “Specifications.” P. 90 If you use non-Honda engine oil, check the label to make sure that the oil satisfies all of the following standards: JASO T 903 standard : MA ●...
  • Page 49 Maintenance Fundamentals Drive Chain The drive chain must be inspected and lubricated regularly. Inspect the chain more frequently if you often ride on bad roads, ride at Normal Worn Damaged high speed, or ride with repeated fast (GOOD) (REPLACE) (REPLACE) acceleration.
  • Page 50 Maintenance Fundamentals Never use petrol or low flash point solvents for Cleaning and Lubricating cleaning the drive chain. After inspecting the slack, clean the chain and A fire or explosion could result. sprockets while rotating the rear wheel. Use a Avoid getting lubricant on the brakes or tyres.
  • Page 51 Maintenance Fundamentals Inspecting for Abnormal Wear Tyres (Inspecting/Replacing) Checking the Air Pressure Inspect the tyres for Visually inspect your tyres and use an air signs of abnormal wear pressure gauge to measure the air pressure at on the contact surface. least once a month or any time you think the tyres look low.
  • Page 52 Maintenance Fundamentals WARNING Inspecting Tread Depth Inspect the tread wear indicators. If they Riding on tyres that are excessively become visible, replace the tyres immediately. worn or improperly inflated can cause a crash in which you can be seriously hurt or killed.
  • Page 53 Maintenance Fundamentals Have your tyres replaced by your dealer. WARNING For recommended tyres and air pressure, see Installing improper tyres on your “Specifications.” P. 90 vehicle can adversely affect handling Follow these guidelines whenever you replace and stability, and can cause a crash in tyres.
  • Page 54: Tool

    Tool You can perform some roadside repairs, minor Standard/Phillips screwdriver adjustments and parts replacement with the provided tools. The tool kit is stored in the centre compartment. P. 32 10 × 12 mm Open end wrench ● 14 × 17 mm Open end wrench ●...
  • Page 55: Removing & Installing Body Components

    Removing & Installing Body Components Battery Removal Make sure the ignition switch is in the OFF Battery cover Bolt/collar position. Remove the right side cover. P. 53 Open the tool kit compartment cover. Remove the bolt/collar and open the battery cover. Positive terminal Negative terminal...
  • Page 56 Removing & Installing Body Components Battery Disconnect the negative - terminal from the battery. Disconnect the positive + terminal from the battery. Remove the battery, taking care not to drop the terminal nuts. Installation Install the parts in the reverse order of removal.
  • Page 57: Headlight Case

    Removing & Installing Body Components Headlight Case Headlight Case Removal Pull up the rubber dust covers. Rearview mirrors Loosen the lock nuts by turning them clockwise. Rubber dust covers Loosen the rearview mirrors and remove them by turning them clockwise. Loosen the mirror adapters by turning Mirror them counterclockwise and remove them.
  • Page 58 Removing & Installing Body Components Headlight Case Installation Screws Install the parts in the reverse order of Headlight Slot removal. case To install the rearview mirrors. Install the mirror adapters. Slot Install the rearview mirrors by turning counterclockwise until they will no longer turn.
  • Page 59: Right Side Cover

    Removing & Installing Body Components Right Side Cover Right Side Cover Removal Remove the screw A and screw B. Screw B Right side cover Pull out the boss. Pull the right side cover down to release the tabs. Remove the right side cover. Installation Install the parts in the reverse order of removal.
  • Page 60: Engine Oil

    Engine Oil Checking the Engine Oil Upper level If the engine is cold, idle the engine for 3 to 5 minutes. Turn the ignition switch to the OFF position and wait for 2 to 3 minutes. Place your vehicle on its centre stand on a firm, level surface.
  • Page 61 Engine Oil Adding Engine Oil Adding Engine Oil Securely reinstall the oil fill cap/dipstick. NOTICE If the engine oil is below or near the lower Overfilling with oil or operating with insufficient level mark, add the recommended engine oil. oil can cause damage to your engine. Do not mix P.
  • Page 62: Brakes

    Brakes Inspecting the Rear Brake Make sure the brake rod, brake arm, spring and fastener are in good condition. Pedal Freeplay Place your vehicle on its centre stand on a firm, level surface. Measure the distance the rear brake pedal moves before the brake takes hold. Freeplay at the tip of the brake pedal: 20 - 30 mm (0.8 - 1.2 in) Rear brake pedal...
  • Page 63 Brakes Inspecting the Front Brake Lever Freeplay Inspecting the Front Brake Check the brake cable for kinks or signs of wear. If necessary have it replaced by your Lever Freeplay dealer. Lubricate the brake cable with a Place your vehicle on its centre stand on a commercially available cable lubricant to firm, level surface.
  • Page 64 Brakes Adjusting the Rear Brake Pedal Freeplay Adjusting the Rear Brake Pedal Adjust by turning the rear brake adjusting nut a half-turn at a time. Freeplay Make sure the cut-out on the adjusting nut is seated on the brake arm pin when adjusting the freeplay.
  • Page 65 Brakes Adjusting the Rear Brake Pedal Freeplay Push the brake arm to confirm that there After adjustment, confirm the freeplay of the is a gap between the rear brake adjusting brake pedal. nut and brake arm pin. Make sure the brake rod, brake arm, spring and fastener are in good condition.
  • Page 66 Brakes Adjusting the Front Brake Lever Freeplay Adjusting the Front Brake Lever Freeplay Adjust the freeplay of the brake lever with the Adjusting front wheel pointed straight ahead. Make sure the cut-out on the adjusting nut is seated on the brake arm pin when adjusting Decrease the freeplay.
  • Page 67 Brakes Adjusting the Front Brake Lever Freeplay Push the brake arm to confirm that there After adjustment, confirm the freeplay of the is a gap between the front brake brake lever. adjusting nut and brake arm pin. Make sure the brake arm, spring and fastener are in good condition.
  • Page 68 Brake arm See your dealer for this service. When the brake service is necessary, see your dealer. Use only Honda Genuine Parts or its equivalent.
  • Page 69 Brakes Adjusting the Brakelight Switch Adjusting the Brakelight Switch Check the operation of the brakelight switch. Hold the brakelight switch and turn the adjusting nut in the direction A if the switch operates too late, or turn the nut in the direction B if the switch operates too soon.
  • Page 70: Side Stand

    Side Stand Checking the Side Stand Side stand spring Check that the side stand operates smoothly. If the side stand is stiff or squeaky, clean the pivot area and lubricate the pivot bolt with clean grease. Check the spring for damage or loss of tension.
  • Page 71: Drive Chain

    Drive Chain Inspecting the Drive Chain Slack Check the drive chain slack at several points along the chain. If the slack is not constant at all points, some links may be kinked and binding. Have the chain inspected by your dealer. Shift the transmission to Neutral.
  • Page 72 Drive Chain Inspecting the Drive Chain Slack Move the drive chain up and down with Remove the chain covers by removing the your finger. bolts. Drive chain slack: Bolt B 25 - 35 mm (1.0 - 1.4 in) Do not ride your vehicle if the slack exceeds 50 mm (2.0 in).
  • Page 73: Throttle

    Throttle Checking the Throttle With the engine off, check that the throttle rotates smoothly from fully closed to fully open in all steering positions and throttle freeplay is correct. If the throttle does not move smoothly, close automatically, or if the cable is damaged, have the vehicle inspected by your dealer.
  • Page 74: Other Adjustments

    Other Adjustments Adjusting the Rear Suspension Adjuster positions Spring Preload Adjuster You can adjust the spring preload by the adjuster to suit the load or the road surface. Turn the adjuster to adjust the rear shocks. Be certain to adjust both shock absorbers to the same position.
  • Page 75: Troubleshooting

    Troubleshooting Engine Will Not Start........P. 70 Tyre Puncture ............. P. 71 Electrical Trouble ..........P. 72 Battery Goes Dead ..........P. 72 Burned-out Light Bulb........P. 72 Blown Fuse ............P. 77...
  • Page 76: Engine Will Not Start

    Engine Will Not Start Starter Motor Operates But Starter Motor Does Not Engine Does Not Start Operate Check the following items: Check the following items: Check the correct engine starting Check the correct engine starting ● ● sequence. P. 23 sequence.
  • Page 77: Tyre Puncture

    Tyre Puncture WARNING Repairing a puncture or removing a wheel requires special tools and technical expertise. Riding your vehicle with a temporary We recommend you have this type of service tyre or tube repair can be risky. If the performed by your dealer. temporary repair fails, you can crash After an emergency repair, always have the and be seriously injured or killed.
  • Page 78: Electrical Trouble

    Electrical Trouble Battery Goes Dead Burned-out Light Bulb Charge the battery using a motorcycle Follow the procedure below to replace a battery charger. burned-out light bulb. Remove the battery from the vehicle before Turn the ignition switch to the OFF or LOCK charging.
  • Page 79 Electrical Trouble Burned-out Light Bulb Headlight Bulb Remove the headlight case. P. 51 Remove the rubber cover. Bulb Slightly press the socket and turn it TOP mark counterclockwise, then pull it out. Remove the headlight bulb. Install a new bulb and parts in the reverse order of removal.
  • Page 80 Electrical Trouble Burned-out Light Bulb Brakelight/Taillight Bulb Remove the brakelight/taillight lens by removing the screws. Slightly press the bulb in and turn it counterclockwise. Bulb Install a new bulb in the reverse order of removal. Brakelight/ taillight lens Screws...
  • Page 81 Electrical Trouble Burned-out Light Bulb Front Turn Signal Bulb Remove the headlight case. P. 51 Turn the socket counterclockwise and pull Socket it out. Bulb Pull out the bulb without turning it. Install a new bulb and parts in the reverse order of removal.
  • Page 82 Electrical Trouble Burned-out Light Bulb Rear Turn Signal Bulb Remove the brakelight/taillight lens removing the screws. Brakelight/ Pull out the bulbs without turning it. taillight lens Install a new bulb and parts in the reverse Bulb order of removal. Use only the amber bulb. Bulb Screws...
  • Page 83: Blown Fuse

    Electrical Trouble Blown Fuse Blown Fuse Remove the right side cover. P. 53 Open the fuse box covers. Pull out the fuses one by one to check for Before handling fuses, see “Inspecting and a blown fuse. Always replace a blown fuse Replacing Fuses.”...
  • Page 84: Information

    Information Keys............... P. 79 Instruments, Controls, & Other Features..P. 80 Caring for Your Vehicle........P. 81 Storing Your Vehicle......... P. 84 Transporting Your Vehicle ......P. 85 You & the Environment........P. 86 Serial Numbers........... P. 87 Fuels Containing Alcohol......... P. 88...
  • Page 85: Keys

    Keys Keys Ignition Key Be sure to record the key number provided with the original keys. Store the spare key and key number in a safe location. To make a duplicate, take the spare key or the key number to your dealer. If you lose all ignition keys and the key number, the ignition switch assembly will probably have to be removed by your dealer to determine the...
  • Page 86: Instruments, Controls, & Other Features

    Instruments, Controls, & Other Features Instruments, Controls, & Document Bag Other Features The owner’s manual, registration, and insurance information can be stored in the plastic Ignition Switch document bag located on the reverse side of the seat. P. 32 Leaving the ignition switch in the ON position with the engine stopped will drain the battery.
  • Page 87: Caring For Your Vehicle

    Frequent cleaning and polishing is important to After the vehicle dries, lubricate any moving ensure the life of your Honda. A clean vehicle parts. makes it easier to spot potential problems.
  • Page 88 Caring for Your Vehicle Washing Precautions Do not direct water at the air cleaner: ● Water in the air cleaner can prevent the Follow these guidelines when washing: engine from starting. Do not use high-pressure washers: ● Do not direct water near the headlight: High-pressure water cleaners can ●...
  • Page 89 Caring for Your Vehicle Aluminium Components Exhaust Pipe and Muffler Aluminium will corrode from contact with dirt, When the exhaust pipe and muffler are painted, mud, or road salt. Clean aluminium parts do not use a commercially available abrasive regularly and follow these guidelines to avoid kitchen cleaning compound.
  • Page 90: Storing Your Vehicle

    Storing Your Vehicle Storing Your Vehicle Remove the battery ( P. 49) to prevent ● discharge. Fully charge the battery and then If you store your vehicle outdoors, you should place it in a shaded, well-ventilated area. consider using a full-body cover. If you leave the battery in place, If you won't be riding for an extended period, disconnect the negative - terminal to...
  • Page 91: Transporting Your Vehicle

    Transporting Your Vehicle Transporting Your Vehicle If your vehicle needs to be transported, it should be carried on a motorcycle trailer or a flatbed truck or trailer that has a loading ramp or lifting platform, and motorcycle tie-down straps. Never try to tow your vehicle with a wheel or wheels on the ground.
  • Page 92: You & The Environment

    You & the Environment You & the Environment Recycle Wastes Put oil and other toxic wastes in approved Owning and riding a vehicle can be enjoyable, containers and take them to a recycling centre. but you must do your part to protect the Call your local or state office of public works or environment.
  • Page 93: Serial Numbers

    Serial Numbers Serial Numbers Frame number The frame and engine serial numbers uniquely identify your vehicle and are required in order to register your vehicle. They may also be required when ordering replacement parts. You should record these numbers and keep them in a safe place.
  • Page 94: Fuels Containing Alcohol

    Fuels Containing Alcohol Fuels Containing Alcohol The use of petrol containing more than 10% ethanol may: Some conventional fuels blended with alcohol Damage the painting of the fuel tank. ● are available in some locales to help reduce Damage the rubber tubes of the fuel line. ●...
  • Page 95: Specifications

    Specifications Main Components ■ Displacement 124.85 cm (7.616 cu-in) Overall length 1,867 mm (73.5 in) Bore x stroke 52.400 x 57.896 mm (2.0630 x 2.2794 in) Overall width 702 mm (27.6 in) Compression ratio 9.3 : 1 Overall height 1,049 mm (41.3 in) Unleaded petrol Fuel Wheelbase...
  • Page 96 Specifications Service Data ■ Honda 4-stroke motorcycle oil API Service Classification SJ or higher, excluding oils Front 60/100-17M/C 33P Recommended Tyre size marked as “Energy Conserving” or “Resource Rear 70/100-17M/C 40P engine oil Conserving,” SAE 10W-30, JASO T 903 Tyre type...
  • Page 97 Specifications Bulbs Torque Specifications ■ ■ Headlight 12 V-32/32 W Chain case bolt 7 N·m (0.7 kgf·m, 5.2 lbf·ft) Brakelight/Taillight 12 V-18/5 W Position light Front turn signal light 12 V-10 W × 2 Rear turn signal light 12 V-10 W × 2 Fuses ■...
  • Page 99 Honda Cambodia – NCX www.ncxhonda.com.kh 4PK37A60 00X4P-K37-A600...
