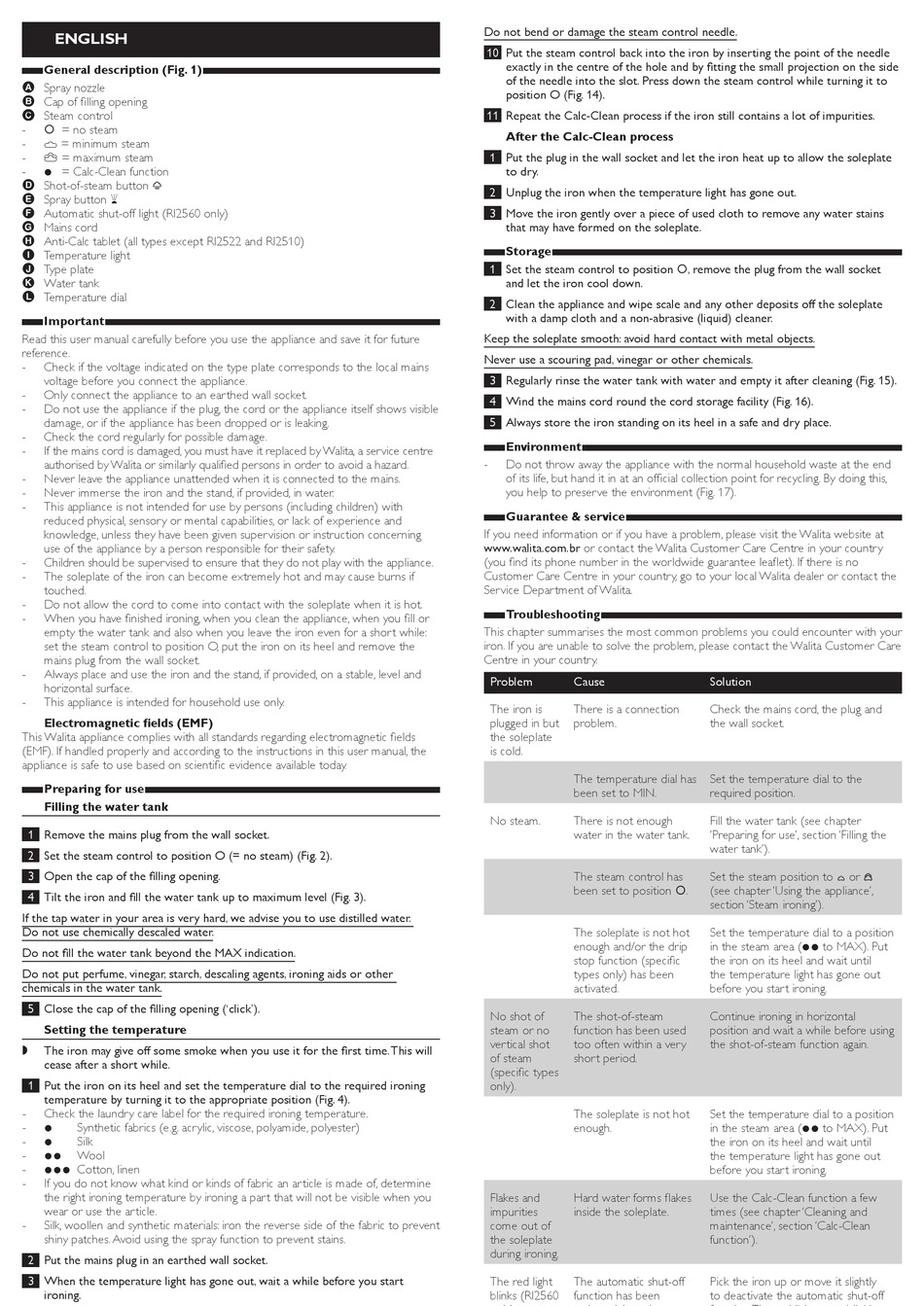

Philips RI2560 User Manual

EnGlISh
General description (Fig. 1)
A Spray nozzle
B Cap of filling opening
C Steam control
- O = no steam
-
l = minimum steam
- ; = maximum steam
- 1 = Calc-Clean function
D Shot-of-steam button 9
E Spray button T
F Automatic shut-off light (RI2560 only)
G Mains cord
H Anti-Calc tablet (all types except RI2522 and RI2510)
I Temperature light
J Type plate
K Water tank
L Temperature dial
Important
Read this user manual carefully before you use the appliance and save it for future
reference.
- Check if the voltage indicated on the type plate corresponds to the local mains
voltage before you connect the appliance.
- Only connect the appliance to an earthed wall socket.
- Do not use the appliance if the plug, the cord or the appliance itself shows visible
damage, or if the appliance has been dropped or is leaking.
- Check the cord regularly for possible damage.
- If the mains cord is damaged, you must have it replaced by Walita, a service centre
authorised by Walita or similarly qualified persons in order to avoid a hazard.
- Never leave the appliance unattended when it is connected to the mains.
- Never immerse the iron and the stand, if provided, in water.
- This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
- Children should be supervised to ensure that they do not play with the appliance.
- The soleplate of the iron can become extremely hot and may cause burns if
touched.
- Do not allow the cord to come into contact with the soleplate when it is hot.
- When you have finished ironing, when you clean the appliance, when you fill or
empty the water tank and also when you leave the iron even for a short while:
set the steam control to position O, put the iron on its heel and remove the
mains plug from the wall socket.
- Always place and use the iron and the stand, if provided, on a stable, level and
horizontal surface.
- This appliance is intended for household use only.
Electromagnetic fields (EMF)
This Walita appliance complies with all standards regarding electromagnetic fields
(EMF). If handled properly and according to the instructions in this user manual, the
appliance is safe to use based on scientific evidence available today.
Preparing for use
Filling the water tank
1 Remove the mains plug from the wall socket.
2 Set the steam control to position O (= no steam) (Fig. 2).
3 Open the cap of the filling opening.
4 Tilt the iron and fill the water tank up to maximum level (Fig. 3).
If the tap water in your area is very hard, we advise you to use distilled water.
Do not use chemically descaled water.
Do not fill the water tank beyond the MAX indication.
Do not put perfume, vinegar, starch, descaling agents, ironing aids or other
chemicals in the water tank.
5 Close the cap of the filling opening ('click').
Setting the temperature
The iron may give off some smoke when you use it for the first time. This will
,
cease after a short while.
1 Put the iron on its heel and set the temperature dial to the required ironing
temperature by turning it to the appropriate position (Fig. 4).
- Check the laundry care label for the required ironing temperature.
- Synthetic fabrics (e.g. acrylic, viscose, polyamide, polyester)
1
- Silk
1
- Wool
2
- 3 Cotton, linen
- If you do not know what kind or kinds of fabric an article is made of, determine
the right ironing temperature by ironing a part that will not be visible when you
wear or use the article.
- Silk, woollen and synthetic materials: iron the reverse side of the fabric to prevent
shiny patches. Avoid using the spray function to prevent stains.
2 Put the mains plug in an earthed wall socket.
3 When the temperature light has gone out, wait a while before you start
ironing.
Do not bend or damage the steam control needle.
10 Put the steam control back into the iron by inserting the point of the needle
exactly in the centre of the hole and by fitting the small projection on the side
of the needle into the slot. Press down the steam control while turning it to
position O (Fig. 14).
11 Repeat the Calc-Clean process if the iron still contains a lot of impurities.
After the Calc-Clean process
1 Put the plug in the wall socket and let the iron heat up to allow the soleplate
to dry.
2 Unplug the iron when the temperature light has gone out.
3 Move the iron gently over a piece of used cloth to remove any water stains
that may have formed on the soleplate.
Storage
1 Set the steam control to position O, remove the plug from the wall socket
and let the iron cool down.
2 Clean the appliance and wipe scale and any other deposits off the soleplate
with a damp cloth and a non-abrasive (liquid) cleaner.
Keep the soleplate smooth: avoid hard contact with metal objects.
Never use a scouring pad, vinegar or other chemicals.
3 Regularly rinse the water tank with water and empty it after cleaning (Fig. 15).
4 Wind the mains cord round the cord storage facility (Fig. 16).
5 Always store the iron standing on its heel in a safe and dry place.
Environment
- Do not throw away the appliance with the normal household waste at the end
of its life, but hand it in at an official collection point for recycling. By doing this,
you help to preserve the environment (Fig. 17).
Guarantee & service
If you need information or if you have a problem, please visit the Walita website at
www.walita.com.br or contact the Walita Customer Care Centre in your country
(you find its phone number in the worldwide guarantee leaflet). If there is no
Customer Care Centre in your country, go to your local Walita dealer or contact the
Service Department of Walita.
Troubleshooting
This chapter summarises the most common problems you could encounter with your
iron. If you are unable to solve the problem, please contact the Walita Customer Care
Centre in your country.
Problem Cause
The iron is There is a connection
plugged in but problem.
the soleplate
is cold.
The temperature dial has
been set to MIN.
No steam. There is not enough
water in the water tank.
The steam control has
been set to position O.
The soleplate is not hot
enough and/or the drip
stop function (specific
types only) has been
activated.
No shot of The shot-of-steam
steam or no function has been used
vertical shot too often within a very
of steam short period.
(specific types
only).
The soleplate is not hot
enough.
Flakes and Hard water forms flakes
impurities inside the soleplate.
come out of
the soleplate
during ironing.
The red light The automatic shut-off
blinks (RI2560 function has been
Solution
Check the mains cord, the plug and
the wall socket.
Set the temperature dial to the
required position.
Fill the water tank (see chapter
'Preparing for use', section 'Filling the
water tank').
Set the steam position to ç or é
(see chapter 'Using the appliance',
section 'Steam ironing').
Set the temperature dial to a position
in the steam area (2 to MAX). Put
the iron on its heel and wait until
the temperature light has gone out
before you start ironing.
Continue ironing in horizontal
position and wait a while before using
the shot-of-steam function again.
Set the temperature dial to a position
in the steam area (2 to MAX). Put
the iron on its heel and wait until
the temperature light has gone out
before you start ironing.
Use the Calc-Clean function a few
times (see chapter 'Cleaning and
maintenance', section 'Calc-Clean
function').
Pick the iron up or move it slightly
to deactivate the automatic shut-off
