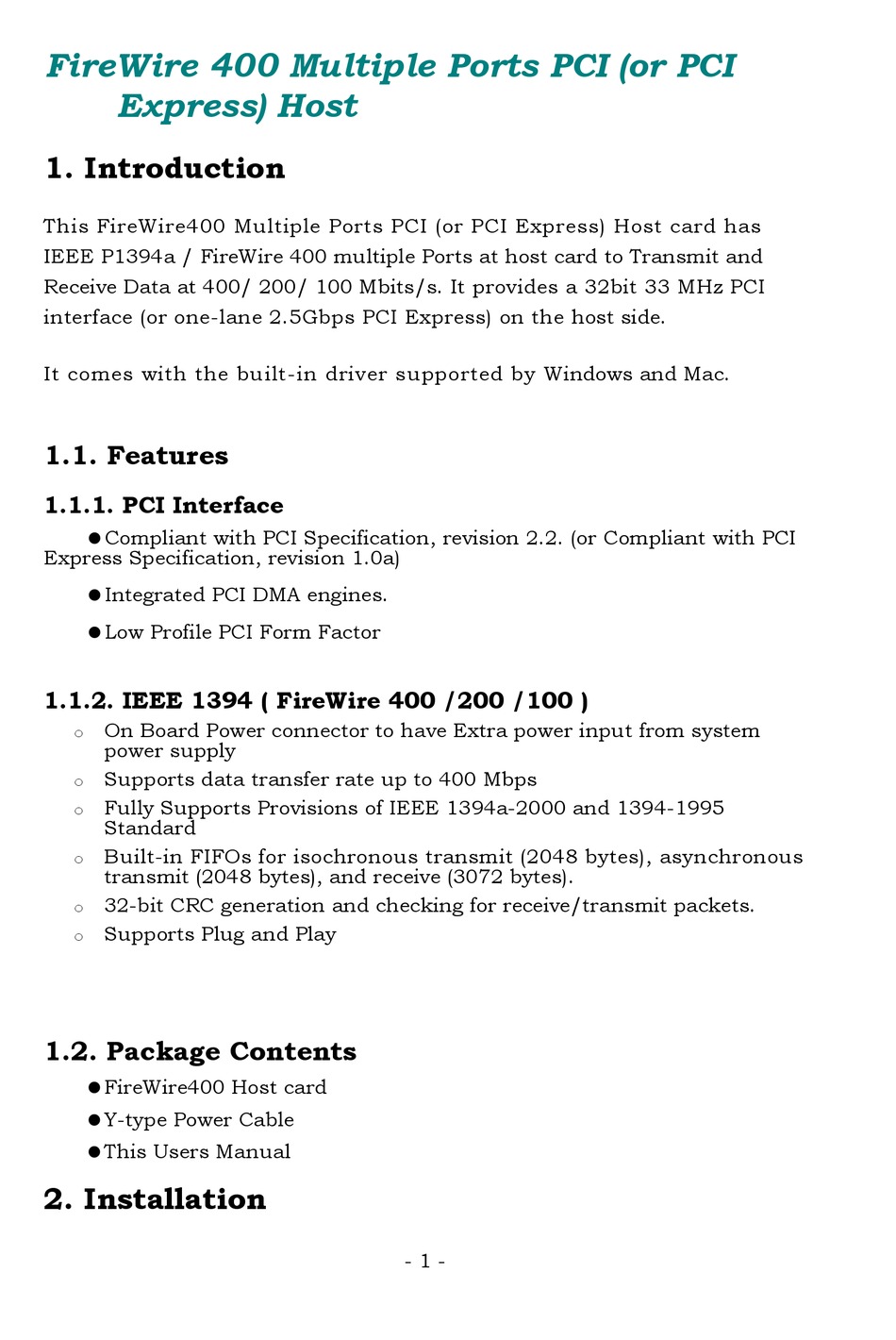

Ableconn PEX-FW101 Quick Start Manual

FireWire 400 Multiple Ports PCI (or PCI
Express) Host

1. Introduction

This FireWire400 Multiple Ports PCI (or PCI Express) Host card has
IEEE P1394a / FireWire 400 multiple Ports at host card to Transmit and
Receive Data at 400/ 200/ 100 Mbits/s. It provides a 32bit 33 MHz PCI
interface (or one-lane 2.5Gbps PCI Express) on the host side.
It comes with the built-in driver supported by Windows and Mac.

1.1. Features

1.1.1. PCI Interface

Compliant with PCI Specification, revision 2.2. (or Compliant with PCI
Express Specification, revision 1.0a)
Integrated PCI DMA engines.
Low Profile PCI Form Factor

1.1.2. IEEE 1394 ( FireWire 400 /200 /100 )

On Board Power connector to have Extra power input from system
o
power supply
Supports data transfer rate up to 400 Mbps
o
Fully Supports Provisions of IEEE 1394a-2000 and 1394-1995
o
Standard
Built-in FIFOs for isochronous transmit (2048 bytes), asynchronous
o
transmit (2048 bytes), and receive (3072 bytes).
32-bit CRC generation and checking for receive/transmit packets.
o
Supports Plug and Play
o

1.2. Package Contents

FireWire400 Host card
Y-type Power Cable
This Users Manual

2. Installation

- 1 -
