Elfa 51322 Assembly Instructions

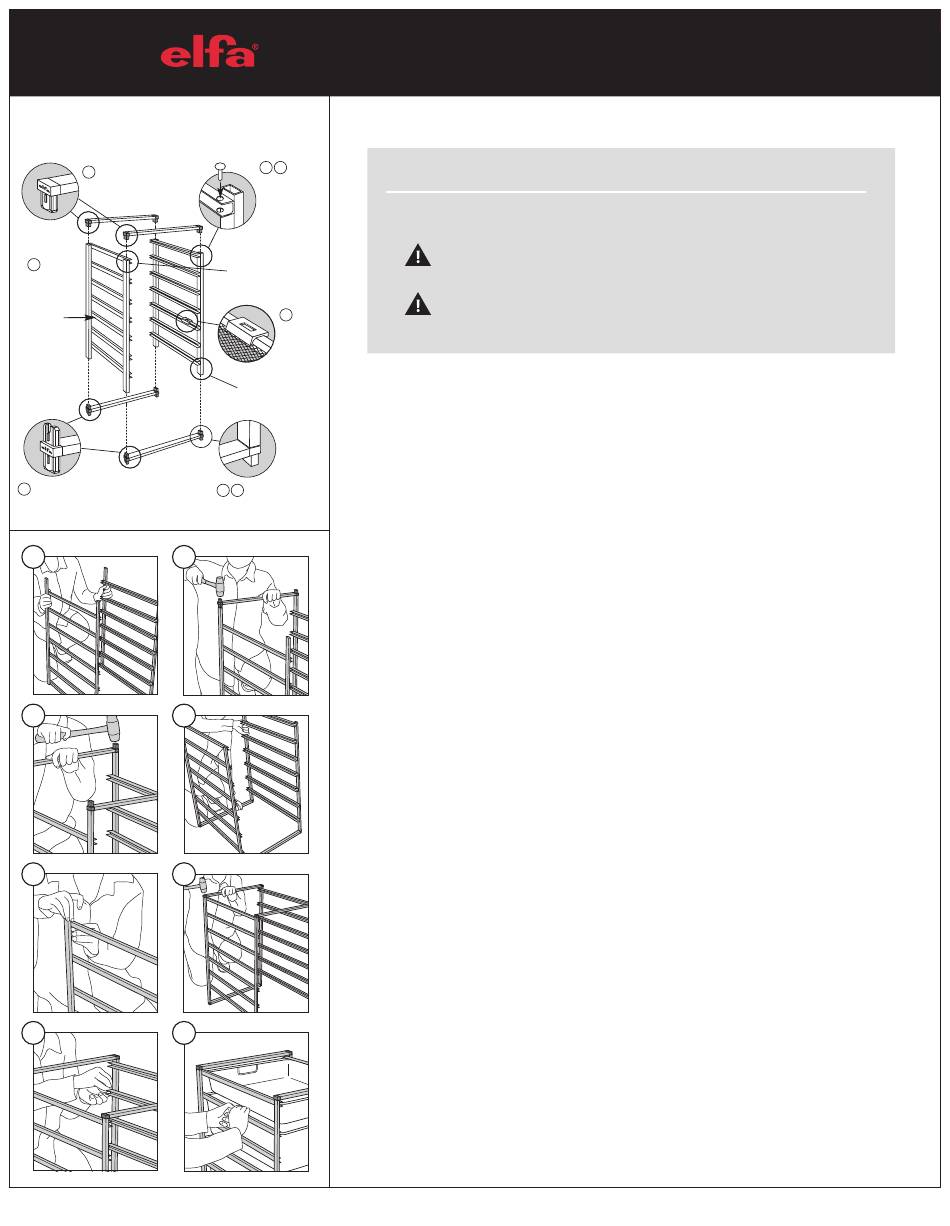

DIAGRAM 1
Top
6
L-Crossbars
Side
1
Panels
Frame
Runners
Bottom
2
T-Crossbars
1 2
3 4
5 6
7 8
Drawer Unit Assembly Instructions
Tools needed: plastic mallet, 2 pieces of tape
TIPS FOR GETTING STARTED
5 7
Back
Stop Pins
Side Panel Top
8
In & Out
Stop

Assemble the Frame

Side Panel
Bottom
Frame
3 4
Feet

Add Drawers

• If you don't have a plastic mallet, you can use a hammer with a wood
block or towel to protect the frame. Take care to protect the floor.
Make sure you start with the T-Crossbar. Elfa Logo will read upside
down in this position.
To keep Pins from "jumping" out of the holes while tapping the Top
L-Crossbars in place, cover with a piece of tape.
1 Position the Side Panels with the runners facing inward.
2 Using a plastic mallet, tap the bottom T-Crossbar into the bottom of
each Side Panel. Make sure you start with the T-Crossbar. Elfa Logo
will read upside down in this position. See diagram 1. Alternate tapping
each side to ensure T-Crossbar inserts smoothly.
3 Tap the four Frame Feet into place.
4 Flip Frame over so Feet are resting on the ground.
5 Put 2 Back Stop Pins in the back holes of the top runners. To keep
Pins from "jumping" out of the holes while tapping the Top
L-Crossbars in place, cover with a piece of tape. The remaining Back
Stop Pins should be put in place just prior to sliding in the Drawers.
IF COMBINING FRAMES, SKIP TO PAGE 2 NOW.
6 Tap the Top L-Crossbars down part way, alternating sides, then remove
the tape and tap completely into each Side Panel. If using a Melamine
Top, place adhesive strips included in the packaging on the top of the
Frame on all four corners. Remove paper backing. Position Top and press
firmly to secure.
7 Insert 2 Back Stop Pins for each Drawer and slide in Drawers.
8 In/Out Stops keep your drawer from pulling completely out. Position the
In/Out Stop so that the long side is inside the Drawer. Clip the short side
of the In/Out Stop over the Frame Runner. Repeat on other side.
• If you have other accessories, add them now.
For assembly video, visit containerstore.com/elfa/installation
